Collection: Socket Set Screws - Diamond Knurled Tip - Stainless Steel

Socket Set Screws -> Diamond Knurled Tip -> Stainless Steel

There are 23 products in the sub-categories of Socket Set Screws - Diamond Knurled Tip - Stainless Steel. Scroll down or follow the link to Socket Set Screws - Diamond Knurled Tip - Stainless Steel in the products table to see all these items combined into a handy table with filters.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

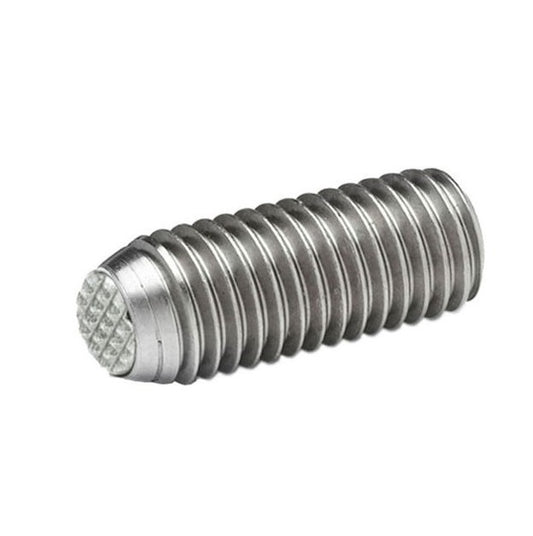

A selection of Stainless Steel Diamond Knurled Tip Socket Set Screws. Grub screws that grip rough shafts.

Socket driven grub screw swith a knurled diamond tip.
Unlike traditional cup-point set screws, diamond tip is less aggressive but still provides a strong grip on the contact surface. This allows for a snug fit without damaging or permanently marking the material.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Socket Set Screws Master PDF

A more concise listing may be found in the Socket Set Screws - Diamond Knurled Tip - Stainless Steel category on the Small Parts & Bearings online store.

Thread Size	Thread Length (L)	Type	Ball Diameter (D)
Thread Size M6 (6x1mm)	Thread Length (L) 9.6 mm (Equiv. 0.378 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 3.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0096-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 9.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.

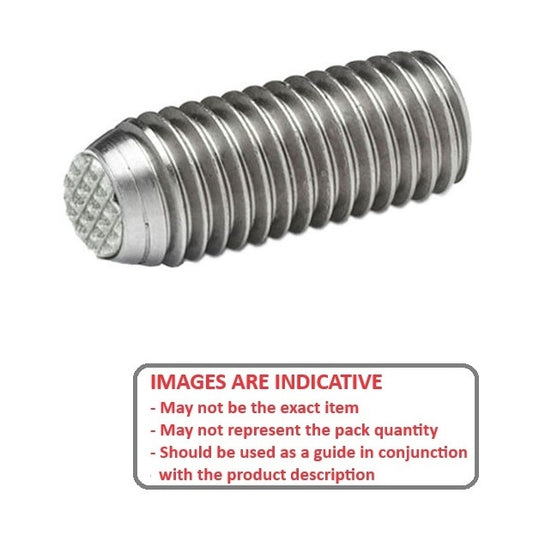

Thread Size	Thread Length (L)	Type	Indicative Image
Thread Size M6 (6x1mm)	Thread Length (L) 9.6 mm (Equiv. 0.378 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 3.2 mm Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0096-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 9.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS060M-0096-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 9.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS060M-0096-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 9.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M6 (6x1mm)	Thread Length (L) 15.6 mm (Equiv. 0.614 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 3.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0156-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 15.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M6 (6x1mm)	Thread Length (L) 15.6 mm (Equiv. 0.614 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 3.2 mm Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0156-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 15.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS060M-0156-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 15.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS060M-0156-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 15.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M6 (6x1mm)	Thread Length (L) 19.6 mm (Equiv. 0.772 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 3.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0196-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 19.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M6 (6x1mm)	Thread Length (L) 19.6 mm (Equiv. 0.772 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 3.2 mm Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0196-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 19.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS060M-0196-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 19.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS060M-0196-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 19.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M6 (6x1mm)	Thread Length (L) 24.6 mm (Equiv. 0.969 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 3.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0246-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 24.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M6 (6x1mm)	Thread Length (L) 24.6 mm (Equiv. 0.969 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 3.2 mm Hex Key Size: 3.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.0 mm Threads Per Inch: 25.4 TPI
Part Number: SS060M-0246-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 24.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS060M-0246-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 24.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS060M-0246-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M6 - 6x1mm - 24.6 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M8 (8x1.25mm)	Thread Length (L) 9.5 mm (Equiv. 0.374 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 4.5 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0095-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 9.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M8 (8x1.25mm)	Thread Length (L) 9.5 mm (Equiv. 0.374 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 4.5 mm Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0095-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 9.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS080M-0095-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 9.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS080M-0095-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 9.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M8 (8x1.25mm)	Thread Length (L) 11.5 mm (Equiv. 0.453 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 4.5 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0115-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 11.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M8 (8x1.25mm)	Thread Length (L) 11.5 mm (Equiv. 0.453 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 4.5 mm Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0115-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 11.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS080M-0115-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 11.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS080M-0115-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 11.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M8 (8x1.25mm)	Thread Length (L) 19.5 mm (Equiv. 0.768 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 4.5 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0195-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 19.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M8 (8x1.25mm)	Thread Length (L) 19.5 mm (Equiv. 0.768 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 4.5 mm Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0195-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 19.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS080M-0195-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 19.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS080M-0195-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 19.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M8 (8x1.25mm)	Thread Length (L) 24.5 mm (Equiv. 0.965 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 4.5 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0245-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 24.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M8 (8x1.25mm)	Thread Length (L) 24.5 mm (Equiv. 0.965 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 4.5 mm Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0245-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 24.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS080M-0245-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 24.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS080M-0245-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 24.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M8 (8x1.25mm)	Thread Length (L) 29.5 mm (Equiv. 1.161 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 4.5 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0295-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 29.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M8 (8x1.25mm)	Thread Length (L) 29.5 mm (Equiv. 1.161 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 4.5 mm Hex Key Size: 4.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.3 mm Threads Per Inch: 20.32 TPI
Part Number: SS080M-0295-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 29.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS080M-0295-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 29.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS080M-0295-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M8 - 8x1.25mm - 29.5 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M10 (10x1.5mm)	Thread Length (L) 11.4 mm (Equiv. 0.449 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 6.0 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0114-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 11.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M10 (10x1.5mm)	Thread Length (L) 11.4 mm (Equiv. 0.449 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 6.0 mm Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0114-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 11.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS100M-0114-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 11.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS100M-0114-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 11.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M10 (10x1.5mm)	Thread Length (L) 15.4 mm (Equiv. 0.606 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 6.0 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0154-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 15.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M10 (10x1.5mm)	Thread Length (L) 15.4 mm (Equiv. 0.606 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 6.0 mm Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0154-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 15.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS100M-0154-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 15.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS100M-0154-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 15.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M10 (10x1.5mm)	Thread Length (L) 19.4 mm (Equiv. 0.764 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 6.0 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0194-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 19.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M10 (10x1.5mm)	Thread Length (L) 19.4 mm (Equiv. 0.764 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 6.0 mm Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0194-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 19.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS100M-0194-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 19.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS100M-0194-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 19.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M10 (10x1.5mm)	Thread Length (L) 24.4 mm (Equiv. 0.961 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 6.0 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0244-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 24.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M10 (10x1.5mm)	Thread Length (L) 24.4 mm (Equiv. 0.961 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 6.0 mm Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0244-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 24.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS100M-0244-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 24.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS100M-0244-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 24.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M10 (10x1.5mm)	Thread Length (L) 34.4 mm (Equiv. 1.354 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 6.0 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0344-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 34.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M10 (10x1.5mm)	Thread Length (L) 34.4 mm (Equiv. 1.354 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 6.0 mm Hex Key Size: 5.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.5 mm Threads Per Inch: 16.93 TPI
Part Number: SS100M-0344-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 34.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS100M-0344-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 34.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS100M-0344-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M10 - 10x1.5mm - 34.4 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M12 (12x1.75mm)	Thread Length (L) 15.3 mm (Equiv. 0.602 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 7.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0153-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 15.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M12 (12x1.75mm)	Thread Length (L) 15.3 mm (Equiv. 0.602 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 7.2 mm Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0153-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 15.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS120M-0153-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 15.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS120M-0153-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 15.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M12 (12x1.75mm)	Thread Length (L) 19.3 mm (Equiv. 0.76 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 7.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0193-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 19.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M12 (12x1.75mm)	Thread Length (L) 19.3 mm (Equiv. 0.76 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 7.2 mm Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0193-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 19.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS120M-0193-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 19.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS120M-0193-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 19.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M12 (12x1.75mm)	Thread Length (L) 20.0 mm (Equiv. 0.787 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 8.5 mm
Material: 304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel (A2, 18-8) Ball Material: 440C Stainless HRC 50-55 Pitch: 1.75 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0200-S4-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 20 mm - 304 Stainless Steel A2, 18-8 with 440C Stainless HRC 50-55 tip Screw 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size M12 (12x1.75mm)	Thread Length (L) 20.0 mm (Equiv. 0.787 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip Ball Diameter (D): 8.5 mm Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel (A2, 18-8) Ball Material: 440C Stainless HRC 50-55 Pitch: 1.75 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0200-S4-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 20 mm - 304 Stainless Steel A2, 18-8 with 440C Stainless HRC 50-55 tip Screw 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SS120M-0200-S4-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 20 mm - 304 Stainless Steel A2, 18-8 with 440C Stainless HRC 50-55 tip Screw Sale SS120M-0200-S4-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 20 mm - 304 Stainless Steel A2, 18-8 with 440C Stainless HRC 50-55 tip Screw Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Thread Size M12 (12x1.75mm)	Thread Length (L) 29.3 mm (Equiv. 1.154 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 7.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0293-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 29.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M12 (12x1.75mm)	Thread Length (L) 29.3 mm (Equiv. 1.154 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 7.2 mm Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0293-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 29.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS120M-0293-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 29.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS120M-0293-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 29.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M12 (12x1.75mm)	Thread Length (L) 39.3 mm (Equiv. 1.547 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 7.2 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0393-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 39.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M12 (12x1.75mm)	Thread Length (L) 39.3 mm (Equiv. 1.547 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 7.2 mm Hex Key Size: 6.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 1.8 mm Threads Per Inch: 14.51 TPI
Part Number: SS120M-0393-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 39.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS120M-0393-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 39.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS120M-0393-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M12 - 12x1.75mm - 39.3 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $48.77 AUD Regular price ~~$58.53 AUD~~ Sale price $48.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M16 (16x2mm)	Thread Length (L) 19.0 mm (Equiv. 0.748 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 10.7 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0190-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 19 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M16 (16x2mm)	Thread Length (L) 19.0 mm (Equiv. 0.748 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 10.7 mm Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0190-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 19 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS160M-0190-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 19 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS160M-0190-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 19 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M16 (16x2mm)	Thread Length (L) 24.0 mm (Equiv. 0.945 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 10.7 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0240-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 24 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M16 (16x2mm)	Thread Length (L) 24.0 mm (Equiv. 0.945 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 10.7 mm Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0240-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 24 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS160M-0240-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 24 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS160M-0240-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 24 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M16 (16x2mm)	Thread Length (L) 34.0 mm (Equiv. 1.339 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 10.7 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0340-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 34 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M16 (16x2mm)	Thread Length (L) 34.0 mm (Equiv. 1.339 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 10.7 mm Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0340-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 34 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS160M-0340-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 34 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS160M-0340-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 34 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size M16 (16x2mm)	Thread Length (L) 49.0 mm (Equiv. 1.929 in.)	Type Diamond Knurled Tip	Ball Diameter (D) 10.7 mm
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0490-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 49 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size M16 (16x2mm)	Thread Length (L) 49.0 mm (Equiv. 1.929 in.)	Type Diamond Knurled Tip
Material: 304 Stainless Steel with 440C Stainless HRC 50-55 tip Ball Diameter (D): 10.7 mm Hex Key Size: 8.0 mm Body Material: 304 Stainless Steel Ball Material: 440C Stainless HRC 50-55 Pitch: 2.0 mm Threads Per Inch: 12.7 TPI
Part Number: SS160M-0490-S4-S440-DKT Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 49 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS160M-0490-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 49 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Sale SS160M-0490-S4-S440-DKT --- Diamond Knurled Tip Socket Set Screws - M16 - 16x2mm - 49 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw Regular price $88.14 AUD Regular price ~~$105.76 AUD~~ Sale price $88.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Socket Set Screws - Diamond Knurled Tip - Stainless Steel

Category Details

Filter

Filter

Subscribe to our emails
