Snap Buttons - Single End - Spring Leg

Snap Buttons -> Single End -> Spring Leg

There are 4 products in the sub-categories of Snap Buttons - Single End - Spring Leg. Browse the Snap Buttons - Single End - Spring Leg products table.

Category Details

A selection of Spring Leg Single End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.

  • Eliminates the need for rivets and screws.
  • Simply snap into place in square or round tubing.
  • Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Snap Buttons - Single End - Spring Leg category on the Small Parts & Bearings online store.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Centre to Middle of End (C) Length (D) Indicative

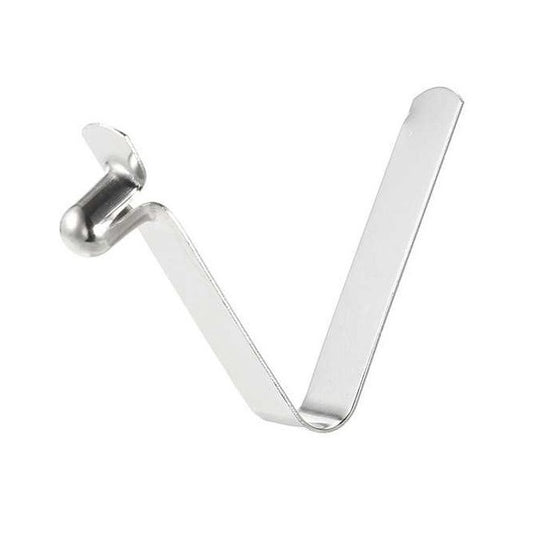

Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Centre to Middle of End (C)
29.72
mm
Length (D)
36.8
mm
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Use with Round Tubing: 11.4 to 22.0    Use with Square Tubing: 11.4 to 22.0
Part Number: SBTN-0635-SP (Each)
26 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$4.32 AUD
$4.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 26 available can be backordered.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
Single End Snap Buttons - 6.35x7.11x0.457 mm Spring Leg Snap Button
Button Diameter (A)
6.35
mm
Button Height (B)
7.11
mm
Material Thickness
0.457
mm
Clip Width
9.27
mm
Single End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 29.72 mm    Length (D): 36.8 mm    Use with Round Tubing: 11.4 to 22.0    Use with Square Tubing: 11.4 to 22.0
Part Number: SBTN-0635-SP (Each)
26 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$4.32 AUD
$4.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

26 Available Now. Backorder if more than 26.
Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
Button Diameter (A)
7.67
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Centre to Middle of End (C)
41.91
mm
Length (D)
48.5
mm
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Use with Round Tubing: 15.0 to 31.8    Use with Square Tubing: 15.0 to 31.8
Part Number: SBTN-0767-SP (Each)
35 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 35 available can be backordered.
Single End Snap Buttons - 7.67x9.4x0.508 mm Spring Leg Snap Button
Button Diameter (A)
7.67
mm
Button Height (B)
9.40
mm
Material Thickness
0.508
mm
Clip Width
11.18
mm
Single End Snap Buttons - 7.67x9.4x0.508 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 41.91 mm    Length (D): 48.5 mm    Use with Round Tubing: 15.0 to 31.8    Use with Square Tubing: 15.0 to 31.8
Part Number: SBTN-0767-SP (Each)
35 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

35 Available Now. Backorder if more than 35.
Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Centre to Middle of End (C)
45.97
mm
Length (D)
54.1
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Use with Round Tubing: 17.3 to 34.8    Use with Square Tubing: 17.3 to 34.8
Part Number: SBTN-0927-SP (Each)
10 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$12.59 AUD
$12.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Single End Snap Buttons - 9.27x9.4x0.635 mm Spring Leg Snap Button
Button Diameter (A)
9.27
mm
Button Height (B)
9.40
mm
Material Thickness
0.635
mm
Clip Width
12.95
mm
Single End Snap Buttons - 9.27x9.4x0.635 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 45.97 mm    Length (D): 54.1 mm    Use with Round Tubing: 17.3 to 34.8    Use with Square Tubing: 17.3 to 34.8
Part Number: SBTN-0927-SP (Each)
10 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$12.59 AUD
$12.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Single End Snap Buttons - 9.53x14.99x0.762 mm Spring Leg Snap Button
Button Diameter (A)
9.53
mm
Button Height (B)
14.99
mm
Material Thickness
0.762
mm
Clip Width
9.53
mm
Single End Snap Buttons - 9.53x14.99x0.762 mm
Material: Stainless Steel    Use with Round Tubing: 24.9 to 57.2    Use with Square Tubing: 24.9 to 57.2    Special Material: 300 Grade Stainless Steel
Part Number: SBTN-0953-SP-S3 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 03, 2026
$666.68 AUD
$1,139.85 AUD $666.68 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Single End Snap Buttons - 9.53x14.99x0.762 mm Spring Leg Snap Button
Button Diameter (A)
9.53
mm
Button Height (B)
14.99
mm
Material Thickness
0.762
mm
Clip Width
9.53
mm
Single End Snap Buttons - 9.53x14.99x0.762 mm
Material: Stainless Steel    Use with Round Tubing: 24.9 to 57.2    Use with Square Tubing: 24.9 to 57.2    Special Material: 300 Grade Stainless Steel
Part Number: SBTN-0953-SP-S3 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 03, 2026
$666.68 AUD
$1,139.85 AUD $666.68 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
