Slides - Linear - Clean Room

Slides -> Linear -> Clean Room

There is only 1 product in the sub-categories of Slides - Linear - Clean Room. Browse the Slides - Linear - Clean Room products table.

Category Details

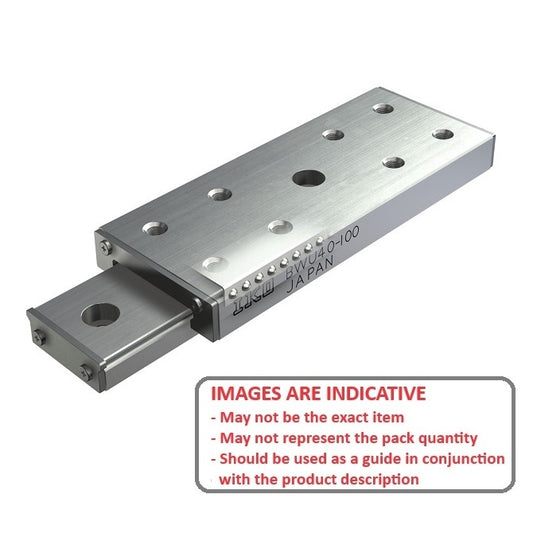

A selection of Clean Room Linear Slides. Stainless Steel throughout (similar to 440C).

  • Speed: 0.5 m/sec (30 m/min).
  • Temperature: +100oC (Continuous), +140oC (Maximum). Life will be less than normal at +100oC and dimensions may change.
  • Lateral Loading: Dynamic x 1.13 C - Static x 1.19 Co.
  • Precision Linear Slide Unit is a compact linear motion rolling guide for limited stroke length.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Slides - Linear - Clean Room category on the Small Parts & Bearings online store.
Width (W) Height (H) Length (L) Hole Ctrs (W1 / W2 / L1 / L2 ) Holes Thr x S1 (Nr.) Max Stroke Length Indicative
Width (W)
8.00
mm

(Equiv. 0.315 in.)
Height (H)
4.00
mm

(Equiv. 0.157 in.)
Length (L)
20.00
mm

(Equiv. 0.787 in.)
Hole Ctrs (W1 / W2 / L1 / L2 )
- / - / 10 / -
mm
Holes Thr x S1 (Nr.)
M2 x 0.8 (4)
Max Stroke Length
12
mm
Linear Slides - 8x4x20 mm
Screw Size / Max Depth: 0.8 mm    Track Width (W3): 3 mm    Track Height (H2): 2.6 mm    Basic Static Load Rating: 306 Co N    Allowable Load: 102 F N
Part Number: BWU8-20 (10 Pcs)
Linear Slides - 8x4x20 mm Clean Room
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$2,767.32 AUD
$2,767.32 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Width (W) Height (H) Length (L) Hole Ctrs (W1 / W2 / L1 / L2 ) Indicative
Width (W)
8.00
mm

(Equiv. 0.315 in.)
Height (H)
4.00
mm

(Equiv. 0.157 in.)
Length (L)
20.00
mm

(Equiv. 0.787 in.)
Hole Ctrs (W1 / W2 / L1 / L2 )
- / - / 10 / -
mm
Linear Slides - 8x4x20 mm
Holes Thr x S1 (Nr.): M2 x 0.8 (4)    Max Stroke Length: 12 mm    Screw Size / Max Depth: 0.8 mm    Track Width (W3): 3 mm    Track Height (H2): 2.6 mm    Basic Static Load Rating: 306 Co N    Allowable Load: 102 F N
Part Number: BWU8-20 (10 Pcs)
Linear Slides - 8x4x20 mm Clean Room
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$2,767.32 AUD
$2,767.32 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
