Shafting - Precision Ground - Stainless 416 Grade Hardened

Shafting -> Precision Ground -> Stainless 416 Grade Hardened

There are 2 products in the sub-categories of Shafting - Precision Ground - Stainless 416 Grade Hardened. Browse the Shafting - Precision Ground - Stainless 416 Grade Hardened products table.

Category Details

A selection of Stainless 416 Grade Hardened Precision Ground Shafting. Precision ground shafting. 416 grade. Hardened and recommended for use with precision bearings.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Shafting - Precision Ground - Stainless 416 Grade Hardened category on the Small Parts & Bearings online store.
Diameter (d) Length (L) Material Straightness Surface Finish Indicative
Precision Ground Shafting - 5x150 mm - 416 Stainless Stainless 416 Grade Hardened Shaft
Diameter (d)
5.000
mm
- 0.004 / - 0.012
(Equiv. 0.197 in.)
Length (L)
150
mm
Material
416 Stainless
Straightness
0.0003 mm / mm
Surface Finish
Ground 0.25 um
Microns
Precision Ground Shafting - 5x150 mm - 416 Stainless Stainless 416 Grade Hardened
Material: Stainless Steel AISI 416    Hardness: HRC 26-32    Ends: Chamfered
Part Number: 0R-0050-0150-S416-T12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Diameter (d) Length (L) Material Straightness Indicative
Precision Ground Shafting - 5x150 mm - 416 Stainless Stainless 416 Grade Hardened Shaft
Diameter (d)
5.000
mm
- 0.004 / - 0.012
(Equiv. 0.197 in.)
Length (L)
150
mm
Material
416 Stainless
Straightness
0.0003 mm / mm
Precision Ground Shafting - 5x150 mm - 416 Stainless Stainless 416 Grade Hardened
Material: Stainless Steel AISI 416    Surface Finish: Ground 0.25 um Microns    Hardness: HRC 26-32    Ends: Chamfered
Part Number: 0R-0050-0150-S416-T12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Wed, Apr 11, 2029

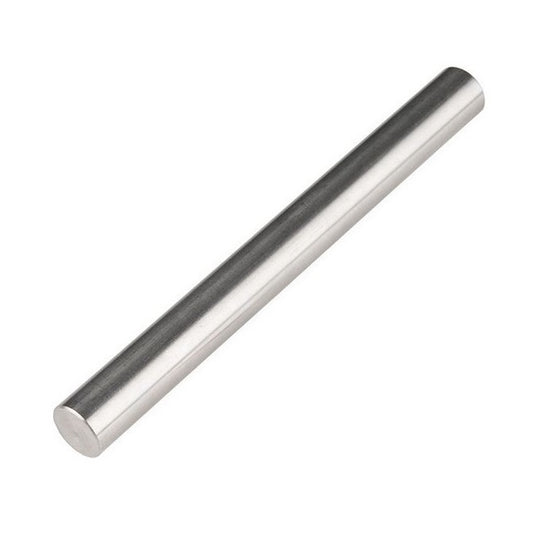

Precision Ground Shafting - 10x65 mm - 416 Stainless Stainless 416 Grade Hardened
Diameter (d)
10.000
mm
- 0.005 / - 0.014
(Equiv. 0.394 in.)
Length (L)
65
mm
Material
416 Stainless
Straightness
0.0003 mm / mm
Surface Finish
Ground 0.25 um
Microns
Precision Ground Shafting - 10x65 mm - 416 Stainless Stainless 416 Grade Hardened
Material: Stainless Steel AISI 416 Hardened    Hardness: HRC 26-32    Ends: Chamfered
Part Number: 0R-0100-0065-S416-T14 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Precision Ground Shafting - 10x65 mm - 416 Stainless Stainless 416 Grade Hardened
Diameter (d)
10.000
mm
- 0.005 / - 0.014
(Equiv. 0.394 in.)
Length (L)
65
mm
Material
416 Stainless
Straightness
0.0003 mm / mm
Precision Ground Shafting - 10x65 mm - 416 Stainless Stainless 416 Grade Hardened
Material: Stainless Steel AISI 416 Hardened    Surface Finish: Ground 0.25 um Microns    Hardness: HRC 26-32    Ends: Chamfered
Part Number: 0R-0100-0065-S416-T14 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Wed, Apr 11, 2029
