Shafting - Pipe - Aluminium

Shafting -> Pipe -> Aluminium

There are 12 products in the sub-categories of Shafting - Pipe - Aluminium. Browse the Shafting - Pipe - Aluminium products table.

Category Details

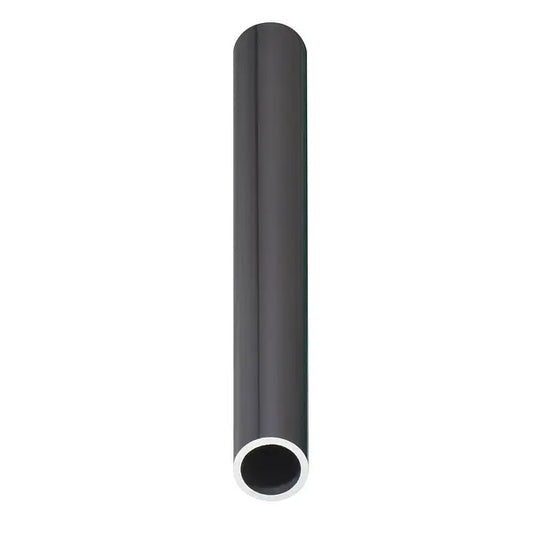

A selection of Aluminium Pipe Shafting. Recommended for use with Igubal Drylin bearings only.

  • Material : AlMgSi 0.5 F22 Hollow Shaft
  • Tolerance: h9 - h11. Roundness: DIN 1798. Straightness: DIN 1798.
  • Hardness: 75HB. Surface: Hard anodised. Oxidisation (wear resistant Al. Oxide) Layer Thickness: Greater than 40um.
  • Surface Hardness: 450-550 HV. Roughness: Ra Less than 0.5. Special Electrical Resistance: 4*1011 Ohm mm2/m.
  • Chemical Resistance: Ph Greater than 2 and Less than 9

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Shafting - Pipe - Aluminium category on the Small Parts & Bearings online store.
OD (D) Nominal ID (d) Length (L) Indicative
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 30x15x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-1000-P-AL-T33
Pipe Shafting - 30x15x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D) Nominal ID (d) Length (L) Indicative
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 30x15x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-1000-P-AL-T33
Pipe Shafting - 30x15x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 30x15x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-0300-P-AL-T33 (Length)
Pipe Shafting - 30x15x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 30x15x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-0300-P-AL-T33 (Length)
Pipe Shafting - 30x15x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 30x15x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-0600-P-AL-T33 (Length)
Pipe Shafting - 30x15x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 30x15x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-0600-P-AL-T33 (Length)
Pipe Shafting - 30x15x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 30x15x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-2000-P-AL-T33 (Length)
Pipe Shafting - 30x15x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
30.000
mm
+ 0.000 / - 0.033
(Equiv. 1.181 in.)
Nominal ID (d)
15.00
mm

(Equiv. 0.591 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 30x15x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0300-2000-P-AL-T33 (Length)
Pipe Shafting - 30x15x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 40x20x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-0300-P-AL-T39 (Length)
Pipe Shafting - 40x20x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 40x20x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-0300-P-AL-T39 (Length)
Pipe Shafting - 40x20x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 40x20x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-1000-P-AL-T39
Pipe Shafting - 40x20x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 40x20x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-1000-P-AL-T39
Pipe Shafting - 40x20x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 40x20x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-0600-P-AL-T39 (Length)
Pipe Shafting - 40x20x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 40x20x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-0600-P-AL-T39 (Length)
Pipe Shafting - 40x20x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 40x20x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-2000-P-AL-T39 (Length)
Pipe Shafting - 40x20x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
40.000
mm
+ 0.000 / - 0.039
(Equiv. 1.575 in.)
Nominal ID (d)
20.00
mm

(Equiv. 0.787 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 40x20x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0400-2000-P-AL-T39 (Length)
Pipe Shafting - 40x20x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 50x28x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-0300-P-AL-T39 (Length)
Pipe Shafting - 50x28x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pipe Shafting - 50x28x300 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-0300-P-AL-T39 (Length)
Pipe Shafting - 50x28x300 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 50x28x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-0600-P-AL-T39 (Length)
Pipe Shafting - 50x28x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
600
mm

(Equiv. 23.622 in.)
Pipe Shafting - 50x28x600 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-0600-P-AL-T39 (Length)
Pipe Shafting - 50x28x600 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 50x28x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-2000-P-AL-T39 (Length)
Pipe Shafting - 50x28x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
2000
mm

(Equiv. 78.74 in.)
Pipe Shafting - 50x28x2000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-2000-P-AL-T39 (Length)
Pipe Shafting - 50x28x2000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 50x28x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-1000-P-AL-T39
Pipe Shafting - 50x28x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity
OD (D)
50.000
mm
+ 0.000 / - 0.039
(Equiv. 1.969 in.)
Nominal ID (d)
28.00
mm

(Equiv. 1.102 in.)
Length (L)
1000
mm

(Equiv. 39.37 in.)
Pipe Shafting - 50x28x1000 mm - Aluminium Shaft
Material: Aluminium
Part Number: 0R-0500-1000-P-AL-T39
Pipe Shafting - 50x28x1000 mm - Aluminium Shaft
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
