Collection: Shafting - Linear - Aluminium - Ceramic Coated - Tapped

Shafting (With Images)

Linear

Aluminium

Ceramic Coated

Tapped
Untapped

34 Products in this selection

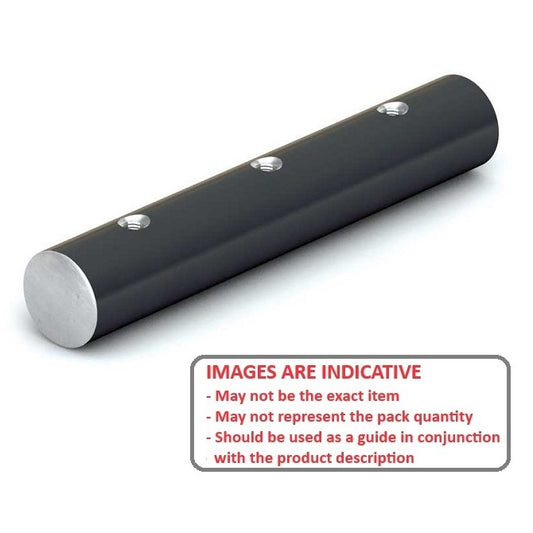

A selection of Tapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.

Weld spatter, contaminants and paints will not stick.
Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
Shaft ends are not coated

Miniature Bearings Australia (Minibearings)

Additional resources:
Drill Rod

A more concise listing may be found on the Smallparts store at Shafting - Linear - Aluminium - Ceramic Coated - Tapped. Smallparts promote the most popular MBA products.

Outside Diameter	Length	Hole Spacing From End (A)	Hole Spacing (B)	Thread	Indicative Image
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0152-ALCT-T30 Linear Shafting - 12.7x152.4x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $119.86 AUD Regular price Sale price $119.86 AUD Unit price per Each
Outside Diameter	Length	Hole Spacing From End (A)	Hole Spacing (B)	Indicative Image
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0152-ALCT-T30 Linear Shafting - 12.7x152.4x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $119.86 AUD Regular price Sale price $119.86 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0152-ALCT-T30 --- Linear Shafting - 12.7x152.4x50.8 mm - Ceramic Coated Aluminium 0R-0127-0152-ALCT-T30 --- Linear Shafting - 12.7x152.4x50.8 mm - Ceramic Coated Aluminium Regular price $119.86 AUD Regular price Sale price $119.86 AUD Unit price per Out of stock! Backorder Now
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0229-ALCT-T30 Linear Shafting - 12.7x228.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $158.32 AUD Regular price ~~$189.98 AUD~~ Sale price $158.32 AUD Unit price per Each
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0229-ALCT-T30 Linear Shafting - 12.7x228.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $158.32 AUD Regular price ~~$189.98 AUD~~ Sale price $158.32 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0229-ALCT-T30 --- Linear Shafting - 12.7x228.6x50.8 mm - Ceramic Coated Aluminium Sale 0R-0127-0229-ALCT-T30 --- Linear Shafting - 12.7x228.6x50.8 mm - Ceramic Coated Aluminium Regular price $158.32 AUD Regular price ~~$189.98 AUD~~ Sale price $158.32 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0305-ALCT-T30 Linear Shafting - 12.7x304.8x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $210.77 AUD Regular price ~~$252.93 AUD~~ Sale price $210.77 AUD Unit price per Each
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0305-ALCT-T30 Linear Shafting - 12.7x304.8x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $210.77 AUD Regular price ~~$252.93 AUD~~ Sale price $210.77 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0305-ALCT-T30 --- Linear Shafting - 12.7x304.8x50.8 mm - Ceramic Coated Aluminium Sale 0R-0127-0305-ALCT-T30 --- Linear Shafting - 12.7x304.8x50.8 mm - Ceramic Coated Aluminium Regular price $210.77 AUD Regular price ~~$252.93 AUD~~ Sale price $210.77 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0381-ALCT-T30 Linear Shafting - 12.7x381x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $263.23 AUD Regular price ~~$315.87 AUD~~ Sale price $263.23 AUD Unit price per Each
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0381-ALCT-T30 Linear Shafting - 12.7x381x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $263.23 AUD Regular price ~~$315.87 AUD~~ Sale price $263.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0381-ALCT-T30 --- Linear Shafting - 12.7x381x50.8 mm - Ceramic Coated Aluminium Sale 0R-0127-0381-ALCT-T30 --- Linear Shafting - 12.7x381x50.8 mm - Ceramic Coated Aluminium Regular price $263.23 AUD Regular price ~~$315.87 AUD~~ Sale price $263.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0457-ALCT-T30 Linear Shafting - 12.7x457.2x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Each
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0457-ALCT-T30 Linear Shafting - 12.7x457.2x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0457-ALCT-T30 --- Linear Shafting - 12.7x457.2x50.8 mm - Ceramic Coated Aluminium Sale 0R-0127-0457-ALCT-T30 --- Linear Shafting - 12.7x457.2x50.8 mm - Ceramic Coated Aluminium Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm	Thread 6-32 UNC (3.5mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0127-0610-ALCT-T30 Linear Shafting - 12.7x609.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $420.41 AUD Regular price ~~$504.49 AUD~~ Sale price $420.41 AUD Unit price per Each
Outside Diameter 12.700 mm _{- 0.010 / - 0.030} (Equiv. 0.5 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.600 mm
Material: Ceramic Coated Aluminium Thread: 6-32 UNC (3.5mm)
Part Number: 0R-0127-0610-ALCT-T30 Linear Shafting - 12.7x609.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $420.41 AUD Regular price ~~$504.49 AUD~~ Sale price $420.41 AUD Unit price per Each View the product page first if you are unsure.
0R-0127-0610-ALCT-T30 --- Linear Shafting - 12.7x609.6x50.8 mm - Ceramic Coated Aluminium Sale 0R-0127-0610-ALCT-T30 --- Linear Shafting - 12.7x609.6x50.8 mm - Ceramic Coated Aluminium Regular price $420.41 AUD Regular price ~~$504.49 AUD~~ Sale price $420.41 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0152-ALCT-T30 Linear Shafting - 15.875x152.4x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $110.23 AUD Regular price ~~$132.27 AUD~~ Sale price $110.23 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0152-ALCT-T30 Linear Shafting - 15.875x152.4x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $110.23 AUD Regular price ~~$132.27 AUD~~ Sale price $110.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0152-ALCT-T30 --- Linear Shafting - 15.875x152.4x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0152-ALCT-T30 --- Linear Shafting - 15.875x152.4x50.8 mm - Ceramic Coated Aluminium Regular price $110.23 AUD Regular price ~~$132.27 AUD~~ Sale price $110.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0229-ALCT-T30 Linear Shafting - 15.875x228.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $164.95 AUD Regular price ~~$197.95 AUD~~ Sale price $164.95 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0229-ALCT-T30 Linear Shafting - 15.875x228.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $164.95 AUD Regular price ~~$197.95 AUD~~ Sale price $164.95 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0229-ALCT-T30 --- Linear Shafting - 15.875x228.6x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0229-ALCT-T30 --- Linear Shafting - 15.875x228.6x50.8 mm - Ceramic Coated Aluminium Regular price $164.95 AUD Regular price ~~$197.95 AUD~~ Sale price $164.95 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0305-ALCT-T30 Linear Shafting - 15.875x304.8x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $223.32 AUD Regular price ~~$267.98 AUD~~ Sale price $223.32 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0305-ALCT-T30 Linear Shafting - 15.875x304.8x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $223.32 AUD Regular price ~~$267.98 AUD~~ Sale price $223.32 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0305-ALCT-T30 --- Linear Shafting - 15.875x304.8x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0305-ALCT-T30 --- Linear Shafting - 15.875x304.8x50.8 mm - Ceramic Coated Aluminium Regular price $223.32 AUD Regular price ~~$267.98 AUD~~ Sale price $223.32 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0381-ALCT-T30 Linear Shafting - 15.875x381x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $274.23 AUD Regular price ~~$329.07 AUD~~ Sale price $274.23 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0381-ALCT-T30 Linear Shafting - 15.875x381x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $274.23 AUD Regular price ~~$329.07 AUD~~ Sale price $274.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0381-ALCT-T30 --- Linear Shafting - 15.875x381x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0381-ALCT-T30 --- Linear Shafting - 15.875x381x50.8 mm - Ceramic Coated Aluminium Regular price $274.23 AUD Regular price ~~$329.07 AUD~~ Sale price $274.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0610-ALCT-T30 Linear Shafting - 15.875x609.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $438.23 AUD Regular price ~~$525.87 AUD~~ Sale price $438.23 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0610-ALCT-T30 Linear Shafting - 15.875x609.6x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $438.23 AUD Regular price ~~$525.87 AUD~~ Sale price $438.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0610-ALCT-T30 --- Linear Shafting - 15.875x609.6x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0610-ALCT-T30 --- Linear Shafting - 15.875x609.6x50.8 mm - Ceramic Coated Aluminium Regular price $438.23 AUD Regular price ~~$525.87 AUD~~ Sale price $438.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm	Thread 8-32 UNC (4.17mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0159-0457-ALCT-T30 Linear Shafting - 15.875x457.2x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $328.95 AUD Regular price ~~$394.75 AUD~~ Sale price $328.95 AUD Unit price per Each
Outside Diameter 15.875 mm _{- 0.010 / - 0.030} (Equiv. 0.625 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 50.800 mm (Equiv. 2 in.)	Hole Spacing (B) 101.6 mm
Material: Ceramic Coated Aluminium Thread: 8-32 UNC (4.17mm)
Part Number: 0R-0159-0457-ALCT-T30 Linear Shafting - 15.875x457.2x50.8 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $328.95 AUD Regular price ~~$394.75 AUD~~ Sale price $328.95 AUD Unit price per Each View the product page first if you are unsure.
0R-0159-0457-ALCT-T30 --- Linear Shafting - 15.875x457.2x50.8 mm - Ceramic Coated Aluminium Sale 0R-0159-0457-ALCT-T30 --- Linear Shafting - 15.875x457.2x50.8 mm - Ceramic Coated Aluminium Regular price $328.95 AUD Regular price ~~$394.75 AUD~~ Sale price $328.95 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0152-ALCT-T30 Linear Shafting - 19.05x152.4x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $115.14 AUD Regular price ~~$138.16 AUD~~ Sale price $115.14 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0152-ALCT-T30 Linear Shafting - 19.05x152.4x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $115.14 AUD Regular price ~~$138.16 AUD~~ Sale price $115.14 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0152-ALCT-T30 --- Linear Shafting - 19.05x152.4x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0152-ALCT-T30 --- Linear Shafting - 19.05x152.4x76.2 mm - Ceramic Coated Aluminium Regular price $115.14 AUD Regular price ~~$138.16 AUD~~ Sale price $115.14 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0229-ALCT-T30 Linear Shafting - 19.05x228.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $172.14 AUD Regular price ~~$206.56 AUD~~ Sale price $172.14 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0229-ALCT-T30 Linear Shafting - 19.05x228.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $172.14 AUD Regular price ~~$206.56 AUD~~ Sale price $172.14 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0229-ALCT-T30 --- Linear Shafting - 19.05x228.6x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0229-ALCT-T30 --- Linear Shafting - 19.05x228.6x76.2 mm - Ceramic Coated Aluminium Regular price $172.14 AUD Regular price ~~$206.56 AUD~~ Sale price $172.14 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0305-ALCT-T30 Linear Shafting - 19.05x304.8x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $232.95 AUD Regular price ~~$279.55 AUD~~ Sale price $232.95 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0305-ALCT-T30 Linear Shafting - 19.05x304.8x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $232.95 AUD Regular price ~~$279.55 AUD~~ Sale price $232.95 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0305-ALCT-T30 --- Linear Shafting - 19.05x304.8x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0305-ALCT-T30 --- Linear Shafting - 19.05x304.8x76.2 mm - Ceramic Coated Aluminium Regular price $232.95 AUD Regular price ~~$279.55 AUD~~ Sale price $232.95 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0381-ALCT-T30 Linear Shafting - 19.05x381x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $286.23 AUD Regular price ~~$343.47 AUD~~ Sale price $286.23 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0381-ALCT-T30 Linear Shafting - 19.05x381x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $286.23 AUD Regular price ~~$343.47 AUD~~ Sale price $286.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0381-ALCT-T30 --- Linear Shafting - 19.05x381x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0381-ALCT-T30 --- Linear Shafting - 19.05x381x76.2 mm - Ceramic Coated Aluminium Regular price $286.23 AUD Regular price ~~$343.47 AUD~~ Sale price $286.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0457-ALCT-T30 Linear Shafting - 19.05x457.2x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $343.32 AUD Regular price ~~$411.98 AUD~~ Sale price $343.32 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0457-ALCT-T30 Linear Shafting - 19.05x457.2x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $343.32 AUD Regular price ~~$411.98 AUD~~ Sale price $343.32 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0457-ALCT-T30 --- Linear Shafting - 19.05x457.2x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0457-ALCT-T30 --- Linear Shafting - 19.05x457.2x76.2 mm - Ceramic Coated Aluminium Regular price $343.32 AUD Regular price ~~$411.98 AUD~~ Sale price $343.32 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 10-32 UNF
Material: Ceramic Coated Aluminium
Part Number: 0R-0191-0610-ALCT-T30 Linear Shafting - 19.05x609.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $457.50 AUD Regular price ~~$549.00 AUD~~ Sale price $457.50 AUD Unit price per Each
Outside Diameter 19.050 mm _{- 0.010 / - 0.030} (Equiv. 0.75 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 10-32 UNF
Part Number: 0R-0191-0610-ALCT-T30 Linear Shafting - 19.05x609.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $457.50 AUD Regular price ~~$549.00 AUD~~ Sale price $457.50 AUD Unit price per Each View the product page first if you are unsure.
0R-0191-0610-ALCT-T30 --- Linear Shafting - 19.05x609.6x76.2 mm - Ceramic Coated Aluminium Sale 0R-0191-0610-ALCT-T30 --- Linear Shafting - 19.05x609.6x76.2 mm - Ceramic Coated Aluminium Regular price $457.50 AUD Regular price ~~$549.00 AUD~~ Sale price $457.50 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0152-ALCT-T30 Linear Shafting - 25.4x152.4x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $131.05 AUD Regular price ~~$157.25 AUD~~ Sale price $131.05 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 152.4 mm (Equiv. 6 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0152-ALCT-T30 Linear Shafting - 25.4x152.4x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $131.05 AUD Regular price ~~$157.25 AUD~~ Sale price $131.05 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0152-ALCT-T30 --- Linear Shafting - 25.4x152.4x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0152-ALCT-T30 --- Linear Shafting - 25.4x152.4x76.2 mm - Ceramic Coated Aluminium Regular price $131.05 AUD Regular price ~~$157.25 AUD~~ Sale price $131.05 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0229-ALCT-T30 Linear Shafting - 25.4x228.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 228.6 mm (Equiv. 9 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0229-ALCT-T30 Linear Shafting - 25.4x228.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0229-ALCT-T30 --- Linear Shafting - 25.4x228.6x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0229-ALCT-T30 --- Linear Shafting - 25.4x228.6x76.2 mm - Ceramic Coated Aluminium Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0305-ALCT-T30 Linear Shafting - 25.4x304.8x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $261.14 AUD Regular price ~~$313.36 AUD~~ Sale price $261.14 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 304.8 mm (Equiv. 12 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0305-ALCT-T30 Linear Shafting - 25.4x304.8x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $261.14 AUD Regular price ~~$313.36 AUD~~ Sale price $261.14 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0305-ALCT-T30 --- Linear Shafting - 25.4x304.8x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0305-ALCT-T30 --- Linear Shafting - 25.4x304.8x76.2 mm - Ceramic Coated Aluminium Regular price $261.14 AUD Regular price ~~$313.36 AUD~~ Sale price $261.14 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0381-ALCT-T30 Linear Shafting - 25.4x381x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 381 mm (Equiv. 15 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0381-ALCT-T30 Linear Shafting - 25.4x381x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0381-ALCT-T30 --- Linear Shafting - 25.4x381x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0381-ALCT-T30 --- Linear Shafting - 25.4x381x76.2 mm - Ceramic Coated Aluminium Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0457-ALCT-T30 Linear Shafting - 25.4x457.2x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $391.23 AUD Regular price ~~$469.47 AUD~~ Sale price $391.23 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 457.2 mm (Equiv. 18 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0457-ALCT-T30 Linear Shafting - 25.4x457.2x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $391.23 AUD Regular price ~~$469.47 AUD~~ Sale price $391.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0457-ALCT-T30 --- Linear Shafting - 25.4x457.2x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0457-ALCT-T30 --- Linear Shafting - 25.4x457.2x76.2 mm - Ceramic Coated Aluminium Regular price $391.23 AUD Regular price ~~$469.47 AUD~~ Sale price $391.23 AUD Unit price per Out of stock! Backorder Now Sale
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm	Thread 1/4-20 UNC (6.35mm)
Material: Ceramic Coated Aluminium
Part Number: 0R-0254-0610-ALCT-T30 Linear Shafting - 25.4x609.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $521.23 AUD Regular price ~~$625.47 AUD~~ Sale price $521.23 AUD Unit price per Each
Outside Diameter 25.400 mm _{- 0.010 / - 0.030} (Equiv. 1 in.)	Length 609.6 mm (Equiv. 24 in.)	Hole Spacing From End (A) 76.200 mm (Equiv. 3 in.)	Hole Spacing (B) 152.400 mm
Material: Ceramic Coated Aluminium Thread: 1/4-20 UNC (6.35mm)
Part Number: 0R-0254-0610-ALCT-T30 Linear Shafting - 25.4x609.6x76.2 mm - Ceramic Coated Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $521.23 AUD Regular price ~~$625.47 AUD~~ Sale price $521.23 AUD Unit price per Each View the product page first if you are unsure.
0R-0254-0610-ALCT-T30 --- Linear Shafting - 25.4x609.6x76.2 mm - Ceramic Coated Aluminium Sale 0R-0254-0610-ALCT-T30 --- Linear Shafting - 25.4x609.6x76.2 mm - Ceramic Coated Aluminium Regular price $521.23 AUD Regular price ~~$625.47 AUD~~ Sale price $521.23 AUD Unit price per Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
