Collection: Screws - Socket Cap - Zinc Plated

Screws -> Socket Cap -> Zinc Plated

There are 735 products in the sub-categories of Screws - Socket Cap - Zinc Plated. Scroll down or follow the link to Screws - Socket Cap - Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

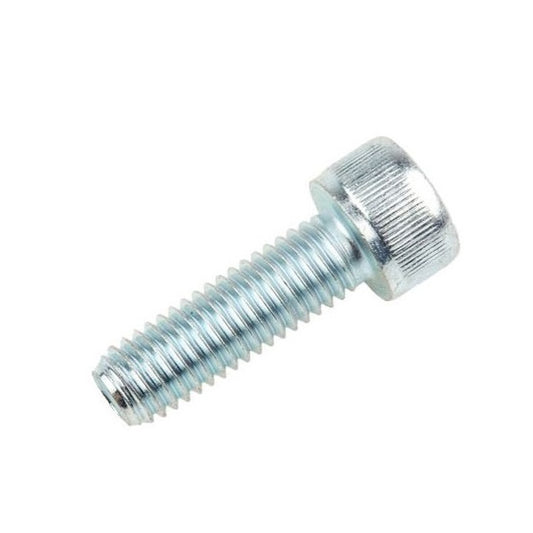

A selection of Zinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.

An expanded range may be available on special order. Please enquire.
Imperial Sizes to ANSI B18.3.
Metric Sizes to DIN912.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Screws - Socket Cap - Zinc Plated category on the Small Parts & Bearings online store.

Thread Size (C)	Thread Length (L)	Material	Head Length (B Max.)	Head Diameter (A Max.)	Drive Depth (E)
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 5 mm (Equiv. 0.197 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm	Head Diameter (A Max.) 3.8 mm	Drive Depth (E) 1.00 mm
Material: Zinc Plated Steel Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 5 mm
Part Number: SC020M-005-C-SK-CZ (50 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 5 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C)	Thread Length (L)	Material	Head Length (B Max.)	Indicative Image
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 5 mm (Equiv. 0.197 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 5 mm
Part Number: SC020M-005-C-SK-CZ (50 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 5 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC020M-005-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 5 mm - Zinc Plated Steel Screw Sale SC020M-005-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 5 mm - Zinc Plated Steel Screw Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 6 mm (Equiv. 0.236 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm	Head Diameter (A Max.) 3.8 mm	Drive Depth (E) 1.00 mm
Material: Zinc Plated Steel Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 6 mm
Part Number: SC020M-006-C-SK-CZ (50 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 6 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 6 mm (Equiv. 0.236 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 6 mm
Part Number: SC020M-006-C-SK-CZ (50 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 6 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC020M-006-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 6 mm - Zinc Plated Steel Screw Sale SC020M-006-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 6 mm - Zinc Plated Steel Screw Regular price $40.95 AUD Regular price ~~$49.15 AUD~~ Sale price $40.95 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm	Head Diameter (A Max.) 3.8 mm	Drive Depth (E) 1.00 mm
Material: Zinc Plated Steel Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 8 mm
Part Number: SC020M-008-C-SK-CZ (100 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 8 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $86.86 AUD Regular price ~~$104.24 AUD~~ Sale price $86.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 8 mm
Part Number: SC020M-008-C-SK-CZ (100 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 8 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $86.86 AUD Regular price ~~$104.24 AUD~~ Sale price $86.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SC020M-008-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 8 mm - Zinc Plated Steel Screw Sale SC020M-008-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 8 mm - Zinc Plated Steel Screw Regular price $86.86 AUD Regular price ~~$104.24 AUD~~ Sale price $86.86 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm	Head Diameter (A Max.) 3.8 mm	Drive Depth (E) 1.00 mm
Material: Zinc Plated Steel Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 10 mm
Part Number: SC020M-010-C-SK-CZ (5 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 10 mm - Zinc Plated Steel Screw 12 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 5 Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 10 mm
Part Number: SC020M-010-C-SK-CZ (5 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 10 mm - Zinc Plated Steel Screw 12 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 5 Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
SC020M-010-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 10 mm - Zinc Plated Steel Screw SC020M-010-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 10 mm - Zinc Plated Steel Screw Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 12 Available Now
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm	Head Diameter (A Max.) 3.8 mm	Drive Depth (E) 1.00 mm
Material: Zinc Plated Steel Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 12 mm
Part Number: SC020M-012-C-SK-CZ (100 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 12 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2 (2x0.4mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 12 mm
Part Number: SC020M-012-C-SK-CZ (100 Pcs) Socket Cap Screws - M2 - 2x0.4mm - 12 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SC020M-012-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 12 mm - Zinc Plated Steel Screw Sale SC020M-012-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2 - 2x0.4mm - 12 mm - Zinc Plated Steel Screw Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 8 mm
Part Number: SC025M-008-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 8 mm - Zinc Plated Steel Screw 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.14 AUD Regular price ~~$3.87 AUD~~ Sale price $2.14 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 8 mm
Part Number: SC025M-008-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 8 mm - Zinc Plated Steel Screw 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.14 AUD Regular price ~~$3.87 AUD~~ Sale price $2.14 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
SC025M-008-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 8 mm - Zinc Plated Steel Screw Sale SC025M-008-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 8 mm - Zinc Plated Steel Screw Regular price $2.14 AUD Regular price ~~$3.87 AUD~~ Sale price $2.14 AUD Unit price per 4 Available Now Sale
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 10 mm
Part Number: SC025M-010-C-SK-CZ (50 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 10 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 10 mm
Part Number: SC025M-010-C-SK-CZ (50 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 10 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC025M-010-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 10 mm - Zinc Plated Steel Screw SC025M-010-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 10 mm - Zinc Plated Steel Screw Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 12 mm
Part Number: SC025M-012-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 12 mm - Zinc Plated Steel Screw 14 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Per 5 Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 12 mm
Part Number: SC025M-012-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 12 mm - Zinc Plated Steel Screw 14 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Per 5 Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
SC025M-012-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 12 mm - Zinc Plated Steel Screw Sale SC025M-012-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 12 mm - Zinc Plated Steel Screw Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per 14 Available Now Sale
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 16 mm (Equiv. 0.63 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 16 mm
Part Number: SC025M-016-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 16 mm - Zinc Plated Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per Per 5 Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 16 mm (Equiv. 0.63 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 16 mm
Part Number: SC025M-016-C-SK-CZ (5 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 16 mm - Zinc Plated Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per Per 5 Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
SC025M-016-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 16 mm - Zinc Plated Steel Screw Sale SC025M-016-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 16 mm - Zinc Plated Steel Screw Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per 20 Available Now Sale
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 20 mm (Equiv. 0.787 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 17 mm
Part Number: SC025M-020-C-SK-CZ (50 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 20 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $41.77 AUD Regular price ~~$50.13 AUD~~ Sale price $41.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 20 mm (Equiv. 0.787 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 17 mm
Part Number: SC025M-020-C-SK-CZ (50 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 20 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $41.77 AUD Regular price ~~$50.13 AUD~~ Sale price $41.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC025M-020-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 20 mm - Zinc Plated Steel Screw Sale SC025M-020-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 20 mm - Zinc Plated Steel Screw Regular price $41.77 AUD Regular price ~~$50.13 AUD~~ Sale price $41.77 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 25 mm (Equiv. 0.984 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm	Head Diameter (A Max.) 4.5 mm	Drive Depth (E) 1.10 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 17 mm
Part Number: SC025M-025-C-SK-CZ (100 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 25 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $91.95 AUD Regular price ~~$110.35 AUD~~ Sale price $91.95 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Thread Size (C) M2.5 (2.5x0.45mm)	Thread Length (L) 25 mm (Equiv. 0.984 in.)	Material Zinc Plated Steel	Head Length (B Max.) 2.5 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 4.5 mm Drive Depth (E): 1.10 mm Shank Diameter (C): 2.36 - 2.50 mm Hex Key (D): 2.00 mm Pitch: 0.450 mm Threads Per Inch: 56.44 TPI Min thread Length: 17 mm
Part Number: SC025M-025-C-SK-CZ (100 Pcs) Socket Cap Screws - M2.5 - 2.5x0.45mm - 25 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $91.95 AUD Regular price ~~$110.35 AUD~~ Sale price $91.95 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SC025M-025-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 25 mm - Zinc Plated Steel Screw Sale SC025M-025-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M2.5 - 2.5x0.45mm - 25 mm - Zinc Plated Steel Screw Regular price $91.95 AUD Regular price ~~$110.35 AUD~~ Sale price $91.95 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 4 mm (Equiv. 0.157 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 4 mm
Part Number: SC030M-004-C-SK-CZ (100 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 4 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 4 mm (Equiv. 0.157 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 4 mm
Part Number: SC030M-004-C-SK-CZ (100 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 4 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SC030M-004-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 4 mm - Zinc Plated Steel Screw SC030M-004-C-SK-CZ (100 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 4 mm - Zinc Plated Steel Screw Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 5 mm (Equiv. 0.197 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 5 mm
Part Number: SC030M-005-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 5 mm - Zinc Plated Steel Screw 35 units (350 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 35 units (350 pcs) Available Now. Backorder if more than 35.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 5 mm (Equiv. 0.197 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 5 mm
Part Number: SC030M-005-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 5 mm - Zinc Plated Steel Screw 35 units (350 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 35 units (350 pcs) Available Now. Backorder if more than 35.
SC030M-005-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 5 mm - Zinc Plated Steel Screw Sale SC030M-005-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 5 mm - Zinc Plated Steel Screw Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per 35 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 6 mm (Equiv. 0.236 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 6 mm
Part Number: SC030M-006-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 6 mm - Zinc Plated Steel Screw 16 units (160 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 10 Quantity Required 16 units (160 pcs) Available Now. Backorder if more than 16.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 6 mm (Equiv. 0.236 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 6 mm
Part Number: SC030M-006-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 6 mm - Zinc Plated Steel Screw 16 units (160 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 10 Quantity Required 16 units (160 pcs) Available Now. Backorder if more than 16.
SC030M-006-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 6 mm - Zinc Plated Steel Screw SC030M-006-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 6 mm - Zinc Plated Steel Screw Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 16 Available Now
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 8 mm
Part Number: SC030M-008-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 8 mm - Zinc Plated Steel Screw 85 units (850 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 85 units (850 pcs) Available Now. Backorder if more than 85.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 8 mm (Equiv. 0.315 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 8 mm
Part Number: SC030M-008-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 8 mm - Zinc Plated Steel Screw 85 units (850 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 85 units (850 pcs) Available Now. Backorder if more than 85.
SC030M-008-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 8 mm - Zinc Plated Steel Screw Sale SC030M-008-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 8 mm - Zinc Plated Steel Screw Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per 85 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 10 mm
Part Number: SC030M-010-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 10 mm - Zinc Plated Steel Screw 3 units (30 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 3 units (30 pcs) Available Now. Backorder if more than 3.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 10 mm (Equiv. 0.394 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 10 mm
Part Number: SC030M-010-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 10 mm - Zinc Plated Steel Screw 3 units (30 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 10 Quantity Required 3 units (30 pcs) Available Now. Backorder if more than 3.
SC030M-010-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 10 mm - Zinc Plated Steel Screw Sale SC030M-010-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 10 mm - Zinc Plated Steel Screw Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per 3 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 12 mm
Part Number: SC030M-012-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 12 mm - Zinc Plated Steel Screw 28 units (280 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.41 AUD Regular price ~~$4.54 AUD~~ Sale price $2.41 AUD Unit price per Per 10 Quantity Required 28 units (280 pcs) Available Now. Backorder if more than 28.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 12 mm (Equiv. 0.472 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 12 mm
Part Number: SC030M-012-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 12 mm - Zinc Plated Steel Screw 28 units (280 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.41 AUD Regular price ~~$4.54 AUD~~ Sale price $2.41 AUD Unit price per Per 10 Quantity Required 28 units (280 pcs) Available Now. Backorder if more than 28.
SC030M-012-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 12 mm - Zinc Plated Steel Screw Sale SC030M-012-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 12 mm - Zinc Plated Steel Screw Regular price $2.41 AUD Regular price ~~$4.54 AUD~~ Sale price $2.41 AUD Unit price per 28 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 16 mm (Equiv. 0.63 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 16 mm
Part Number: SC030M-016-C-SK-CZ (5 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 16 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $1.59 AUD Regular price ~~$1.91 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 16 mm (Equiv. 0.63 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 16 mm
Part Number: SC030M-016-C-SK-CZ (5 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 16 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $1.59 AUD Regular price ~~$1.91 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
SC030M-016-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 16 mm - Zinc Plated Steel Screw Sale SC030M-016-C-SK-CZ (5 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 16 mm - Zinc Plated Steel Screw Regular price $1.59 AUD Regular price ~~$1.91 AUD~~ Sale price $1.59 AUD Unit price per Out of stock! Backorder Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 20 mm (Equiv. 0.787 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-020-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 20 mm - Zinc Plated Steel Screw 1 pack (10 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 10 Quantity Required 1 pack (10 pcs) Available Now. Backorder if more than 1.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 20 mm (Equiv. 0.787 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-020-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 20 mm - Zinc Plated Steel Screw 1 pack (10 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 10 Quantity Required 1 pack (10 pcs) Available Now. Backorder if more than 1.
SC030M-020-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 20 mm - Zinc Plated Steel Screw SC030M-020-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 20 mm - Zinc Plated Steel Screw Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 1 Available Now
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 25 mm (Equiv. 0.984 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-025-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 25 mm - Zinc Plated Steel Screw 12 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.77 AUD Regular price ~~$5.07 AUD~~ Sale price $2.77 AUD Unit price per Per 10 Quantity Required 12 units (120 pcs) Available Now. Backorder if more than 12.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 25 mm (Equiv. 0.984 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-025-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 25 mm - Zinc Plated Steel Screw 12 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $2.77 AUD Regular price ~~$5.07 AUD~~ Sale price $2.77 AUD Unit price per Per 10 Quantity Required 12 units (120 pcs) Available Now. Backorder if more than 12.
SC030M-025-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 25 mm - Zinc Plated Steel Screw Sale SC030M-025-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 25 mm - Zinc Plated Steel Screw Regular price $2.77 AUD Regular price ~~$5.07 AUD~~ Sale price $2.77 AUD Unit price per 12 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 30 mm (Equiv. 1.181 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-030-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 30 mm - Zinc Plated Steel Screw 8 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 30 mm (Equiv. 1.181 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-030-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 30 mm - Zinc Plated Steel Screw 8 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
SC030M-030-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 30 mm - Zinc Plated Steel Screw SC030M-030-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 30 mm - Zinc Plated Steel Screw Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per 8 Available Now
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 35 mm (Equiv. 1.378 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-035-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 35 mm - Zinc Plated Steel Screw 8 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.05 AUD Regular price ~~$5.61 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 35 mm (Equiv. 1.378 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-035-C-SK-CZ (10 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 35 mm - Zinc Plated Steel Screw 8 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $3.05 AUD Regular price ~~$5.61 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
SC030M-035-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 35 mm - Zinc Plated Steel Screw Sale SC030M-035-C-SK-CZ (10 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 35 mm - Zinc Plated Steel Screw Regular price $3.05 AUD Regular price ~~$5.61 AUD~~ Sale price $3.05 AUD Unit price per 8 Available Now Sale
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 40 mm (Equiv. 1.575 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-040-C-SK-CZ (50 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 40 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 40 mm (Equiv. 1.575 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-040-C-SK-CZ (50 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 40 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC030M-040-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 40 mm - Zinc Plated Steel Screw SC030M-040-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 40 mm - Zinc Plated Steel Screw Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 45 mm (Equiv. 1.772 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm	Head Diameter (A Max.) 5.5 mm	Drive Depth (E) 1.30 mm
Material: Zinc Plated Steel Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-045-C-SK-CZ (50 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 45 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $41.05 AUD Regular price Sale price $41.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Thread Size (C) M3 (3x0.5mm)	Thread Length (L) 45 mm (Equiv. 1.772 in.)	Material Zinc Plated Steel	Head Length (B Max.) 3.0 mm
Material: Zinc Plated Steel Head Diameter (A Max.): 5.5 mm Drive Depth (E): 1.30 mm Shank Diameter (C): 2.86 - 3.00 mm Hex Key (D): 2.50 mm Pitch: 0.500 mm Threads Per Inch: 50.8 TPI Min thread Length: 18 mm
Part Number: SC030M-045-C-SK-CZ (50 Pcs) Socket Cap Screws - M3 - 3x0.5mm - 45 mm - Zinc Plated Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 07, 2025 Regular price $41.05 AUD Regular price Sale price $41.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SC030M-045-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 45 mm - Zinc Plated Steel Screw SC030M-045-C-SK-CZ (50 Pcs) --- Socket Cap Screws - M3 - 3x0.5mm - 45 mm - Zinc Plated Steel Screw Regular price $41.05 AUD Regular price Sale price $41.05 AUD Unit price per Out of stock! Backorder Now

Country/region

Collection: Screws - Socket Cap - Zinc Plated

Category Details

Filter

Filter

Subscribe to our emails
