Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912

Screws -> Socket Cap -> Titanium -> Ti-Gr5 Ti-6Al4v DIN912

There are 3 products in the sub-categories of Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912. Browse the Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912 products table.

Category Details

A selection of Ti-Gr5 Ti-6Al4v DIN912 Titanium Socket Cap Screws. Metric Sizes to DIN912. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.

  • An expanded range may be available on special order. Please enquire.
  • Used in critical aircraft structural components. UNS R56400.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912 category on the Small Parts & Bearings online store.
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Head Diameter (A Max.) Drive Depth (E) Indicative

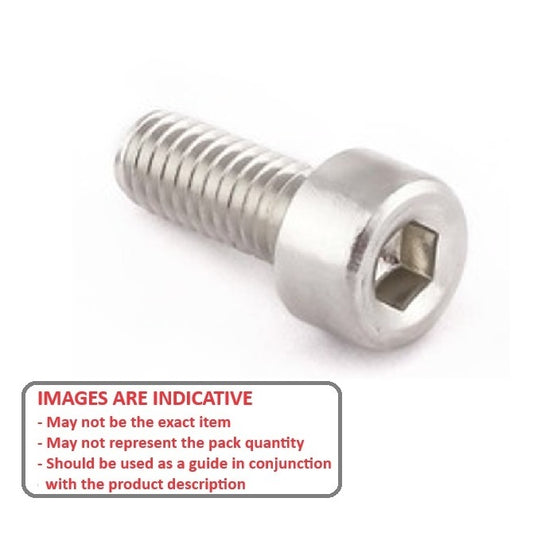

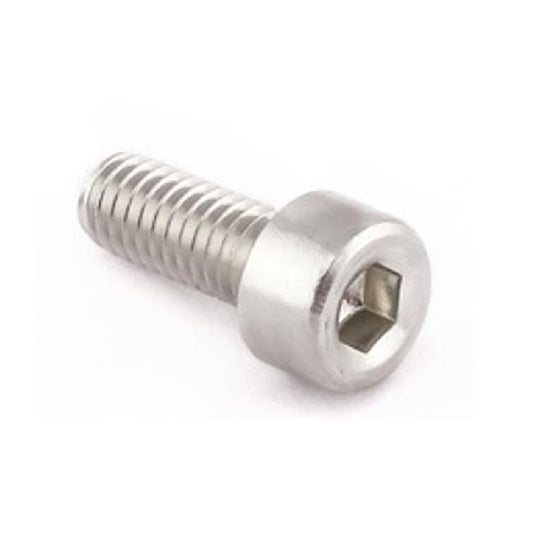

Socket Cap Screws - M5 - 5x0.8mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M5 (5x0.8mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
5.0
mm
Head Diameter (A Max.)
8.5
mm
Drive Depth (E)
2.50
mm
Socket Cap Screws - M5 - 5x0.8mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 4.82 - 5.00 mm    Hex Key (D): 4.00 mm    Pitch: 0.800 mm    Threads Per Inch: 31.75 TPI    Min thread Length: 10 mm
Part Number: SC050M-010-C-SK-T5 (Each)
387 Available Now | Further orders can be expected around Sat, Feb 21, 2026
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 387 available can be backordered.
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Indicative
Socket Cap Screws - M5 - 5x0.8mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M5 (5x0.8mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
5.0
mm
Socket Cap Screws - M5 - 5x0.8mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 8.5 mm    Drive Depth (E): 2.50 mm    Shank Diameter (C): 4.82 - 5.00 mm    Hex Key (D): 4.00 mm    Pitch: 0.800 mm    Threads Per Inch: 31.75 TPI    Min thread Length: 10 mm
Part Number: SC050M-010-C-SK-T5 (Each)
387 Available Now | Further orders can be expected around Sat, Feb 21, 2026
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

387 Available Now. Backorder if more than 387.
Socket Cap Screws - M6 - 6x1mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M6 (6x1mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
6.0
mm
Head Diameter (A Max.)
10.0
mm
Drive Depth (E)
3.00
mm
Socket Cap Screws - M6 - 6x1mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 5.82 - 6.00 mm    Hex Key (D): 5.00 mm    Pitch: 1.000 mm    Threads Per Inch: 25.4 TPI    Min thread Length: 10 mm
Part Number: SC060M-010-C-SK-T5 (Each)
200 Available Now | Further orders can be expected around Sat, Feb 21, 2026
$6.95 AUD
$6.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 200 available can be backordered.
Socket Cap Screws - M6 - 6x1mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M6 (6x1mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
6.0
mm
Socket Cap Screws - M6 - 6x1mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 10.0 mm    Drive Depth (E): 3.00 mm    Shank Diameter (C): 5.82 - 6.00 mm    Hex Key (D): 5.00 mm    Pitch: 1.000 mm    Threads Per Inch: 25.4 TPI    Min thread Length: 10 mm
Part Number: SC060M-010-C-SK-T5 (Each)
200 Available Now | Further orders can be expected around Sat, Feb 21, 2026
$6.95 AUD
$6.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

200 Available Now. Backorder if more than 200.
Socket Cap Screws - M8 - 8x1.25mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M8 (8x1.25mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
8.0
mm
Head Diameter (A Max.)
13.0
mm
Drive Depth (E)
4.00
mm
Socket Cap Screws - M8 - 8x1.25mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 7.78 - 8.00 mm    Hex Key (D): 6.00 mm    Pitch: 1.250 mm    Threads Per Inch: 20.32 TPI    Min thread Length: 10 mm
Part Number: SC080M-010-C-SK-T5 (PK-200)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026
$617.14 AUD
$740.56 AUD $617.14 AUD
Priced, Stocked and Sold Per 200 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Socket Cap Screws - M8 - 8x1.25mm - 10 mm - 6AL-4V Titanium Grade5 Screw
Thread Size (C)
M8 (8x1.25mm)

Thread Length (L)
10
mm

(Equiv. 0.394 in.)
Material
6AL-4V Titanium Grade5

Head Length (B Max.)
8.0
mm
Socket Cap Screws - M8 - 8x1.25mm - 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 13.0 mm    Drive Depth (E): 4.00 mm    Shank Diameter (C): 7.78 - 8.00 mm    Hex Key (D): 6.00 mm    Pitch: 1.250 mm    Threads Per Inch: 20.32 TPI    Min thread Length: 10 mm
Part Number: SC080M-010-C-SK-T5 (PK-200)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026
$617.14 AUD
$740.56 AUD $617.14 AUD
Priced, Stocked and Sold Per 200 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
