Screws - Countersunk - Socket - Aluminium

Screws -> Countersunk -> Socket -> Aluminium

There is only 1 product in the sub-categories of Screws - Countersunk - Socket - Aluminium. Browse the Screws - Countersunk - Socket - Aluminium products table.

Category Details

A selection of Aluminium Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.

  • An expanded range may be available on special order. Please enquire.
  • Imperial Sizes to ANSI B18.3.
  • Metric Sizes to DIN7991.
  • ISO 10642

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Screws - Countersunk - Socket - Aluminium category on the Small Parts & Bearings online store.
Thread Size (C) Overall Length (L) Material Max Head Diameter Max Head Height Minimum Thread Length (l) Indicative
Thread Size (C)
8-32 UNC (4.17mm)

Overall Length (L)
19.1
mm
+ 0.0 / - 0.76
(Equiv. 0.752 in.)
Material
Aluminium

Max Head Diameter
9.1
mm
Max Head Height
2.8
mm
Minimum Thread Length (l)
Full Thread
mm

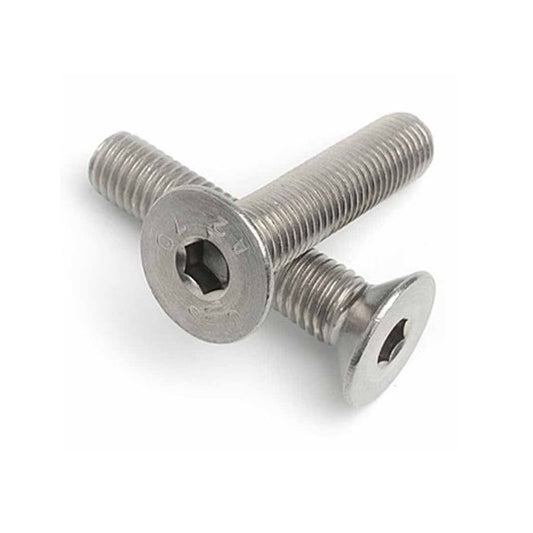

Countersunk Screws - 8-32 UNC - 4.17mm - 19.1 mm - Aluminium Socket
Material: Aluminium    Hex Key (s): 2.38 (3/32) mm    Countersunk Angle: 82 °    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SK042C-019-SK-A (10 Pcs)
Countersunk Screws - 8-32 UNC - 4.17mm - 19.1 mm - Aluminium Socket Screw
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025
$51.59 AUD
$51.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Thread Size (C) Overall Length (L) Material Max Head Diameter Indicative
Thread Size (C)
8-32 UNC (4.17mm)

Overall Length (L)
19.1
mm
+ 0.0 / - 0.76
(Equiv. 0.752 in.)
Material
Aluminium

Max Head Diameter
9.1
mm

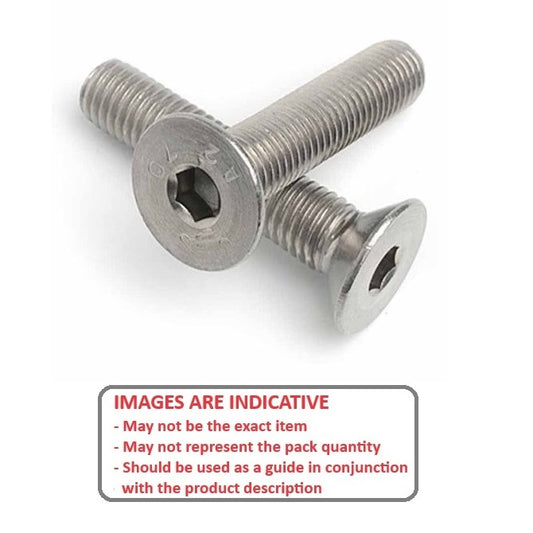

Countersunk Screws - 8-32 UNC - 4.17mm - 19.1 mm - Aluminium Socket
Material: Aluminium    Max Head Height: 2.8 mm    Minimum Thread Length (l): Full Thread mm    Hex Key (s): 2.38 (3/32) mm    Countersunk Angle: 82 °    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SK042C-019-SK-A (10 Pcs)
Countersunk Screws - 8-32 UNC - 4.17mm - 19.1 mm - Aluminium Socket Screw
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025
$51.59 AUD
$51.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
