Rollers - Track - Without Inner race

Rollers -> Track -> Without Inner race

There are 6 products in the sub-categories of Rollers - Track - Without Inner race. Browse the Rollers - Track - Without Inner race products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

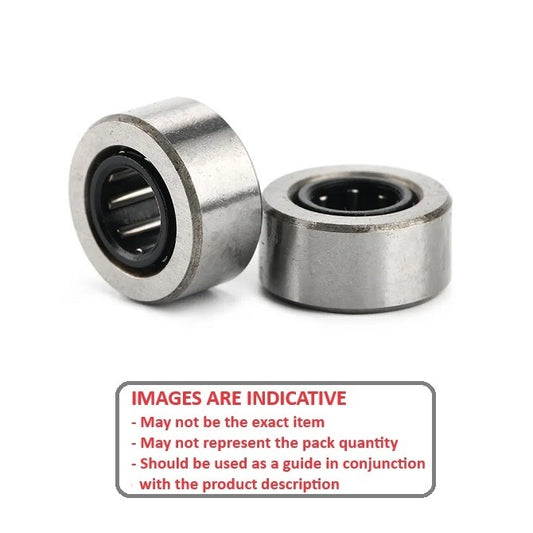

A selection of Without Inner race Track Rollers. This is the main category in this series

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Rollers - Track - Without Inner race category on the Small Parts & Bearings online store.

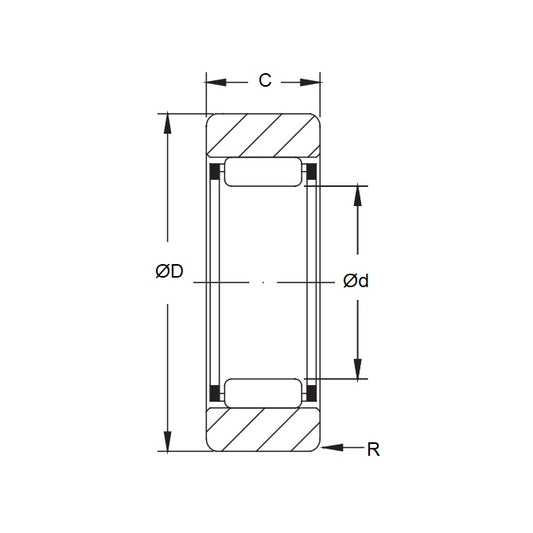

    ID (d) OD (D) Width (C) Inner Ring Width (B) OD Type Dynamic Load Rating Indicative
    ID (d)
    10.00
    mm

    (Equiv. 0.394 in.)
    OD (D)
    19.00
    mm

    (Equiv. 0.748 in.)
    Width (C)
    9.80
    mm

    (Equiv. 0.386 in.)
    Inner Ring Width (B)
    10.00
    mm
    OD Type
    Cylindrical
    Dynamic Load Rating
    420.00
    kgf
    		Track Rollers - 10x19x9.8 mm - Steel
    Material: Steel    Static Load Rating: 460.00 kgf
    Part Number: RNAST6
    Track Rollers - 10x19x9.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $41.95 AUD
    $50.35 AUD $41.95 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d) OD (D) Width (C) Inner Ring Width (B) Indicative
    ID (d)
    10.00
    mm

    (Equiv. 0.394 in.)
    OD (D)
    19.00
    mm

    (Equiv. 0.748 in.)
    Width (C)
    9.80
    mm

    (Equiv. 0.386 in.)
    Inner Ring Width (B)
    10.00
    mm
    		Track Rollers - 10x19x9.8 mm - Steel
    Material: Steel    OD Type: Cylindrical    Dynamic Load Rating: 420.00 kgf    Static Load Rating: 460.00 kgf
    Part Number: RNAST6
    Track Rollers - 10x19x9.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $41.95 AUD
    $50.35 AUD $41.95 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    16.00
    mm

    (Equiv. 0.63 in.)
    OD (D)
    32.00
    mm

    (Equiv. 1.26 in.)
    Width (C)
    11.80
    mm

    (Equiv. 0.465 in.)
    Inner Ring Width (B)
    12.00
    mm
    OD Type
    Cylindrical
    Dynamic Load Rating
    1070.00
    kgf
    		Track Rollers - 16x32x11.8 mm - Steel
    Material: Steel    Static Load Rating: 1110.00 kgf
    Part Number: RNAST12
    Track Rollers - 16x32x11.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $55.59 AUD
    $66.71 AUD $55.59 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    16.00
    mm

    (Equiv. 0.63 in.)
    OD (D)
    32.00
    mm

    (Equiv. 1.26 in.)
    Width (C)
    11.80
    mm

    (Equiv. 0.465 in.)
    Inner Ring Width (B)
    12.00
    mm
    		Track Rollers - 16x32x11.8 mm - Steel
    Material: Steel    OD Type: Cylindrical    Dynamic Load Rating: 1070.00 kgf    Static Load Rating: 1110.00 kgf
    Part Number: RNAST12
    Track Rollers - 16x32x11.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $55.59 AUD
    $66.71 AUD $55.59 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    25.00
    mm

    (Equiv. 0.984 in.)
    OD (D)
    47.00
    mm

    (Equiv. 1.85 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    OD Type
    Cylindrical
    Dynamic Load Rating
    1980.00
    kgf
    		Track Rollers - 25x47x15.8 mm - Steel
    Material: Steel    Static Load Rating: 2500.00 kgf
    Part Number: RNAST20
    Track Rollers - 25x47x15.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $62.23 AUD
    $74.67 AUD $62.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    25.00
    mm

    (Equiv. 0.984 in.)
    OD (D)
    47.00
    mm

    (Equiv. 1.85 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    		Track Rollers - 25x47x15.8 mm - Steel
    Material: Steel    OD Type: Cylindrical    Dynamic Load Rating: 1980.00 kgf    Static Load Rating: 2500.00 kgf
    Part Number: RNAST20
    Track Rollers - 25x47x15.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $62.23 AUD
    $74.67 AUD $62.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    25.00
    mm

    (Equiv. 0.984 in.)
    OD (D)
    47.00
    mm

    (Equiv. 1.85 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    OD Type
    Radius (500mm)
    Dynamic Load Rating
    1980.00
    kgf
    		Track Rollers - 25x47x15.8 mm
    Static Load Rating: 2500.00 kgf
    Part Number: RNAST20R
    Track Rollers - 25x47x15.8 mm Without Inner race
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $62.23 AUD
    $74.67 AUD $62.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    25.00
    mm

    (Equiv. 0.984 in.)
    OD (D)
    47.00
    mm

    (Equiv. 1.85 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    		Track Rollers - 25x47x15.8 mm
    OD Type: Radius (500mm)    Dynamic Load Rating: 1980.00 kgf    Static Load Rating: 2500.00 kgf
    Part Number: RNAST20R
    Track Rollers - 25x47x15.8 mm Without Inner race
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $62.23 AUD
    $74.67 AUD $62.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    30.00
    mm

    (Equiv. 1.181 in.)
    OD (D)
    52.00
    mm

    (Equiv. 2.047 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    OD Type
    Cylindrical
    Dynamic Load Rating
    2120.00
    kgf
    		Track Rollers - 30x52x15.8 mm - Steel
    Material: Steel    Static Load Rating: 2890.00 kgf
    Part Number: RNAST25
    Track Rollers - 30x52x15.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $72.50 AUD
    $87.00 AUD $72.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    30.00
    mm

    (Equiv. 1.181 in.)
    OD (D)
    52.00
    mm

    (Equiv. 2.047 in.)
    Width (C)
    15.80
    mm

    (Equiv. 0.622 in.)
    Inner Ring Width (B)
    16.00
    mm
    		Track Rollers - 30x52x15.8 mm - Steel
    Material: Steel    OD Type: Cylindrical    Dynamic Load Rating: 2120.00 kgf    Static Load Rating: 2890.00 kgf
    Part Number: RNAST25
    Track Rollers - 30x52x15.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $72.50 AUD
    $87.00 AUD $72.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    38.00
    mm

    (Equiv. 1.496 in.)
    OD (D)
    62.00
    mm

    (Equiv. 2.441 in.)
    Width (C)
    19.80
    mm

    (Equiv. 0.78 in.)
    Inner Ring Width (B)
    20.00
    mm
    OD Type
    Cylindrical
    Dynamic Load Rating
    3110.00
    kgf
    		Track Rollers - 38x62x19.8 mm - Steel
    Material: Steel    Static Load Rating: 4630.00 kgf
    Part Number: RNAST30
    Track Rollers - 38x62x19.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $78.68 AUD
    $94.42 AUD $78.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    ID (d)
    38.00
    mm

    (Equiv. 1.496 in.)
    OD (D)
    62.00
    mm

    (Equiv. 2.441 in.)
    Width (C)
    19.80
    mm

    (Equiv. 0.78 in.)
    Inner Ring Width (B)
    20.00
    mm
    		Track Rollers - 38x62x19.8 mm - Steel
    Material: Steel    OD Type: Cylindrical    Dynamic Load Rating: 3110.00 kgf    Static Load Rating: 4630.00 kgf
    Part Number: RNAST30
    Track Rollers - 38x62x19.8 mm Without Inner race - Steel Roller
    Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025
    $78.68 AUD
    $94.42 AUD $78.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
