Rollers - Durasoft Stud Mount - Neoprene

Rollers -> Durasoft Stud Mount -> Neoprene

There are 3 products in the sub-categories of Rollers - Durasoft Stud Mount - Neoprene. Browse the Rollers - Durasoft Stud Mount - Neoprene products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

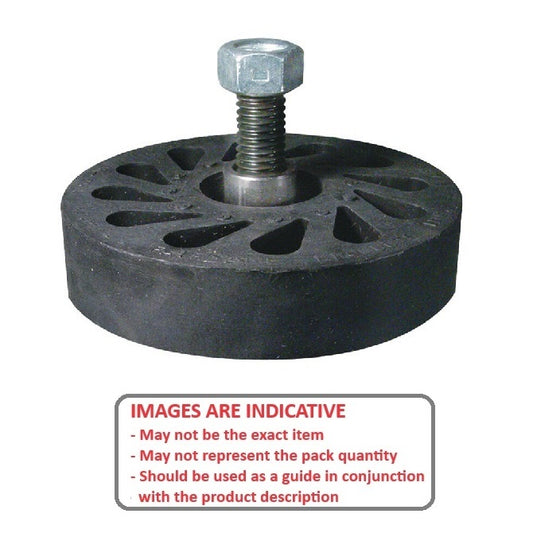

A selection of Neoprene Durasoft Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.

  • Designed for use in machines and assembly operations where part movement and protection is needed.
  • Durasoft rollers have a gentle but firm touch.
  • Unique shape of holes adds to their soft but resilient nature.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rollers - Durasoft Stud Mount - Neoprene category on the Small Parts & Bearings online store.
Diameter (A) Thread Thread Length (C) Bearing Overall Width (D) E Mount Height (B) Indicative
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)

Thread Length (C)
27.940
mm

(Equiv. 1.1 in.)
Bearing Overall Width (D)
9.525
mm
E
3.175
mm
Mount Height (B)
23.37
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 27.94 mm - Neoprene Rubber
Material: Neoprene Rubber    Durometer Shore A: 35    Number of Bearings: 1
Part Number: RR-408RS
Durasoft Stud Mount Rollers - 101.6 mm 1/2-13 UNC - 12.7mm - 27.94 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$102.77 AUD
$102.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A) Thread Thread Length (C) Bearing Overall Width (D) Indicative
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)

Thread Length (C)
27.940
mm

(Equiv. 1.1 in.)
Bearing Overall Width (D)
9.525
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 27.94 mm - Neoprene Rubber
Material: Neoprene Rubber    E: 3.175 mm    Mount Height (B): 23.37 mm    Durometer Shore A: 35    Number of Bearings: 1
Part Number: RR-408RS
Durasoft Stud Mount Rollers - 101.6 mm 1/2-13 UNC - 12.7mm - 27.94 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$102.77 AUD
$102.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)

Thread Length (C)
35.814
mm

(Equiv. 1.41 in.)
Bearing Overall Width (D)
19.050
mm
E
6.350
mm
Mount Height (B)
49.28
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 35.814 mm - Neoprene Rubber
Material: Neoprene Rubber    Durometer Shore A: 35    Number of Bearings: 2
Part Number: RR-412RS
Durasoft Stud Mount Rollers - 101.6 mm 1/2-13 UNC - 12.7mm - 35.814 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$122.86 AUD
$147.44 AUD $122.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)

Thread Length (C)
35.814
mm

(Equiv. 1.41 in.)
Bearing Overall Width (D)
19.050
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 35.814 mm - Neoprene Rubber
Material: Neoprene Rubber    E: 6.350 mm    Mount Height (B): 49.28 mm    Durometer Shore A: 35    Number of Bearings: 2
Part Number: RR-412RS
Durasoft Stud Mount Rollers - 101.6 mm 1/2-13 UNC - 12.7mm - 35.814 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$122.86 AUD
$147.44 AUD $122.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)


(Equiv. 0.039 in.)
Thread Length (C)
35.814
mm

(Equiv. 1.41 in.)
Bearing Overall Width (D)
19.050
mm
E
6.350
mm
Mount Height (B)
49.28
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 35.814 mm - Neoprene Rubber
Material: Neoprene Rubber    Durometer Shore A: 20    Number of Bearings: 2
Part Number: RR-410RS
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC - 12.7mm - 35.814 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$136.23 AUD
$163.47 AUD $136.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A)
101.60
mm

(Equiv. 4 in.)
Thread
1/2-13 UNC (12.7mm)


(Equiv. 0.039 in.)
Thread Length (C)
35.814
mm

(Equiv. 1.41 in.)
Bearing Overall Width (D)
19.050
mm
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC -12.7mm- 35.814 mm - Neoprene Rubber
Material: Neoprene Rubber    E: 6.350 mm    Mount Height (B): 49.28 mm    Durometer Shore A: 20    Number of Bearings: 2
Part Number: RR-410RS
Durasoft Stud Mount Rollers - 101.6 1/2-13 UNC - 12.7mm - 35.814 mm - Neoprene Rubber Roller
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$136.23 AUD
$163.47 AUD $136.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
