| Eye Size (d1) | Overall Length (L) | Thread Size | Min. Thread Length (l2) | Head Width (W) | Eye Width (W1) |

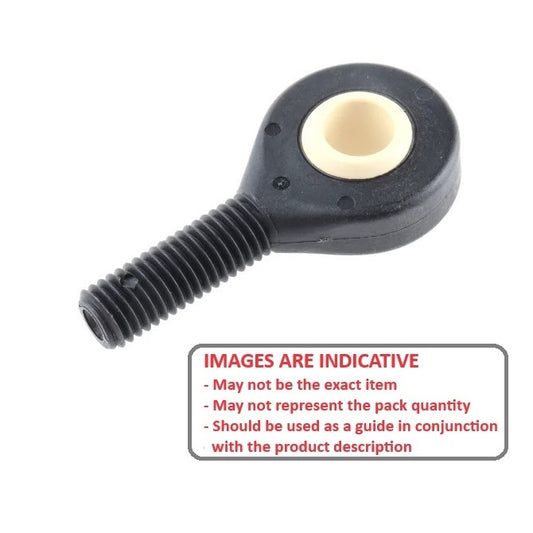

Indicative Image |
|---|---|---|---|---|---|---|
|
Eye Size (d1)
25.000
mm +0.040 / +0.124
(Equiv. 0.984 in.) |
Overall Length (L)
129.00
mm (Equiv. 5.079 in.) |
Thread Size
M25x2 Right
|
Min. Thread Length (l2)
53.00
mm |
Head Width (W)
17.00
mm |
Eye Width (W1)
20.00
mm |
|
| Head Diameter (D): 64.00 mm Centre Height (l1): 94.00 mm Grease Nipple: No Max Angle of Pivot: 16 ° Max Torque Strength: 55.00 n.m | ||||||
|
Part Number: REM-250-R-PP (10 Pcs)
Male Rod Ends - 25x129 mm - M25x2 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$507.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
| Eye Size (d1) | Overall Length (L) | Thread Size | Min. Thread Length (l2) |

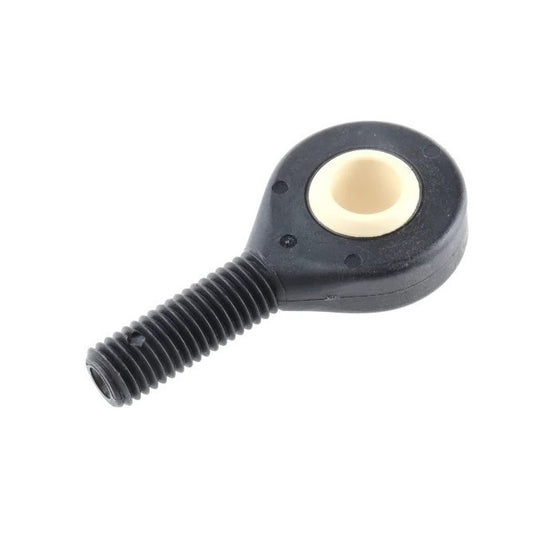

Indicative Image |
||
|
Eye Size (d1)
25.000
mm +0.040 / +0.124 (Equiv. 0.984 in.) |
Overall Length (L)
129.00
mm (Equiv. 5.079 in.) |
Thread Size
M25x2 Right
|
Min. Thread Length (l2)
53.00
mm |
|
||
| Head Width (W): 17.00 mm Eye Width (W1): 20.00 mm Head Diameter (D): 64.00 mm Centre Height (l1): 94.00 mm Grease Nipple: No Max Angle of Pivot: 16 ° Max Torque Strength: 55.00 n.m | ||||||
|
Part Number: REM-250-R-PP (10 Pcs)
Male Rod Ends - 25x129 mm - M25x2 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$507.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
25.000
mm +0.040 / +0.124
(Equiv. 0.984 in.) |
Overall Length (L)
129.00
mm (Equiv. 5.079 in.) |
Thread Size
M25x2 Left
|
Min. Thread Length (l2)
53.00
mm |
Head Width (W)
17.00
mm |
Eye Width (W1)
20.00
mm |
|
| Head Diameter (D): 64.00 mm Centre Height (l1): 94.00 mm Grease Nipple: No Max Angle of Pivot: 16 ° Max Torque Strength: 55.00 n.m | ||||||
|
Part Number: REM-250-L-PP (10 Pcs)
Male Rod Ends - 25x129 mm - M25x2 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$507.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
25.000
mm +0.040 / +0.124 (Equiv. 0.984 in.) |
Overall Length (L)
129.00
mm (Equiv. 5.079 in.) |
Thread Size
M25x2 Left
|
Min. Thread Length (l2)
53.00
mm |
|
||
| Head Width (W): 17.00 mm Eye Width (W1): 20.00 mm Head Diameter (D): 64.00 mm Centre Height (l1): 94.00 mm Grease Nipple: No Max Angle of Pivot: 16 ° Max Torque Strength: 55.00 n.m | ||||||
|
Part Number: REM-250-L-PP (10 Pcs)
Male Rod Ends - 25x129 mm - M25x2 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$507.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
25.400
mm +0.040 / +0.124
(Equiv. 1 in.) |
Overall Length (L)
139.70
mm (Equiv. 5.5 in.) |
Thread Size
1-12 UNF Left
|
Min. Thread Length (l2)
59.69
mm |
Head Width (W)
25.40
mm |
Eye Width (W1)
34.93
mm |
|
| Head Diameter (D): 69.85 mm Centre Height (l1): 104.78 mm Grease Nipple: No Max Angle of Pivot: 20 ° Max Torque Strength: 85.00 n.m | ||||||
|
Part Number: REM-254-L-PP (10 Pcs)
Male Rod Ends - 25.4x139.7 mm - 1-12 UNF Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$439.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
25.400
mm +0.040 / +0.124 (Equiv. 1 in.) |
Overall Length (L)
139.70
mm (Equiv. 5.5 in.) |
Thread Size
1-12 UNF Left
|
Min. Thread Length (l2)
59.69
mm |
|
||
| Head Width (W): 25.40 mm Eye Width (W1): 34.93 mm Head Diameter (D): 69.85 mm Centre Height (l1): 104.78 mm Grease Nipple: No Max Angle of Pivot: 20 ° Max Torque Strength: 85.00 n.m | ||||||
|
Part Number: REM-254-L-PP (10 Pcs)
Male Rod Ends - 25.4x139.7 mm - 1-12 UNF Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$439.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
25.400
mm +0.040 / +0.124
(Equiv. 1 in.) |
Overall Length (L)
139.70
mm (Equiv. 5.5 in.) |
Thread Size
1-12 UNF Right
|
Min. Thread Length (l2)
59.69
mm |
Head Width (W)
25.40
mm |
Eye Width (W1)
34.93
mm |
|
| Head Diameter (D): 69.85 mm Centre Height (l1): 104.78 mm Grease Nipple: No Max Angle of Pivot: 20 ° Max Torque Strength: 85.00 n.m | ||||||
|
Part Number: REM-254-R-PP (10 Pcs)
Male Rod Ends - 25.4x139.7 mm - 1-12 UNF Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$439.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
25.400
mm +0.040 / +0.124 (Equiv. 1 in.) |
Overall Length (L)
139.70
mm (Equiv. 5.5 in.) |
Thread Size
1-12 UNF Right
|
Min. Thread Length (l2)
59.69
mm |
|
||
| Head Width (W): 25.40 mm Eye Width (W1): 34.93 mm Head Diameter (D): 69.85 mm Centre Height (l1): 104.78 mm Grease Nipple: No Max Angle of Pivot: 20 ° Max Torque Strength: 85.00 n.m | ||||||
|
Part Number: REM-254-R-PP (10 Pcs)
Male Rod Ends - 25.4x139.7 mm - 1-12 UNF Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$439.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124
(Equiv. 1.181 in.) |
Overall Length (L)
147.00
mm (Equiv. 5.787 in.) |
Thread Size
M30x3.5 Left
|
Min. Thread Length (l2)
66.00
mm |
Head Width (W)
25.00
mm |
Eye Width (W1)
37.00
mm |
|
| Head Diameter (D): 70.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-L-PP (10 Pcs)
Male Rod Ends - 30x147 mm - M30x3.5 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$657.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124 (Equiv. 1.181 in.) |
Overall Length (L)
147.00
mm (Equiv. 5.787 in.) |
Thread Size
M30x3.5 Left
|
Min. Thread Length (l2)
66.00
mm |
|
||
| Head Width (W): 25.00 mm Eye Width (W1): 37.00 mm Head Diameter (D): 70.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-L-PP (10 Pcs)
Male Rod Ends - 30x147 mm - M30x3.5 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$657.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124
(Equiv. 1.181 in.) |
Overall Length (L)
149.50
mm (Equiv. 5.886 in.) |
Thread Size
M30x3.5 Left
|
Min. Thread Length (l2)
65.00
mm |
Head Width (W)
19.00
mm |
Eye Width (W1)
22.00
mm |
|
| Head Diameter (D): 73.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 13 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-L-PP-N (10 Pcs)
Male Rod Ends - 30x149.5 mm - M30x3.5 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$643.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124 (Equiv. 1.181 in.) |
Overall Length (L)
149.50
mm (Equiv. 5.886 in.) |
Thread Size
M30x3.5 Left
|
Min. Thread Length (l2)
65.00
mm |
|
||
| Head Width (W): 19.00 mm Eye Width (W1): 22.00 mm Head Diameter (D): 73.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 13 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-L-PP-N (10 Pcs)
Male Rod Ends - 30x149.5 mm - M30x3.5 Left Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$643.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124
(Equiv. 1.181 in.) |
Overall Length (L)
147.00
mm (Equiv. 5.787 in.) |
Thread Size
M30x3.5 Right
|
Min. Thread Length (l2)
66.00
mm |
Head Width (W)
25.00
mm |
Eye Width (W1)
37.00
mm |
|
| Head Diameter (D): 70.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-R-PP (10 Pcs)
Male Rod Ends - 30x147 mm - M30x3.5 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$657.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124 (Equiv. 1.181 in.) |
Overall Length (L)
147.00
mm (Equiv. 5.787 in.) |
Thread Size
M30x3.5 Right
|
Min. Thread Length (l2)
66.00
mm |
|
||
| Head Width (W): 25.00 mm Eye Width (W1): 37.00 mm Head Diameter (D): 70.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-R-PP (10 Pcs)
Male Rod Ends - 30x147 mm - M30x3.5 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$657.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124
(Equiv. 1.181 in.) |
Overall Length (L)
149.50
mm (Equiv. 5.886 in.) |
Thread Size
M30x3.5 Right
|
Min. Thread Length (l2)
65.00
mm |
Head Width (W)
19.00
mm |
Eye Width (W1)
22.00
mm |
|
| Head Diameter (D): 73.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 13 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-R-PP-N (10 Pcs)
Male Rod Ends - 30x149.5 mm - M30x3.5 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$643.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
30.000
mm +0.040 / +0.124 (Equiv. 1.181 in.) |
Overall Length (L)
149.50
mm (Equiv. 5.886 in.) |
Thread Size
M30x3.5 Right
|
Min. Thread Length (l2)
65.00
mm |
|
||
| Head Width (W): 19.00 mm Eye Width (W1): 22.00 mm Head Diameter (D): 73.00 mm Centre Height (l1): 110.00 mm Grease Nipple: No Max Angle of Pivot: 13 ° Max Torque Strength: 70.00 n.m | ||||||
|
Part Number: REM-300-R-PP-N (10 Pcs)
Male Rod Ends - 30x149.5 mm - M30x3.5 Right Plastic Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 08, 2025 Regular price
$643.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
