Rod Ends - Female - Steel - Studded

Rod Ends -> Female -> Steel -> Studded

There are 12 products in the sub-categories of Rod Ends - Female - Steel - Studded. Browse the Rod Ends - Female - Steel - Studded products table. To narrow down the selection, please choose a sub-category from the links below.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

This category includes various types of female rod ends.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Female - Steel - Studded category on the Small Parts & Bearings online store.
Thread Size Thread Length (H) Thread Length (C) Head Diameter (E) Centre Height (G) Top Width (M) Indicative
Thread Size
4.764

Thread Length (H)
14.28
mm

(Equiv. 0.562 in.)
Thread Length (C)
11.10
mm

(Equiv. 0.437 in.)
Head Diameter (E)
15.88
mm
Centre Height (G)
26.98
mm
Top Width (M)
6.35
mm

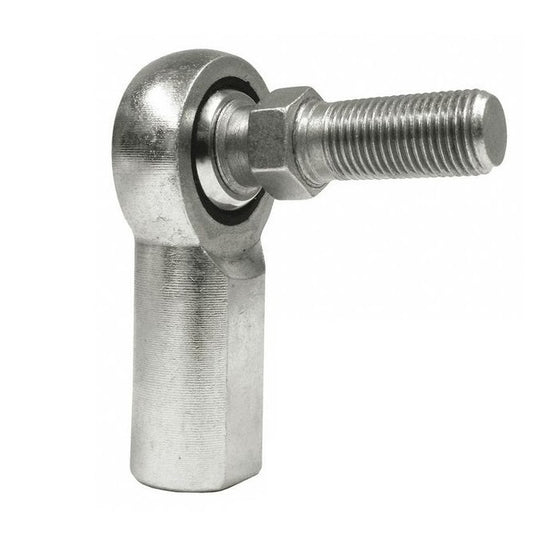

Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat
Material: Steel with Nylon Seat    Ball Width (L): 7.93 mm    Base Width: 10.31 mm    Base Length (P): 7.93 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF3SRS
Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$11.51 AUD
$33.91 AUD $11.51 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size Thread Length (H) Thread Length (C) Head Diameter (E) Indicative
Thread Size
4.764

Thread Length (H)
14.28
mm

(Equiv. 0.562 in.)
Thread Length (C)
11.10
mm

(Equiv. 0.437 in.)
Head Diameter (E)
15.88
mm
Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat
Material: Steel with Nylon Seat    Centre Height (G): 26.98 mm    Top Width (M): 6.35 mm    Ball Width (L): 7.93 mm    Base Width: 10.31 mm    Base Length (P): 7.93 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF3SRS
Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$11.51 AUD
$33.91 AUD $11.51 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
12.70
mm

(Equiv. 0.5 in.)
Thread Length (C)
11.91
mm

(Equiv. 0.469 in.)
Head Diameter (E)
11.11
mm
Centre Height (G)
26.19
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 12.7x11.91 mm
Base Length (P): 24.61 mm
Part Number: STQ40RS (50 Pcs)
1/4-28 UNF - 6.35mm - Right Hand 12.7x11.91 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
12.70
mm

(Equiv. 0.5 in.)
Thread Length (C)
11.91
mm

(Equiv. 0.469 in.)
Head Diameter (E)
11.11
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 12.7x11.91 mm
Centre Height (G): 26.19 mm    Base Length (P): 24.61 mm
Part Number: STQ40RS (50 Pcs)
1/4-28 UNF - 6.35mm - Right Hand 12.7x11.91 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
17.45
mm

(Equiv. 0.687 in.)
Thread Length (C)
14.28
mm

(Equiv. 0.562 in.)
Head Diameter (E)
19.05
mm
Centre Height (G)
33.33
mm
Top Width (M)
07.14
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 17.45x14.28 mm
Ball Width (L): 09.53 mm    Base Width: 11.91 mm    Base Length (P): 09.53 mm
Part Number: EFT4SRS
1/4-28 UNF - 6.35mm - Right Hand 17.45x14.28 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
17.45
mm

(Equiv. 0.687 in.)
Thread Length (C)
14.28
mm

(Equiv. 0.562 in.)
Head Diameter (E)
19.05
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 17.45x14.28 mm
Centre Height (G): 33.33 mm    Top Width (M): 07.14 mm    Ball Width (L): 09.53 mm    Base Width: 11.91 mm    Base Length (P): 09.53 mm
Part Number: EFT4SRS
1/4-28 UNF - 6.35mm - Right Hand 17.45x14.28 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
14.28
mm

(Equiv. 0.562 in.)
Head Diameter (E)
19.05
mm
Centre Height (G)
33.33
mm
Top Width (M)
07.14
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 19.05x14.28 mm
Ball Width (L): 09.53 mm    Base Width: 11.91 mm    Base Length (P): 09.53 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF4SRS (50 Pcs)
Female Rod Ends - 1/4-28 UNF - 6.35mm - Right Hand 19.05x14.28 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
1/4-28 UNF (6.35mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
14.28
mm

(Equiv. 0.562 in.)
Head Diameter (E)
19.05
mm
Female Rod Ends - 1/4-28 UNF -6.35mm- Right Hand 19.05x14.28 mm
Centre Height (G): 33.33 mm    Top Width (M): 07.14 mm    Ball Width (L): 09.53 mm    Base Width: 11.91 mm    Base Length (P): 09.53 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF4SRS (50 Pcs)
Female Rod Ends - 1/4-28 UNF - 6.35mm - Right Hand 19.05x14.28 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
5/16-24 UNF (7.94mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
17.45
mm

(Equiv. 0.687 in.)
Head Diameter (E)
22.23
mm
Centre Height (G)
34.93
mm
Top Width (M)
08.74
mm
Female Rod Ends - 5/16-24 UNF -7.94mm- Right Hand 19.05x17.45 mm
Ball Width (L): 11.10 mm    Base Width: 12.70 mm    Base Length (P): 11.10 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF5SRS (50 Pcs)
Female Rod Ends - 5/16-24 UNF - 7.94mm - Right Hand 19.05x17.45 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
5/16-24 UNF (7.94mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
17.45
mm

(Equiv. 0.687 in.)
Head Diameter (E)
22.23
mm
Female Rod Ends - 5/16-24 UNF -7.94mm- Right Hand 19.05x17.45 mm
Centre Height (G): 34.93 mm    Top Width (M): 08.74 mm    Ball Width (L): 11.10 mm    Base Width: 12.70 mm    Base Length (P): 11.10 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF5SRS (50 Pcs)
Female Rod Ends - 5/16-24 UNF - 7.94mm - Right Hand 19.05x17.45 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
17.46
mm

(Equiv. 0.687 in.)
Head Diameter (E)
15.88
mm
Centre Height (G)
39.69
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 19.05x17.46 mm
Base Length (P): 34.93 mm
Part Number: STQ50RS (50 Pcs)
3/8-24 UNF - 9.53mm - Right Hand 19.05x17.46 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
19.05
mm

(Equiv. 0.75 in.)
Thread Length (C)
17.46
mm

(Equiv. 0.687 in.)
Head Diameter (E)
15.88
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 19.05x17.46 mm
Centre Height (G): 39.69 mm    Base Length (P): 34.93 mm
Part Number: STQ50RS (50 Pcs)
3/8-24 UNF - 9.53mm - Right Hand 19.05x17.46 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
20.63
mm

(Equiv. 0.812 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
19.05
mm
Centre Height (G)
39.68
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 20.63x22.23 mm
Base Length (P): 34.93 mm
Part Number: STQ20RS
3/8-24 UNF - 9.53mm - Right Hand 20.63x22.23 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
20.63
mm

(Equiv. 0.812 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
19.05
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 20.63x22.23 mm
Centre Height (G): 39.68 mm    Base Length (P): 34.93 mm
Part Number: STQ20RS
3/8-24 UNF - 9.53mm - Right Hand 20.63x22.23 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
20.63
mm

(Equiv. 0.812 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
25.40
mm
Centre Height (G)
41.28
mm
Top Width (M)
10.31
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 20.63x22.23 mm
Ball Width (L): 12.70 mm    Base Width: 17.45 mm    Base Length (P): 14.28 mm
Part Number: EFT6SRS
3/8-24 UNF - 9.53mm - Right Hand 20.63x22.23 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
20.63
mm

(Equiv. 0.812 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
25.40
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 20.63x22.23 mm
Centre Height (G): 41.28 mm    Top Width (M): 10.31 mm    Ball Width (L): 12.70 mm    Base Width: 17.45 mm    Base Length (P): 14.28 mm
Part Number: EFT6SRS
3/8-24 UNF - 9.53mm - Right Hand 20.63x22.23 mm /
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
23.80
mm

(Equiv. 0.937 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
25.40
mm
Centre Height (G)
41.28
mm
Top Width (M)
10.31
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 23.8x22.23 mm
Ball Width (L): 12.70 mm    Base Width: 17.45 mm    Base Length (P): 14.28 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF6SRS
Female Rod Ends - 3/8-24 UNF - 9.53mm - Right Hand 23.8x22.23 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
3/8-24 UNF (9.53mm) Right Hand

Thread Length (H)
23.80
mm

(Equiv. 0.937 in.)
Thread Length (C)
22.23
mm

(Equiv. 0.875 in.)
Head Diameter (E)
25.40
mm
Female Rod Ends - 3/8-24 UNF -9.53mm- Right Hand 23.8x22.23 mm
Centre Height (G): 41.28 mm    Top Width (M): 10.31 mm    Ball Width (L): 12.70 mm    Base Width: 17.45 mm    Base Length (P): 14.28 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF6SRS
Female Rod Ends - 3/8-24 UNF - 9.53mm - Right Hand 23.8x22.23 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
7/16-20 UNF (11.11mm) Right Hand

Thread Length (H)
26.19
mm

(Equiv. 1.031 in.)
Thread Length (C)
26.98
mm

(Equiv. 1.062 in.)
Head Diameter (E)
28.58
mm
Centre Height (G)
46.03
mm
Top Width (M)
11.10
mm
Female Rod Ends - 7/16-20 UNF -11.11mm- Right Hand 26.19x26.98 mm
Ball Width (L): 14.28 mm    Base Width: 19.05 mm    Base Length (P): 15.88 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF7SRS (50 Pcs)
Female Rod Ends - 7/16-20 UNF - 11.11mm - Right Hand 26.19x26.98 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
7/16-20 UNF (11.11mm) Right Hand

Thread Length (H)
26.19
mm

(Equiv. 1.031 in.)
Thread Length (C)
26.98
mm

(Equiv. 1.062 in.)
Head Diameter (E)
28.58
mm
Female Rod Ends - 7/16-20 UNF -11.11mm- Right Hand 26.19x26.98 mm
Centre Height (G): 46.03 mm    Top Width (M): 11.10 mm    Ball Width (L): 14.28 mm    Base Width: 19.05 mm    Base Length (P): 15.88 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF7SRS (50 Pcs)
Female Rod Ends - 7/16-20 UNF - 11.11mm - Right Hand 26.19x26.98 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
1/2-20 UNF (12.7mm) Right Hand

Thread Length (H)
47.50
mm

(Equiv. 1.87 in.)
Thread Length (C)
28.58
mm

(Equiv. 1.125 in.)
Head Diameter (E)
33.33
mm
Centre Height (G)
53.98
mm
Top Width (M)
12.70
mm
Female Rod Ends - 1/2-20 UNF -12.7mm- Right Hand 47.5x28.58 mm
Ball Width (L): 15.88 mm    Base Width: 22.23 mm    Base Length (P): 19.05 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF8SRS (50 Pcs)
Female Rod Ends - 1/2-20 UNF - 12.7mm - Right Hand 47.5x28.58 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
1/2-20 UNF (12.7mm) Right Hand

Thread Length (H)
47.50
mm

(Equiv. 1.87 in.)
Thread Length (C)
28.58
mm

(Equiv. 1.125 in.)
Head Diameter (E)
33.33
mm
Female Rod Ends - 1/2-20 UNF -12.7mm- Right Hand 47.5x28.58 mm
Centre Height (G): 53.98 mm    Top Width (M): 12.70 mm    Ball Width (L): 15.88 mm    Base Width: 22.23 mm    Base Length (P): 19.05 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF8SRS (50 Pcs)
Female Rod Ends - 1/2-20 UNF - 12.7mm - Right Hand 47.5x28.58 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
Thread Size
3/4-16 UNF (19.05mm) Right Hand

Thread Length (H)
39.68
mm

(Equiv. 1.562 in.)
Thread Length (C)
46.03
mm

(Equiv. 1.812 in.)
Head Diameter (E)
44.45
mm
Centre Height (G)
73.03
mm
Top Width (M)
17.45
mm
Female Rod Ends - 3/4-16 UNF -19.05mm- Right Hand 39.68x46.03 mm
Ball Width (L): 22.23 mm    Base Width: 28.58 mm    Base Length (P): 25.40 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF12SRS (50 Pcs)
Female Rod Ends - 3/4-16 UNF - 19.05mm - Right Hand 39.68x46.03 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Thread Size
3/4-16 UNF (19.05mm) Right Hand

Thread Length (H)
39.68
mm

(Equiv. 1.562 in.)
Thread Length (C)
46.03
mm

(Equiv. 1.812 in.)
Head Diameter (E)
44.45
mm
Female Rod Ends - 3/4-16 UNF -19.05mm- Right Hand 39.68x46.03 mm
Centre Height (G): 73.03 mm    Top Width (M): 17.45 mm    Ball Width (L): 22.23 mm    Base Width: 28.58 mm    Base Length (P): 25.40 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Part Number: SPF12SRS (50 Pcs)
Female Rod Ends - 3/4-16 UNF - 19.05mm - Right Hand 39.68x46.03 mm Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jun 12, 2028
