Rod Ends - Female - Steel - Plain - Bronze Lined - Ferrobal Narrow Head

Rod Ends -> Female -> Steel -> Plain -> Bronze Lined -> Ferrobal Narrow Head

There are 6 products in the sub-categories of Rod Ends - Female - Steel - Plain - Bronze Lined - Ferrobal Narrow Head. Browse the Rod Ends - Female - Steel - Plain - Bronze Lined - Ferrobal Narrow Head products table.

Category Details

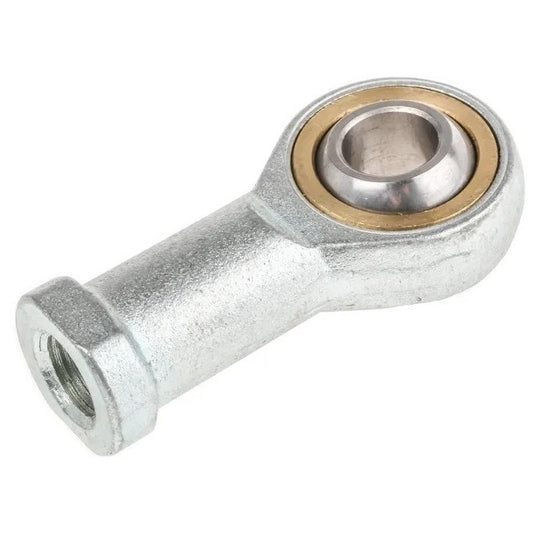

A selection of Ferrobal Narrow Head Bronze Lined Plain Steel Female Rod Ends. Bearing Steel, hardened, ground and chromium plated Inner ring, Heavy duty bronze with embedded bronze - PTFE fabric Outter ring. Steel/Bronze - PTFE fabric Sliding Combination. Also known as Heim Joints

  • An expanded range may be available on special order. Please enquire.
  • Maintenance free and no lubrication necessary.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Female - Steel - Plain - Bronze Lined - Ferrobal Narrow Head category on the Small Parts & Bearings online store.
Eye Size Overall Length Thread Size Thread Length Head Width Eye Width Indicative
Eye Size
8
mm

(Equiv. 0.315 in.)
Overall Length
48.00
mm

(Equiv. 1.89 in.)
Thread Size
M8x1.25 Left

Thread Length
15.00
mm
Head Width
6.00
mm
Eye Width
8.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 24.00 mm    Centre Height: 36.00 mm    Grease Nipple: No    Body Width / Flange Width: 12.50 / 16.00 mm
Part Number: REF-080-L-CB-N
Female Rod Ends - 8x48 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$85.23 AUD
$85.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size Overall Length Thread Size Thread Length Indicative
Eye Size
8
mm

(Equiv. 0.315 in.)
Overall Length
48.00
mm

(Equiv. 1.89 in.)
Thread Size
M8x1.25 Left

Thread Length
15.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 6.00 mm    Eye Width: 8.00 mm    Head Diameter: 24.00 mm    Centre Height: 36.00 mm    Grease Nipple: No    Body Width / Flange Width: 12.50 / 16.00 mm
Part Number: REF-080-L-CB-N
Female Rod Ends - 8x48 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$85.23 AUD
$85.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
8
mm

(Equiv. 0.315 in.)
Overall Length
48.00
mm

(Equiv. 1.89 in.)
Thread Size
M8x1.25 Right

Thread Length
15.00
mm
Head Width
6.00
mm
Eye Width
8.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 24.00 mm    Centre Height: 36.00 mm    Grease Nipple: No    Body Width / Flange Width: 12.50 / 16.00 mm
Part Number: REF-080-R-CB-N
Female Rod Ends - 8x48 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$75.68 AUD
$90.82 AUD $75.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
8
mm

(Equiv. 0.315 in.)
Overall Length
48.00
mm

(Equiv. 1.89 in.)
Thread Size
M8x1.25 Right

Thread Length
15.00
mm
Female Rod Ends - 8x48 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 6.00 mm    Eye Width: 8.00 mm    Head Diameter: 24.00 mm    Centre Height: 36.00 mm    Grease Nipple: No    Body Width / Flange Width: 12.50 / 16.00 mm
Part Number: REF-080-R-CB-N
Female Rod Ends - 8x48 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$75.68 AUD
$90.82 AUD $75.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
10
mm

(Equiv. 0.394 in.)
Overall Length
57.50
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Left

Thread Length
20.00
mm
Head Width
7.00
mm
Eye Width
9.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 29.00 mm    Centre Height: 43.00 mm    Grease Nipple: No    Body Width / Flange Width: 15.00 / 19.00 mm
Part Number: REF-100-L-CB-N
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$71.23 AUD
$85.47 AUD $71.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
10
mm

(Equiv. 0.394 in.)
Overall Length
57.50
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Left

Thread Length
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 7.00 mm    Eye Width: 9.00 mm    Head Diameter: 29.00 mm    Centre Height: 43.00 mm    Grease Nipple: No    Body Width / Flange Width: 15.00 / 19.00 mm
Part Number: REF-100-L-CB-N
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$71.23 AUD
$85.47 AUD $71.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
10
mm

(Equiv. 0.394 in.)
Overall Length
57.50
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Right

Thread Length
20.00
mm
Head Width
7.00
mm
Eye Width
9.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 29.00 mm    Centre Height: 43.00 mm    Grease Nipple: No    Body Width / Flange Width: 15.00 / 19.00 mm
Part Number: REF-100-R-CB-N
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$71.23 AUD
$85.47 AUD $71.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
10
mm

(Equiv. 0.394 in.)
Overall Length
57.50
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Right

Thread Length
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 7.00 mm    Eye Width: 9.00 mm    Head Diameter: 29.00 mm    Centre Height: 43.00 mm    Grease Nipple: No    Body Width / Flange Width: 15.00 / 19.00 mm
Part Number: REF-100-R-CB-N
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$71.23 AUD
$85.47 AUD $71.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
12
mm

(Equiv. 0.472 in.)
Overall Length
67.00
mm

(Equiv. 2.638 in.)
Thread Size
M12x1.75 Left

Thread Length
23.00
mm
Head Width
8.00
mm
Eye Width
10.00
mm
Female Rod Ends - 12x67 mm - M12x1.75 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 34.00 mm    Centre Height: 50.00 mm    Grease Nipple: No    Body Width / Flange Width: 17.50 / 22.00 mm
Part Number: REF-120-L-CB-N
Female Rod Ends - 12x67 mm - M12x1.75 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$101.86 AUD
$122.24 AUD $101.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
12
mm

(Equiv. 0.472 in.)
Overall Length
67.00
mm

(Equiv. 2.638 in.)
Thread Size
M12x1.75 Left

Thread Length
23.00
mm
Female Rod Ends - 12x67 mm - M12x1.75 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 8.00 mm    Eye Width: 10.00 mm    Head Diameter: 34.00 mm    Centre Height: 50.00 mm    Grease Nipple: No    Body Width / Flange Width: 17.50 / 22.00 mm
Part Number: REF-120-L-CB-N
Female Rod Ends - 12x67 mm - M12x1.75 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$101.86 AUD
$122.24 AUD $101.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
12
mm

(Equiv. 0.472 in.)
Overall Length
67.00
mm

(Equiv. 2.638 in.)
Thread Size
M12x1.75 Right

Thread Length
23.00
mm
Head Width
8.00
mm
Eye Width
10.00
mm
Female Rod Ends - 12x67 mm - M12x1.75 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 34.00 mm    Centre Height: 50.00 mm    Grease Nipple: No    Body Width / Flange Width: 17.50 / 22.00 mm
Part Number: REF-120-R-CB-N
Female Rod Ends - 12x67 mm - M12x1.75 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$101.86 AUD
$122.24 AUD $101.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Eye Size
12
mm

(Equiv. 0.472 in.)
Overall Length
67.00
mm

(Equiv. 2.638 in.)
Thread Size
M12x1.75 Right

Thread Length
23.00
mm
Female Rod Ends - 12x67 mm - M12x1.75 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width: 8.00 mm    Eye Width: 10.00 mm    Head Diameter: 34.00 mm    Centre Height: 50.00 mm    Grease Nipple: No    Body Width / Flange Width: 17.50 / 22.00 mm
Part Number: REF-120-R-CB-N
Female Rod Ends - 12x67 mm - M12x1.75 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$101.86 AUD
$122.24 AUD $101.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
