Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway

Rod Ends -> Female -> Stainless -> 303 Housing and Ball and Nylon Raceway

There are 4 products in the sub-categories of Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway. Browse the Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway products table.

Category Details

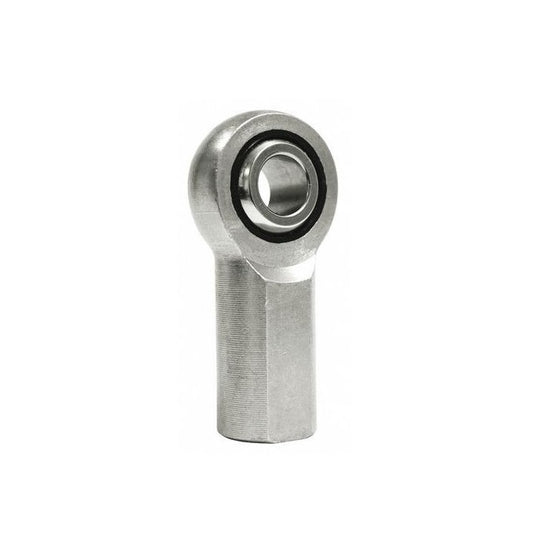

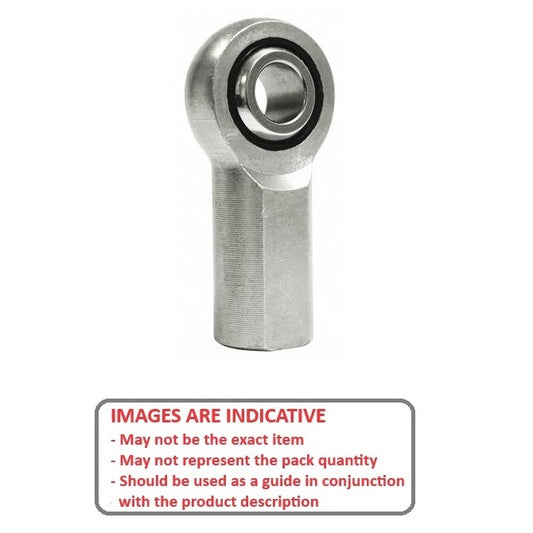

A selection of 303 Housing and Ball and Nylon Raceway Stainless Female Rod Ends. Also known as Heim Joints

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway category on the Small Parts & Bearings online store.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
4.826
mm

(Equiv. 0.19 in.)
Overall Length (L)
34.925
mm

(Equiv. 1.375 in.)
Thread Size
10-32 UNF Right

Thread Length (l2)
14.28
mm
Head Width (W)
6.35
mm
Eye Width (W1)
7.93
mm
Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 15.88 mm    Centre Height (l1): 26.98 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 10.31 / 7.93 mm
Part Number: REF-048-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$53.86 AUD
$53.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Indicative
Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
4.826
mm

(Equiv. 0.19 in.)
Overall Length (L)
34.925
mm

(Equiv. 1.375 in.)
Thread Size
10-32 UNF Right

Thread Length (l2)
14.28
mm
Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 6.35 mm    Eye Width (W1): 7.93 mm    Head Diameter (D): 15.88 mm    Centre Height (l1): 26.98 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 10.31 / 7.93 mm
Part Number: REF-048-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$53.86 AUD
$53.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
6.350
mm

(Equiv. 0.25 in.)
Overall Length (L)
42.850
mm

(Equiv. 1.687 in.)
Thread Size
1/4-28 UNF Right

Thread Length (l2)
19.05
mm
Head Width (W)
7.14
mm
Eye Width (W1)
9.53
mm
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 19.05 mm    Centre Height (l1): 33.33 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.91 / 9.53 mm
Part Number: REF-064-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
6.350
mm

(Equiv. 0.25 in.)
Overall Length (L)
42.850
mm

(Equiv. 1.687 in.)
Thread Size
1/4-28 UNF Right

Thread Length (l2)
19.05
mm
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 7.14 mm    Eye Width (W1): 9.53 mm    Head Diameter (D): 19.05 mm    Centre Height (l1): 33.33 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.91 / 9.53 mm
Part Number: REF-064-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
53.975
mm

(Equiv. 2.125 in.)
Thread Size
3/8-24 UNF Right

Thread Length (l2)
23.80
mm
Head Width (W)
10.31
mm
Eye Width (W1)
12.70
mm
Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 25.40 mm    Centre Height (l1): 41.28 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.45 / 14.28 mm
Part Number: REF-095-R-SN (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$2,791.86 AUD
$2,791.86 AUD
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
53.975
mm

(Equiv. 2.125 in.)
Thread Size
3/8-24 UNF Right

Thread Length (l2)
23.80
mm
Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 10.31 mm    Eye Width (W1): 12.70 mm    Head Diameter (D): 25.40 mm    Centre Height (l1): 41.28 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.45 / 14.28 mm
Part Number: REF-095-R-SN (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$2,791.86 AUD
$2,791.86 AUD
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
12.700
mm

(Equiv. 0.5 in.)
Overall Length (L)
70.637
mm

(Equiv. 2.781 in.)
Thread Size
1/2-20 UNF Right

Thread Length (l2)
30.15
mm
Head Width (W)
12.70
mm
Eye Width (W1)
15.88
mm
Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 33.33 mm    Centre Height (l1): 56.20 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.23 / 19.05 mm
Part Number: REF-127-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$134.14 AUD
$160.96 AUD $134.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon Rod End
Eye Size (d1)
12.700
mm

(Equiv. 0.5 in.)
Overall Length (L)
70.637
mm

(Equiv. 2.781 in.)
Thread Size
1/2-20 UNF Right

Thread Length (l2)
30.15
mm
Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 12.70 mm    Eye Width (W1): 15.88 mm    Head Diameter (D): 33.33 mm    Centre Height (l1): 56.20 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.23 / 19.05 mm
Part Number: REF-127-R-SN (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$134.14 AUD
$160.96 AUD $134.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
