Retaining Rings - Internal - Spiral Rings - Medium-Heavy

Retaining Rings -> Internal -> Spiral Rings -> Medium-Heavy

There is only 1 product in the sub-categories of Retaining Rings - Internal - Spiral Rings - Medium-Heavy. Browse the Retaining Rings - Internal - Spiral Rings - Medium-Heavy products table. To narrow down the selection, please choose a sub-category from the links below.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

This category includes various types of internal retaining rings.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Medium-Heavy category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.53
mm

(Equiv. 1.32 in.)
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Radial Wall (S)
2.36
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.10

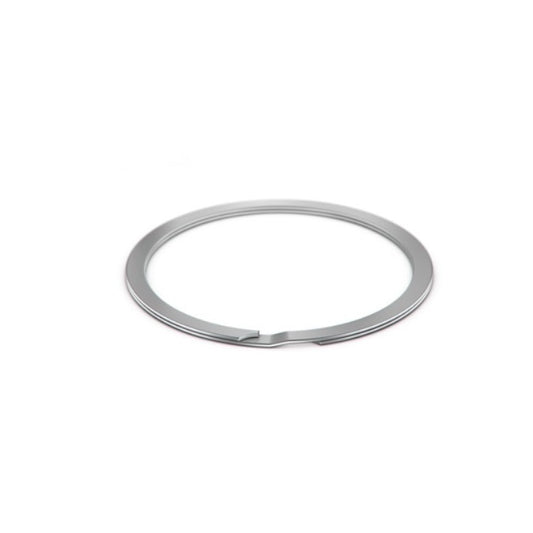

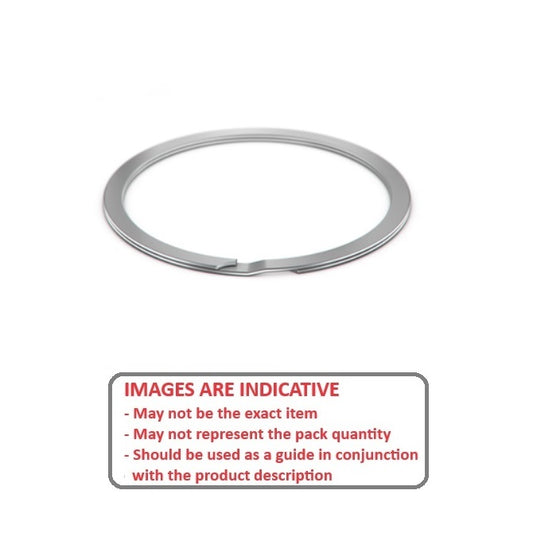

Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02
Internal Retaining Rings - 31.75x1.27x33.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$7.05 AUD
$7.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.53
mm

(Equiv. 1.32 in.)
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 2.36 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.10   Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02
Internal Retaining Rings - 31.75x1.27x33.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$7.05 AUD
$7.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
