Collection: Retaining Rings - Internal - Spiral Rings - Medium Duty

Retaining Rings -> Internal -> Spiral Rings -> Medium Duty

There are 56 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Medium Duty. Scroll down or follow the link to Retaining Rings - Internal - Spiral Rings - Medium Duty in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

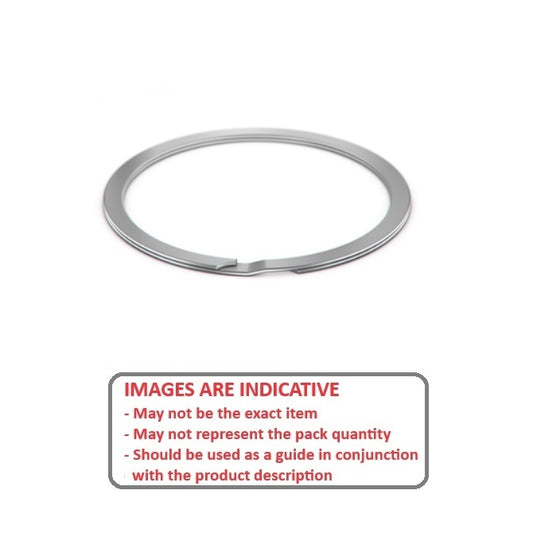

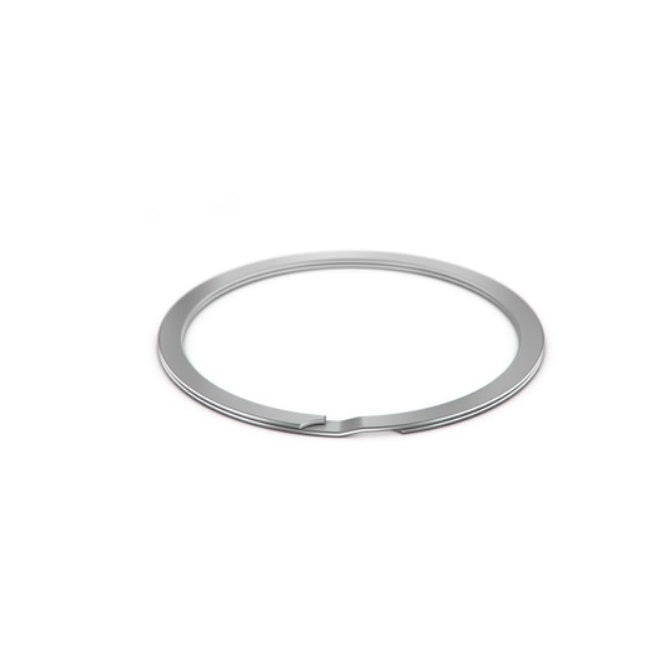

Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

A selection of Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings....

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Internal Retaining Rings - 15.88x0.64x16.53 mm - Stainless Steel 302/304 Similar to A2, 18-8

Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel

A selection of Stainless Steel Medium Duty Spiral Rings Internal Retaining Rings....

Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel

Category Details

This category includes various types of internal retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spiral Rings and Snap Rings PDF

A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Medium Duty category on the Small Parts & Bearings online store.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 13.35 mm (Equiv. 0.526 in.)	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip ID: 10.98 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 13.35 mm (Equiv. 0.526 in.)	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 10.98 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 14.70 mm (Equiv. 0.579 in.)	Approx. Loose Circlip OD (Dr) 14.92 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip ID: 12.64 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (20 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.00 AUD Regular price ~~$16.80 AUD~~ Sale price $14.00 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 14.70 mm (Equiv. 0.579 in.)	Approx. Loose Circlip OD (Dr) 14.92 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 12.64 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (20 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.00 AUD Regular price ~~$16.80 AUD~~ Sale price $14.00 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
RR-056 (5 Pcs) --- Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-056 (5 Pcs) --- Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $14.00 AUD Regular price ~~$16.80 AUD~~ Sale price $14.00 AUD Unit price per 4 Available Now Sale
Housing Bore (B) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.72 mm (Equiv. 0.619 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip ID: 13.47 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (196 Pcs) Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $255.05 AUD Regular price ~~$306.05 AUD~~ Sale price $255.05 AUD Unit price per Per 196 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.72 mm (Equiv. 0.619 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 13.47 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (196 Pcs) Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $255.05 AUD Regular price ~~$306.05 AUD~~ Sale price $255.05 AUD Unit price per Per 196 Quantity Required Backorder: Out of Stock.
RR-059 (196 Pcs) --- Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-059 (196 Pcs) --- Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $255.05 AUD Regular price ~~$306.05 AUD~~ Sale price $255.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.53 mm (Equiv. 0.651 in.)	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 48 units (480 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10 Quantity Required 48 units (480 pcs) Available Now. Backorder if more than 48.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.53 mm (Equiv. 0.651 in.)	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 48 units (480 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10 Quantity Required 48 units (480 pcs) Available Now. Backorder if more than 48.
RR-062-S02 (10 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RR-062-S02 (10 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 48 Available Now
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.53 mm (Equiv. 0.651 in.)	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring 141 units (282 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 2 Quantity Required 141 units (282 pcs) Available Now. Backorder if more than 141.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.53 mm (Equiv. 0.651 in.)	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring 141 units (282 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 2 Quantity Required 141 units (282 pcs) Available Now. Backorder if more than 141.
RR-062 (2 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-062 (2 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per 141 Available Now
Housing Bore (B) 17.45 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 18.11 mm (Equiv. 0.713 in.)	Approx. Loose Circlip OD (Dr) 18.22 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip ID: 15.94 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.45 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 18.11 mm (Equiv. 0.713 in.)	Approx. Loose Circlip OD (Dr) 18.22 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 15.94 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
RR-068 (100 Pcs) --- Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-068 (100 Pcs) --- Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.86 mm (Equiv. 0.782 in.)	Approx. Loose Circlip OD (Dr) 19.89 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 16.59 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 38 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.86 mm (Equiv. 0.782 in.)	Approx. Loose Circlip OD (Dr) 19.89 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.05 Approx. Loose Clip ID: 16.59 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 38 Quantity Required Backorder: Out of Stock.
RR-075-S02 (38 Pcs) --- Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RR-075-S02 (38 Pcs) --- Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.94 mm (Equiv. 0.903 in.)	Approx. Loose Circlip OD (Dr) 22.97 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip ID: 19.67 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.94 mm (Equiv. 0.903 in.)	Approx. Loose Circlip OD (Dr) 22.97 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.08 Approx. Loose Clip ID: 19.67 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
RR-086 (6 Pcs) --- Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-086 (6 Pcs) --- Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 23.17 mm (Equiv. 0.912 in.)	Approx. Loose Circlip OD (Dr) 23.21 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip ID: 19.91 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 23.17 mm (Equiv. 0.912 in.)	Approx. Loose Circlip OD (Dr) 23.21 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip ID: 19.91 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
RR-087 (6 Pcs) --- Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-087 (6 Pcs) --- Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 24.77 mm (Equiv. 0.975 in.)	Approx. Loose Circlip OD (Dr) 24.88 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip ID: 21.58 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$11.07 AUD~~ Sale price $9.23 AUD Unit price per Per 40 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 24.77 mm (Equiv. 0.975 in.)	Approx. Loose Circlip OD (Dr) 24.88 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip ID: 21.58 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$11.07 AUD~~ Sale price $9.23 AUD Unit price per Per 40 Quantity Required Backorder: Out of Stock.
RR-093 (40 Pcs) --- Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-093 (40 Pcs) --- Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.23 AUD Regular price ~~$11.07 AUD~~ Sale price $9.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 26.50 mm (Equiv. 1.043 in.)	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 80 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per Each Quantity Required 80 Available Now. Backorder if more than 80.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 26.50 mm (Equiv. 1.043 in.)	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 80 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per Each Quantity Required 80 Available Now. Backorder if more than 80.
RR-100-S02 --- Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RR-100-S02 --- Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per 80 Available Now Sale
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 26.50 mm (Equiv. 1.043 in.)	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring 106 units (212 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 Quantity Required 106 units (212 pcs) Available Now. Backorder if more than 106.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 26.50 mm (Equiv. 1.043 in.)	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring 106 units (212 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 Quantity Required 106 units (212 pcs) Available Now. Backorder if more than 106.
RR-100 (2 Pcs) --- Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-100 (2 Pcs) --- Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 106 Available Now
Housing Bore (B) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 27.08 mm (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip ID: 23.3 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Housing Bore (B) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 27.08 mm (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 23.3 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 26.97 mm (Equiv. 1.062 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 28.04 mm (Equiv. 1.104 in.)	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 24.34 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 9 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 26.97 mm (Equiv. 1.062 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 28.04 mm (Equiv. 1.104 in.)	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 24.34 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 9 Quantity Required Backorder: Out of Stock.
RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 29.64 mm (Equiv. 1.167 in.)	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 26.02 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 54 units (108 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per Per 2 Quantity Required 54 units (108 pcs) Available Now. Backorder if more than 54.
Housing Bore (B) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 29.64 mm (Equiv. 1.167 in.)	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 26.02 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 54 units (108 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per Per 2 Quantity Required 54 units (108 pcs) Available Now. Backorder if more than 54.
RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $1.59 AUD Regular price Sale price $1.59 AUD Unit price per 54 Available Now
Housing Bore (B) 30.94 mm (Equiv. 1.218 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.16 mm (Equiv. 1.266 in.)	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Carbon Spring Steel Approx. Loose Clip ID: 27.98 +/- 0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Per 27 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 30.94 mm (Equiv. 1.218 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.16 mm (Equiv. 1.266 in.)	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip ID: 27.98 +/- 0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Per 27 Quantity Required Backorder: Out of Stock.
RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.97 mm (Equiv. 1.298 in.)	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 28.83 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
Housing Bore (B) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.97 mm (Equiv. 1.298 in.)	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 28.83 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per 15 Available Now
Housing Bore (B) 33.34 mm (Equiv. 1.313 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 34.54 mm (Equiv. 1.36 in.)	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 30.49 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring 19 units (95 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
Housing Bore (B) 33.34 mm (Equiv. 1.313 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 34.54 mm (Equiv. 1.36 in.)	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 30.49 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring 19 units (95 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 19 Available Now
Housing Bore (B) 34.11 mm (Equiv. 1.343 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 35.43 mm (Equiv. 1.395 in.)	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 31.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Per 19 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 34.11 mm (Equiv. 1.343 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 35.43 mm (Equiv. 1.395 in.)	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Per 19 Quantity Required Backorder: Out of Stock.
RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 34.80 mm (Equiv. 1.37 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 36.24 mm (Equiv. 1.427 in.)	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 31.51 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4876 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 4876 Available Now. Backorder if more than 4876.
Housing Bore (B) 34.80 mm (Equiv. 1.37 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 36.24 mm (Equiv. 1.427 in.)	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.51 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4876 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 4876 Available Now. Backorder if more than 4876.
RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 4876 Available Now
Housing Bore (B) 36.50 mm (Equiv. 1.437 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 37.82 mm (Equiv. 1.489 in.)	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip ID: 33.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price ~~$2.56 AUD~~ Sale price $2.14 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
Housing Bore (B) 36.50 mm (Equiv. 1.437 in.)	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 37.82 mm (Equiv. 1.489 in.)	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 33.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price ~~$2.56 AUD~~ Sale price $2.14 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $2.14 AUD Regular price ~~$2.56 AUD~~ Sale price $2.14 AUD Unit price per 44 Available Now Sale
Housing Bore (B) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.77 mm (Equiv. 1.684 in.)	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.77 mm (Equiv. 1.684 in.)	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.77 mm (Equiv. 1.684 in.)	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.77 mm (Equiv. 1.684 in.)	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 42.85 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 44.45 mm (Equiv. 1.75 in.)	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip ID: 38.74 +/- 0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.41 AUD Regular price ~~$14.89 AUD~~ Sale price $12.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 42.85 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 44.45 mm (Equiv. 1.75 in.)	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 38.74 +/- 0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.41 AUD Regular price ~~$14.89 AUD~~ Sale price $12.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $12.41 AUD Regular price ~~$14.89 AUD~~ Sale price $12.41 AUD Unit price per Out of stock! Backorder Now Sale
