Collection: Retaining Rings - Internal - Spiral Rings - Light Duty
Retaining Rings -> Internal -> Spiral Rings -> Light DutyThere are 8 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Light Duty. Browse the Retaining Rings - Internal - Spiral Rings - Light Duty products table. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
A selection of Carbon Steel Light Duty Spiral Rings Internal Retaining Rings....
Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel
A selection of Stainless Steel Light Duty Spiral Rings Internal Retaining Rings....
Category Details
This category includes various types of internal retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Light Duty category on the Small Parts & Bearings online store.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

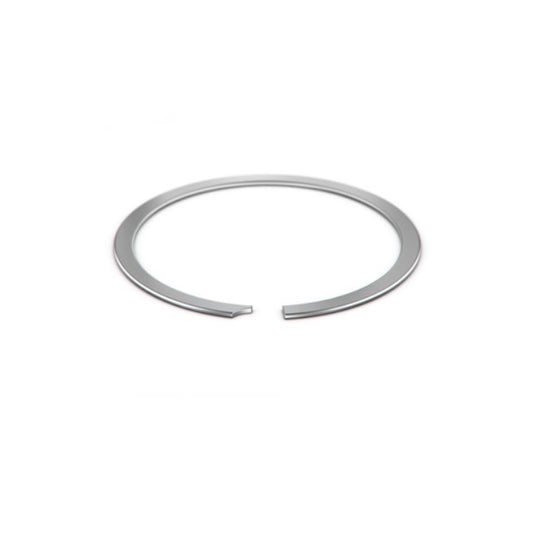

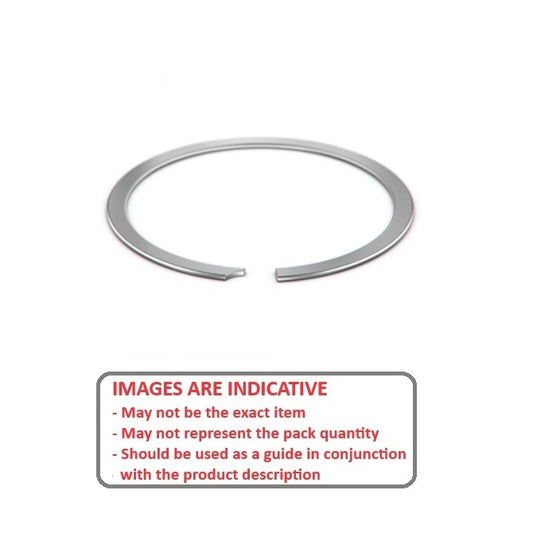

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
13.41
mm (Equiv. 0.528 in.) |
Approx. Loose Circlip OD (Dr)
13.31
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.14
mm + 0.08 / - 0.13 |
Groove Width (W)
0.56
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00
Groove Depth (d): 0.36
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel |
||||||
|
Part Number: UR-050-S02 (8 Pcs)
Internal Retaining Rings - 12.7x0.46x13.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 8
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

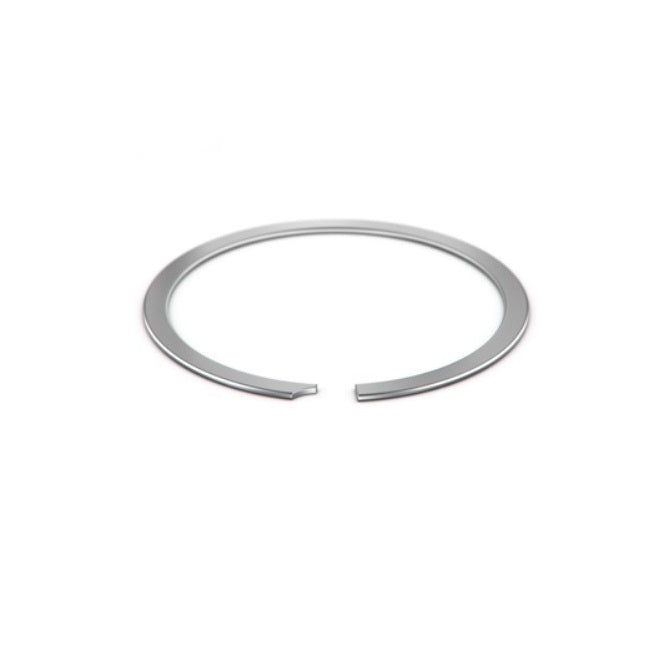

Indicative Image |
||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
13.41
mm (Equiv. 0.528 in.) |
Approx. Loose Circlip OD (Dr)
13.31
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 1.14 mm + 0.08 / - 0.13
Groove Width (W): 0.56 mm +/- 0.05
Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00
Groove Depth (d): 0.36
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel |
||||||
|
Part Number: UR-050-S02 (8 Pcs)
Internal Retaining Rings - 12.7x0.46x13.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 8
|
||||||
|
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
16.59
mm (Equiv. 0.653 in.) |
Approx. Loose Circlip OD (Dr)
16.64
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.14
mm + 0.08 / - 0.13 |
Groove Width (W)
0.56
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 14.36 + 0.05 / - 0.00
Groove Depth (d): 0.36
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-062 (13 Pcs)
Internal Retaining Rings - 15.88x0.46x16.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.41 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
16.59
mm (Equiv. 0.653 in.) |
Approx. Loose Circlip OD (Dr)
16.64
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.14 mm + 0.08 / - 0.13
Groove Width (W): 0.56 mm +/- 0.05
Approx. Loose Clip ID: 14.36 + 0.05 / - 0.00
Groove Depth (d): 0.36
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-062 (13 Pcs)
Internal Retaining Rings - 15.88x0.46x16.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.41 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.04 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
36.04
mm (Equiv. 1.419 in.) |
Approx. Loose Circlip OD (Dr)
36.61
mm + 0.38 / - 0.00 |
Radial Wall (S)
2.24
mm + 0.08 / - 0.13 |
Groove Width (W)
0.79
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 32.13 + 0.05 / - 0.00
Groove Depth (d): 0.56
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-137 (5 Pcs)
Internal Retaining Rings - 34.93x0.64x36.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.04 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
36.04
mm (Equiv. 1.419 in.) |
Approx. Loose Circlip OD (Dr)
36.61
mm + 0.38 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.24 mm + 0.08 / - 0.13
Groove Width (W): 0.79 mm +/- 0.10
Approx. Loose Clip ID: 32.13 + 0.05 / - 0.00
Groove Depth (d): 0.56
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-137 (5 Pcs)
Internal Retaining Rings - 34.93x0.64x36.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
52.25
mm (Equiv. 2.057 in.) |
Approx. Loose Circlip OD (Dr)
53.24
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.00
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 47.24 + 0.07 / - 0.00
Groove Depth (d): 0.74
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-200 (2 Pcs)
Internal Retaining Rings - 50.8x0.79x52.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 496 units (992 pcs) Available Now | Item Discontinued - Up to 496 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
52.25
mm (Equiv. 2.057 in.) |
Approx. Loose Circlip OD (Dr)
53.24
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.00 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.13
Approx. Loose Clip ID: 47.24 + 0.07 / - 0.00
Groove Depth (d): 0.74
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-200 (2 Pcs)
Internal Retaining Rings - 50.8x0.79x52.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 496 units (992 pcs) Available Now | Item Discontinued - Up to 496 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
52.37
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
54.31
mm (Equiv. 2.138 in.) |
Approx. Loose Circlip OD (Dr)
54.88
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.01
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 46.86 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-206 (74 Pcs)
Internal Retaining Rings - 52.37x0.79x54.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$242.95 AUD
Regular price
Unit price
per
Per 74
|
||||||
|
Housing Bore (B)
52.37
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
54.31
mm (Equiv. 2.138 in.) |
Approx. Loose Circlip OD (Dr)
54.88
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.16
Approx. Loose Clip ID: 46.86 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-206 (74 Pcs)
Internal Retaining Rings - 52.37x0.79x54.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$242.95 AUD
Regular price
Unit price
per
Per 74
|
||||||
|
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
57.48
mm (Equiv. 2.263 in.) |
Approx. Loose Circlip OD (Dr)
58.22
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.01
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 50.2 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-218 (5 Pcs)
Internal Retaining Rings - 55.55x0.79x57.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
57.48
mm (Equiv. 2.263 in.) |
Approx. Loose Circlip OD (Dr)
58.22
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.15
Approx. Loose Clip ID: 50.2 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-218 (5 Pcs)
Internal Retaining Rings - 55.55x0.79x57.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
74.96
mm (Equiv. 2.951 in.) |
Approx. Loose Circlip OD (Dr)
76.54
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.01
mm +/- 0.10 |
Groove Width (W)
1.00
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 68.52 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-287
Internal Retaining Rings - 73.03x0.79x74.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
74.96
mm (Equiv. 2.951 in.) |
Approx. Loose Circlip OD (Dr)
76.54
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm +/- 0.10
Groove Width (W): 1.00 mm +/- 0.16
Approx. Loose Clip ID: 68.52 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-287
Internal Retaining Rings - 73.03x0.79x74.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.01
mm +/- 0.10 |
Groove Width (W)
1.00
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.84 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-300 (17 Pcs)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$139.68 AUD
Regular price
Unit price
per
Per 17
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm +/- 0.10
Groove Width (W): 1.00 mm +/- 0.15
Approx. Loose Clip ID: 71.84 + 0.07 / - 0.00
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel |
||||||
|
Part Number: UR-300 (17 Pcs)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$139.68 AUD
Regular price
Unit price
per
Per 17
|
||||||
|
||||||
