| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

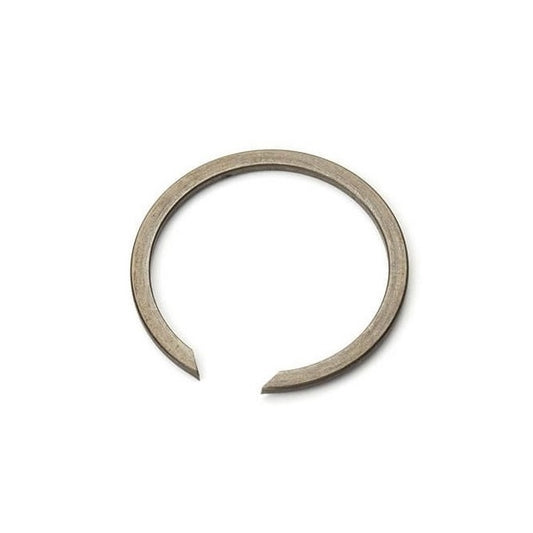

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
415.00
mm (Equiv. 16.339 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
420.0
mm + 0.40 / - 0.00 (Equiv. 16.535 in.) |
Approx. Loose Circlip OD (Dr)
424.00
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 409 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4150-LS
Internal Retaining Rings - 415x4x420 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
415.00
mm (Equiv. 16.339 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
420.0
mm + 0.40 / - 0.00 (Equiv. 16.535 in.) |
Approx. Loose Circlip OD (Dr)
424.00
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 7.50 mm + 0 / - 0.10 Groove Width (W): 4.20 mm Approx. Loose Clip ID: 409 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4150-LS
Internal Retaining Rings - 415x4x420 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, Jul 15, 2028 |
||||||
|
Housing Bore (B)
420.00
mm (Equiv. 16.535 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
425.0
mm + 0.40 / - 0.00 (Equiv. 16.732 in.) |
Approx. Loose Circlip OD (Dr)
429.10
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 414.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4200-LS
Internal Retaining Rings - 420x4x425 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
420.00
mm (Equiv. 16.535 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
425.0
mm + 0.40 / - 0.00 (Equiv. 16.732 in.) |
Approx. Loose Circlip OD (Dr)
429.10
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 7.50 mm + 0 / - 0.10 Groove Width (W): 4.20 mm Approx. Loose Clip ID: 414.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4200-LS
Internal Retaining Rings - 420x4x425 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, Jul 15, 2028 |
||||||
|
Housing Bore (B)
430.00
mm (Equiv. 16.929 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 424.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4300-LS
Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
430.00
mm (Equiv. 16.929 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 7.50 mm + 0 / - 0.10 Groove Width (W): 4.20 mm Approx. Loose Clip ID: 424.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4300-LS
Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, Jul 15, 2028 |
||||||
|
Housing Bore (B)
440.00
mm (Equiv. 17.323 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 434.3 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4400-LS
Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
440.00
mm (Equiv. 17.323 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 7.50 mm + 0 / - 0.10 Groove Width (W): 4.20 mm Approx. Loose Clip ID: 434.3 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-4400-LS
Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, Jul 15, 2028 |
||||||
