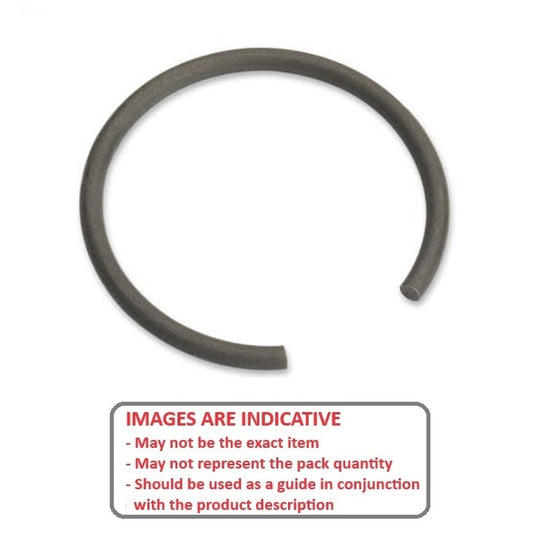

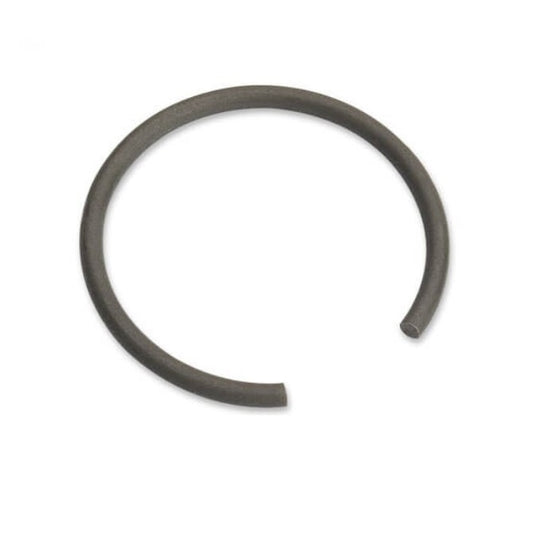

Retaining Rings - Internal - Round Wire

Retaining Rings -> Internal -> Round Wire
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
26.00
mm
+ 0.5 / - 0.0
(Equiv. 1.024 in.)
Approx. Loose Circlip OD (Dr)
26.30
mm
Groove Width (W)
2.20
Internal Retaining Rings - 24x2x26 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 22.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0240-RD
Internal Retaining Rings - 24x2x26 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
26.00
mm
+ 0.5 / - 0.0
(Equiv. 1.024 in.)
Approx. Loose Circlip OD (Dr)
26.30
mm
Internal Retaining Rings - 24x2x26 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20    Free Inside Diameter (D): 22.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0240-RD
Internal Retaining Rings - 24x2x26 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.8
mm
+ 0.08 / - 0.04
(Equiv. 0.071 in.)
Groove Dia. (Dg)
27.10
mm
Min.
(Equiv. 1.067 in.)
Approx. Loose Circlip OD (Dr)
27.90
mm
Groove Width (W)
1.90

+ 0.08 / - 0.00
Internal Retaining Rings - 25x1.8x27.1 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 24.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 0.95 mm    Gap (g): 10.000 mm
Part Number: WRI-0250A-RD
Internal Retaining Rings - 25x1.8x27.1 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.8
mm
+ 0.08 / - 0.04
(Equiv. 0.071 in.)
Groove Dia. (Dg)
27.10
mm
Min.
(Equiv. 1.067 in.)
Approx. Loose Circlip OD (Dr)
27.90
mm
Internal Retaining Rings - 25x1.8x27.1 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.90 + 0.08 / - 0.00   Free Inside Diameter (D): 24.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 0.95 mm    Gap (g): 10.000 mm
Part Number: WRI-0250A-RD
Internal Retaining Rings - 25x1.8x27.1 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
27.00
mm
+ 0.5 / - 0.0
(Equiv. 1.063 in.)
Approx. Loose Circlip OD (Dr)
27.30
mm
Groove Width (W)
2.20
Internal Retaining Rings - 25x2x27 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 23.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0250-RD
Internal Retaining Rings - 25x2x27 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
27.00
mm
+ 0.5 / - 0.0
(Equiv. 1.063 in.)
Approx. Loose Circlip OD (Dr)
27.30
mm
Internal Retaining Rings - 25x2x27 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20    Free Inside Diameter (D): 23.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0250-RD
Internal Retaining Rings - 25x2x27 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
28.00
mm
+ 0.5 / - 0.0
(Equiv. 1.102 in.)
Approx. Loose Circlip OD (Dr)
28.30
mm
Groove Width (W)
2.20
Internal Retaining Rings - 26x2x28 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 24.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0260-RD
Internal Retaining Rings - 26x2x28 mm Round Wire - Carbon Spring Steel Wire Clip
466 Available Now | Further orders can be expected around Sun, Oct 12, 2025
$1.95 AUD
$1.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

466 Available Now. Backorder if more than 466.
Housing Bore (B)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
28.00
mm
+ 0.5 / - 0.0
(Equiv. 1.102 in.)
Approx. Loose Circlip OD (Dr)
28.30
mm
Internal Retaining Rings - 26x2x28 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20    Free Inside Diameter (D): 24.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0260-RD
Internal Retaining Rings - 26x2x28 mm Round Wire - Carbon Spring Steel Wire Clip
466 Available Now | Further orders can be expected around Sun, Oct 12, 2025
$1.95 AUD
$1.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

466 Available Now. Backorder if more than 466.
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.00
mm
+ 0.5 / - 0.0
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.30
mm
Groove Width (W)
2.20
Internal Retaining Rings - 28x2x30 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 26.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0280-RD
Internal Retaining Rings - 28x2x30 mm Round Wire - Carbon Spring Steel Wire Clip
40 Available Now | Further orders can be expected around Sun, Oct 12, 2025
$5.32 AUD
$5.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

40 Available Now. Backorder if more than 40.
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.00
mm
+ 0.5 / - 0.0
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.30
mm
Internal Retaining Rings - 28x2x30 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20    Free Inside Diameter (D): 26.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0280-RD
Internal Retaining Rings - 28x2x30 mm Round Wire - Carbon Spring Steel Wire Clip
40 Available Now | Further orders can be expected around Sun, Oct 12, 2025
$5.32 AUD
$5.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

40 Available Now. Backorder if more than 40.
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.30
mm
Min.
(Equiv. 1.193 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
Groove Width (W)
2.10

+ 0.10 / - 0.00
Internal Retaining Rings - 28x2x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 27.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0280A-RD
Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.30
mm
Min.
(Equiv. 1.193 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
Internal Retaining Rings - 28x2x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 + 0.10 / - 0.00   Free Inside Diameter (D): 27.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0280A-RD
Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.5 / - 0.0
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
Groove Width (W)
2.20
Internal Retaining Rings - 30x2x32 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 28.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0300-RD (2 Pcs)
Internal Retaining Rings - 30x2x32 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$2.23 AUD
$2.23 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.5 / - 0.0
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
Internal Retaining Rings - 30x2x32 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20    Free Inside Diameter (D): 28.3    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.10 mm    Gap (g): 10.000 mm
Part Number: WRI-0300-RD (2 Pcs)
Internal Retaining Rings - 30x2x32 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$2.23 AUD
$2.23 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.30
mm
Min.
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
33.10
mm
Groove Width (W)
2.10

+ 0.10 / - 0.00
Internal Retaining Rings - 30x2x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 29.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0300A-RD
Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.30
mm
Min.
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
33.10
mm
Internal Retaining Rings - 30x2x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 + 0.10 / - 0.00   Free Inside Diameter (D): 29.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0300A-RD
Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
34.30
mm
Min.
(Equiv. 1.35 in.)
Approx. Loose Circlip OD (Dr)
35.10
mm
Groove Width (W)
2.10

+ 0.10 / - 0.00
Internal Retaining Rings - 32x2x34.3 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 31.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0320A-RD
Internal Retaining Rings - 32x2x34.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
34.30
mm
Min.
(Equiv. 1.35 in.)
Approx. Loose Circlip OD (Dr)
35.10
mm
Internal Retaining Rings - 32x2x34.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 + 0.10 / - 0.00   Free Inside Diameter (D): 31.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0320A-RD
Internal Retaining Rings - 32x2x34.3 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
34.50
mm
+ 0.6 / - 0.0
(Equiv. 1.358 in.)
Approx. Loose Circlip OD (Dr)
34.90
mm
Groove Width (W)
2.80
Internal Retaining Rings - 32x2.5x34.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 29.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0320-RD (100 Pcs)
Internal Retaining Rings - 32x2.5x34.5 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$50.23 AUD
$95.88 AUD $50.23 AUD
Excludes GST and overseas Taxes & Duties
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
34.50
mm
+ 0.6 / - 0.0
(Equiv. 1.358 in.)
Approx. Loose Circlip OD (Dr)
34.90
mm
Internal Retaining Rings - 32x2.5x34.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 29.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0320-RD (100 Pcs)
Internal Retaining Rings - 32x2.5x34.5 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$50.23 AUD
$95.88 AUD $50.23 AUD
Excludes GST and overseas Taxes & Duties
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
36.32
mm
Min.
(Equiv. 1.43 in.)
Approx. Loose Circlip OD (Dr)
37.10
mm
Groove Width (W)
2.10

+ 0.10 / - 0.00
Internal Retaining Rings - 34x2x36.32 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 33.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0340A-RD
Internal Retaining Rings - 34x2x36.32 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
36.32
mm
Min.
(Equiv. 1.43 in.)
Approx. Loose Circlip OD (Dr)
37.10
mm
Internal Retaining Rings - 34x2x36.32 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 + 0.10 / - 0.00   Free Inside Diameter (D): 33.1    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.05 mm    Gap (g): 11.000 mm
Part Number: WRI-0340A-RD
Internal Retaining Rings - 34x2x36.32 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
37.50
mm
+ 0.6 / - 0.0
(Equiv. 1.476 in.)
Approx. Loose Circlip OD (Dr)
37.90
mm
Groove Width (W)
2.80
Internal Retaining Rings - 35x2.5x37.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 32.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0350-RD (100 Pcs)
Internal Retaining Rings - 35x2.5x37.5 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$51.59 AUD
$98.48 AUD $51.59 AUD
Excludes GST and overseas Taxes & Duties
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
37.50
mm
+ 0.6 / - 0.0
(Equiv. 1.476 in.)
Approx. Loose Circlip OD (Dr)
37.90
mm
Internal Retaining Rings - 35x2.5x37.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 32.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0350-RD (100 Pcs)
Internal Retaining Rings - 35x2.5x37.5 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$51.59 AUD
$98.48 AUD $51.59 AUD
Excludes GST and overseas Taxes & Duties
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
40.50
mm
+ 0.6 / - 0.0
(Equiv. 1.594 in.)
Approx. Loose Circlip OD (Dr)
40.90
mm
Groove Width (W)
2.80
Internal Retaining Rings - 38x2.5x40.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 35.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0380-RD
Internal Retaining Rings - 38x2.5x40.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
40.50
mm
+ 0.6 / - 0.0
(Equiv. 1.594 in.)
Approx. Loose Circlip OD (Dr)
40.90
mm
Internal Retaining Rings - 38x2.5x40.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 35.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0380-RD
Internal Retaining Rings - 38x2.5x40.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
42.50
mm
+ 0.6 / - 0.0
(Equiv. 1.673 in.)
Approx. Loose Circlip OD (Dr)
42.90
mm
Groove Width (W)
2.80
Internal Retaining Rings - 40x2.5x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 37.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0400-RD
Internal Retaining Rings - 40x2.5x42.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
42.50
mm
+ 0.6 / - 0.0
(Equiv. 1.673 in.)
Approx. Loose Circlip OD (Dr)
42.90
mm
Internal Retaining Rings - 40x2.5x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 37.9    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 12.000 mm
Part Number: WRI-0400-RD
Internal Retaining Rings - 40x2.5x42.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
44.50
mm
+ 0.8 / - 0.0
(Equiv. 1.752 in.)
Approx. Loose Circlip OD (Dr)
45.00
mm
Groove Width (W)
2.80
Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 40    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.00 mm
Part Number: WRI-0420-RD (10 Pcs)
Internal Retaining Rings - 42x2.5x44.5 mm Round Wire - Carbon Spring Steel Wire Clip
12 units (120 pcs) Available Now | Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

12 units (120 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
44.50
mm
+ 0.8 / - 0.0
(Equiv. 1.752 in.)
Approx. Loose Circlip OD (Dr)
45.00
mm
Internal Retaining Rings - 42x2.5x44.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 40    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.00 mm
Part Number: WRI-0420-RD (10 Pcs)
Internal Retaining Rings - 42x2.5x44.5 mm Round Wire - Carbon Spring Steel Wire Clip
12 units (120 pcs) Available Now | Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

12 units (120 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
47.50
mm
+ 0.8 / - 0.0
(Equiv. 1.87 in.)
Approx. Loose Circlip OD (Dr)
48.80
mm
Groove Width (W)
2.80
Internal Retaining Rings - 45x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 43.8    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0450-RD
Internal Retaining Rings - 45x2.5x47.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
47.50
mm
+ 0.8 / - 0.0
(Equiv. 1.87 in.)
Approx. Loose Circlip OD (Dr)
48.80
mm
Internal Retaining Rings - 45x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 43.8    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0450-RD
Internal Retaining Rings - 45x2.5x47.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
50.50
mm
+ 0.8 / - 0.0
(Equiv. 1.988 in.)
Approx. Loose Circlip OD (Dr)
51.00
mm
Groove Width (W)
2.80
Internal Retaining Rings - 48x2.5x50.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 46    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0480-RD
Internal Retaining Rings - 48x2.5x50.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
50.50
mm
+ 0.8 / - 0.0
(Equiv. 1.988 in.)
Approx. Loose Circlip OD (Dr)
51.00
mm
Internal Retaining Rings - 48x2.5x50.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 46    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0480-RD
Internal Retaining Rings - 48x2.5x50.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
52.50
mm
+ 0.8 / - 0.0
(Equiv. 2.067 in.)
Approx. Loose Circlip OD (Dr)
53.00
mm
Groove Width (W)
2.80
Internal Retaining Rings - 50x2.5x52.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 48    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0500-RD
Internal Retaining Rings - 50x2.5x52.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.5
mm
B DIN 2076
(Equiv. 0.098 in.)
Groove Dia. (Dg)
52.50
mm
+ 0.8 / - 0.0
(Equiv. 2.067 in.)
Approx. Loose Circlip OD (Dr)
53.00
mm
Internal Retaining Rings - 50x2.5x52.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.80    Free Inside Diameter (D): 48    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.40 mm    Gap (g): 16.000 mm
Part Number: WRI-0500-RD
Internal Retaining Rings - 50x2.5x52.5 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
58.20
mm
+ 0.8 / - 0.0
(Equiv. 2.291 in.)
Approx. Loose Circlip OD (Dr)
58.90
mm
Groove Width (W)
3.60
Internal Retaining Rings - 55x3.2x58.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 52.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0550-RD
Internal Retaining Rings - 55x3.2x58.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
58.20
mm
+ 0.8 / - 0.0
(Equiv. 2.291 in.)
Approx. Loose Circlip OD (Dr)
58.90
mm
Internal Retaining Rings - 55x3.2x58.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 52.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0550-RD
Internal Retaining Rings - 55x3.2x58.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
63.20
mm
+ 0.8 / - 0.0
(Equiv. 2.488 in.)
Approx. Loose Circlip OD (Dr)
63.90
mm
Groove Width (W)
3.60
Internal Retaining Rings - 60x3.2x63.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 57.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0600-RD
Internal Retaining Rings - 60x3.2x63.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
63.20
mm
+ 0.8 / - 0.0
(Equiv. 2.488 in.)
Approx. Loose Circlip OD (Dr)
63.90
mm
Internal Retaining Rings - 60x3.2x63.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 57.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0600-RD
Internal Retaining Rings - 60x3.2x63.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
68.20
mm
+ 0.8 / - 0.0
(Equiv. 2.685 in.)
Approx. Loose Circlip OD (Dr)
68.90
mm
Groove Width (W)
3.60
Internal Retaining Rings - 65x3.2x68.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 62.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0650-RD
Internal Retaining Rings - 65x3.2x68.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
68.20
mm
+ 0.8 / - 0.0
(Equiv. 2.685 in.)
Approx. Loose Circlip OD (Dr)
68.90
mm
Internal Retaining Rings - 65x3.2x68.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 62.5    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 20.000 mm
Part Number: WRI-0650-RD
Internal Retaining Rings - 65x3.2x68.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 09, 2028
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
73.20
mm
+ 1.0 / - 0.0
(Equiv. 2.882 in.)
Approx. Loose Circlip OD (Dr)
74.00
mm
Groove Width (W)
3.60
Internal Retaining Rings - 70x3.2x73.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 67.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0700-RD (6 Pcs)
Internal Retaining Rings - 70x3.2x73.2 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$15.05 AUD
$28.18 AUD $15.05 AUD
Excludes GST and overseas Taxes & Duties
Per 6
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
73.20
mm
+ 1.0 / - 0.0
(Equiv. 2.882 in.)
Approx. Loose Circlip OD (Dr)
74.00
mm
Internal Retaining Rings - 70x3.2x73.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 67.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0700-RD (6 Pcs)
Internal Retaining Rings - 70x3.2x73.2 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 12, 2025
$15.05 AUD
$28.18 AUD $15.05 AUD
Excludes GST and overseas Taxes & Duties
Per 6
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
78.20
mm
+ 1.0 / - 0.0
(Equiv. 3.079 in.)
Approx. Loose Circlip OD (Dr)
79.00
mm
Groove Width (W)
3.60
Internal Retaining Rings - 75x3.2x78.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 72.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0750-RD (150 Pcs)
Internal Retaining Rings - 75x3.2x78.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
78.20
mm
+ 1.0 / - 0.0
(Equiv. 3.079 in.)
Approx. Loose Circlip OD (Dr)
79.00
mm
Internal Retaining Rings - 75x3.2x78.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 72.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0750-RD (150 Pcs)
Internal Retaining Rings - 75x3.2x78.2 mm Round Wire - Carbon Spring Steel Wire Clip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jan 15, 2026
Housing Bore (B)
80.00
mm

(Equiv. 3.15 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
83.20
mm
+ 1.0 / - 0.0
(Equiv. 3.276 in.)
Approx. Loose Circlip OD (Dr)
84.00
mm
Groove Width (W)
3.60
Internal Retaining Rings - 80x3.2x83.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Inside Diameter (D): 77.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0800-RD (4 Pcs)
Internal Retaining Rings - 80x3.2x83.2 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$16.41 AUD
$30.47 AUD $16.41 AUD
Excludes GST and overseas Taxes & Duties
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
80.00
mm

(Equiv. 3.15 in.)
Clip Thickness (T)
3.2
mm
B DIN 2076
(Equiv. 0.126 in.)
Groove Dia. (Dg)
83.20
mm
+ 1.0 / - 0.0
(Equiv. 3.276 in.)
Approx. Loose Circlip OD (Dr)
84.00
mm
Internal Retaining Rings - 80x3.2x83.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 3.60    Free Inside Diameter (D): 77.6    Info: DIN7993    Section Profile: Round Section    Groove Radius (r): 1.80 mm    Gap (g): 25.000 mm
Part Number: WRI-0800-RD (4 Pcs)
Internal Retaining Rings - 80x3.2x83.2 mm Round Wire - Carbon Spring Steel Wire Clip
Out of Stock | Backorder Now | Orders can be expected around Sat, May 09, 2026
$16.41 AUD
$30.47 AUD $16.41 AUD
Excludes GST and overseas Taxes & Duties
Per 4
Quantity Required

Backorder: Out of Stock.
