Retaining Rings - Internal - Circlips - Bevelled

Retaining Rings -> Internal -> Circlips -> Bevelled

There are 87 products in the sub-categories of Retaining Rings - Internal - Circlips - Bevelled. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Bevelled in the products table to see all these items combined into a handy table with filters.

Category Details

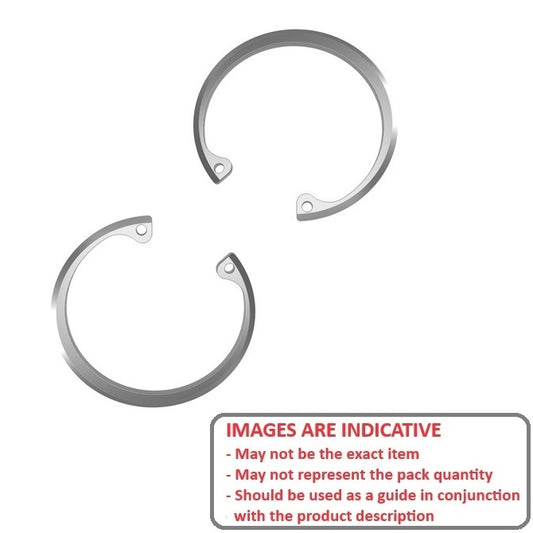

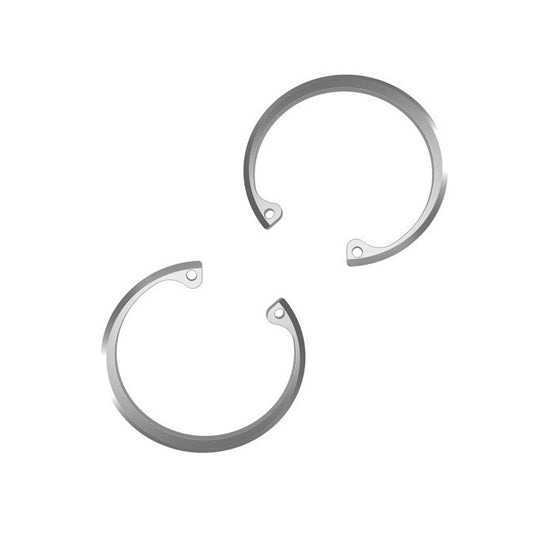

A selection of Bevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
  • Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
  • Used in greasy or oily environments.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Circlips - Bevelled category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.02
mm
+ 0.08 / - 0.00
(Equiv. 0.04 in.)
Groove Dia. (Dg)
27.33
mm
+/- 0.05
(Equiv. 1.076 in.)
Approx. Loose Circlip OD (Dr)
27.97
mm
+ 0.63 / - 0.00
Groove Width (W)
0.91
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 25.4x1.02x27.33 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I047
Part Number: CIB-02540-C (Each)
Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.02
mm
+ 0.08 / - 0.00
(Equiv. 0.04 in.)
Groove Dia. (Dg)
27.33
mm
+/- 0.05
(Equiv. 1.076 in.)
Approx. Loose Circlip OD (Dr)
27.97
mm
+ 0.63 / - 0.00
Internal Retaining Rings - 25.4x1.02x27.33 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 0.91 mm + 0.03 / - 0.00   Tool: PRS-I047
Part Number: CIB-02540-C (Each)
Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Sep 05, 2028
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.02
mm
+ 0.08 / - 0.00
(Equiv. 0.04 in.)
Groove Dia. (Dg)
27.97
mm
+/- 0.05
(Equiv. 1.101 in.)
Approx. Loose Circlip OD (Dr)
28.60
mm
+ 0.63 / - 0.00
Groove Width (W)
0.91
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I047
Additional stock available from USA subject to Prior Sale = 4721
Part Number: CIB-02598-C (PK-5)
Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$6.95 AUD
$15.86 AUD $6.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.02
mm
+ 0.08 / - 0.00
(Equiv. 0.04 in.)
Groove Dia. (Dg)
27.97
mm
+/- 0.05
(Equiv. 1.101 in.)
Approx. Loose Circlip OD (Dr)
28.60
mm
+ 0.63 / - 0.00
Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 0.91 mm + 0.03 / - 0.00   Tool: PRS-I047
Additional stock available from USA subject to Prior Sale = 4721
Part Number: CIB-02598-C (PK-5)
Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$6.95 AUD
$15.86 AUD $6.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.22
mm
+ 0.08 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
28.91
mm
+/- 0.05
(Equiv. 1.138 in.)
Approx. Loose Circlip OD (Dr)
29.46
mm
+ 1.14 / - 0.00
Groove Width (W)
1.12
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 4268
Part Number: CIB-02699-C (PK-5)
Internal Retaining Rings - 26.99x1.22x28.91 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$5.32 AUD
$12.08 AUD $5.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.22
mm
+ 0.08 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
28.91
mm
+/- 0.05
(Equiv. 1.138 in.)
Approx. Loose Circlip OD (Dr)
29.46
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.12 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 4268
Part Number: CIB-02699-C (PK-5)
Internal Retaining Rings - 26.99x1.22x28.91 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$5.32 AUD
$12.08 AUD $5.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
30.61
mm
+/- 0.05
(Equiv. 1.205 in.)
Approx. Loose Circlip OD (Dr)
31.22
mm
+ 1.14 / - 0.00
Groove Width (W)
1.09
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 507
Part Number: CIB-02858-C (PK-5)
Internal Retaining Rings - 28.58x1.22x30.61 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$8.68 AUD
$19.82 AUD $8.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
30.61
mm
+/- 0.05
(Equiv. 1.205 in.)
Approx. Loose Circlip OD (Dr)
31.22
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.09 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 507
Part Number: CIB-02858-C (PK-5)
Internal Retaining Rings - 28.58x1.22x30.61 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$8.68 AUD
$19.82 AUD $8.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
30.16
mm

(Equiv. 1.187 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
32.31
mm
+/- 0.05
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
32.99
mm
+ 1.14 / - 0.00
Groove Width (W)
1.09
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 111
Part Number: CIB-03016-C (PK-250)
Internal Retaining Rings - 30.16x1.22x32.31 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$367.77 AUD
$865.00 AUD $367.77 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
30.16
mm

(Equiv. 1.187 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
32.31
mm
+/- 0.05
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
32.99
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.09 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 111
Part Number: CIB-03016-C (PK-250)
Internal Retaining Rings - 30.16x1.22x32.31 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$367.77 AUD
$865.00 AUD $367.77 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
34.09
mm
+/- 0.05
(Equiv. 1.342 in.)
Approx. Loose Circlip OD (Dr)
34.75
mm
+ 1.14 / - 0.00
Groove Width (W)
1.07
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 661
Part Number: CIB-03175-C (PK-6)
Internal Retaining Rings - 31.75x1.22x34.09 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$9.95 AUD
$23.02 AUD $9.95 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
34.09
mm
+/- 0.05
(Equiv. 1.342 in.)
Approx. Loose Circlip OD (Dr)
34.75
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.07 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 661
Part Number: CIB-03175-C (PK-6)
Internal Retaining Rings - 31.75x1.22x34.09 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$9.95 AUD
$23.02 AUD $9.95 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
33.38
mm

(Equiv. 1.314 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
35.76
mm
+/- 0.05
(Equiv. 1.408 in.)
Approx. Loose Circlip OD (Dr)
36.47
mm
+ 1.14 / - 0.00
Groove Width (W)
1.07
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I070
Part Number: CIB-03338-C (PK-50)
Internal Retaining Rings - 33.38x1.22x35.76 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 10, 2026
$1,367.95 AUD
$3,216.40 AUD $1,367.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
33.38
mm

(Equiv. 1.314 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
35.76
mm
+/- 0.05
(Equiv. 1.408 in.)
Approx. Loose Circlip OD (Dr)
36.47
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.07 mm + 0.03 / - 0.00   Tool: PRS-I070
Part Number: CIB-03338-C (PK-50)
Internal Retaining Rings - 33.38x1.22x35.76 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 10, 2026
$1,367.95 AUD
$3,216.40 AUD $1,367.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
37.54
mm
+/- 0.05
(Equiv. 1.478 in.)
Approx. Loose Circlip OD (Dr)
38.25
mm
+ 1.14 / - 0.00
Groove Width (W)
1.04
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 715
Part Number: CIB-03493-C (PK-4)
Internal Retaining Rings - 34.93x1.22x37.54 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$6.86 AUD
$15.71 AUD $6.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
37.54
mm
+/- 0.05
(Equiv. 1.478 in.)
Approx. Loose Circlip OD (Dr)
38.25
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.04 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 715
Part Number: CIB-03493-C (PK-4)
Internal Retaining Rings - 34.93x1.22x37.54 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$6.86 AUD
$15.71 AUD $6.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
36.53
mm

(Equiv. 1.438 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
39.17
mm
+/- 0.05
(Equiv. 1.542 in.)
Approx. Loose Circlip OD (Dr)
40.03
mm
+ 1.14 / - 0.00
Groove Width (W)
1.02
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Part Number: CIB-03653-C (PK-38)
Internal Retaining Rings - 36.53x1.22x39.17 mm Circlips - Carbon Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
36.53
mm

(Equiv. 1.438 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
39.17
mm
+/- 0.05
(Equiv. 1.542 in.)
Approx. Loose Circlip OD (Dr)
40.03
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.02 mm + 0.03 / - 0.00   Tool: PRS-I070
Part Number: CIB-03653-C (PK-38)
Internal Retaining Rings - 36.53x1.22x39.17 mm Circlips - Carbon Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Sep 05, 2028
Housing Bore (B)
36.98
mm

(Equiv. 1.456 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
39.67
mm
+/- 0.05
(Equiv. 1.562 in.)
Approx. Loose Circlip OD (Dr)
40.54
mm
+ 1.14 / - 0.00
Groove Width (W)
1.02
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Part Number: CIB-03698-C (PK-250)
Internal Retaining Rings - 36.98x1.22x39.67 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 03, 2026
$407.77 AUD
$959.00 AUD $407.77 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
36.98
mm

(Equiv. 1.456 in.)
Clip Thickness (T)
1.22
mm
+ 0.10 / - 0.00
(Equiv. 0.048 in.)
Groove Dia. (Dg)
39.67
mm
+/- 0.05
(Equiv. 1.562 in.)
Approx. Loose Circlip OD (Dr)
40.54
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.02 mm + 0.03 / - 0.00   Tool: PRS-I070
Part Number: CIB-03698-C (PK-250)
Internal Retaining Rings - 36.98x1.22x39.67 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 03, 2026
$407.77 AUD
$959.00 AUD $407.77 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
38.10
mm

(Equiv. 1.5 in.)
Clip Thickness (T)
1.19
mm
+ 0.10 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
40.74
mm
+/- 0.08
(Equiv. 1.604 in.)
Approx. Loose Circlip OD (Dr)
41.81
mm
+ 1.14 / - 0.00
Groove Width (W)
1.02
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 2500
Part Number: CIB-03810-C (PK-63)
Internal Retaining Rings - 38.1x1.19x40.74 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$110.14 AUD
$258.55 AUD $110.14 AUD
Priced, Stocked and Sold Per 63 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
38.10
mm

(Equiv. 1.5 in.)
Clip Thickness (T)
1.19
mm
+ 0.10 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
40.74
mm
+/- 0.08
(Equiv. 1.604 in.)
Approx. Loose Circlip OD (Dr)
41.81
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.02 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 2500
Part Number: CIB-03810-C (PK-63)
Internal Retaining Rings - 38.1x1.19x40.74 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$110.14 AUD
$258.55 AUD $110.14 AUD
Priced, Stocked and Sold Per 63 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
39.67
mm

(Equiv. 1.562 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
42.52
mm
+/- 0.08
(Equiv. 1.674 in.)
Approx. Loose Circlip OD (Dr)
43.41
mm
+ 1.52 / - 0.00
Groove Width (W)
1.32
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 5282
Part Number: CIB-03967-C (PK-3)
Internal Retaining Rings - 39.67x1.5x42.52 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$8.59 AUD
$19.36 AUD $8.59 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
39.67
mm

(Equiv. 1.562 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
42.52
mm
+/- 0.08
(Equiv. 1.674 in.)
Approx. Loose Circlip OD (Dr)
43.41
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.32 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 5282
Part Number: CIB-03967-C (PK-3)
Internal Retaining Rings - 39.67x1.5x42.52 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$8.59 AUD
$19.36 AUD $8.59 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
40.01
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
42.85
mm
+/- 0.08
(Equiv. 1.687 in.)
Approx. Loose Circlip OD (Dr)
43.41
mm
+ 1.52 / - 0.00
Groove Width (W)
1.32
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 40.01x1.5x42.85 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I070
Part Number: CIB-04001-C (Each)
Internal Retaining Rings - 40.01x1.5x42.85 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
40.01
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
42.85
mm
+/- 0.08
(Equiv. 1.687 in.)
Approx. Loose Circlip OD (Dr)
43.41
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 40.01x1.5x42.85 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.32 mm + 0.03 / - 0.00   Tool: PRS-I070
Part Number: CIB-04001-C (Each)
Internal Retaining Rings - 40.01x1.5x42.85 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Sep 05, 2028
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
44.27
mm
+/- 0.08
(Equiv. 1.743 in.)
Approx. Loose Circlip OD (Dr)
45.19
mm
+ 1.52 / - 0.00
Groove Width (W)
1.30
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 42
Part Number: CIB-04128-C (PK-5)
Internal Retaining Rings - 41.28x1.5x44.27 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.41 AUD
$23.84 AUD $10.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
44.27
mm
+/- 0.08
(Equiv. 1.743 in.)
Approx. Loose Circlip OD (Dr)
45.19
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 42
Part Number: CIB-04128-C (PK-5)
Internal Retaining Rings - 41.28x1.5x44.27 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.41 AUD
$23.84 AUD $10.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
41.99
mm

(Equiv. 1.653 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
45.03
mm
+/- 0.08
(Equiv. 1.773 in.)
Approx. Loose Circlip OD (Dr)
45.97
mm
+ 1.52 / - 0.00
Groove Width (W)
1.30
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 1182
Part Number: CIB-04199-C (PK-5)
Internal Retaining Rings - 41.99x1.5x45.03 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$11.05 AUD
$25.38 AUD $11.05 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
41.99
mm

(Equiv. 1.653 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
45.03
mm
+/- 0.08
(Equiv. 1.773 in.)
Approx. Loose Circlip OD (Dr)
45.97
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 1182
Part Number: CIB-04199-C (PK-5)
Internal Retaining Rings - 41.99x1.5x45.03 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$11.05 AUD
$25.38 AUD $11.05 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
42.86
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
45.97
mm
+/- 0.08
(Equiv. 1.81 in.)
Approx. Loose Circlip OD (Dr)
46.96
mm
+ 1.52 / - 0.00
Groove Width (W)
1.27
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 885
Part Number: CIB-04286-C (PK-4)
Internal Retaining Rings - 42.86x1.5x45.97 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$20.77 AUD
$47.41 AUD $20.77 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
42.86
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
45.97
mm
+/- 0.08
(Equiv. 1.81 in.)
Approx. Loose Circlip OD (Dr)
46.96
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.27 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 885
Part Number: CIB-04286-C (PK-4)
Internal Retaining Rings - 42.86x1.5x45.97 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$20.77 AUD
$47.41 AUD $20.77 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
47.70
mm
+/- 0.08
(Equiv. 1.878 in.)
Approx. Loose Circlip OD (Dr)
48.69
mm
+ 1.52 / - 0.00
Groove Width (W)
1.27
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 739
Part Number: CIB-04445-C (PK-5)
Internal Retaining Rings - 44.45x1.5x47.7 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$11.14 AUD
$25.56 AUD $11.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
47.70
mm
+/- 0.08
(Equiv. 1.878 in.)
Approx. Loose Circlip OD (Dr)
48.69
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.27 mm + 0.03 / - 0.00   Tool: PRS-I070
Additional stock available from USA subject to Prior Sale = 739
Part Number: CIB-04445-C (PK-5)
Internal Retaining Rings - 44.45x1.5x47.7 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$11.14 AUD
$25.56 AUD $11.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
46.04
mm

(Equiv. 1.813 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
49.38
mm
+/- 0.08
(Equiv. 1.944 in.)
Approx. Loose Circlip OD (Dr)
50.47
mm
+ 1.52 / - 0.00
Groove Width (W)
1.27
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 462
Part Number: CIB-04604-C (PK-5)
Internal Retaining Rings - 46.04x1.5x49.38 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$12.41 AUD
$28.54 AUD $12.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
46.04
mm

(Equiv. 1.813 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
49.38
mm
+/- 0.08
(Equiv. 1.944 in.)
Approx. Loose Circlip OD (Dr)
50.47
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.27 mm + 0.03 / - 0.00   Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 462
Part Number: CIB-04604-C (PK-5)
Internal Retaining Rings - 46.04x1.5x49.38 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$12.41 AUD
$28.54 AUD $12.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
46.99
mm

(Equiv. 1.85 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
50.39
mm
+/- 0.08
(Equiv. 1.984 in.)
Approx. Loose Circlip OD (Dr)
51.54
mm
+ 1.52 / - 0.00
Groove Width (W)
1.27
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 648
Part Number: CIB-04699-C (PK-3)
Internal Retaining Rings - 46.99x1.5x50.39 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$9.86 AUD
$22.28 AUD $9.86 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
46.99
mm

(Equiv. 1.85 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
50.39
mm
+/- 0.08
(Equiv. 1.984 in.)
Approx. Loose Circlip OD (Dr)
51.54
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.27 mm + 0.03 / - 0.00   Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 648
Part Number: CIB-04699-C (PK-3)
Internal Retaining Rings - 46.99x1.5x50.39 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$9.86 AUD
$22.28 AUD $9.86 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
51.08
mm
+/- 0.08
(Equiv. 2.011 in.)
Approx. Loose Circlip OD (Dr)
51.54
mm
+ 1.52 / - 0.00
Groove Width (W)
1.27
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 47.63x1.5x51.08 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I090
Part Number: CIB-04763-C (Each)
Internal Retaining Rings - 47.63x1.5x51.08 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
51.08
mm
+/- 0.08
(Equiv. 2.011 in.)
Approx. Loose Circlip OD (Dr)
51.54
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 47.63x1.5x51.08 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.27 mm + 0.03 / - 0.00   Tool: PRS-I090
Part Number: CIB-04763-C (Each)
Internal Retaining Rings - 47.63x1.5x51.08 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Sep 05, 2028
Housing Bore (B)
49.23
mm

(Equiv. 1.938 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
52.88
mm
+/- 0.08
(Equiv. 2.082 in.)
Approx. Loose Circlip OD (Dr)
53.75
mm
+ 1.52 / - 0.00
Groove Width (W)
1.24
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 1005
Part Number: CIB-04923-C (PK-4)
Internal Retaining Rings - 49.23x1.5x52.88 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.59 AUD
$24.16 AUD $10.59 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
49.23
mm

(Equiv. 1.938 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
52.88
mm
+/- 0.08
(Equiv. 2.082 in.)
Approx. Loose Circlip OD (Dr)
53.75
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.24 mm + 0.03 / - 0.00   Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 1005
Part Number: CIB-04923-C (PK-4)
Internal Retaining Rings - 49.23x1.5x52.88 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.59 AUD
$24.16 AUD $10.59 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
54.46
mm
+/- 0.08
(Equiv. 2.144 in.)
Approx. Loose Circlip OD (Dr)
55.50
mm
+ 1.52 / - 0.00
Groove Width (W)
1.22
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 802
Part Number: CIB-05080-C (PK-4)
Internal Retaining Rings - 50.8x1.5x54.46 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.68 AUD
$24.38 AUD $10.68 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.50
mm
+ 0.13 / - 0.00
(Equiv. 0.059 in.)
Groove Dia. (Dg)
54.46
mm
+/- 0.08
(Equiv. 2.144 in.)
Approx. Loose Circlip OD (Dr)
55.50
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.22 mm + 0.03 / - 0.00   Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 802
Part Number: CIB-05080-C (PK-4)
Internal Retaining Rings - 50.8x1.5x54.46 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 08, 2026
$10.68 AUD
$24.38 AUD $10.68 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
51.99
mm

(Equiv. 2.047 in.)
Clip Thickness (T)
1.91
mm
+ 0.13 / - 0.00
(Equiv. 0.075 in.)
Groove Dia. (Dg)
55.75
mm
+/- 0.08
(Equiv. 2.195 in.)
Approx. Loose Circlip OD (Dr)
57.15
mm
+ 1.52 / - 0.00
Groove Width (W)
1.65
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 51.99x1.91x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I090
Part Number: CIB-05199-C (Each)
Internal Retaining Rings - 51.99x1.91x55.75 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)
51.99
mm

(Equiv. 2.047 in.)
Clip Thickness (T)
1.91
mm
+ 0.13 / - 0.00
(Equiv. 0.075 in.)
Groove Dia. (Dg)
55.75
mm
+/- 0.08
(Equiv. 2.195 in.)
Approx. Loose Circlip OD (Dr)
57.15
mm
+ 1.52 / - 0.00
Internal Retaining Rings - 51.99x1.91x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.65 mm + 0.03 / - 0.00   Tool: PRS-I090
Part Number: CIB-05199-C (Each)
Internal Retaining Rings - 51.99x1.91x55.75 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Sep 05, 2028
Housing Bore (B)
52.39
mm

(Equiv. 2.063 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(Equiv. 0.075 in.)
Groove Dia. (Dg)
56.13
mm
+/- 0.08
(Equiv. 2.21 in.)
Approx. Loose Circlip OD (Dr)
57.15
mm
+ 1.78 / - 0.00
Groove Width (W)
1.65
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 756
Part Number: CIB-05239-C (PK-3)
Internal Retaining Rings - 52.39x1.91x56.13 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$10.14 AUD
$22.88 AUD $10.14 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
52.39
mm

(Equiv. 2.063 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(Equiv. 0.075 in.)
Groove Dia. (Dg)
56.13
mm
+/- 0.08
(Equiv. 2.21 in.)
Approx. Loose Circlip OD (Dr)
57.15
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.65 mm + 0.04 / - 0.00   Tool: PRS-I090
Additional stock available from USA subject to Prior Sale = 756
Part Number: CIB-05239-C (PK-3)
Internal Retaining Rings - 52.39x1.91x56.13 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$10.14 AUD
$22.88 AUD $10.14 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
