Collection: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel

Retaining Rings -> External -> Spiral Rings -> Heavy Duty -> Stainless Steel

There are 40 products in the sub-categories of Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel. Scroll down or follow the link to Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

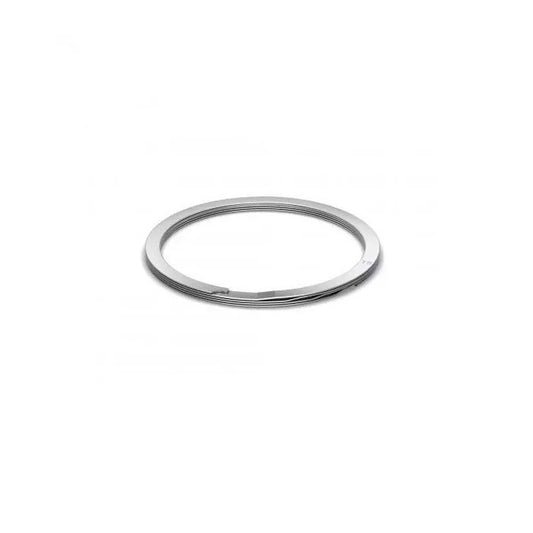

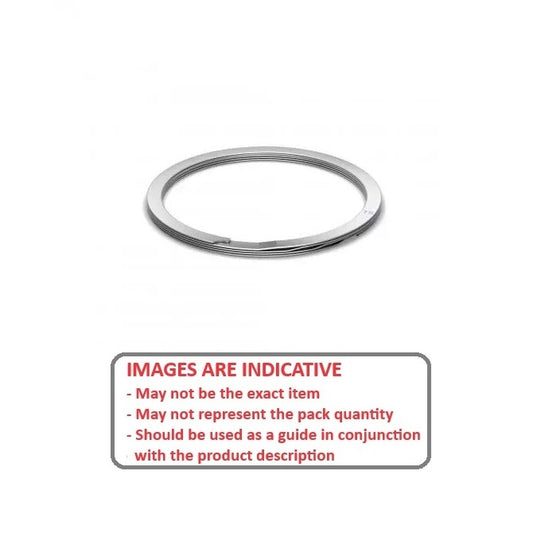

A selection of Stainless Steel Heavy Duty Spiral Rings External Retaining Rings. AHE / WSM / AS3216 / RSN / MIL-R-27426A2 - Stainless Steel.

An expanded range may be available on special order. Please enquire.
Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
Requires no tools for removal.
Equivalent to Associated Spring: AHE, Smalley: WSM, Spirolox and Ramsey: RSN, Aerospace: AS3216, MIL-R-27426A2

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spiral Rings and Snap Rings PDF

A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 26.97 mm (Equiv. 1.062 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 25.35 mm (Equiv. 0.998 in.)	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 30.32 +/- 0.05 Groove Depth (d): 0.81
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 26.97 mm (Equiv. 1.062 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 25.35 mm (Equiv. 0.998 in.)	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 30.32 +/- 0.05 Groove Depth (d): 0.81
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 26.90 mm (Equiv. 1.059 in.)	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 31.82 +/- 0.05 Groove Depth (d): 0.84
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 26.90 mm (Equiv. 1.059 in.)	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 31.82 +/- 0.05 Groove Depth (d): 0.84
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 30.18 mm (Equiv. 1.188 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.40 mm (Equiv. 1.118 in.)	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 33.31 +/- 0.05 Groove Depth (d): 0.89
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 30.18 mm (Equiv. 1.188 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.40 mm (Equiv. 1.118 in.)	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 33.31 +/- 0.05 Groove Depth (d): 0.89
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.87 mm (Equiv. 1.176 in.)	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 34.77 +/- 0.05 Groove Depth (d): 0.94
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.87 mm (Equiv. 1.176 in.)	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 34.77 +/- 0.05 Groove Depth (d): 0.94
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 33.32 mm (Equiv. 1.312 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 31.29 mm (Equiv. 1.232 in.)	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 36.99 +/- 0.05 Groove Depth (d): 1.02
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 33.32 mm (Equiv. 1.312 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 31.29 mm (Equiv. 1.232 in.)	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 36.99 +/- 0.05 Groove Depth (d): 1.02
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.79 mm (Equiv. 1.291 in.)	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 38.48 +/- 0.05 Groove Depth (d): 1.07
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $11.50 AUD Regular price ~~$13.80 AUD~~ Sale price $11.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.79 mm (Equiv. 1.291 in.)	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 38.48 +/- 0.05 Groove Depth (d): 1.07
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $11.50 AUD Regular price ~~$13.80 AUD~~ Sale price $11.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $11.50 AUD Regular price ~~$13.80 AUD~~ Sale price $11.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.29 mm (Equiv. 1.35 in.)	Approx. Loose Circlip ID (A) 33.97 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 39.97 +/- 0.05 Groove Depth (d): 1.12
Part Number: RSN-143-S02 External Retaining Rings - 36.53x1.27x34.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.29 mm (Equiv. 1.35 in.)	Approx. Loose Circlip ID (A) 33.97 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 39.97 +/- 0.05 Groove Depth (d): 1.12
Part Number: RSN-143-S02 External Retaining Rings - 36.53x1.27x34.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-143-S02 --- External Retaining Rings - 36.53x1.27x34.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-143-S02 --- External Retaining Rings - 36.53x1.27x34.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.43 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 41.43 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-150-S02 External Retaining Rings - 38.1x1.27x35.71 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.05} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.43 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 41.43 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-150-S02 External Retaining Rings - 38.1x1.27x35.71 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-150-S02 --- External Retaining Rings - 38.1x1.27x35.71 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-150-S02 --- External Retaining Rings - 38.1x1.27x35.71 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.29 mm (Equiv. 1.468 in.)	Approx. Loose Circlip ID (A) 36.89 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 43.39 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-156-S02 External Retaining Rings - 39.67x1.58x37.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.29 mm (Equiv. 1.468 in.)	Approx. Loose Circlip ID (A) 36.89 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 43.39 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-156-S02 External Retaining Rings - 39.67x1.58x37.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-156-S02 --- External Retaining Rings - 39.67x1.58x37.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-156-S02 --- External Retaining Rings - 39.67x1.58x37.29 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 42.85 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 40.36 mm (Equiv. 1.589 in.)	Approx. Loose Circlip ID (A) 39.85 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 46.35 +/- 0.05 Groove Depth (d): 1.24
Part Number: RSN-168-S02 External Retaining Rings - 42.85x1.58x40.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $23.14 AUD Regular price ~~$27.76 AUD~~ Sale price $23.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 42.85 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 40.36 mm (Equiv. 1.589 in.)	Approx. Loose Circlip ID (A) 39.85 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 46.35 +/- 0.05 Groove Depth (d): 1.24
Part Number: RSN-168-S02 External Retaining Rings - 42.85x1.58x40.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $23.14 AUD Regular price ~~$27.76 AUD~~ Sale price $23.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-168-S02 --- External Retaining Rings - 42.85x1.58x40.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-168-S02 --- External Retaining Rings - 42.85x1.58x40.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $23.14 AUD Regular price ~~$27.76 AUD~~ Sale price $23.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.91 mm (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.34 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 47.84 +/- 0.05 Groove Depth (d): 1.27
Part Number: RSN-175-S02 External Retaining Rings - 44.45x1.58x41.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.91 mm (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.34 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 47.84 +/- 0.05 Groove Depth (d): 1.27
Part Number: RSN-175-S02 External Retaining Rings - 44.45x1.58x41.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-175-S02 --- External Retaining Rings - 44.45x1.58x41.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-175-S02 --- External Retaining Rings - 44.45x1.58x41.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 46.02 mm (Equiv. 1.812 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.39 mm (Equiv. 1.708 in.)	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32
Part Number: RSN-181-S02 External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 46.02 mm (Equiv. 1.812 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.08} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.39 mm (Equiv. 1.708 in.)	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32
Part Number: RSN-181-S02 External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-181-S02 --- External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-181-S02 --- External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
