Collection: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD

Pulleys -> Metric Timing Stock -> 5.000mm Pitch -> HTD

There are 88 products in the sub-categories of Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD. Scroll down or follow the link to Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Aluminium

Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium

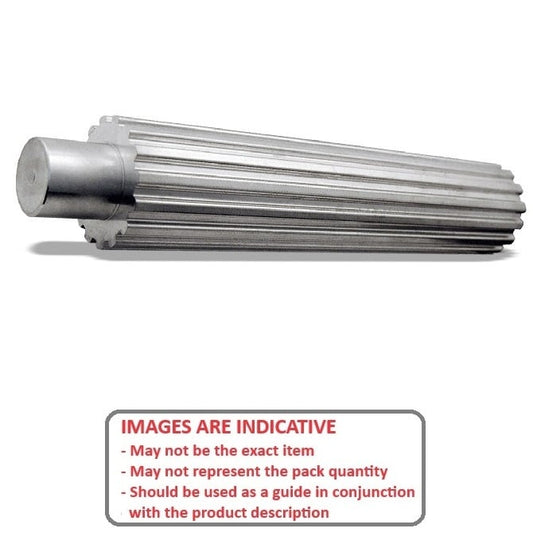

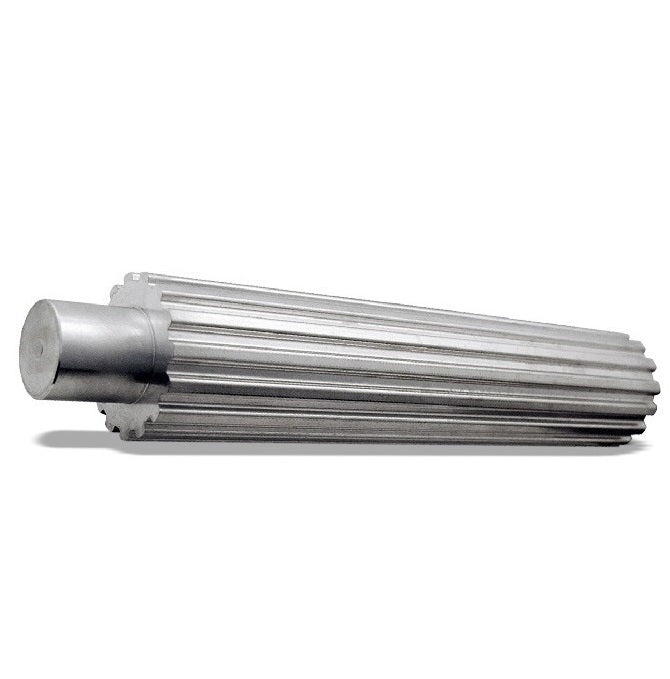

A selection of Aluminium HTD 5.000mm Pitch Metric Timing Stock Pulleys. For...

Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium

Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Carbon Steel

Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel

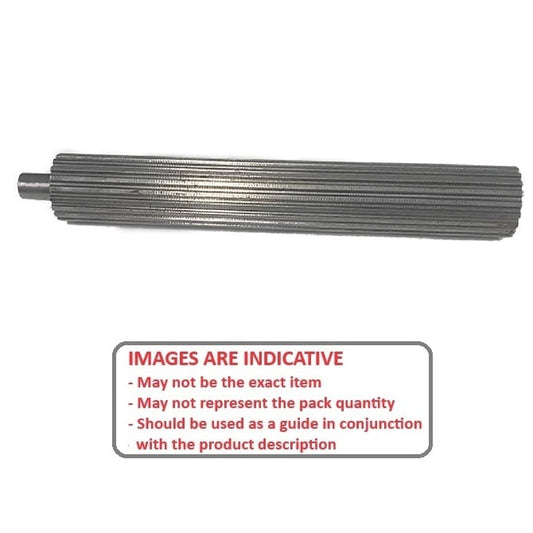

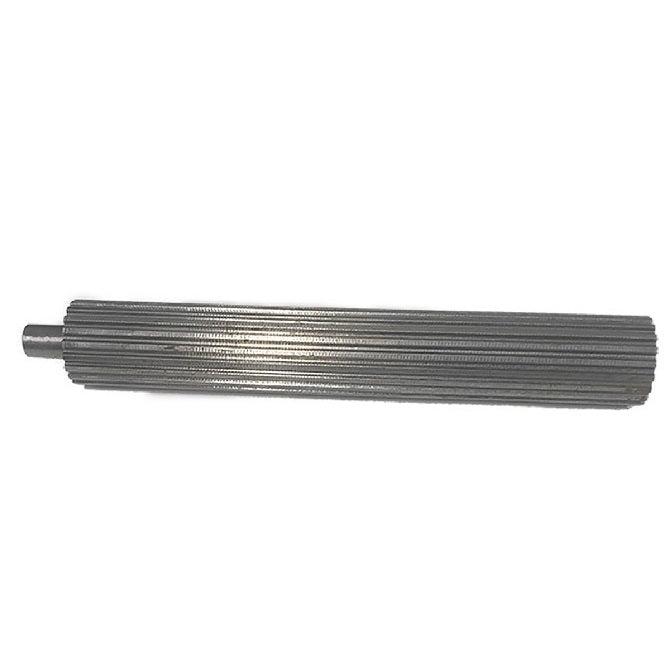

A selection of Carbon Steel HTD 5.000mm Pitch Metric Timing Stock Pulleys....

Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel

Category Details

This category includes various types of metric timing stock pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD category on the Small Parts & Bearings online store.

Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 12	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 19.10 mm (Equiv. 0.752 in.)	Outside Diameter (OD) 17.96 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-012-150A Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $53.59 AUD Regular price ~~$110.85 AUD~~ Sale price $53.59 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 12	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 19.10 mm (Equiv. 0.752 in.)	Outside Diameter (OD) 17.96 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-012-150A Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $53.59 AUD Regular price ~~$110.85 AUD~~ Sale price $53.59 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-050H-012-150A --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley Sale P-050H-012-150A --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley Regular price $53.59 AUD Regular price ~~$110.85 AUD~~ Sale price $53.59 AUD Unit price per 2 Available Now Sale
Number of Teeth 12	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 19.10 mm (Equiv. 0.752 in.)	Outside Diameter (OD) 17.96 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-012-150C Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $175.68 AUD Regular price Sale price $175.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 19.10 mm (Equiv. 0.752 in.)	Outside Diameter (OD) 17.96 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-012-150C Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $175.68 AUD Regular price Sale price $175.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-012-150C --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Carbon Steel Pulley P-050H-012-150C --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Carbon Steel Pulley Regular price $175.68 AUD Regular price Sale price $175.68 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 13	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 20.70 mm (Equiv. 0.815 in.)	Outside Diameter (OD) 19.55 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-013-150A Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $70.50 AUD Regular price ~~$118.96 AUD~~ Sale price $70.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 20.70 mm (Equiv. 0.815 in.)	Outside Diameter (OD) 19.55 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-013-150A Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $70.50 AUD Regular price ~~$118.96 AUD~~ Sale price $70.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-013-150A --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5.000mm Pitch - Aluminium Pulley Sale P-050H-013-150A --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5.000mm Pitch - Aluminium Pulley Regular price $70.50 AUD Regular price ~~$118.96 AUD~~ Sale price $70.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 20.70 mm (Equiv. 0.815 in.)	Outside Diameter (OD) 19.55 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-013-150C Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $152.23 AUD Regular price ~~$182.67 AUD~~ Sale price $152.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 20.70 mm (Equiv. 0.815 in.)	Outside Diameter (OD) 19.55 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-013-150C Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $152.23 AUD Regular price ~~$182.67 AUD~~ Sale price $152.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-013-150C --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5mm Pitch - Carbon Steel Pulley Sale P-050H-013-150C --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm 5mm Pitch - Carbon Steel Pulley Regular price $152.23 AUD Regular price ~~$182.67 AUD~~ Sale price $152.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 22.30 mm (Equiv. 0.878 in.)	Outside Diameter (OD) 21.14 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-014-175A Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $76.86 AUD Regular price ~~$129.77 AUD~~ Sale price $76.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 22.30 mm (Equiv. 0.878 in.)	Outside Diameter (OD) 21.14 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-014-175A Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $76.86 AUD Regular price ~~$129.77 AUD~~ Sale price $76.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-175A --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Aluminium Pulley Sale P-050H-014-175A --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Aluminium Pulley Regular price $76.86 AUD Regular price ~~$129.77 AUD~~ Sale price $76.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 22.30 mm (Equiv. 0.878 in.)	Outside Diameter (OD) 21.14 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-014-175C Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $159.50 AUD Regular price ~~$191.40 AUD~~ Sale price $159.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 22.30 mm (Equiv. 0.878 in.)	Outside Diameter (OD) 21.14 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-014-175C Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $159.50 AUD Regular price ~~$191.40 AUD~~ Sale price $159.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-175C --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Carbon Steel Pulley Sale P-050H-014-175C --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm 5mm Pitch - Carbon Steel Pulley Regular price $159.50 AUD Regular price ~~$191.40 AUD~~ Sale price $159.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 23.90 mm (Equiv. 0.941 in.)	Outside Diameter (OD) 22.73 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-015-175C Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $164.59 AUD Regular price ~~$197.51 AUD~~ Sale price $164.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 23.90 mm (Equiv. 0.941 in.)	Outside Diameter (OD) 22.73 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-015-175C Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $164.59 AUD Regular price ~~$197.51 AUD~~ Sale price $164.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-015-175C --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Carbon Steel Pulley Sale P-050H-015-175C --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Carbon Steel Pulley Regular price $164.59 AUD Regular price ~~$197.51 AUD~~ Sale price $164.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 23.90 mm (Equiv. 0.941 in.)	Outside Diameter (OD) 22.73 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-015-175A Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $81.50 AUD Regular price ~~$137.81 AUD~~ Sale price $81.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 23.90 mm (Equiv. 0.941 in.)	Outside Diameter (OD) 22.73 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-015-175A Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $81.50 AUD Regular price ~~$137.81 AUD~~ Sale price $81.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-015-175A --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Aluminium Pulley Sale P-050H-015-175A --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm 5mm Pitch - Aluminium Pulley Regular price $81.50 AUD Regular price ~~$137.81 AUD~~ Sale price $81.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 25.50 mm (Equiv. 1.004 in.)	Outside Diameter (OD) 24.32 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $87.14 AUD Regular price ~~$147.37 AUD~~ Sale price $87.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 25.50 mm (Equiv. 1.004 in.)	Outside Diameter (OD) 24.32 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $87.14 AUD Regular price ~~$147.37 AUD~~ Sale price $87.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Aluminium Pulley Sale P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Aluminium Pulley Regular price $87.14 AUD Regular price ~~$147.37 AUD~~ Sale price $87.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 25.50 mm (Equiv. 1.004 in.)	Outside Diameter (OD) 24.32 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $169.23 AUD Regular price ~~$203.07 AUD~~ Sale price $169.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 25.50 mm (Equiv. 1.004 in.)	Outside Diameter (OD) 24.32 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $169.23 AUD Regular price ~~$203.07 AUD~~ Sale price $169.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Carbon Steel Pulley Sale P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm 5mm Pitch - Carbon Steel Pulley Regular price $169.23 AUD Regular price ~~$203.07 AUD~~ Sale price $169.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 27.10 mm (Equiv. 1.067 in.)	Outside Diameter (OD) 25.91 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $177.23 AUD Regular price ~~$212.67 AUD~~ Sale price $177.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 27.10 mm (Equiv. 1.067 in.)	Outside Diameter (OD) 25.91 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $177.23 AUD Regular price ~~$212.67 AUD~~ Sale price $177.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $177.23 AUD Regular price ~~$212.67 AUD~~ Sale price $177.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 27.10 mm (Equiv. 1.067 in.)	Outside Diameter (OD) 25.91 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $90.77 AUD Regular price ~~$153.70 AUD~~ Sale price $90.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 175.0 mm (Equiv. 6.89 in.)	Pitch Diameter (PD) 27.10 mm (Equiv. 1.067 in.)	Outside Diameter (OD) 25.91 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $90.77 AUD Regular price ~~$153.70 AUD~~ Sale price $90.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Aluminium Pulley Sale P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm 5.000mm Pitch - Aluminium Pulley Regular price $90.77 AUD Regular price ~~$153.70 AUD~~ Sale price $90.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 28.60 mm (Equiv. 1.126 in.)	Outside Diameter (OD) 27.50 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $97.77 AUD Regular price ~~$165.67 AUD~~ Sale price $97.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 28.60 mm (Equiv. 1.126 in.)	Outside Diameter (OD) 27.50 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $97.77 AUD Regular price ~~$165.67 AUD~~ Sale price $97.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5.000mm Pitch - Aluminium Pulley Regular price $97.77 AUD Regular price ~~$165.67 AUD~~ Sale price $97.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 28.60 mm (Equiv. 1.126 in.)	Outside Diameter (OD) 27.50 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-018-200C Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $184.86 AUD Regular price ~~$221.84 AUD~~ Sale price $184.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 28.60 mm (Equiv. 1.126 in.)	Outside Diameter (OD) 27.50 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-018-200C Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $184.86 AUD Regular price ~~$221.84 AUD~~ Sale price $184.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-018-200C --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5mm Pitch - Carbon Steel Pulley Sale P-050H-018-200C --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm 5mm Pitch - Carbon Steel Pulley Regular price $184.86 AUD Regular price ~~$221.84 AUD~~ Sale price $184.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.20 mm (Equiv. 1.189 in.)	Outside Diameter (OD) 29.10 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-019-200C Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $191.77 AUD Regular price ~~$230.13 AUD~~ Sale price $191.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.20 mm (Equiv. 1.189 in.)	Outside Diameter (OD) 29.10 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-019-200C Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $191.77 AUD Regular price ~~$230.13 AUD~~ Sale price $191.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-019-200C --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-019-200C --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $191.77 AUD Regular price ~~$230.13 AUD~~ Sale price $191.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.20 mm (Equiv. 1.189 in.)	Outside Diameter (OD) 29.10 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-019-200A Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $109.95 AUD Regular price ~~$186.40 AUD~~ Sale price $109.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.20 mm (Equiv. 1.189 in.)	Outside Diameter (OD) 29.10 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-019-200A Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $109.95 AUD Regular price ~~$186.40 AUD~~ Sale price $109.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-019-200A --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5mm Pitch - Aluminium Pulley Sale P-050H-019-200A --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm 5mm Pitch - Aluminium Pulley Regular price $109.95 AUD Regular price ~~$186.40 AUD~~ Sale price $109.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 31.80 mm (Equiv. 1.252 in.)	Outside Diameter (OD) 30.69 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-020-200A Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $117.77 AUD Regular price ~~$199.79 AUD~~ Sale price $117.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 31.80 mm (Equiv. 1.252 in.)	Outside Diameter (OD) 30.69 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-020-200A Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $117.77 AUD Regular price ~~$199.79 AUD~~ Sale price $117.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-020-200A --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050H-020-200A --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Aluminium Pulley Regular price $117.77 AUD Regular price ~~$199.79 AUD~~ Sale price $117.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 31.80 mm (Equiv. 1.252 in.)	Outside Diameter (OD) 30.69 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-020-200C Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $198.14 AUD Regular price ~~$237.76 AUD~~ Sale price $198.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 31.80 mm (Equiv. 1.252 in.)	Outside Diameter (OD) 30.69 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-020-200C Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $198.14 AUD Regular price ~~$237.76 AUD~~ Sale price $198.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-020-200C --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-020-200C --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $198.14 AUD Regular price ~~$237.76 AUD~~ Sale price $198.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.28 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-021-200A Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $126.23 AUD Regular price ~~$214.35 AUD~~ Sale price $126.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.28 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-021-200A Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $126.23 AUD Regular price ~~$214.35 AUD~~ Sale price $126.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-021-200A --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5mm Pitch - Aluminium Pulley Sale P-050H-021-200A --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5mm Pitch - Aluminium Pulley Regular price $126.23 AUD Regular price ~~$214.35 AUD~~ Sale price $126.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.28 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-021-200C Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $207.05 AUD Regular price ~~$248.45 AUD~~ Sale price $207.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.28 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-021-200C Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $207.05 AUD Regular price ~~$248.45 AUD~~ Sale price $207.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-021-200C --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-021-200C --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $207.05 AUD Regular price ~~$248.45 AUD~~ Sale price $207.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 35.00 mm (Equiv. 1.378 in.)	Outside Diameter (OD) 33.87 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-022-200A Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $148.59 AUD Regular price ~~$252.54 AUD~~ Sale price $148.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 35.00 mm (Equiv. 1.378 in.)	Outside Diameter (OD) 33.87 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-022-200A Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $148.59 AUD Regular price ~~$252.54 AUD~~ Sale price $148.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-022-200A --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5mm Pitch - Aluminium Pulley Sale P-050H-022-200A --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5mm Pitch - Aluminium Pulley Regular price $148.59 AUD Regular price ~~$252.54 AUD~~ Sale price $148.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 35.00 mm (Equiv. 1.378 in.)	Outside Diameter (OD) 33.87 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-022-200C Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $215.23 AUD Regular price ~~$258.27 AUD~~ Sale price $215.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 35.00 mm (Equiv. 1.378 in.)	Outside Diameter (OD) 33.87 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-022-200C Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $215.23 AUD Regular price ~~$258.27 AUD~~ Sale price $215.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-022-200C --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-022-200C --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $215.23 AUD Regular price ~~$258.27 AUD~~ Sale price $215.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.60 mm (Equiv. 1.441 in.)	Outside Diameter (OD) 35.46 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-023-200A Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $152.23 AUD Regular price ~~$258.90 AUD~~ Sale price $152.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.60 mm (Equiv. 1.441 in.)	Outside Diameter (OD) 35.46 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-023-200A Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $152.23 AUD Regular price ~~$258.90 AUD~~ Sale price $152.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-023-200A --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050H-023-200A --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Aluminium Pulley Regular price $152.23 AUD Regular price ~~$258.90 AUD~~ Sale price $152.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.60 mm (Equiv. 1.441 in.)	Outside Diameter (OD) 35.46 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-023-200C Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $230.23 AUD Regular price ~~$276.27 AUD~~ Sale price $230.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.60 mm (Equiv. 1.441 in.)	Outside Diameter (OD) 35.46 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-023-200C Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $230.23 AUD Regular price ~~$276.27 AUD~~ Sale price $230.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-023-200C --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Carbon Steel Pulley Sale P-050H-023-200C --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm 5.000mm Pitch - Carbon Steel Pulley Regular price $230.23 AUD Regular price ~~$276.27 AUD~~ Sale price $230.23 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD

Category Details

Filter

Filter

Subscribe to our emails
