Collection: Pulleys - Metric Timing - 5.000mm Pitch - GT - 9mm Wide Through Bore

Pulleys -> Metric Timing -> 5.000mm Pitch -> GT -> 9mm Wide Through Bore

There are 21 products in the sub-categories of Pulleys - Metric Timing - 5.000mm Pitch - GT - 9mm Wide Through Bore. Scroll down or follow the link to Pulleys - Metric Timing - 5.000mm Pitch - GT - 9mm Wide Through Bore in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of 9mm Wide Through Bore GT 5.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 5.000mm Pitch Timing Belts. Suits belts 9mm wide. Aluminium, steel and cast iron. Use with GT2 or GT3 type belts.

Timing pulleys combined with timing belts, provide power transmission without slippage.

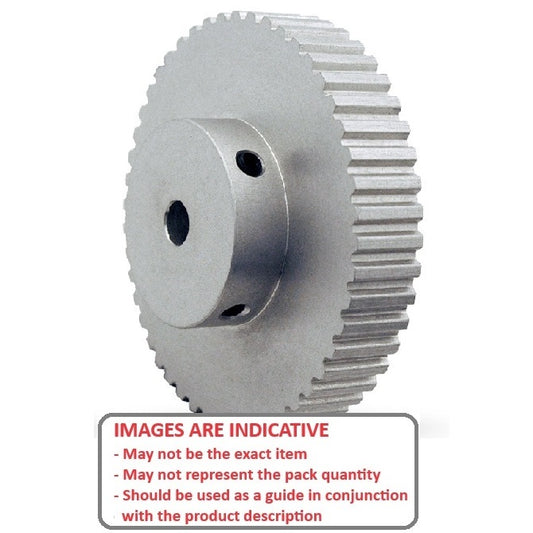

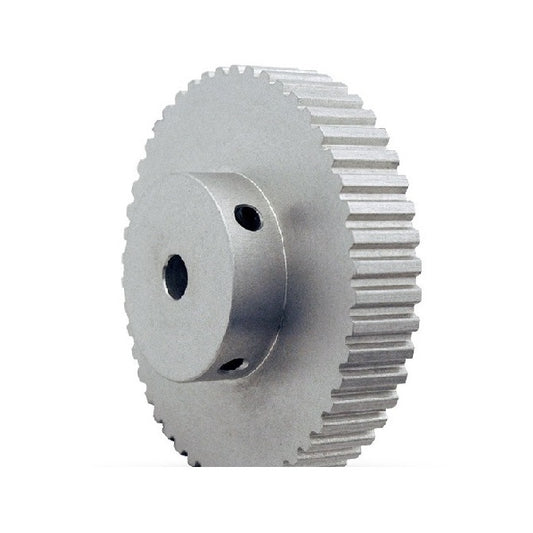

Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Aluminium Alloy and Black Oxide Coated Steel
Aluminium types have finished bore and grub screws
Steel type have unfinished bores

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing - 5.000mm Pitch - GT - 9mm Wide Through Bore category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 20.2 mm Hub Diameter (HD): 11.1
Part Number: P-050G-012-090FF-AL-G-064 Metric Timing Pulleys - 12 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 20.2 mm Hub Diameter (HD): 11.1
Part Number: P-050G-012-090FF-AL-G-064 Metric Timing Pulleys - 12 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-012-090FF-AL-G-064 --- Metric Timing Pulleys - 12 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-012-090FF-AL-G-064 --- Metric Timing Pulleys - 12 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.68 mm Flange Diameter (FD): 23.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-013-090FF-AL-G-064 Metric Timing Pulleys - 13 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 20.68 mm Flange Diameter (FD): 23.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-013-090FF-AL-G-064 Metric Timing Pulleys - 13 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-013-090FF-AL-G-064 --- Metric Timing Pulleys - 13 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-013-090FF-AL-G-064 --- Metric Timing Pulleys - 13 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-014-090FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-014-090FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-014-090FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-014-090FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-015-090FF-AL-G-064 Metric Timing Pulleys - 15 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-015-090FF-AL-G-064 Metric Timing Pulleys - 15 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-015-090FF-AL-G-064 --- Metric Timing Pulleys - 15 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-015-090FF-AL-G-064 --- Metric Timing Pulleys - 15 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-016-090FF-AL-G-064 Metric Timing Pulleys - 16 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-016-090FF-AL-G-064 Metric Timing Pulleys - 16 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-016-090FF-AL-G-064 --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-016-090FF-AL-G-064 --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-017-090FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $30.68 AUD Regular price ~~$36.82 AUD~~ Sale price $30.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Hub Diameter (HD): 15.9
Part Number: P-050G-017-090FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $30.68 AUD Regular price ~~$36.82 AUD~~ Sale price $30.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-017-090FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-017-090FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $30.68 AUD Regular price ~~$36.82 AUD~~ Sale price $30.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 27.0
Part Number: P-050G-018-090FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Hub Diameter (HD): 27.0
Part Number: P-050G-018-090FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-018-090FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-018-090FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 30.23 mm Flange Diameter (FD): 33.3 mm Overall Length: 20.2 mm Hub Diameter (HD): 19.1
Part Number: P-050G-019-090FF-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $32.41 AUD Regular price ~~$38.89 AUD~~ Sale price $32.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 30.23 mm Flange Diameter (FD): 33.3 mm Overall Length: 20.2 mm Hub Diameter (HD): 19.1
Part Number: P-050G-019-090FF-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $32.41 AUD Regular price ~~$38.89 AUD~~ Sale price $32.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-019-090FF-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-019-090FF-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $32.41 AUD Regular price ~~$38.89 AUD~~ Sale price $32.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 34.9 mm Overall Length: 20.2 mm Hub Diameter (HD): 20.6
Part Number: P-050G-020-090FF-AL-G-064 Metric Timing Pulleys - 20 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $33.68 AUD Regular price ~~$40.42 AUD~~ Sale price $33.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 34.9 mm Overall Length: 20.2 mm Hub Diameter (HD): 20.6
Part Number: P-050G-020-090FF-AL-G-064 Metric Timing Pulleys - 20 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $33.68 AUD Regular price ~~$40.42 AUD~~ Sale price $33.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-020-090FF-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-020-090FF-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $33.68 AUD Regular price ~~$40.42 AUD~~ Sale price $33.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.1 mm Overall Length: 20.2 mm Hub Diameter (HD): 23.8
Part Number: P-050G-022-090FF-AL-G-064 Metric Timing Pulleys - 22 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 22	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.1 mm Overall Length: 20.2 mm Hub Diameter (HD): 23.8
Part Number: P-050G-022-090FF-AL-G-064 Metric Timing Pulleys - 22 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-050G-022-090FF-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Sale P-050G-022-090FF-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 5mm Pitch - Aluminium Pulley Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per 2 Available Now Sale
Number of Teeth 36	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 57.27 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-036-090P-AL-G-079 Metric Timing Pulleys - 36 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 36	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 57.27 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-036-090P-AL-G-079 Metric Timing Pulleys - 36 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-050G-036-090P-AL-G-079 --- Metric Timing Pulleys - 36 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Sale P-050G-036-090P-AL-G-079 --- Metric Timing Pulleys - 36 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per 2 Available Now Sale
Number of Teeth 38	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 60.45 mm Overall Length: 23.8 mm Hub Diameter (HD): 38.1
Part Number: P-050G-038-090P-AL-G-079 Metric Timing Pulleys - 38 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $49.86 AUD Regular price ~~$59.84 AUD~~ Sale price $49.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 38	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 60.45 mm Overall Length: 23.8 mm Hub Diameter (HD): 38.1
Part Number: P-050G-038-090P-AL-G-079 Metric Timing Pulleys - 38 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $49.86 AUD Regular price ~~$59.84 AUD~~ Sale price $49.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-038-090P-AL-G-079 --- Metric Timing Pulleys - 38 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Sale P-050G-038-090P-AL-G-079 --- Metric Timing Pulleys - 38 tooth - 9x7.938 mm 5mm Pitch - Aluminium Pulley Regular price $49.86 AUD Regular price ~~$59.84 AUD~~ Sale price $49.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 40	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 63.63 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-040-090P-AL-G-079 Metric Timing Pulleys - 40 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $52.23 AUD Regular price ~~$62.67 AUD~~ Sale price $52.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 40	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 63.63 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-040-090P-AL-G-079 Metric Timing Pulleys - 40 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $52.23 AUD Regular price ~~$62.67 AUD~~ Sale price $52.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-040-090P-AL-G-079 --- Metric Timing Pulleys - 40 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-040-090P-AL-G-079 --- Metric Timing Pulleys - 40 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Regular price $52.23 AUD Regular price ~~$62.67 AUD~~ Sale price $52.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 44	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-044-090P-AL-G-079 Metric Timing Pulleys - 44 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $58.68 AUD Regular price ~~$70.42 AUD~~ Sale price $58.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 44	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-044-090P-AL-G-079 Metric Timing Pulleys - 44 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $58.68 AUD Regular price ~~$70.42 AUD~~ Sale price $58.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-044-090P-AL-G-079 --- Metric Timing Pulleys - 44 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-044-090P-AL-G-079 --- Metric Timing Pulleys - 44 tooth - 9x7.938 mm 5.000mm Pitch - Aluminium Pulley Regular price $58.68 AUD Regular price ~~$70.42 AUD~~ Sale price $58.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 48	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-048-090P-AL-G-095 Metric Timing Pulleys - 48 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $63.14 AUD Regular price ~~$75.76 AUD~~ Sale price $63.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 48	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-048-090P-AL-G-095 Metric Timing Pulleys - 48 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $63.14 AUD Regular price ~~$75.76 AUD~~ Sale price $63.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-048-090P-AL-G-095 --- Metric Timing Pulleys - 48 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Sale P-050G-048-090P-AL-G-095 --- Metric Timing Pulleys - 48 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Regular price $63.14 AUD Regular price ~~$75.76 AUD~~ Sale price $63.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 50	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 79.54 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-050-090P-AL-G-095 Metric Timing Pulleys - 50 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $64.32 AUD Regular price ~~$77.18 AUD~~ Sale price $64.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 50	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 79.54 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-050-090P-AL-G-095 Metric Timing Pulleys - 50 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $64.32 AUD Regular price ~~$77.18 AUD~~ Sale price $64.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-050-090P-AL-G-095 --- Metric Timing Pulleys - 50 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-050-090P-AL-G-095 --- Metric Timing Pulleys - 50 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Regular price $64.32 AUD Regular price ~~$77.18 AUD~~ Sale price $64.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 56	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 89.09 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-056-090P-AL-G-095 Metric Timing Pulleys - 56 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $76.32 AUD Regular price ~~$91.58 AUD~~ Sale price $76.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 56	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 89.09 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-056-090P-AL-G-095 Metric Timing Pulleys - 56 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $76.32 AUD Regular price ~~$91.58 AUD~~ Sale price $76.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-056-090P-AL-G-095 --- Metric Timing Pulleys - 56 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-056-090P-AL-G-095 --- Metric Timing Pulleys - 56 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Regular price $76.32 AUD Regular price ~~$91.58 AUD~~ Sale price $76.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 60	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-060-090P-AL-G-095 Metric Timing Pulleys - 60 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $78.23 AUD Regular price ~~$93.87 AUD~~ Sale price $78.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 60	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-060-090P-AL-G-095 Metric Timing Pulleys - 60 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $78.23 AUD Regular price ~~$93.87 AUD~~ Sale price $78.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-060-090P-AL-G-095 --- Metric Timing Pulleys - 60 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-060-090P-AL-G-095 --- Metric Timing Pulleys - 60 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Regular price $78.23 AUD Regular price ~~$93.87 AUD~~ Sale price $78.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 62	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 98.63 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-062-090P-AL-G-095 Metric Timing Pulleys - 62 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $65.32 AUD Regular price ~~$78.38 AUD~~ Sale price $65.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 62	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 98.63 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-062-090P-AL-G-095 Metric Timing Pulleys - 62 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $65.32 AUD Regular price ~~$78.38 AUD~~ Sale price $65.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-050G-062-090P-AL-G-095 --- Metric Timing Pulleys - 62 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Sale P-050G-062-090P-AL-G-095 --- Metric Timing Pulleys - 62 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Regular price $65.32 AUD Regular price ~~$78.38 AUD~~ Sale price $65.32 AUD Unit price per 2 Available Now Sale
Number of Teeth 70	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 111.36 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-070-090P-AL-G-095 Metric Timing Pulleys - 70 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 70	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 111.36 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-070-090P-AL-G-095 Metric Timing Pulleys - 70 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-070-090P-AL-G-095 --- Metric Timing Pulleys - 70 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Sale P-050G-070-090P-AL-G-095 --- Metric Timing Pulleys - 70 tooth - 9x9.525 mm 5mm Pitch - Aluminium Pulley Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 72	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 114.54 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-072-090P-AL-G-095 Metric Timing Pulleys - 72 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $98.23 AUD Regular price ~~$117.87 AUD~~ Sale price $98.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 72	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 114.54 mm Overall Length: 26.6 mm Hub Diameter (HD): 38.1
Part Number: P-050G-072-090P-AL-G-095 Metric Timing Pulleys - 72 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $98.23 AUD Regular price ~~$117.87 AUD~~ Sale price $98.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050G-072-090P-AL-G-095 --- Metric Timing Pulleys - 72 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Sale P-050G-072-090P-AL-G-095 --- Metric Timing Pulleys - 72 tooth - 9x9.525 mm 5.000mm Pitch - Aluminium Pulley Regular price $98.23 AUD Regular price ~~$117.87 AUD~~ Sale price $98.23 AUD Unit price per Out of stock! Backorder Now Sale
