Collection: Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide

Pulleys -> Metric Timing -> 5.000mm Pitch -> AT5 -> 16mm Wide

There are 18 products in the sub-categories of Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide. Browse the Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide products table.

Category Details

A selection of 16mm Wide AT5 5.000mm Pitch Metric Timing Pulleys. Timing pulleys to suit AT5 Series belts

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Aluminium Alloy
Steel Flanges
Hub is unthreaded, you will need to drill and tap with your required locking screw size

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Number of Teeth 12	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) No Bore 0 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 11.0
Part Number: P-050A-012-160FF-AL-N-000 Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $38.68 AUD Regular price ~~$46.42 AUD~~ Sale price $38.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 12	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) No Bore 0 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 11.0
Part Number: P-050A-012-160FF-AL-N-000 Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $38.68 AUD Regular price ~~$46.42 AUD~~ Sale price $38.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-012-160FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Sale P-050A-012-160FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Regular price $38.68 AUD Regular price ~~$46.42 AUD~~ Sale price $38.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) No Bore 0 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 13.0
Part Number: P-050A-014-160FF-AL-N-000 Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $40.23 AUD Regular price ~~$48.27 AUD~~ Sale price $40.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) No Bore 0 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 13.0
Part Number: P-050A-014-160FF-AL-N-000 Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $40.23 AUD Regular price ~~$48.27 AUD~~ Sale price $40.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-014-160FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Sale P-050A-014-160FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley Regular price $40.23 AUD Regular price ~~$48.27 AUD~~ Sale price $40.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 28.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 16.0
Part Number: P-050A-015-160FF-AL-N-060 Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 28.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 16.0
Part Number: P-050A-015-160FF-AL-N-060 Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-015-160FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-015-160FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 32.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 18.0
Part Number: P-050A-016-160FF-AL-N-060 Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 32.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 18.0
Part Number: P-050A-016-160FF-AL-N-060 Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-016-160FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-016-160FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 32.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 20.0
Part Number: P-050A-018-160FF-AL-N-060 Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 32.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 20.0
Part Number: P-050A-018-160FF-AL-N-060 Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-018-160FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-018-160FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 36.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 23.0
Part Number: P-050A-020-160FF-AL-N-060 Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 36.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 23.0
Part Number: P-050A-020-160FF-AL-N-060 Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-020-160FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-020-160FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 24.0
Part Number: P-050A-022-160FF-AL-N-060 Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 24.0
Part Number: P-050A-022-160FF-AL-N-060 Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-022-160FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-022-160FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 42.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-024-160FF-AL-N-060 Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 42.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-024-160FF-AL-N-060 Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-024-160FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-024-160FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 25	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 39.77 mm Flange Diameter (FD): 44.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-025-160FF-AL-N-060 Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $55.14 AUD Regular price ~~$66.16 AUD~~ Sale price $55.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 39.77 mm Flange Diameter (FD): 44.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-025-160FF-AL-N-060 Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $55.14 AUD Regular price ~~$66.16 AUD~~ Sale price $55.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-025-160FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-025-160FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $55.14 AUD Regular price ~~$66.16 AUD~~ Sale price $55.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 26	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 41.36 mm Flange Diameter (FD): 44.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-026-160FF-AL-N-060 Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $57.32 AUD Regular price ~~$68.78 AUD~~ Sale price $57.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 41.36 mm Flange Diameter (FD): 44.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-026-160FF-AL-N-060 Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $57.32 AUD Regular price ~~$68.78 AUD~~ Sale price $57.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-026-160FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-026-160FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley Regular price $57.32 AUD Regular price ~~$68.78 AUD~~ Sale price $57.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 27	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 42.95 mm Flange Diameter (FD): 46.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 30.0
Part Number: P-050A-027-160FF-AL-N-080 Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 27	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 42.95 mm Flange Diameter (FD): 46.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 30.0
Part Number: P-050A-027-160FF-AL-N-080 Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-027-160FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley P-050A-027-160FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 30	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 47.73 mm Flange Diameter (FD): 51.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 34.0
Part Number: P-050A-030-160FF-AL-N-080 Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $59.32 AUD Regular price ~~$71.18 AUD~~ Sale price $59.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 30	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 47.73 mm Flange Diameter (FD): 51.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 34.0
Part Number: P-050A-030-160FF-AL-N-080 Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $59.32 AUD Regular price ~~$71.18 AUD~~ Sale price $59.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-030-160FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-030-160FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $59.32 AUD Regular price ~~$71.18 AUD~~ Sale price $59.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 32	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 50.91 mm Flange Diameter (FD): 54.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-032-160FF-AL-N-080 Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 32	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 50.91 mm Flange Diameter (FD): 54.0 mm Overall Length: 27.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-032-160FF-AL-N-080 Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-050A-032-160FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley Sale P-050A-032-160FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per 2 Available Now Sale
Number of Teeth 36	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 27.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-036-160FF-AL-N-080 Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $75.14 AUD Regular price ~~$90.16 AUD~~ Sale price $75.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 36	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 27.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-036-160FF-AL-N-080 Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $75.14 AUD Regular price ~~$90.16 AUD~~ Sale price $75.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-036-160FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-036-160FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $75.14 AUD Regular price ~~$90.16 AUD~~ Sale price $75.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 40	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.7 mm Overall Length: 27.0 mm Hub Diameter (HD): 40.0
Part Number: P-050A-040-160FF-AL-N-080 Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $83.77 AUD Regular price ~~$100.53 AUD~~ Sale price $83.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 40	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.7 mm Overall Length: 27.0 mm Hub Diameter (HD): 40.0
Part Number: P-050A-040-160FF-AL-N-080 Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $83.77 AUD Regular price ~~$100.53 AUD~~ Sale price $83.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-040-160FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-040-160FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $83.77 AUD Regular price ~~$100.53 AUD~~ Sale price $83.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 44	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 27.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-044-160P-AL-N-080 Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $98.95 AUD Regular price ~~$118.75 AUD~~ Sale price $98.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 44	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 27.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-044-160P-AL-N-080 Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $98.95 AUD Regular price ~~$118.75 AUD~~ Sale price $98.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-044-160P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-044-160P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $98.95 AUD Regular price ~~$118.75 AUD~~ Sale price $98.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 48	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 27.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-048-160P-AL-N-080 Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $107.68 AUD Regular price ~~$129.22 AUD~~ Sale price $107.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 48	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 27.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-048-160P-AL-N-080 Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $107.68 AUD Regular price ~~$129.22 AUD~~ Sale price $107.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-048-160P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-048-160P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $107.68 AUD Regular price ~~$129.22 AUD~~ Sale price $107.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 60	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 27.0 mm Hub Diameter (HD): 65.0
Part Number: P-050A-060-160P-AL-N-080 Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $114.14 AUD Regular price ~~$136.96 AUD~~ Sale price $114.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 60	Max Belt Width 16.00 mm (Equiv. 0.63 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 27.0 mm Hub Diameter (HD): 65.0
Part Number: P-050A-060-160P-AL-N-080 Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $114.14 AUD Regular price ~~$136.96 AUD~~ Sale price $114.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050A-060-160P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Sale P-050A-060-160P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley Regular price $114.14 AUD Regular price ~~$136.96 AUD~~ Sale price $114.14 AUD Unit price per Out of stock! Backorder Now Sale

Collection: Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide

Category Details

Filter:

P-050A-012-160FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley

P-050A-012-160FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley

P-050A-014-160FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley

P-050A-014-160FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 16 - No Bore 0 5mm Pitch - Aluminium Pulley

P-050A-015-160FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-015-160FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-016-160FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-016-160FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-018-160FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-018-160FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-020-160FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-020-160FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-022-160FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-022-160FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-024-160FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-024-160FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-025-160FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-025-160FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-026-160FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-026-160FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 16x6 mm 5.000mm Pitch - Aluminium Pulley

P-050A-027-160FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley

P-050A-027-160FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley

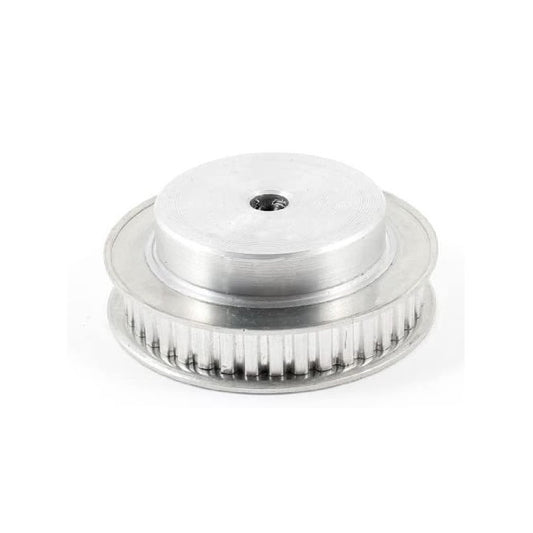

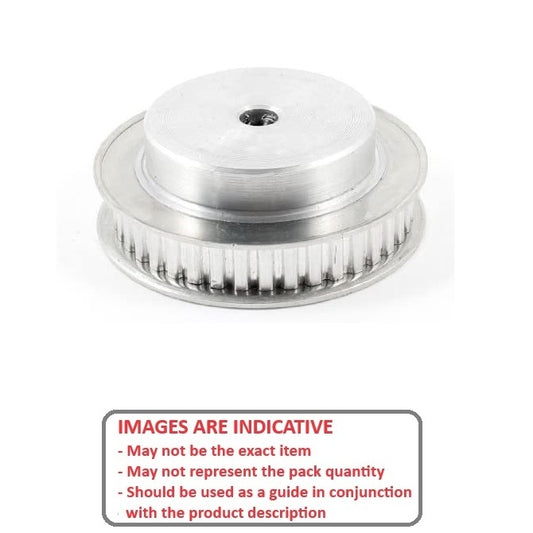

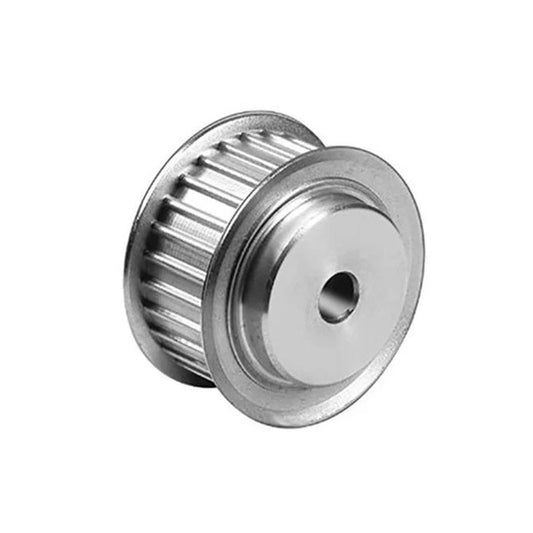

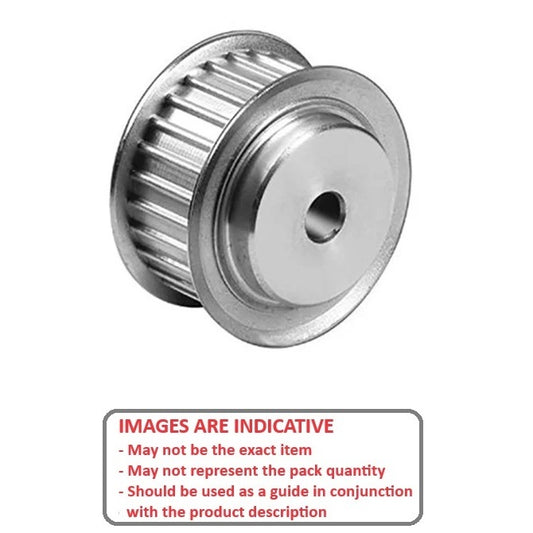

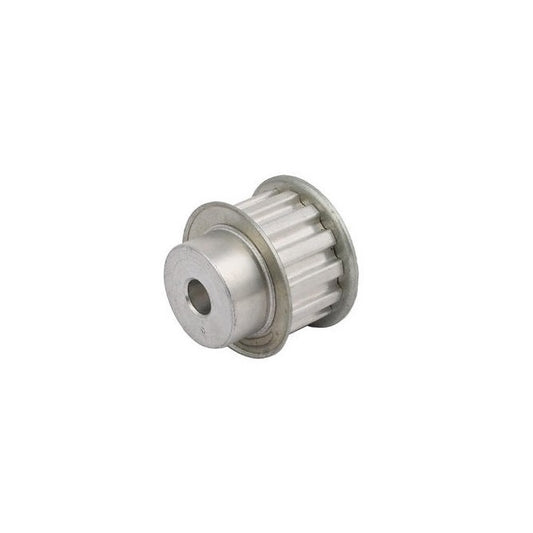

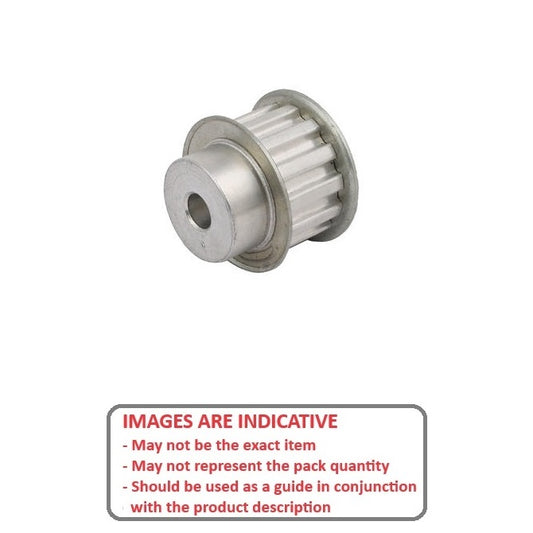

P-050A-030-160FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-030-160FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-032-160FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley

P-050A-032-160FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium Pulley

P-050A-036-160FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-036-160FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-040-160FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-040-160FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-044-160P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-044-160P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-048-160P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-048-160P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-060-160P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

P-050A-060-160P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 16x8 mm 5.000mm Pitch - Aluminium Pulley

Country/region

Country/region

Collection: Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 16mm Wide

Category Details

Filter

Filter

Subscribe to our emails
