Collection: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide

Pulleys -> Metric Timing -> 3.000mm Pitch -> HTD -> 9mm Wide

There are 208 products in the sub-categories of Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide. Scroll down or follow the link to Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Metric Timing Pulleys - 10 tooth - 9x3 mm - Aluminium

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic

A selection of Metallic 9mm Wide HTD 3.000mm Pitch Metric Timing Pulleys....

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic

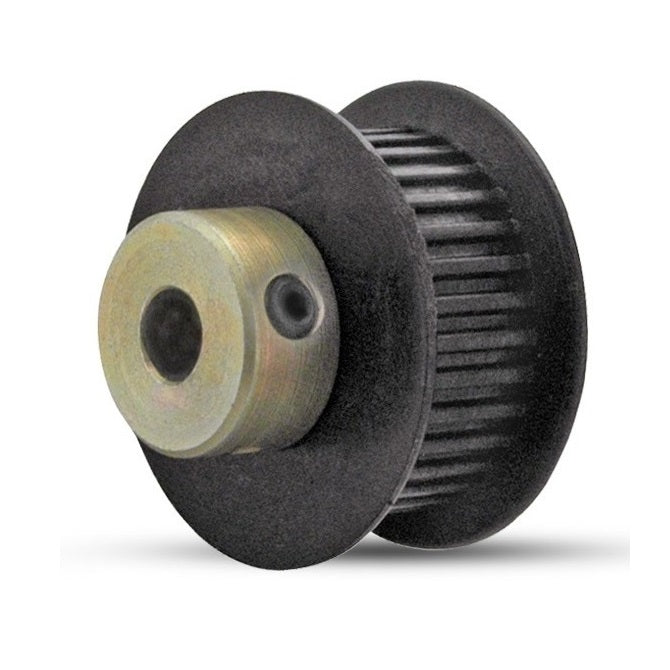

Metric Timing Pulleys - 60 tooth - 9x12 mm - Plastic

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Plastic

Category Details

This category includes various types of metric timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-090FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-090FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-032 Metric Timing Pulleys - 10 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-032 Metric Timing Pulleys - 10 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-090FH-AL-G-032 --- Metric Timing Pulleys - 10 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-090FH-AL-G-032 --- Metric Timing Pulleys - 10 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-048 Metric Timing Pulleys - 10 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-010-090FH-AL-G-048 Metric Timing Pulleys - 10 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-090FH-AL-G-048 --- Metric Timing Pulleys - 10 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-090FH-AL-G-048 --- Metric Timing Pulleys - 10 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-011-090FH-AL-G-030 Metric Timing Pulleys - 11 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-011-090FH-AL-G-030 Metric Timing Pulleys - 11 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-011-090FH-AL-G-030 --- Metric Timing Pulleys - 11 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Sale P-030H-011-090FH-AL-G-030 --- Metric Timing Pulleys - 11 tooth - 9x3 mm 3mm Pitch - Aluminium Pulley Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-011-090FH-AL-G-032 Metric Timing Pulleys - 11 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-011-090FH-AL-G-032 Metric Timing Pulleys - 11 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-011-090FH-AL-G-032 --- Metric Timing Pulleys - 11 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Sale P-030H-011-090FH-AL-G-032 --- Metric Timing Pulleys - 11 tooth - 9x3.175 mm 3mm Pitch - Aluminium Pulley Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-012-090FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-012-090FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-090FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Sale P-030H-012-090FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-012-090FH-AL-G-048 Metric Timing Pulleys - 12 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-012-090FH-AL-G-048 Metric Timing Pulleys - 12 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-090FH-AL-G-048 --- Metric Timing Pulleys - 12 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-012-090FH-AL-G-048 --- Metric Timing Pulleys - 12 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-013-090FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-013-090FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-013-090FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Sale P-030H-013-090FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 9x4 mm 3mm Pitch - Aluminium Pulley Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-013-090FF-AL-G-048 Metric Timing Pulleys - 13 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.14 AUD Regular price ~~$34.96 AUD~~ Sale price $29.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-013-090FF-AL-G-048 Metric Timing Pulleys - 13 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.14 AUD Regular price ~~$34.96 AUD~~ Sale price $29.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-013-090FF-AL-G-048 --- Metric Timing Pulleys - 13 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-013-090FF-AL-G-048 --- Metric Timing Pulleys - 13 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $29.14 AUD Regular price ~~$34.96 AUD~~ Sale price $29.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-048 Metric Timing Pulleys - 14 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.41 AUD Regular price ~~$35.29 AUD~~ Sale price $29.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-048 Metric Timing Pulleys - 14 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.41 AUD Regular price ~~$35.29 AUD~~ Sale price $29.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-090FF-AL-G-048 --- Metric Timing Pulleys - 14 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-090FF-AL-G-048 --- Metric Timing Pulleys - 14 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $29.41 AUD Regular price ~~$35.29 AUD~~ Sale price $29.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.37 mm Flange Diameter (FD): 16.00 mm Overall Length: 23.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FH-AL-G-050 Metric Timing Pulleys - 14 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 13.37 mm Flange Diameter (FD): 16.00 mm Overall Length: 23.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FH-AL-G-050 Metric Timing Pulleys - 14 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-090FH-AL-G-050 --- Metric Timing Pulleys - 14 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-090FH-AL-G-050 --- Metric Timing Pulleys - 14 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-090FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-090FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-014-090FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-090FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-090FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-080 Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-080 Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-090FF-ALN-G-080 --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-014-090FF-ALN-G-080 --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Overall Length: 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-AL-G-080 Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Overall Length: 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-AL-G-080 Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-090FF-AL-G-080 --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-014-090FF-AL-G-080 --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-080K Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-080K Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-090FF-ALN-G-080K --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-014-090FF-ALN-G-080K --- Metric Timing Pulleys - 14 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 10.000 mm (Equiv. 0.394 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-100 Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 10.000 mm (Equiv. 0.394 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-100 Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-090FF-ALN-G-100 --- Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Sale P-050H-014-090FF-ALN-G-100 --- Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 10.000 mm (Equiv. 0.394 in.)	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-100K Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 10.000 mm (Equiv. 0.394 in.)	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 22.28 mm Flange Diameter (FD): 26.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-014-090FF-ALN-G-100K Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-014-090FF-ALN-G-100K --- Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Sale P-050H-014-090FF-ALN-G-100K --- Metric Timing Pulleys - 14 tooth - 9x10 mm 3mm Pitch - Aluminium Pulley Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FF-AL-G-048 Metric Timing Pulleys - 15 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FF-AL-G-048 Metric Timing Pulleys - 15 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-090FF-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-090FF-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 18.00 mm Overall Length: 23.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FH-AL-G-050 Metric Timing Pulleys - 15 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 18.00 mm Overall Length: 23.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FH-AL-G-050 Metric Timing Pulleys - 15 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-090FH-AL-G-050 --- Metric Timing Pulleys - 15 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-090FH-AL-G-050 --- Metric Timing Pulleys - 15 tooth - 9x5 mm 3mm Pitch - Aluminium Pulley Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FF-AL-G-060 Metric Timing Pulleys - 15 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-030H-015-090FF-AL-G-060 Metric Timing Pulleys - 15 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-090FF-AL-G-060 --- Metric Timing Pulleys - 15 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-090FF-AL-G-060 --- Metric Timing Pulleys - 15 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-ALN-G-080 Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-ALN-G-080 Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-015-090FF-ALN-G-080 --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-015-090FF-ALN-G-080 --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Overall Length: 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-AL-G-080 Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Overall Length: 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-AL-G-080 Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-015-090FF-AL-G-080 --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-015-090FF-AL-G-080 --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-ALN-G-080K Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.00 mm (Equiv. 0.354 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 23.87 mm Flange Diameter (FD): 28.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic
Part Number: P-050H-015-090FF-ALN-G-080K Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-050H-015-090FF-ALN-G-080K --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Sale P-050H-015-090FF-ALN-G-080K --- Metric Timing Pulleys - 15 tooth - 9x8 mm 3mm Pitch - Aluminium Pulley Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Out of stock! Backorder Now Sale
