Collection: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide

Pulleys -> Metric Timing -> 3.000mm Pitch -> HTD -> 6mm Wide

There are 158 products in the sub-categories of Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide. Scroll down or follow the link to Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium

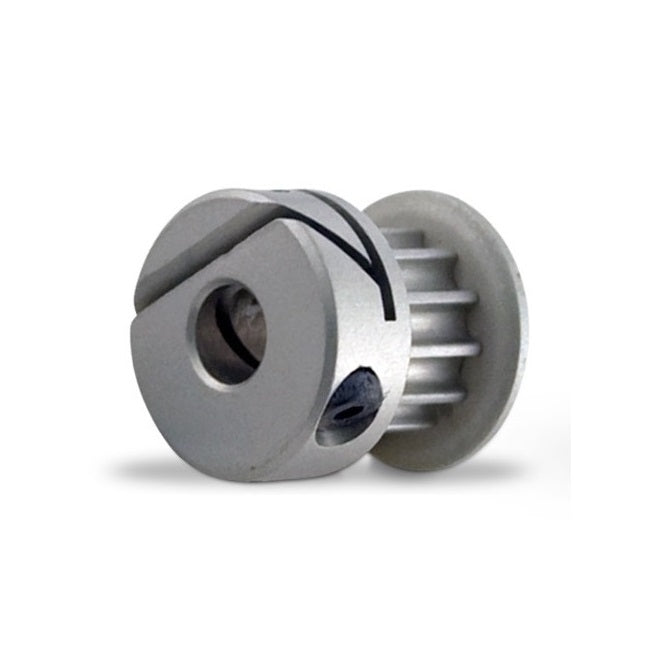

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock

A selection of EZ-Lock 6mm Wide HTD 3.000mm Pitch Metric Timing Pulleys....

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock

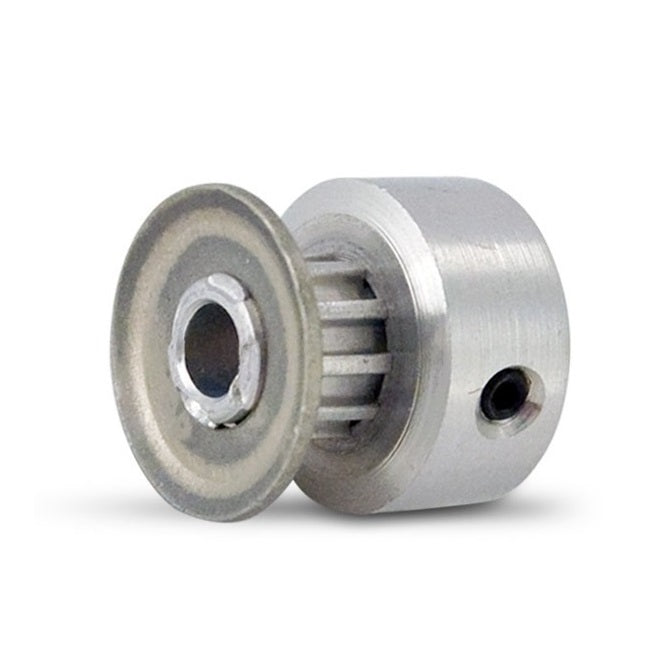

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

A selection of Through Bore 6mm Wide HTD 3.000mm Pitch Metric Timing...

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

Category Details

This category includes various types of metric timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-010-060FH-AL-E-030 Metric Timing Pulleys - 10 tooth - 6x3 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-010-060FH-AL-E-030 Metric Timing Pulleys - 10 tooth - 6x3 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-060FH-AL-E-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-010-060FH-AL-E-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-010-060FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $23.32 AUD Regular price ~~$44.57 AUD~~ Sale price $23.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-010-060FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $23.32 AUD Regular price ~~$44.57 AUD~~ Sale price $23.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-030H-010-060FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-060FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Regular price $23.32 AUD Regular price ~~$44.57 AUD~~ Sale price $23.32 AUD Unit price per 2 Available Now Sale
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-010-060FH-AL-E-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-010-060FH-AL-E-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-060FH-AL-E-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-060FH-AL-E-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-010-060FH-AL-G-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-010-060FH-AL-G-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-010-060FH-AL-G-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Sale P-030H-010-060FH-AL-G-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-011-060FH-AL-G-030 Metric Timing Pulleys - 11 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-011-060FH-AL-G-030 Metric Timing Pulleys - 11 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-011-060FH-AL-G-030 --- Metric Timing Pulleys - 11 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Sale P-030H-011-060FH-AL-G-030 --- Metric Timing Pulleys - 11 tooth - 6x3 mm 3mm Pitch - Aluminium Pulley Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-011-060FH-AL-G-032 Metric Timing Pulleys - 11 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.50 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-011-060FH-AL-G-032 Metric Timing Pulleys - 11 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-011-060FH-AL-G-032 --- Metric Timing Pulleys - 11 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Sale P-030H-011-060FH-AL-G-032 --- Metric Timing Pulleys - 11 tooth - 6x3.175 mm 3mm Pitch - Aluminium Pulley Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-012-060FH-AL-E-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-012-060FH-AL-E-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-060FH-AL-E-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-012-060FH-AL-E-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-012-060FH-AL-E-050 Metric Timing Pulleys - 12 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-012-060FH-AL-E-050 Metric Timing Pulleys - 12 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-060FH-AL-E-050 --- Metric Timing Pulleys - 12 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-012-060FH-AL-E-050 --- Metric Timing Pulleys - 12 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-060FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Sale P-030H-012-060FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-060FH-AL-G-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley P-030H-012-060FH-AL-G-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-064 Metric Timing Pulleys - 12 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-012-060FH-AL-G-064 Metric Timing Pulleys - 12 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-012-060FH-AL-G-064 --- Metric Timing Pulleys - 12 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030H-012-060FH-AL-G-064 --- Metric Timing Pulleys - 12 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-013-060FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $21.05 AUD Regular price ~~$40.22 AUD~~ Sale price $21.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 13	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-013-060FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $21.05 AUD Regular price ~~$40.22 AUD~~ Sale price $21.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-030H-013-060FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Sale P-030H-013-060FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 6x4 mm 3mm Pitch - Aluminium Pulley Regular price $21.05 AUD Regular price ~~$40.22 AUD~~ Sale price $21.05 AUD Unit price per 2 Available Now Sale
Number of Teeth 13	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-013-060FF-AL-G-048 Metric Timing Pulleys - 13 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.41 mm Flange Diameter (FD): 15.5 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-013-060FF-AL-G-048 Metric Timing Pulleys - 13 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-013-060FF-AL-G-048 --- Metric Timing Pulleys - 13 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-013-060FF-AL-G-048 --- Metric Timing Pulleys - 13 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-014-060FF-AL-E-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-014-060FF-AL-E-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-060FF-AL-E-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-014-060FF-AL-E-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-014-060FF-AL-E-050 Metric Timing Pulleys - 14 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-014-060FF-AL-E-050 Metric Timing Pulleys - 14 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-060FF-AL-E-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-014-060FF-AL-E-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.77 AUD Regular price ~~$34.53 AUD~~ Sale price $28.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.77 AUD Regular price ~~$34.53 AUD~~ Sale price $28.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-060FF-AL-G-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-060FF-AL-G-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $28.77 AUD Regular price ~~$34.53 AUD~~ Sale price $28.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.37 mm Flange Diameter (FD): 16.0 mm Overall Length: 19.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FH-AL-G-050 Metric Timing Pulleys - 14 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.23 AUD Regular price ~~$19.47 AUD~~ Sale price $16.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 13.37 mm Flange Diameter (FD): 16.0 mm Overall Length: 19.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FH-AL-G-050 Metric Timing Pulleys - 14 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.23 AUD Regular price ~~$19.47 AUD~~ Sale price $16.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-060FH-AL-G-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-060FH-AL-G-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Regular price $16.23 AUD Regular price ~~$19.47 AUD~~ Sale price $16.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 6x6 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $20.86 AUD Regular price ~~$39.87 AUD~~ Sale price $20.86 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 6x6 mm 3mm Pitch - Aluminium Pulley 2 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $20.86 AUD Regular price ~~$39.87 AUD~~ Sale price $20.86 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-030H-014-060FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 6x6 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-060FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 6x6 mm 3mm Pitch - Aluminium Pulley Regular price $20.86 AUD Regular price ~~$39.87 AUD~~ Sale price $20.86 AUD Unit price per 2 Available Now Sale
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-014-060FF-AL-G-064 Metric Timing Pulleys - 14 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-014-060FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030H-014-060FF-AL-G-064 --- Metric Timing Pulleys - 14 tooth - 6x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-015-060FF-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-015-060FF-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-060FF-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Sale P-030H-015-060FF-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3.000mm Pitch - Aluminium Pulley Regular price $47.77 AUD Regular price ~~$57.33 AUD~~ Sale price $47.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-015-060FF-AL-G-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-015-060FF-AL-G-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 17, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-060FF-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-060FF-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: A6D23M015DF0605 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $56.14 AUD Regular price ~~$67.36 AUD~~ Sale price $56.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: A6D23M015DF0605 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $56.14 AUD Regular price ~~$67.36 AUD~~ Sale price $56.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
A6D23M015DF0605 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Sale A6D23M015DF0605 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Regular price $56.14 AUD Regular price ~~$67.36 AUD~~ Sale price $56.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-015-060FF-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley 5 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $38.77 AUD Regular price ~~$74.34 AUD~~ Sale price $38.77 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock
Part Number: P-030H-015-060FF-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley 5 Available Now \| Further orders can be expected around Fri, Oct 17, 2025 Regular price $38.77 AUD Regular price ~~$74.34 AUD~~ Sale price $38.77 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
P-030H-015-060FF-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-060FF-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Regular price $38.77 AUD Regular price ~~$74.34 AUD~~ Sale price $38.77 AUD Unit price per 5 Available Now Sale
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-015-060FH-AL-G-050 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.50 AUD Regular price ~~$19.80 AUD~~ Sale price $16.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.00 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore
Part Number: P-030H-015-060FH-AL-G-050 Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $16.50 AUD Regular price ~~$19.80 AUD~~ Sale price $16.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-030H-015-060FH-AL-G-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Sale P-030H-015-060FH-AL-G-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm 3mm Pitch - Aluminium Pulley Regular price $16.50 AUD Regular price ~~$19.80 AUD~~ Sale price $16.50 AUD Unit price per Out of stock! Backorder Now Sale
