Collection: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide

Pulleys -> Metric Timing -> 3.000mm Pitch -> GT -> 9mm Wide

There are 79 products in the sub-categories of Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide. Scroll down or follow the link to Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

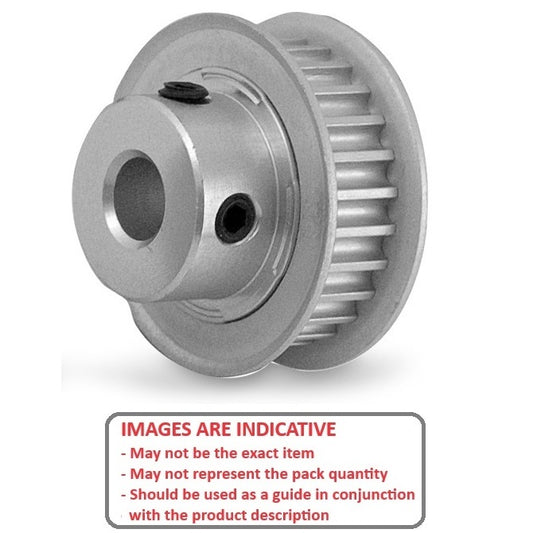

Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic

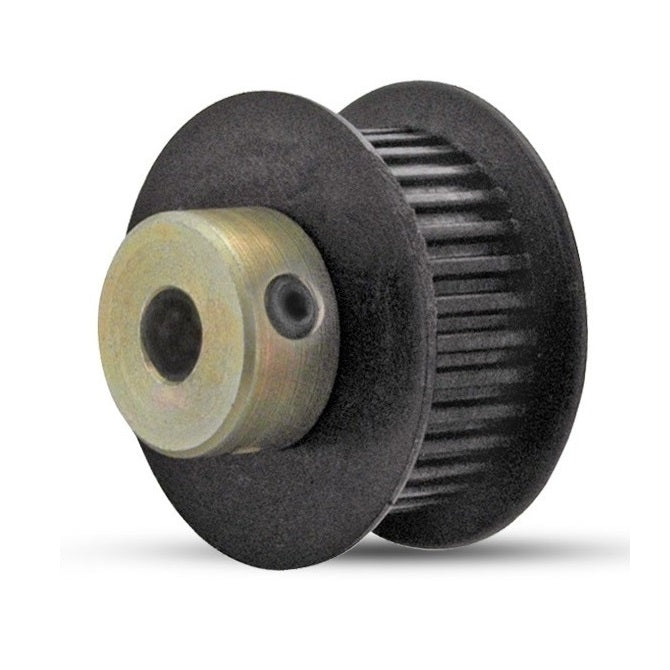

Metric Timing Pulleys - 28 tooth - 9x8 mm - Plastic

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Insert

A selection of Plastic Insert 9mm Wide GT 3.000mm Pitch Metric Timing...

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Insert

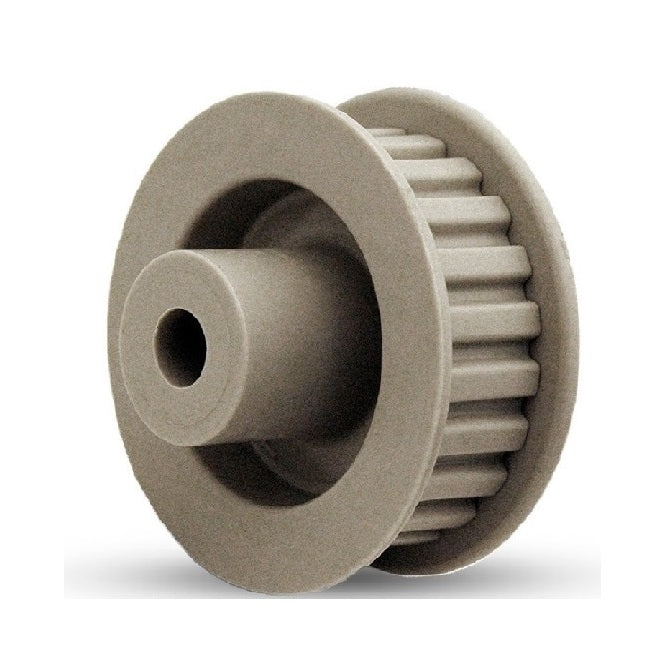

Metric Timing Pulleys - 40 tooth - 9x6 mm - Plastic

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain

A selection of Plastic Plain 9mm Wide GT 3.000mm Pitch Metric Timing...

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain

Category Details

This category includes various types of metric timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Metric Timing Pulleys - 16 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 16	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-016-090FH-AL-G-048 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Metric Timing Pulleys - 16 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 16	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 1 mm Pitch Diameter (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-016-090FH-AL-G-048 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-016-090FH-AL-G-048 (Each) --- Metric Timing Pulleys - 16 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030G-016-090FH-AL-G-048 (Each) --- Metric Timing Pulleys - 16 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 16 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 16	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-016-090FH-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 16 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 16	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 1 mm Pitch Diameter (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-016-090FH-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-016-090FH-AL-G-064 (Each) --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-016-090FH-AL-G-064 (Each) --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 17 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 17	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 16.23 mm Flange Diameter (FD): 18.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-017-090FH-AL-G-048 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 17 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 17	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 1 mm Pitch Diameter (PD): 16.23 mm Flange Diameter (FD): 18.8 mm Overall Length: 17.5 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-017-090FH-AL-G-048 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-017-090FH-AL-G-048 (Each) --- Metric Timing Pulleys - 17 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Sale P-030G-017-090FH-AL-G-048 (Each) --- Metric Timing Pulleys - 17 tooth - 9x4.763 mm 3mm Pitch - Aluminium Pulley Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-060 (Each) 6 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 6 available can be backordered.

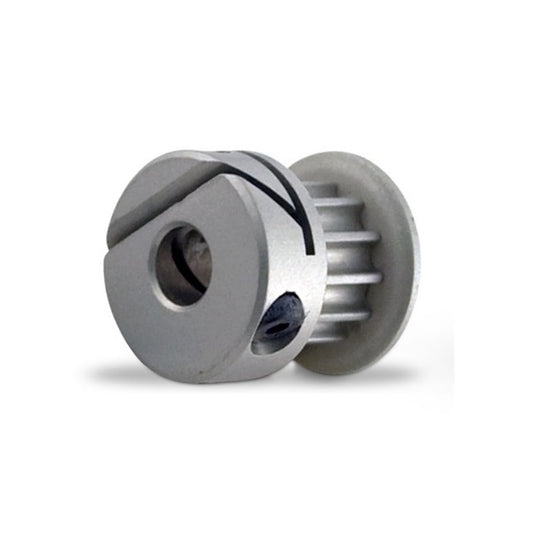

Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 1 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-060 (Each) 6 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 6 Available Now. Backorder if more than 6.
P-030G-018-090FH-AL-E-060 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-018-090FH-AL-E-060 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $43.14 AUD Regular price ~~$51.76 AUD~~ Sale price $43.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 6 Available Now Sale
Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.32 AUD Regular price ~~$57.98 AUD~~ Sale price $48.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 1 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.32 AUD Regular price ~~$57.98 AUD~~ Sale price $48.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-018-090FH-AL-E-064 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-018-090FH-AL-E-064 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $48.32 AUD Regular price ~~$57.98 AUD~~ Sale price $48.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $25.59 AUD Regular price ~~$30.71 AUD~~ Sale price $25.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $25.59 AUD Regular price ~~$30.71 AUD~~ Sale price $25.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-018-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-018-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $25.59 AUD Regular price ~~$30.71 AUD~~ Sale price $25.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 19 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-019-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 19 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-019-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-019-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-019-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $26.32 AUD Regular price ~~$31.58 AUD~~ Sale price $26.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 20 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FH-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 20 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 1 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FH-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-020-090FH-AL-E-060 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-020-090FH-AL-E-060 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 1 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FH-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 1 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FH-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-020-090FH-AL-E-064 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-020-090FH-AL-E-064 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $48.50 AUD Regular price ~~$58.20 AUD~~ Sale price $48.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-020-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-020-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-020-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 21 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 21	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 20.04 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-021-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 21 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 21	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 20.04 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-021-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-021-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 21 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-021-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 21 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-060 (Each) 10 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 10 available can be backordered.
Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-060 (Each) 10 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
P-030G-022-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-022-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-022-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-022-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-022-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-022-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 24 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 24 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-024-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-024-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $49.05 AUD Regular price ~~$58.85 AUD~~ Sale price $49.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-024-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-024-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.4 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 22.91 mm Flange Diameter (FD): 26.4 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-024-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-024-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-024-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 25 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.32 AUD Regular price ~~$59.18 AUD~~ Sale price $49.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 25 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.32 AUD Regular price ~~$59.18 AUD~~ Sale price $49.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-025-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-025-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $49.32 AUD Regular price ~~$59.18 AUD~~ Sale price $49.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-025-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-025-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $49.14 AUD Regular price ~~$58.96 AUD~~ Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-G-064 (Each) 1 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $23.50 AUD Regular price ~~$28.20 AUD~~ Sale price $23.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 1 available can be backordered.
Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-G-064 (Each) 1 Available Now \| Further orders can be expected around Sun, Sep 06, 2026 Regular price $23.50 AUD Regular price ~~$28.20 AUD~~ Sale price $23.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
P-030G-025-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-025-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $23.50 AUD Regular price ~~$28.20 AUD~~ Sale price $23.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Metric Timing Pulleys - 26 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.1 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.41 AUD Regular price ~~$59.29 AUD~~ Sale price $49.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 26 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.1 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-E-060 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.41 AUD Regular price ~~$59.29 AUD~~ Sale price $49.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-026-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Sale P-030G-026-090FF-AL-E-060 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley Regular price $49.41 AUD Regular price ~~$59.29 AUD~~ Sale price $49.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.23 AUD Regular price ~~$59.07 AUD~~ Sale price $49.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-E-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $49.23 AUD Regular price ~~$59.07 AUD~~ Sale price $49.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-026-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-026-090FF-AL-E-064 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $49.23 AUD Regular price ~~$59.07 AUD~~ Sale price $49.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $29.50 AUD Regular price ~~$35.40 AUD~~ Sale price $29.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-026-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $29.50 AUD Regular price ~~$35.40 AUD~~ Sale price $29.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-026-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-026-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $29.50 AUD Regular price ~~$35.40 AUD~~ Sale price $29.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Metric Timing Pulleys - 28 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 28	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type (See Diagram): 2 mm Pitch Diameter (PD): 26.73 mm Flange Diameter (FD): 29.8 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-028-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 28 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
Number of Teeth 28	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type (See Diagram): 2 mm Pitch Diameter (PD): 26.73 mm Flange Diameter (FD): 29.8 mm Overall Length: 20.6 mm Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-028-090FF-AL-G-064 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sun, Sep 06, 2026 Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-030G-028-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 28 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Sale P-030G-028-090FF-AL-G-064 (Each) --- Metric Timing Pulleys - 28 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley Regular price $30.14 AUD Regular price ~~$36.16 AUD~~ Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide

Category Details

Filter

Filter

Subscribe to our emails
