Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Plastic Insert

Pulleys -> Metric Timing -> 2.000mm Pitch -> GT -> 6mm Wide -> Plastic Insert

There is only 1 product in the sub-categories of Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Plastic Insert. Browse the Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Plastic Insert products table.

Category Details

A selection of Plastic Insert 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Brass insert. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Use with GT2 or GT3 type belts.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Plastic Insert category on the Small Parts & Bearings online store.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Metric Timing Pulleys - 90 tooth - 6x6 mm 2mm Pitch - Plastic Pulley
Number of Teeth
90
Max Belt Width
6.00
mm
Bore (d)
6.000
mm
Locking Type
Set Screw, Brass Insert

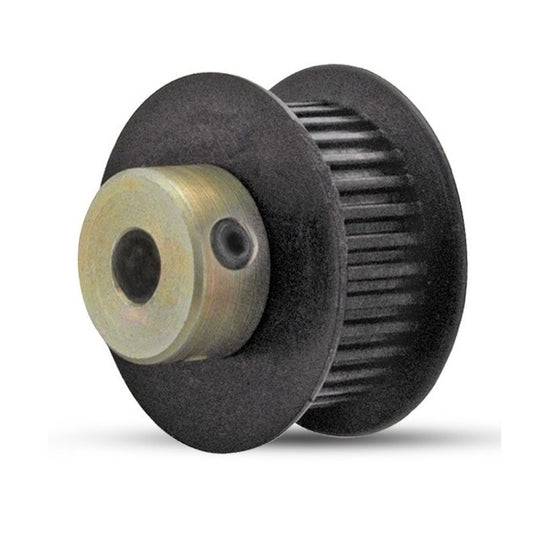

Metric Timing Pulleys - 90 tooth - 6x6 mm - Plastic
Material: Plastic    Type (See Diagram): Fig 2 mm    Pitch Diameter (PD): 57.27 mm    Flange Diameter (FD): 63.0 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 17.5 mm
Deleted Item. Available while stocks last.
Part Number: P-020G-090-060FF-PP-GB-060 (PK-4)
1 pack (4 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Metric Timing Pulleys - 90 tooth - 6x6 mm 2mm Pitch - Plastic Pulley
Number of Teeth
90
Max Belt Width
6.00
mm
Bore (d)
6.000
mm

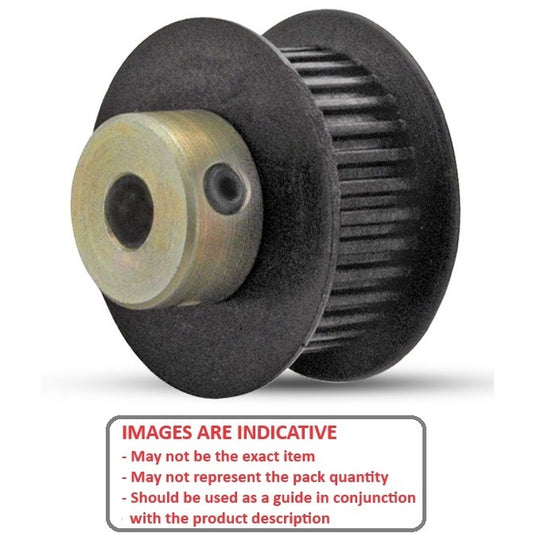

Metric Timing Pulleys - 90 tooth - 6x6 mm - Plastic
Material: Plastic    Locking Type: Set Screw, Brass Insert    Type (See Diagram): Fig 2 mm    Pitch Diameter (PD): 57.27 mm    Flange Diameter (FD): 63.0 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 17.5 mm
Deleted Item. Available while stocks last.
Part Number: P-020G-090-060FF-PP-GB-060 (PK-4)
1 pack (4 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
