Collection: Pulleys - Inch Timing Stock - 9.525mm Pitch L - Aluminium

Pulleys -> Inch Timing Stock -> 9.525mm Pitch L -> Aluminium

There are 29 products in the sub-categories of Pulleys - Inch Timing Stock - 9.525mm Pitch L - Aluminium. Scroll down or follow the link to Pulleys - Inch Timing Stock - 9.525mm Pitch L - Aluminium in the products table to see all these items combined into a handy table with filters.

Category Details

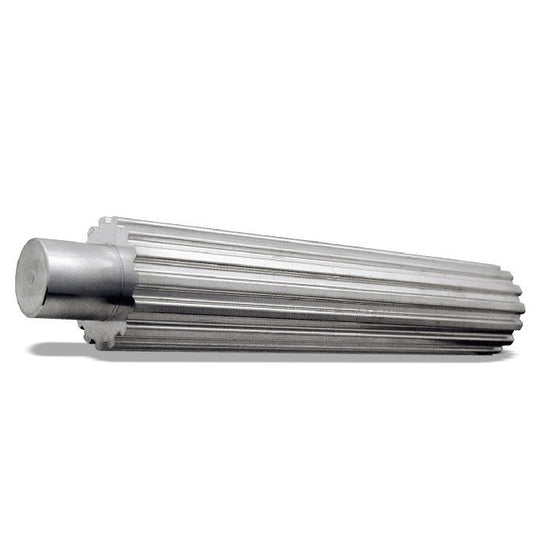

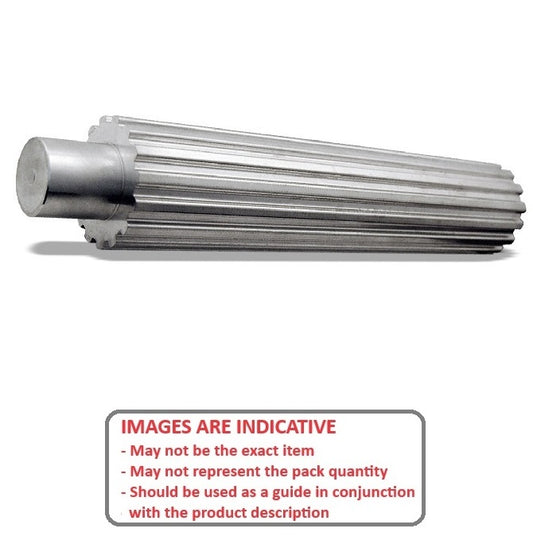

A selection of Aluminium 9.525mm Pitch L Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing Stock - 9.525mm Pitch L - Aluminium category on the Small Parts & Bearings online store.

Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 10	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.30 mm (Equiv. 1.193 in.)	Outside Diameter (OD) 29.56 mm
Material: Aluminium Shank Diameter (D1): 19.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-010-200A Inch Timing Stock Pulleys - 10 tooth - 200x30.3 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 10	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.30 mm (Equiv. 1.193 in.)	Outside Diameter (OD) 29.56 mm
Material: Aluminium Shank Diameter (D1): 19.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-010-200A Inch Timing Stock Pulleys - 10 tooth - 200x30.3 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-010-200A --- Inch Timing Stock Pulleys - 10 tooth - 200x30.3 mm 9.525mm Pitch L - Aluminium Pulley P-L9-010-200A --- Inch Timing Stock Pulleys - 10 tooth - 200x30.3 mm 9.525mm Pitch L - Aluminium Pulley Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 11	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.59 mm
Material: Aluminium Shank Diameter (D1): 19.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-011-200A Inch Timing Stock Pulleys - 11 tooth - 200x33.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $119.59 AUD Regular price ~~$143.51 AUD~~ Sale price $119.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 33.40 mm (Equiv. 1.315 in.)	Outside Diameter (OD) 32.59 mm
Material: Aluminium Shank Diameter (D1): 19.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-011-200A Inch Timing Stock Pulleys - 11 tooth - 200x33.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $119.59 AUD Regular price ~~$143.51 AUD~~ Sale price $119.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-011-200A --- Inch Timing Stock Pulleys - 11 tooth - 200x33.4 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-011-200A --- Inch Timing Stock Pulleys - 11 tooth - 200x33.4 mm 9.525mm Pitch L - Aluminium Pulley Regular price $119.59 AUD Regular price ~~$143.51 AUD~~ Sale price $119.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.40 mm (Equiv. 1.433 in.)	Outside Diameter (OD) 35.62 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-012-200A Inch Timing Stock Pulleys - 12 tooth - 200x36.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $147.59 AUD Regular price ~~$177.11 AUD~~ Sale price $147.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 36.40 mm (Equiv. 1.433 in.)	Outside Diameter (OD) 35.62 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-012-200A Inch Timing Stock Pulleys - 12 tooth - 200x36.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $147.59 AUD Regular price ~~$177.11 AUD~~ Sale price $147.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-012-200A --- Inch Timing Stock Pulleys - 12 tooth - 200x36.4 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-012-200A --- Inch Timing Stock Pulleys - 12 tooth - 200x36.4 mm 9.525mm Pitch L - Aluminium Pulley Regular price $147.59 AUD Regular price ~~$177.11 AUD~~ Sale price $147.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 39.40 mm (Equiv. 1.551 in.)	Outside Diameter (OD) 38.65 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-013-200A Inch Timing Stock Pulleys - 13 tooth - 200x39.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $204.59 AUD Regular price ~~$245.51 AUD~~ Sale price $204.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 39.40 mm (Equiv. 1.551 in.)	Outside Diameter (OD) 38.65 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-013-200A Inch Timing Stock Pulleys - 13 tooth - 200x39.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $204.59 AUD Regular price ~~$245.51 AUD~~ Sale price $204.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-013-200A --- Inch Timing Stock Pulleys - 13 tooth - 200x39.4 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-013-200A --- Inch Timing Stock Pulleys - 13 tooth - 200x39.4 mm 9.525mm Pitch L - Aluminium Pulley Regular price $204.59 AUD Regular price ~~$245.51 AUD~~ Sale price $204.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 42.40 mm (Equiv. 1.669 in.)	Outside Diameter (OD) 41.68 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-014-200A Inch Timing Stock Pulleys - 14 tooth - 200x42.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $214.23 AUD Regular price ~~$257.07 AUD~~ Sale price $214.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 42.40 mm (Equiv. 1.669 in.)	Outside Diameter (OD) 41.68 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 28.6 mm
Part Number: P-L9-014-200A Inch Timing Stock Pulleys - 14 tooth - 200x42.4 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $214.23 AUD Regular price ~~$257.07 AUD~~ Sale price $214.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-014-200A --- Inch Timing Stock Pulleys - 14 tooth - 200x42.4 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-014-200A --- Inch Timing Stock Pulleys - 14 tooth - 200x42.4 mm 9.525mm Pitch L - Aluminium Pulley Regular price $214.23 AUD Regular price ~~$257.07 AUD~~ Sale price $214.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 45.50 mm (Equiv. 1.791 in.)	Outside Diameter (OD) 44.72 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-015-200A Inch Timing Stock Pulleys - 15 tooth - 200x45.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $227.50 AUD Regular price ~~$273.00 AUD~~ Sale price $227.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 45.50 mm (Equiv. 1.791 in.)	Outside Diameter (OD) 44.72 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-015-200A Inch Timing Stock Pulleys - 15 tooth - 200x45.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $227.50 AUD Regular price ~~$273.00 AUD~~ Sale price $227.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-015-200A --- Inch Timing Stock Pulleys - 15 tooth - 200x45.5 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-015-200A --- Inch Timing Stock Pulleys - 15 tooth - 200x45.5 mm 9.525mm Pitch L - Aluminium Pulley Regular price $227.50 AUD Regular price ~~$273.00 AUD~~ Sale price $227.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 48.50 mm (Equiv. 1.909 in.)	Outside Diameter (OD) 47.75 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-016-200A Inch Timing Stock Pulleys - 16 tooth - 200x48.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $238.59 AUD Regular price ~~$286.31 AUD~~ Sale price $238.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 48.50 mm (Equiv. 1.909 in.)	Outside Diameter (OD) 47.75 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-016-200A Inch Timing Stock Pulleys - 16 tooth - 200x48.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $238.59 AUD Regular price ~~$286.31 AUD~~ Sale price $238.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-016-200A --- Inch Timing Stock Pulleys - 16 tooth - 200x48.5 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-016-200A --- Inch Timing Stock Pulleys - 16 tooth - 200x48.5 mm 9.525mm Pitch L - Aluminium Pulley Regular price $238.59 AUD Regular price ~~$286.31 AUD~~ Sale price $238.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 51.50 mm (Equiv. 2.028 in.)	Outside Diameter (OD) 50.78 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-017-200A Inch Timing Stock Pulleys - 17 tooth - 200x51.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $243.59 AUD Regular price ~~$292.31 AUD~~ Sale price $243.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 51.50 mm (Equiv. 2.028 in.)	Outside Diameter (OD) 50.78 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-017-200A Inch Timing Stock Pulleys - 17 tooth - 200x51.5 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $243.59 AUD Regular price ~~$292.31 AUD~~ Sale price $243.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-017-200A --- Inch Timing Stock Pulleys - 17 tooth - 200x51.5 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-017-200A --- Inch Timing Stock Pulleys - 17 tooth - 200x51.5 mm 9.525mm Pitch L - Aluminium Pulley Regular price $243.59 AUD Regular price ~~$292.31 AUD~~ Sale price $243.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 54.60 mm (Equiv. 2.15 in.)	Outside Diameter (OD) 53.81 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-018-200A Inch Timing Stock Pulleys - 18 tooth - 200x54.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $288.86 AUD Regular price ~~$346.64 AUD~~ Sale price $288.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 54.60 mm (Equiv. 2.15 in.)	Outside Diameter (OD) 53.81 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-018-200A Inch Timing Stock Pulleys - 18 tooth - 200x54.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $288.86 AUD Regular price ~~$346.64 AUD~~ Sale price $288.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-018-200A --- Inch Timing Stock Pulleys - 18 tooth - 200x54.6 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-018-200A --- Inch Timing Stock Pulleys - 18 tooth - 200x54.6 mm 9.525mm Pitch L - Aluminium Pulley Regular price $288.86 AUD Regular price ~~$346.64 AUD~~ Sale price $288.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 57.60 mm (Equiv. 2.268 in.)	Outside Diameter (OD) 56.84 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-019-200A Inch Timing Stock Pulleys - 19 tooth - 200x57.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $345.32 AUD Regular price ~~$414.38 AUD~~ Sale price $345.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 57.60 mm (Equiv. 2.268 in.)	Outside Diameter (OD) 56.84 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-019-200A Inch Timing Stock Pulleys - 19 tooth - 200x57.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $345.32 AUD Regular price ~~$414.38 AUD~~ Sale price $345.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-019-200A --- Inch Timing Stock Pulleys - 19 tooth - 200x57.6 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-019-200A --- Inch Timing Stock Pulleys - 19 tooth - 200x57.6 mm 9.525mm Pitch L - Aluminium Pulley Regular price $345.32 AUD Regular price ~~$414.38 AUD~~ Sale price $345.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 60.60 mm (Equiv. 2.386 in.)	Outside Diameter (OD) 59.88 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-020-200A Inch Timing Stock Pulleys - 20 tooth - 200x60.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $361.68 AUD Regular price ~~$434.02 AUD~~ Sale price $361.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 60.60 mm (Equiv. 2.386 in.)	Outside Diameter (OD) 59.88 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-020-200A Inch Timing Stock Pulleys - 20 tooth - 200x60.6 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $361.68 AUD Regular price ~~$434.02 AUD~~ Sale price $361.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-020-200A --- Inch Timing Stock Pulleys - 20 tooth - 200x60.6 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-020-200A --- Inch Timing Stock Pulleys - 20 tooth - 200x60.6 mm 9.525mm Pitch L - Aluminium Pulley Regular price $361.68 AUD Regular price ~~$434.02 AUD~~ Sale price $361.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 63.70 mm (Equiv. 2.508 in.)	Outside Diameter (OD) 62.91 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-021-200A Inch Timing Stock Pulleys - 21 tooth - 200x63.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $376.95 AUD Regular price ~~$452.35 AUD~~ Sale price $376.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 63.70 mm (Equiv. 2.508 in.)	Outside Diameter (OD) 62.91 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-021-200A Inch Timing Stock Pulleys - 21 tooth - 200x63.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $376.95 AUD Regular price ~~$452.35 AUD~~ Sale price $376.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-021-200A --- Inch Timing Stock Pulleys - 21 tooth - 200x63.7 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-021-200A --- Inch Timing Stock Pulleys - 21 tooth - 200x63.7 mm 9.525mm Pitch L - Aluminium Pulley Regular price $376.95 AUD Regular price ~~$452.35 AUD~~ Sale price $376.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 66.70 mm (Equiv. 2.626 in.)	Outside Diameter (OD) 65.94 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-022-200A Inch Timing Stock Pulleys - 22 tooth - 200x66.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $385.23 AUD Regular price ~~$462.27 AUD~~ Sale price $385.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 66.70 mm (Equiv. 2.626 in.)	Outside Diameter (OD) 65.94 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-022-200A Inch Timing Stock Pulleys - 22 tooth - 200x66.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $385.23 AUD Regular price ~~$462.27 AUD~~ Sale price $385.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-022-200A --- Inch Timing Stock Pulleys - 22 tooth - 200x66.7 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-022-200A --- Inch Timing Stock Pulleys - 22 tooth - 200x66.7 mm 9.525mm Pitch L - Aluminium Pulley Regular price $385.23 AUD Regular price ~~$462.27 AUD~~ Sale price $385.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 69.70 mm (Equiv. 2.744 in.)	Outside Diameter (OD) 68.96 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-023-200A Inch Timing Stock Pulleys - 23 tooth - 200x69.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $400.05 AUD Regular price ~~$480.05 AUD~~ Sale price $400.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 69.70 mm (Equiv. 2.744 in.)	Outside Diameter (OD) 68.96 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-023-200A Inch Timing Stock Pulleys - 23 tooth - 200x69.7 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $400.05 AUD Regular price ~~$480.05 AUD~~ Sale price $400.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-023-200A --- Inch Timing Stock Pulleys - 23 tooth - 200x69.7 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-023-200A --- Inch Timing Stock Pulleys - 23 tooth - 200x69.7 mm 9.525mm Pitch L - Aluminium Pulley Regular price $400.05 AUD Regular price ~~$480.05 AUD~~ Sale price $400.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 72.80 mm (Equiv. 2.866 in.)	Outside Diameter (OD) 72.00 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-024-200A Inch Timing Stock Pulleys - 24 tooth - 200x72.8 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $415.05 AUD Regular price ~~$498.05 AUD~~ Sale price $415.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 72.80 mm (Equiv. 2.866 in.)	Outside Diameter (OD) 72.00 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-024-200A Inch Timing Stock Pulleys - 24 tooth - 200x72.8 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $415.05 AUD Regular price ~~$498.05 AUD~~ Sale price $415.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-024-200A --- Inch Timing Stock Pulleys - 24 tooth - 200x72.8 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-024-200A --- Inch Timing Stock Pulleys - 24 tooth - 200x72.8 mm 9.525mm Pitch L - Aluminium Pulley Regular price $415.05 AUD Regular price ~~$498.05 AUD~~ Sale price $415.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 25	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 75.76 mm (Equiv. 2.983 in.)	Outside Diameter (OD) 75.06 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-025-200A Inch Timing Stock Pulleys - 25 tooth - 200x75.76 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $465.68 AUD Regular price ~~$558.82 AUD~~ Sale price $465.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 75.76 mm (Equiv. 2.983 in.)	Outside Diameter (OD) 75.06 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-025-200A Inch Timing Stock Pulleys - 25 tooth - 200x75.76 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $465.68 AUD Regular price ~~$558.82 AUD~~ Sale price $465.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-025-200A --- Inch Timing Stock Pulleys - 25 tooth - 200x75.76 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-025-200A --- Inch Timing Stock Pulleys - 25 tooth - 200x75.76 mm 9.525mm Pitch L - Aluminium Pulley Regular price $465.68 AUD Regular price ~~$558.82 AUD~~ Sale price $465.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 26	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 78.80 mm (Equiv. 3.102 in.)	Outside Diameter (OD) 78.07 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-026-200A Inch Timing Stock Pulleys - 26 tooth - 200x78.8 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $543.86 AUD Regular price Sale price $543.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 78.80 mm (Equiv. 3.102 in.)	Outside Diameter (OD) 78.07 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-026-200A Inch Timing Stock Pulleys - 26 tooth - 200x78.8 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $543.86 AUD Regular price Sale price $543.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-026-200A --- Inch Timing Stock Pulleys - 26 tooth - 200x78.8 mm 9.525mm Pitch L - Aluminium Pulley P-L9-026-200A --- Inch Timing Stock Pulleys - 26 tooth - 200x78.8 mm 9.525mm Pitch L - Aluminium Pulley Regular price $543.86 AUD Regular price Sale price $543.86 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 27	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 81.82 mm (Equiv. 3.221 in.)	Outside Diameter (OD) 81.13 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-027-200A Inch Timing Stock Pulleys - 27 tooth - 200x81.82 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $532.41 AUD Regular price ~~$638.89 AUD~~ Sale price $532.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 27	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 81.82 mm (Equiv. 3.221 in.)	Outside Diameter (OD) 81.13 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-027-200A Inch Timing Stock Pulleys - 27 tooth - 200x81.82 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $532.41 AUD Regular price ~~$638.89 AUD~~ Sale price $532.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-027-200A --- Inch Timing Stock Pulleys - 27 tooth - 200x81.82 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-027-200A --- Inch Timing Stock Pulleys - 27 tooth - 200x81.82 mm 9.525mm Pitch L - Aluminium Pulley Regular price $532.41 AUD Regular price ~~$638.89 AUD~~ Sale price $532.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 28	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 84.90 mm (Equiv. 3.343 in.)	Outside Diameter (OD) 84.13 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-028-200A Inch Timing Stock Pulleys - 28 tooth - 200x84.9 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $581.77 AUD Regular price Sale price $581.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 28	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 84.90 mm (Equiv. 3.343 in.)	Outside Diameter (OD) 84.13 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-028-200A Inch Timing Stock Pulleys - 28 tooth - 200x84.9 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $581.77 AUD Regular price Sale price $581.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-028-200A --- Inch Timing Stock Pulleys - 28 tooth - 200x84.9 mm 9.525mm Pitch L - Aluminium Pulley P-L9-028-200A --- Inch Timing Stock Pulleys - 28 tooth - 200x84.9 mm 9.525mm Pitch L - Aluminium Pulley Regular price $581.77 AUD Regular price Sale price $581.77 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 29	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 87.89 mm (Equiv. 3.46 in.)	Outside Diameter (OD) 87.16 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-029-200A Inch Timing Stock Pulleys - 29 tooth - 200x87.89 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $564.50 AUD Regular price ~~$677.40 AUD~~ Sale price $564.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 29	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 87.89 mm (Equiv. 3.46 in.)	Outside Diameter (OD) 87.16 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-029-200A Inch Timing Stock Pulleys - 29 tooth - 200x87.89 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $564.50 AUD Regular price ~~$677.40 AUD~~ Sale price $564.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-029-200A --- Inch Timing Stock Pulleys - 29 tooth - 200x87.89 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-029-200A --- Inch Timing Stock Pulleys - 29 tooth - 200x87.89 mm 9.525mm Pitch L - Aluminium Pulley Regular price $564.50 AUD Regular price ~~$677.40 AUD~~ Sale price $564.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 30	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 91.00 mm (Equiv. 3.583 in.)	Outside Diameter (OD) 90.20 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-030-200A Inch Timing Stock Pulleys - 30 tooth - 200x91 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $584.23 AUD Regular price ~~$701.07 AUD~~ Sale price $584.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 30	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 91.00 mm (Equiv. 3.583 in.)	Outside Diameter (OD) 90.20 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-030-200A Inch Timing Stock Pulleys - 30 tooth - 200x91 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $584.23 AUD Regular price ~~$701.07 AUD~~ Sale price $584.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-030-200A --- Inch Timing Stock Pulleys - 30 tooth - 200x91 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-030-200A --- Inch Timing Stock Pulleys - 30 tooth - 200x91 mm 9.525mm Pitch L - Aluminium Pulley Regular price $584.23 AUD Regular price ~~$701.07 AUD~~ Sale price $584.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 31	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 93.95 mm (Equiv. 3.699 in.)	Outside Diameter (OD) 93.27 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-L9-031-200A Inch Timing Stock Pulleys - 31 tooth - 200x93.95 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $609.41 AUD Regular price ~~$731.29 AUD~~ Sale price $609.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 31	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 93.95 mm (Equiv. 3.699 in.)	Outside Diameter (OD) 93.27 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-L9-031-200A Inch Timing Stock Pulleys - 31 tooth - 200x93.95 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $609.41 AUD Regular price ~~$731.29 AUD~~ Sale price $609.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-031-200A --- Inch Timing Stock Pulleys - 31 tooth - 200x93.95 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-031-200A --- Inch Timing Stock Pulleys - 31 tooth - 200x93.95 mm 9.525mm Pitch L - Aluminium Pulley Regular price $609.41 AUD Regular price ~~$731.29 AUD~~ Sale price $609.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 32	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 97.00 mm (Equiv. 3.819 in.)	Outside Diameter (OD) 96.26 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-032-200A Inch Timing Stock Pulleys - 32 tooth - 200x97 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $657.68 AUD Regular price Sale price $657.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 32	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 97.00 mm (Equiv. 3.819 in.)	Outside Diameter (OD) 96.26 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 19.0 mm
Part Number: P-L9-032-200A Inch Timing Stock Pulleys - 32 tooth - 200x97 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $657.68 AUD Regular price Sale price $657.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-032-200A --- Inch Timing Stock Pulleys - 32 tooth - 200x97 mm 9.525mm Pitch L - Aluminium Pulley P-L9-032-200A --- Inch Timing Stock Pulleys - 32 tooth - 200x97 mm 9.525mm Pitch L - Aluminium Pulley Regular price $657.68 AUD Regular price Sale price $657.68 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 33	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 100.01 mm (Equiv. 3.937 in.)	Outside Diameter (OD) 99.34 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-L9-033-200A Inch Timing Stock Pulleys - 33 tooth - 200x100.01 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $641.32 AUD Regular price ~~$769.58 AUD~~ Sale price $641.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 33	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 100.01 mm (Equiv. 3.937 in.)	Outside Diameter (OD) 99.34 mm
Material: Aluminium Shank Diameter (D1): 25.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-L9-033-200A Inch Timing Stock Pulleys - 33 tooth - 200x100.01 mm 9.525mm Pitch L - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $641.32 AUD Regular price ~~$769.58 AUD~~ Sale price $641.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-L9-033-200A --- Inch Timing Stock Pulleys - 33 tooth - 200x100.01 mm 9.525mm Pitch L - Aluminium Pulley Sale P-L9-033-200A --- Inch Timing Stock Pulleys - 33 tooth - 200x100.01 mm 9.525mm Pitch L - Aluminium Pulley Regular price $641.32 AUD Regular price ~~$769.58 AUD~~ Sale price $641.32 AUD Unit price per Out of stock! Backorder Now Sale
