Collection: Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium

Pulleys -> Inch Timing Stock -> 2.032mm Pitch MXL Aluminium

There are 93 products in the sub-categories of Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium. Scroll down or follow the link to Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of 2.032mm Pitch MXL Aluminium Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

Timing pulleys combined with timing belts, provide power transmission without slippage.

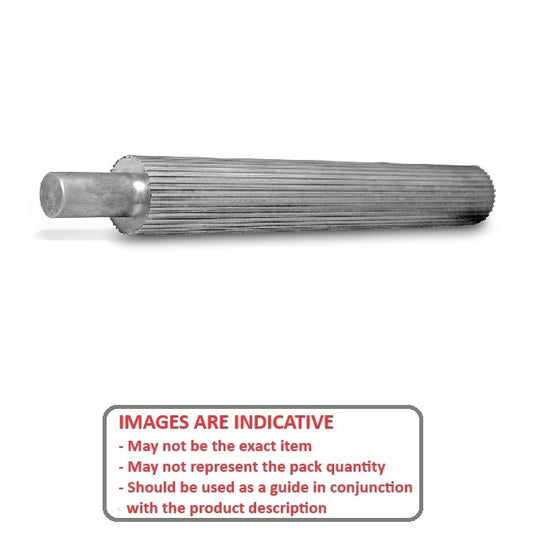

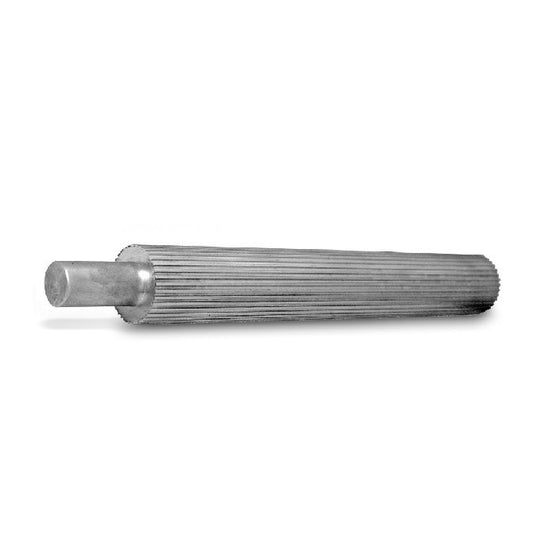

Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
2.032mm metric is equivalent to 0.080 pitch imperial

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium category on the Small Parts & Bearings online store.

Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 10	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 6.50 mm (Equiv. 0.256 in.)	Outside Diameter (OD) 5.96 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-010-050A Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $37.32 AUD Regular price ~~$44.78 AUD~~ Sale price $37.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 10	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 6.50 mm (Equiv. 0.256 in.)	Outside Diameter (OD) 5.96 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-010-050A Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $37.32 AUD Regular price ~~$44.78 AUD~~ Sale price $37.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-010-050A --- Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-010-050A --- Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $37.32 AUD Regular price ~~$44.78 AUD~~ Sale price $37.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 6.470 mm (Equiv. 0.255 in.)	Outside Diameter (OD) 5.96 mm
Material: Aluminium
Part Number: P-MXL-010-100A Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 6.470 mm (Equiv. 0.255 in.)	Outside Diameter (OD) 5.96 mm
Material: Aluminium
Part Number: P-MXL-010-100A Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-010-100A --- Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-010-100A --- Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 7.10 mm (Equiv. 0.28 in.)	Outside Diameter (OD) 6.61 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-011-050A Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 7.10 mm (Equiv. 0.28 in.)	Outside Diameter (OD) 6.61 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-011-050A Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-011-050A --- Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-011-050A --- Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $39.32 AUD Regular price ~~$47.18 AUD~~ Sale price $39.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 7.110 mm (Equiv. 0.28 in.)	Outside Diameter (OD) 6.61 mm
Material: Aluminium
Part Number: P-MXL-011-100A Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 7.110 mm (Equiv. 0.28 in.)	Outside Diameter (OD) 6.61 mm
Material: Aluminium
Part Number: P-MXL-011-100A Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-011-100A --- Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-011-100A --- Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 7.80 mm (Equiv. 0.307 in.)	Outside Diameter (OD) 7.25 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-012-050A Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $42.68 AUD Regular price ~~$51.22 AUD~~ Sale price $42.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 7.80 mm (Equiv. 0.307 in.)	Outside Diameter (OD) 7.25 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-012-050A Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $42.68 AUD Regular price ~~$51.22 AUD~~ Sale price $42.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-050A --- Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-012-050A --- Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $42.68 AUD Regular price ~~$51.22 AUD~~ Sale price $42.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 7.760 mm (Equiv. 0.306 in.)	Outside Diameter (OD) 7.25 mm
Material: Aluminium
Part Number: P-MXL-012-100A Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 7.760 mm (Equiv. 0.306 in.)	Outside Diameter (OD) 7.25 mm
Material: Aluminium
Part Number: P-MXL-012-100A Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-100A --- Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-012-100A --- Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 8.40 mm (Equiv. 0.331 in.)	Outside Diameter (OD) 7.90 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-013-050A Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $43.32 AUD Regular price ~~$51.98 AUD~~ Sale price $43.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 50.0 mm (Equiv. 1.969 in.)	Pitch Diameter (PD) 8.40 mm (Equiv. 0.331 in.)	Outside Diameter (OD) 7.90 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-013-050A Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $43.32 AUD Regular price ~~$51.98 AUD~~ Sale price $43.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-013-050A --- Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-013-050A --- Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $43.32 AUD Regular price ~~$51.98 AUD~~ Sale price $43.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 8.410 mm (Equiv. 0.331 in.)	Outside Diameter (OD) 7.90 mm
Material: Aluminium
Part Number: P-MXL-013-100A Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 8.410 mm (Equiv. 0.331 in.)	Outside Diameter (OD) 7.90 mm
Material: Aluminium
Part Number: P-MXL-013-100A Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-013-100A --- Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-013-100A --- Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 9.10 mm (Equiv. 0.358 in.)	Outside Diameter (OD) 8.55 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-014-075A Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $44.32 AUD Regular price ~~$53.18 AUD~~ Sale price $44.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 9.10 mm (Equiv. 0.358 in.)	Outside Diameter (OD) 8.55 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-014-075A Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $44.32 AUD Regular price ~~$53.18 AUD~~ Sale price $44.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-014-075A --- Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-014-075A --- Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $44.32 AUD Regular price ~~$53.18 AUD~~ Sale price $44.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 9.060 mm (Equiv. 0.357 in.)	Outside Diameter (OD) 8.55 mm
Material: Aluminium
Part Number: P-MXL-014-100A Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 9.060 mm (Equiv. 0.357 in.)	Outside Diameter (OD) 8.55 mm
Material: Aluminium
Part Number: P-MXL-014-100A Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-014-100A --- Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-014-100A --- Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 9.70 mm (Equiv. 0.382 in.)	Outside Diameter (OD) 9.19 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-015-075A Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 9.70 mm (Equiv. 0.382 in.)	Outside Diameter (OD) 9.19 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-015-075A Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-015-075A --- Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-015-075A --- Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 9.700 mm (Equiv. 0.382 in.)	Outside Diameter (OD) 9.19 mm
Material: Aluminium
Part Number: P-MXL-015-100A Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 9.700 mm (Equiv. 0.382 in.)	Outside Diameter (OD) 9.19 mm
Material: Aluminium
Part Number: P-MXL-015-100A Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-015-100A --- Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-015-100A --- Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 10.30 mm (Equiv. 0.406 in.)	Outside Diameter (OD) 9.84 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-016-075A Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $45.86 AUD Regular price ~~$55.04 AUD~~ Sale price $45.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 10.30 mm (Equiv. 0.406 in.)	Outside Diameter (OD) 9.84 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-016-075A Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $45.86 AUD Regular price ~~$55.04 AUD~~ Sale price $45.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-016-075A --- Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-016-075A --- Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $45.86 AUD Regular price ~~$55.04 AUD~~ Sale price $45.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 10.350 mm (Equiv. 0.407 in.)	Outside Diameter (OD) 9.84 mm
Material: Aluminium
Part Number: P-MXL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 10.350 mm (Equiv. 0.407 in.)	Outside Diameter (OD) 9.84 mm
Material: Aluminium
Part Number: P-MXL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 11.00 mm (Equiv. 0.433 in.)	Outside Diameter (OD) 10.49 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-017-075A Inch Timing Stock Pulleys - 17 tooth - 75x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $46.59 AUD Regular price ~~$55.91 AUD~~ Sale price $46.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 11.00 mm (Equiv. 0.433 in.)	Outside Diameter (OD) 10.49 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-017-075A Inch Timing Stock Pulleys - 17 tooth - 75x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $46.59 AUD Regular price ~~$55.91 AUD~~ Sale price $46.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-017-075A --- Inch Timing Stock Pulleys - 17 tooth - 75x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-017-075A --- Inch Timing Stock Pulleys - 17 tooth - 75x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $46.59 AUD Regular price ~~$55.91 AUD~~ Sale price $46.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 11.000 mm (Equiv. 0.433 in.)	Outside Diameter (OD) 10.49 mm
Material: Aluminium
Part Number: P-MXL-017-100A Inch Timing Stock Pulleys - 17 tooth - 100x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 11.000 mm (Equiv. 0.433 in.)	Outside Diameter (OD) 10.49 mm
Material: Aluminium
Part Number: P-MXL-017-100A Inch Timing Stock Pulleys - 17 tooth - 100x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-017-100A --- Inch Timing Stock Pulleys - 17 tooth - 100x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-017-100A --- Inch Timing Stock Pulleys - 17 tooth - 100x11 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 11.60 mm (Equiv. 0.457 in.)	Outside Diameter (OD) 11.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-018-075A Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $47.59 AUD Regular price ~~$57.11 AUD~~ Sale price $47.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 11.60 mm (Equiv. 0.457 in.)	Outside Diameter (OD) 11.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-018-075A Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $47.59 AUD Regular price ~~$57.11 AUD~~ Sale price $47.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-075A --- Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-018-075A --- Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $47.59 AUD Regular price ~~$57.11 AUD~~ Sale price $47.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 11.640 mm (Equiv. 0.458 in.)	Outside Diameter (OD) 11.14 mm
Material: Aluminium
Part Number: P-MXL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $26.59 AUD Regular price ~~$31.91 AUD~~ Sale price $26.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 11.640 mm (Equiv. 0.458 in.)	Outside Diameter (OD) 11.14 mm
Material: Aluminium
Part Number: P-MXL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $26.59 AUD Regular price ~~$31.91 AUD~~ Sale price $26.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $26.59 AUD Regular price ~~$31.91 AUD~~ Sale price $26.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 12.30 mm (Equiv. 0.484 in.)	Outside Diameter (OD) 11.78 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-019-075A Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.23 AUD Regular price ~~$57.87 AUD~~ Sale price $48.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 75.0 mm (Equiv. 2.953 in.)	Pitch Diameter (PD) 12.30 mm (Equiv. 0.484 in.)	Outside Diameter (OD) 11.78 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-019-075A Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.23 AUD Regular price ~~$57.87 AUD~~ Sale price $48.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-019-075A --- Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-019-075A --- Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $48.23 AUD Regular price ~~$57.87 AUD~~ Sale price $48.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 12.290 mm (Equiv. 0.484 in.)	Outside Diameter (OD) 11.78 mm
Material: Aluminium
Part Number: P-MXL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 12.290 mm (Equiv. 0.484 in.)	Outside Diameter (OD) 11.78 mm
Material: Aluminium
Part Number: P-MXL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 12.90 mm (Equiv. 0.508 in.)	Outside Diameter (OD) 12.43 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-020-100A Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $74.23 AUD Regular price Sale price $74.23 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Number of Teeth 20	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 12.90 mm (Equiv. 0.508 in.)	Outside Diameter (OD) 12.43 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-020-100A Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $74.23 AUD Regular price Sale price $74.23 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
P-MXL-020-100A --- Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley P-MXL-020-100A --- Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $74.23 AUD Regular price Sale price $74.23 AUD Unit price per 1 Available Now
Number of Teeth 21	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 13.60 mm (Equiv. 0.535 in.)	Outside Diameter (OD) 13.07 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-021-100A Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.05 AUD Regular price ~~$61.25 AUD~~ Sale price $51.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 13.60 mm (Equiv. 0.535 in.)	Outside Diameter (OD) 13.07 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-021-100A Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.05 AUD Regular price ~~$61.25 AUD~~ Sale price $51.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-021-100A --- Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-021-100A --- Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $51.05 AUD Regular price ~~$61.25 AUD~~ Sale price $51.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 14.20 mm (Equiv. 0.559 in.)	Outside Diameter (OD) 13.72 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-022-100A Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.05 AUD Regular price ~~$62.45 AUD~~ Sale price $52.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 14.20 mm (Equiv. 0.559 in.)	Outside Diameter (OD) 13.72 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-022-100A Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.05 AUD Regular price ~~$62.45 AUD~~ Sale price $52.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-022-100A --- Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-022-100A --- Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $52.05 AUD Regular price ~~$62.45 AUD~~ Sale price $52.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 14.90 mm (Equiv. 0.587 in.)	Outside Diameter (OD) 14.37 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-023-100A Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $56.95 AUD Regular price ~~$68.35 AUD~~ Sale price $56.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 14.90 mm (Equiv. 0.587 in.)	Outside Diameter (OD) 14.37 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-023-100A Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $56.95 AUD Regular price ~~$68.35 AUD~~ Sale price $56.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-023-100A --- Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Sale P-MXL-023-100A --- Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm 2.032mm Pitch MXL Aluminium - Aluminium Pulley Regular price $56.95 AUD Regular price ~~$68.35 AUD~~ Sale price $56.95 AUD Unit price per Out of stock! Backorder Now Sale
