Collection: Pulleys - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide

Pulleys -> Inch Timing -> 5.080mm Pitch XL -> 6.4mm Wide

There are 56 products in the sub-categories of Pulleys - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide. Scroll down or follow the link to Pulleys - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of 6.4mm Wide 5.080mm Pitch XL Inch Timing Pulleys. Timing Pulleys to suit XL Series 5.080mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Aluminium alloy
Finished bore with set screw locking

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide category on the Small Parts & Bearings online store.

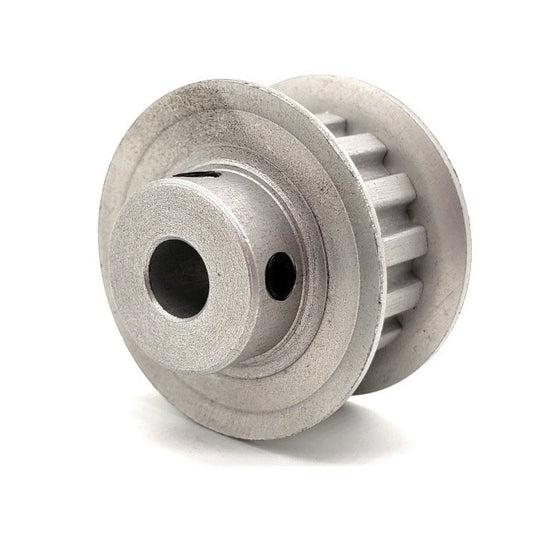

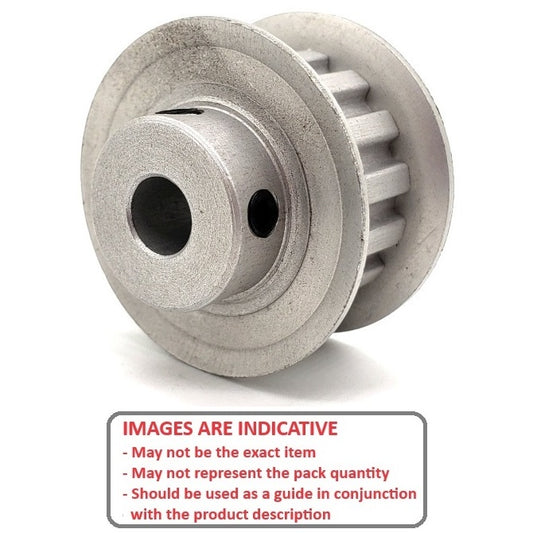

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-048 Inch Timing Pulleys - 10 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-048 Inch Timing Pulleys - 10 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-010-064FF-AL-G-048 --- Inch Timing Pulleys - 10 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-010-064FF-AL-G-048 --- Inch Timing Pulleys - 10 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-060 Inch Timing Pulleys - 10 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-060 Inch Timing Pulleys - 10 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-010-064FF-AL-G-060 --- Inch Timing Pulleys - 10 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-010-064FF-AL-G-060 --- Inch Timing Pulleys - 10 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-064 Inch Timing Pulleys - 10 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley 4 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $17.23 AUD Regular price ~~$32.76 AUD~~ Sale price $17.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.16 mm Flange Diameter (FD): 22.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 9.5 Locking Type: Set Screw
Part Number: P-XL-010-064FF-AL-G-064 Inch Timing Pulleys - 10 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley 4 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $17.23 AUD Regular price ~~$32.76 AUD~~ Sale price $17.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
P-XL-010-064FF-AL-G-064 --- Inch Timing Pulleys - 10 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-010-064FF-AL-G-064 --- Inch Timing Pulleys - 10 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $17.23 AUD Regular price ~~$32.76 AUD~~ Sale price $17.23 AUD Unit price per 4 Available Now Sale
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 23.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.1 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-048 Inch Timing Pulleys - 11 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 23.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.1 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-048 Inch Timing Pulleys - 11 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-011-064FF-AL-G-048 --- Inch Timing Pulleys - 11 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-011-064FF-AL-G-048 --- Inch Timing Pulleys - 11 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-060 Inch Timing Pulleys - 11 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-060 Inch Timing Pulleys - 11 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-011-064FF-AL-G-060 --- Inch Timing Pulleys - 11 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-011-064FF-AL-G-060 --- Inch Timing Pulleys - 11 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 23.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.1 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-064 Inch Timing Pulleys - 11 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $17.32 AUD Regular price ~~$32.96 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.78 mm Flange Diameter (FD): 23.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.1 Locking Type: Set Screw
Part Number: P-XL-011-064FF-AL-G-064 Inch Timing Pulleys - 11 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $17.32 AUD Regular price ~~$32.96 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-XL-011-064FF-AL-G-064 --- Inch Timing Pulleys - 11 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-011-064FF-AL-G-064 --- Inch Timing Pulleys - 11 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $17.32 AUD Regular price ~~$32.96 AUD~~ Sale price $17.32 AUD Unit price per 2 Available Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-048 Inch Timing Pulleys - 12 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-048 Inch Timing Pulleys - 12 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-012-064FF-AL-G-048 --- Inch Timing Pulleys - 12 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-012-064FF-AL-G-048 --- Inch Timing Pulleys - 12 tooth - 6.4x4.763 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-060 Inch Timing Pulleys - 12 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-060 Inch Timing Pulleys - 12 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-012-064FF-AL-G-060 --- Inch Timing Pulleys - 12 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-012-064FF-AL-G-060 --- Inch Timing Pulleys - 12 tooth - 6.4x6 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-064 Inch Timing Pulleys - 12 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.40 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 Locking Type: Set Screw
Part Number: P-XL-012-064FF-AL-G-064 Inch Timing Pulleys - 12 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-012-064FF-AL-G-064 --- Inch Timing Pulleys - 12 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-012-064FF-AL-G-064 --- Inch Timing Pulleys - 12 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 27.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-013-095P-AL-G-064 Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 27.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-013-095P-AL-G-064 Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-013-095P-AL-G-064 --- Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-013-095P-AL-G-064 --- Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 27.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-013-064FF-AL-G-064 Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 27.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-013-064FF-AL-G-064 Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-013-064FF-AL-G-064 --- Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-013-064FF-AL-G-064 --- Inch Timing Pulleys - 13 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-064 Inch Timing Pulleys - 14 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-064 Inch Timing Pulleys - 14 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-064FF-AL-G-064 --- Inch Timing Pulleys - 14 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-014-064FF-AL-G-064 --- Inch Timing Pulleys - 14 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-079 Inch Timing Pulleys - 14 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-079 Inch Timing Pulleys - 14 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-064FF-AL-G-079 --- Inch Timing Pulleys - 14 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-014-064FF-AL-G-079 --- Inch Timing Pulleys - 14 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 28.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-080 Inch Timing Pulleys - 14 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 28.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-080 Inch Timing Pulleys - 14 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-064FF-AL-G-080 --- Inch Timing Pulleys - 14 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-014-064FF-AL-G-080 --- Inch Timing Pulleys - 14 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-095 Inch Timing Pulleys - 14 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.63 mm Flange Diameter (FD): 27.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 Locking Type: Set Screw
Part Number: P-XL-014-064FF-AL-G-095 Inch Timing Pulleys - 14 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-064FF-AL-G-095 --- Inch Timing Pulleys - 14 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-014-064FF-AL-G-095 --- Inch Timing Pulleys - 14 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-064 Inch Timing Pulleys - 15 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-064 Inch Timing Pulleys - 15 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-015-064FF-AL-G-064 --- Inch Timing Pulleys - 15 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-015-064FF-AL-G-064 --- Inch Timing Pulleys - 15 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-079 Inch Timing Pulleys - 15 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-079 Inch Timing Pulleys - 15 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-015-064FF-AL-G-079 --- Inch Timing Pulleys - 15 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-015-064FF-AL-G-079 --- Inch Timing Pulleys - 15 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-080 Inch Timing Pulleys - 15 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $20.05 AUD Regular price ~~$38.23 AUD~~ Sale price $20.05 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-080 Inch Timing Pulleys - 15 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $20.05 AUD Regular price ~~$38.23 AUD~~ Sale price $20.05 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
P-XL-015-064FF-AL-G-080 --- Inch Timing Pulleys - 15 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-015-064FF-AL-G-080 --- Inch Timing Pulleys - 15 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $20.05 AUD Regular price ~~$38.23 AUD~~ Sale price $20.05 AUD Unit price per 1 Available Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-095 Inch Timing Pulleys - 15 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $20.32 AUD Regular price ~~$38.75 AUD~~ Sale price $20.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.24 mm Flange Diameter (FD): 30.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9 Locking Type: Set Screw
Part Number: P-XL-015-064FF-AL-G-095 Inch Timing Pulleys - 15 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $20.32 AUD Regular price ~~$38.75 AUD~~ Sale price $20.32 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-XL-015-064FF-AL-G-095 --- Inch Timing Pulleys - 15 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-015-064FF-AL-G-095 --- Inch Timing Pulleys - 15 tooth - 6.4x9.525 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $20.32 AUD Regular price ~~$38.75 AUD~~ Sale price $20.32 AUD Unit price per 2 Available Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.5 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-064 Inch Timing Pulleys - 16 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.5 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-064 Inch Timing Pulleys - 16 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-064FF-AL-G-064 --- Inch Timing Pulleys - 16 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-016-064FF-AL-G-064 --- Inch Timing Pulleys - 16 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.5 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-079 Inch Timing Pulleys - 16 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.5 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-079 Inch Timing Pulleys - 16 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-064FF-AL-G-079 --- Inch Timing Pulleys - 16 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-016-064FF-AL-G-079 --- Inch Timing Pulleys - 16 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 32.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.0 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-080 Inch Timing Pulleys - 16 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.86 mm Flange Diameter (FD): 32.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.0 Locking Type: Set Screw
Part Number: P-XL-016-064FF-AL-G-080 Inch Timing Pulleys - 16 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-064FF-AL-G-080 --- Inch Timing Pulleys - 16 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-016-064FF-AL-G-080 --- Inch Timing Pulleys - 16 tooth - 6.4x8 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $25.68 AUD Regular price ~~$30.82 AUD~~ Sale price $25.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 29.09 mm Flange Diameter (FD): 34.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 20.6 Locking Type: Set Screw
Part Number: P-XL-018-064FF-AL-G-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 29.09 mm Flange Diameter (FD): 34.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 20.6 Locking Type: Set Screw
Part Number: P-XL-018-064FF-AL-G-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-018-064FF-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-018-064FF-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 29.09 mm Flange Diameter (FD): 34.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 20.6 Locking Type: Set Screw
Part Number: P-XL-018-064FF-AL-G-079 Inch Timing Pulleys - 18 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 7.938 mm (Equiv. 0.313 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 29.09 mm Flange Diameter (FD): 34.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 20.6 Locking Type: Set Screw
Part Number: P-XL-018-064FF-AL-G-079 Inch Timing Pulleys - 18 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-018-064FF-AL-G-079 --- Inch Timing Pulleys - 18 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-018-064FF-AL-G-079 --- Inch Timing Pulleys - 18 tooth - 6.4x7.938 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Out of stock! Backorder Now Sale
