Collection: Pulleys - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide

Pulleys -> Inch Timing -> 2.032mm Pitch MXL -> 9.5mm Wide

There are 62 products in the sub-categories of Pulleys - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide. Scroll down or follow the link to Pulleys - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of 9.5mm Wide 2.032mm Pitch MXL Inch Timing Pulleys. Timing Pulleys to suit MXL 2.032mm Pitch Timing Belts. Suits belts 9.5 to 9.6mm wide

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
2.032mm metric is equivalent to 0.080 pitch imperial
Aluminium Alloy
Finished Through Bore Ready To Assemble

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image

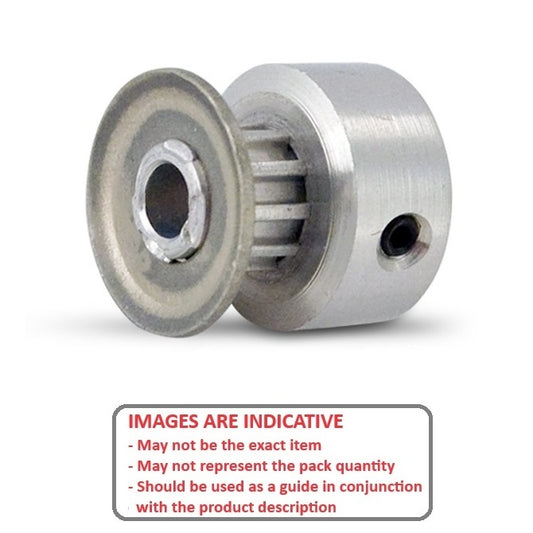

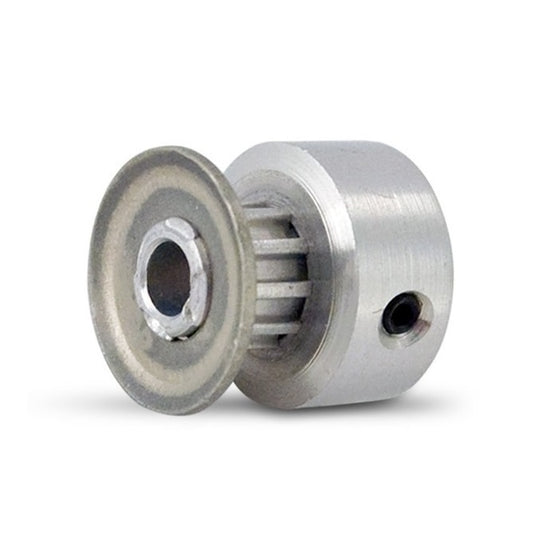

Number of Teeth 10	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-095FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.95 AUD Regular price ~~$23.95 AUD~~ Sale price $19.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-095FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.95 AUD Regular price ~~$23.95 AUD~~ Sale price $19.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-010-095FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-010-095FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.95 AUD Regular price ~~$23.95 AUD~~ Sale price $19.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-095FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-095FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-010-095FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-010-095FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-095FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-095FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-011-095FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-095FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-095FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-095FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-011-095FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-095FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

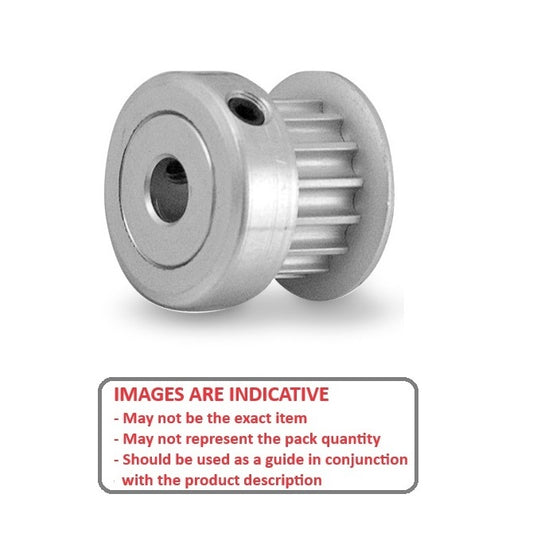

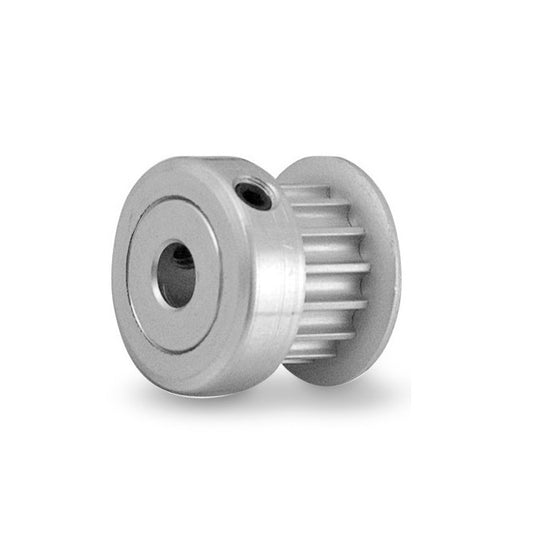

Number of Teeth 12	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-095FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-095FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-012-095FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-095FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-095FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-095FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-012-095FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-095FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-095FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-095FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-014-095FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-014-095FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 9.5x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-095FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-095FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-014-095FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-014-095FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 9.5x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-095FH-AL-G-040 Inch Timing Pulleys - 15 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-095FH-AL-G-040 Inch Timing Pulleys - 15 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-015-095FH-AL-G-040 --- Inch Timing Pulleys - 15 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-095FH-AL-G-040 --- Inch Timing Pulleys - 15 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-095FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-095FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-015-095FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-095FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-095FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-095FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-016-095FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-095FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-095FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-095FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-016-095FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-095FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

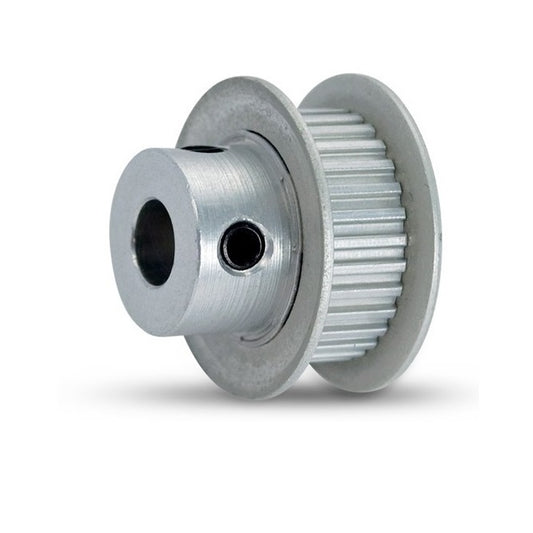

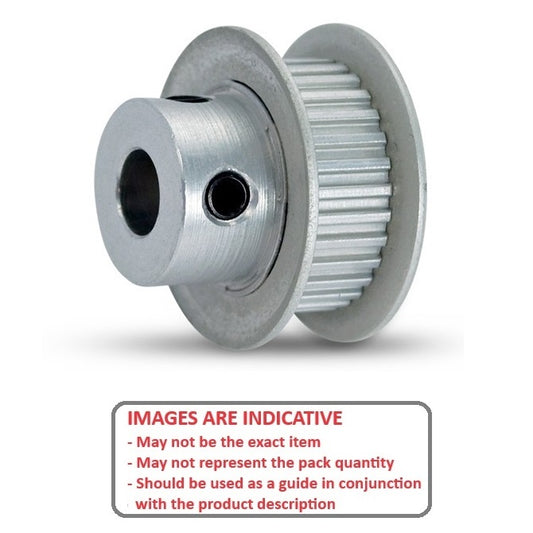

Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.1 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-095FF-AL-G-040 Inch Timing Pulleys - 18 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.1 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-095FF-AL-G-040 Inch Timing Pulleys - 18 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-095FF-AL-G-040 --- Inch Timing Pulleys - 18 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-095FF-AL-G-040 --- Inch Timing Pulleys - 18 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.1 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-095FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.1 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-095FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-095FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-095FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

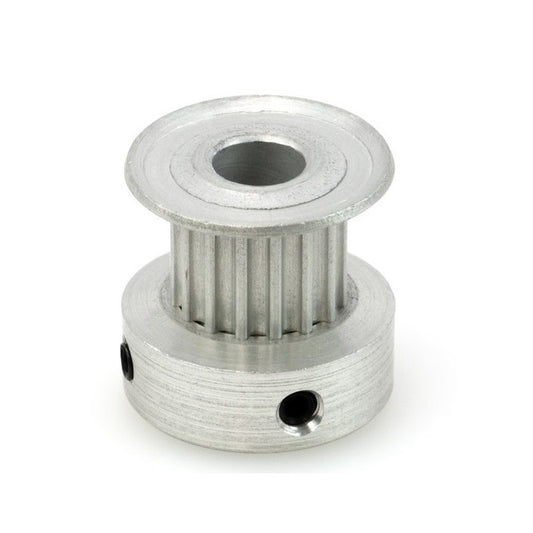

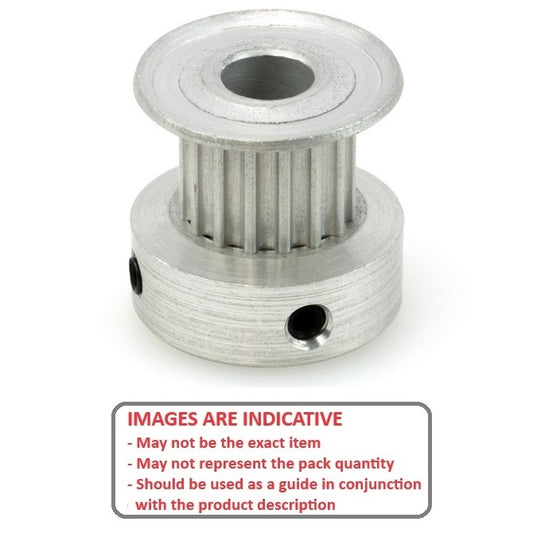

Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-095FH-AL-G-060 Inch Timing Pulleys - 18 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-095FH-AL-G-060 Inch Timing Pulleys - 18 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-095FH-AL-G-060 --- Inch Timing Pulleys - 18 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-095FH-AL-G-060 --- Inch Timing Pulleys - 18 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-095FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-095FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-095FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-018-095FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.2 Locking Type: Set Screw
Part Number: P-MXL-020-095FF-AL-G-040 Inch Timing Pulleys - 20 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.2 Locking Type: Set Screw
Part Number: P-MXL-020-095FF-AL-G-040 Inch Timing Pulleys - 20 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-095FF-AL-G-040 --- Inch Timing Pulleys - 20 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-095FF-AL-G-040 --- Inch Timing Pulleys - 20 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.3 Locking Type: Set Screw
Part Number: P-MXL-020-095FF-AL-G-048 Inch Timing Pulleys - 20 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.3 Locking Type: Set Screw
Part Number: P-MXL-020-095FF-AL-G-048 Inch Timing Pulleys - 20 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-095FF-AL-G-048 --- Inch Timing Pulleys - 20 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-095FF-AL-G-048 --- Inch Timing Pulleys - 20 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-095FH-AL-G-060 Inch Timing Pulleys - 20 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-095FH-AL-G-060 Inch Timing Pulleys - 20 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-095FH-AL-G-060 --- Inch Timing Pulleys - 20 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-095FH-AL-G-060 --- Inch Timing Pulleys - 20 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-095FH-AL-G-064 Inch Timing Pulleys - 20 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-095FH-AL-G-064 Inch Timing Pulleys - 20 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-095FH-AL-G-064 --- Inch Timing Pulleys - 20 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-095FH-AL-G-064 --- Inch Timing Pulleys - 20 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-095FF-AL-G-040 Inch Timing Pulleys - 21 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-095FF-AL-G-040 Inch Timing Pulleys - 21 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-095FF-AL-G-040 --- Inch Timing Pulleys - 21 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-095FF-AL-G-040 --- Inch Timing Pulleys - 21 tooth - 9.5x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-095FF-AL-G-048 Inch Timing Pulleys - 21 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 19.1 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-095FF-AL-G-048 Inch Timing Pulleys - 21 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-095FF-AL-G-048 --- Inch Timing Pulleys - 21 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-095FF-AL-G-048 --- Inch Timing Pulleys - 21 tooth - 9.5x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-095FH-AL-G-060 Inch Timing Pulleys - 21 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-095FH-AL-G-060 Inch Timing Pulleys - 21 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-095FH-AL-G-060 --- Inch Timing Pulleys - 21 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-095FH-AL-G-060 --- Inch Timing Pulleys - 21 tooth - 9.5x6 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-095FH-AL-G-064 Inch Timing Pulleys - 21 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 9.50 mm (Equiv. 0.374 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-095FH-AL-G-064 Inch Timing Pulleys - 21 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-095FH-AL-G-064 --- Inch Timing Pulleys - 21 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-095FH-AL-G-064 --- Inch Timing Pulleys - 21 tooth - 9.5x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Pulleys - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide

Category Details

Filter

Filter

Subscribe to our emails
