Collection: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium

Pulleys -> Inch Timing -> 2.032mm Pitch MXL -> 6.4mm Wide -> Aluminium

There are 94 products in the sub-categories of Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium. Scroll down or follow the link to Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

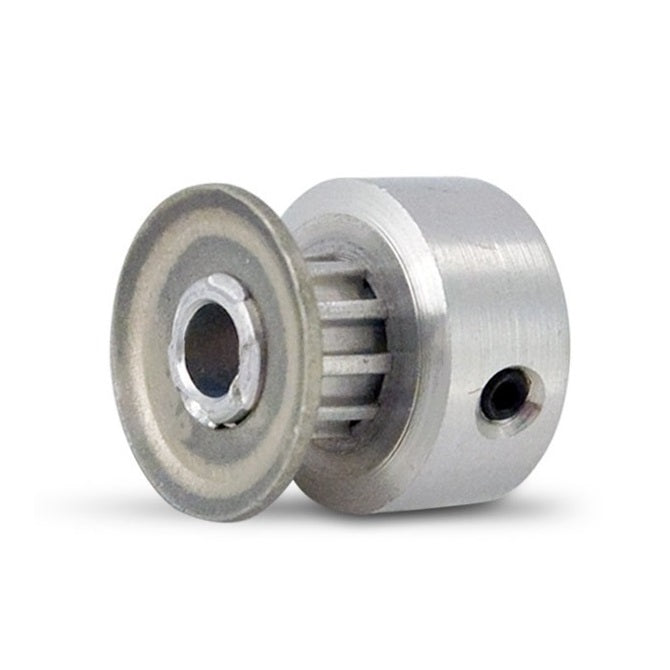

Inch Timing Pulleys - 12 tooth - 6.4x3 mm - Aluminium

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock

A selection of EZ-Lock Aluminium 6.4mm Wide 2.032mm Pitch MXL Inch Timing...

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock

Inch Timing Pulleys - 10 tooth - 6.4x3 mm - Aluminium

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through

A selection of Through Aluminium 6.4mm Wide 2.032mm Pitch MXL Inch Timing...

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through

Category Details

This category includes various types of inch timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-010-064FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley 9 Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $25.86 AUD Regular price Sale price $25.86 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-010-064FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley 9 Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $25.86 AUD Regular price Sale price $25.86 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
P-MXL-010-064FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-010-064FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $25.86 AUD Regular price Sale price $25.86 AUD Unit price per 9 Available Now
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-010-064FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-010-064FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-010-064FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-010-064FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-011-064FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-011-064FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-011-064FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-064FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-011-064FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-011-064FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-011-064FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-064FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.59 AUD Regular price ~~$22.31 AUD~~ Sale price $18.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 7.3 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-012-064FH-AL-E-030 Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.41 AUD Regular price ~~$58.09 AUD~~ Sale price $48.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 7.3 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-012-064FH-AL-E-030 Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.41 AUD Regular price ~~$58.09 AUD~~ Sale price $48.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-064FH-AL-E-030 --- Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-064FH-AL-E-030 --- Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $48.41 AUD Regular price ~~$58.09 AUD~~ Sale price $48.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-012-064FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-012-064FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-064FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-064FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-012-064FH-AL-E-032 Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.95 AUD Regular price ~~$62.35 AUD~~ Sale price $51.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-012-064FH-AL-E-032 Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.95 AUD Regular price ~~$62.35 AUD~~ Sale price $51.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-064FH-AL-E-032 --- Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-064FH-AL-E-032 --- Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $51.95 AUD Regular price ~~$62.35 AUD~~ Sale price $51.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-012-064FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-012-064FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-012-064FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-064FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-014-064FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-014-064FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-014-064FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-014-064FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 6.4x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-014-064FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $15.05 AUD Regular price ~~$28.56 AUD~~ Sale price $15.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 14	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-014-064FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $15.05 AUD Regular price ~~$28.56 AUD~~ Sale price $15.05 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-MXL-014-064FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-014-064FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 6.4x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $15.05 AUD Regular price ~~$28.56 AUD~~ Sale price $15.05 AUD Unit price per 2 Available Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-015-064FH-AL-G-040 Inch Timing Pulleys - 15 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-015-064FH-AL-G-040 Inch Timing Pulleys - 15 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-015-064FH-AL-G-040 --- Inch Timing Pulleys - 15 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-064FH-AL-G-040 --- Inch Timing Pulleys - 15 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-015-064FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-015-064FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-015-064FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-064FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.14 AUD Regular price ~~$22.96 AUD~~ Sale price $19.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 9.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-015-064FH-AL-E-050 Inch Timing Pulleys - 15 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $39.05 AUD Regular price ~~$74.92 AUD~~ Sale price $39.05 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 9.2 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-015-064FH-AL-E-050 Inch Timing Pulleys - 15 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley 1 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $39.05 AUD Regular price ~~$74.92 AUD~~ Sale price $39.05 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
P-MXL-015-064FH-AL-E-050 --- Inch Timing Pulleys - 15 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-064FH-AL-E-050 --- Inch Timing Pulleys - 15 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $39.05 AUD Regular price ~~$74.92 AUD~~ Sale price $39.05 AUD Unit price per 1 Available Now Sale
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-015-064FH-AL-E-048 Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.86 AUD Regular price ~~$62.24 AUD~~ Sale price $51.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-015-064FH-AL-E-048 Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $51.86 AUD Regular price ~~$62.24 AUD~~ Sale price $51.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-015-064FH-AL-E-048 --- Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-064FH-AL-E-048 --- Inch Timing Pulleys - 15 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $51.86 AUD Regular price ~~$62.24 AUD~~ Sale price $51.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-016-064FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $29.50 AUD Regular price Sale price $29.50 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-016-064FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $29.50 AUD Regular price Sale price $29.50 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
P-MXL-016-064FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-016-064FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $29.50 AUD Regular price Sale price $29.50 AUD Unit price per 2 Available Now
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 9.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-016-064FH-AL-E-050 Inch Timing Pulleys - 16 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.59 AUD Regular price ~~$58.31 AUD~~ Sale price $48.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 9.8 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-016-064FH-AL-E-050 Inch Timing Pulleys - 16 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.59 AUD Regular price ~~$58.31 AUD~~ Sale price $48.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-016-064FH-AL-E-050 --- Inch Timing Pulleys - 16 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-064FH-AL-E-050 --- Inch Timing Pulleys - 16 tooth - 6.4x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $48.59 AUD Regular price ~~$58.31 AUD~~ Sale price $48.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-016-064FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-016-064FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-016-064FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-064FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-016-064FH-AL-E-048 Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-016-064FH-AL-E-048 Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-016-064FH-AL-E-048 --- Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-064FH-AL-E-048 --- Inch Timing Pulleys - 16 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 15.9 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FF-AL-G-040 Inch Timing Pulleys - 18 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 15.9 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FF-AL-G-040 Inch Timing Pulleys - 18 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FF-AL-G-040 --- Inch Timing Pulleys - 18 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-064FF-AL-G-040 --- Inch Timing Pulleys - 18 tooth - 6.4x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 15.9 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 15.9 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-018-064FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 6.4x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 11.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-018-064FH-AL-E-060 Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 11.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-018-064FH-AL-E-060 Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FH-AL-E-060 --- Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-064FH-AL-E-060 --- Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $48.68 AUD Regular price ~~$58.42 AUD~~ Sale price $48.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FH-AL-G-060 Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FH-AL-G-060 Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FH-AL-G-060 --- Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-064FH-AL-G-060 --- Inch Timing Pulleys - 18 tooth - 6.4x6 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - Through
Part Number: P-MXL-018-064FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-064FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.41 AUD Regular price ~~$25.69 AUD~~ Sale price $21.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-018-064FH-AL-E-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 6.40 mm (Equiv. 0.252 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - EZ-Lock
Part Number: P-MXL-018-064FH-AL-E-064 Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-MXL-018-064FH-AL-E-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-064FH-AL-E-064 --- Inch Timing Pulleys - 18 tooth - 6.4x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $52.14 AUD Regular price ~~$62.56 AUD~~ Sale price $52.14 AUD Unit price per Out of stock! Backorder Now Sale
