Collection: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide

Pulleys -> Inch Timing -> 12.700mm Pitch H -> 50.8mm Wide

There are 23 products in the sub-categories of Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide. Scroll down or follow the link to Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Inch Timing Pulleys - 16 tooth - 50.8 - Determined by Taperlock Series Series - Steel - Black Oxide

Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock

A selection of Taperlock 50.8mm Wide 12.700mm Pitch H Inch Timing Pulleys....

Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock

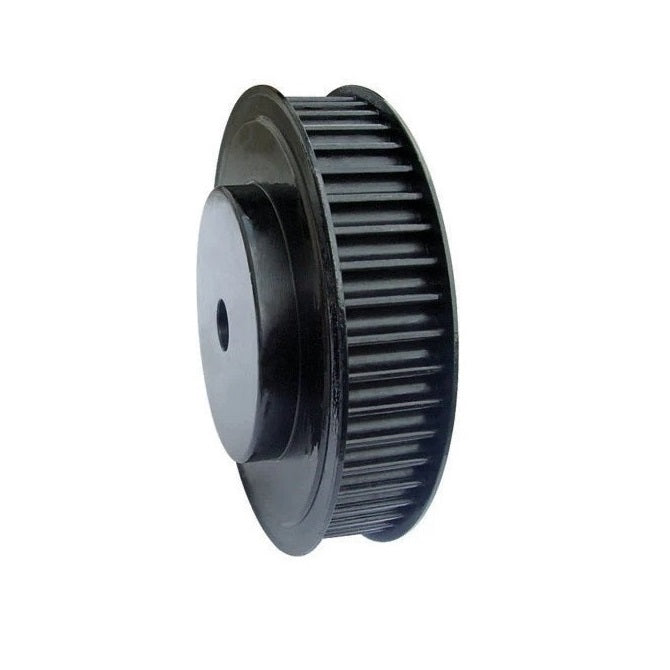

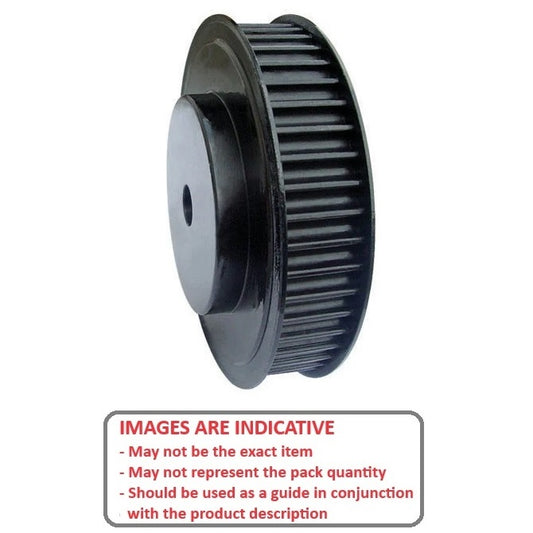

Inch Timing Pulleys - 14 tooth - 50.8x19.05 mm - Steel - Black Oxide

Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore

A selection of Through Bore 50.8mm Wide 12.700mm Pitch H Inch Timing...

Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore

Category Details

This category includes various types of inch timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width (W)	Bore (d)	Bore Type	Indicative Image
Number of Teeth 14	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 56.57 mm Flange Diameter (FD): 62.5 mm Overall Length: 73.8 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-014-508FF-SB-N-0191U Inch Timing Pulleys - 14 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $183.23 AUD Regular price Sale price $183.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width (W)	Bore (d)	Bore Type	Indicative Image
Number of Teeth 14	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 56.57 mm Flange Diameter (FD): 62.5 mm Overall Length: 73.8 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-014-508FF-SB-N-0191U Inch Timing Pulleys - 14 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $183.23 AUD Regular price Sale price $183.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-014-508FF-SB-N-0191U --- Inch Timing Pulleys - 14 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley P-H-014-508FF-SB-N-0191U --- Inch Timing Pulleys - 14 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $183.23 AUD Regular price Sale price $183.23 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 16	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 64.65 mm Flange Diameter (FD): 70.6 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-016-508FF-SB-N-0191U Inch Timing Pulleys - 16 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $194.05 AUD Regular price ~~$232.85 AUD~~ Sale price $194.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 64.65 mm Flange Diameter (FD): 70.6 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-016-508FF-SB-N-0191U Inch Timing Pulleys - 16 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $194.05 AUD Regular price ~~$232.85 AUD~~ Sale price $194.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-016-508FF-SB-N-0191U --- Inch Timing Pulleys - 16 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Sale P-H-016-508FF-SB-N-0191U --- Inch Timing Pulleys - 16 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $194.05 AUD Regular price ~~$232.85 AUD~~ Sale price $194.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1008
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 64.65 mm Flange Diameter (FD): 70.6 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-016-508FF-SB-T1008 Inch Timing Pulleys - 16 tooth - 50.8 mm - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $191.50 AUD Regular price Sale price $191.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1008
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 64.65 mm Flange Diameter (FD): 70.6 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-016-508FF-SB-T1008 Inch Timing Pulleys - 16 tooth - 50.8 mm - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $191.50 AUD Regular price Sale price $191.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-016-508FF-SB-T1008 --- Inch Timing Pulleys - 16 tooth - 50.8 mm - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley P-H-016-508FF-SB-T1008 --- Inch Timing Pulleys - 16 tooth - 50.8 mm - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $191.50 AUD Regular price Sale price $191.50 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 17	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 68.69 mm Flange Diameter (FD): 76.2 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-017-508FF-SB-N-0191U Inch Timing Pulleys - 17 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $213.14 AUD Regular price ~~$255.76 AUD~~ Sale price $213.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 68.69 mm Flange Diameter (FD): 76.2 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-017-508FF-SB-N-0191U Inch Timing Pulleys - 17 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $213.14 AUD Regular price ~~$255.76 AUD~~ Sale price $213.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-017-508FF-SB-N-0191U --- Inch Timing Pulleys - 17 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Sale P-H-017-508FF-SB-N-0191U --- Inch Timing Pulleys - 17 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $213.14 AUD Regular price ~~$255.76 AUD~~ Sale price $213.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 72.73 mm Flange Diameter (FD): 78.7 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-018-508FF-SB-N-0191U Inch Timing Pulleys - 18 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $230.14 AUD Regular price ~~$276.16 AUD~~ Sale price $230.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 72.73 mm Flange Diameter (FD): 78.7 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-018-508FF-SB-N-0191U Inch Timing Pulleys - 18 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $230.14 AUD Regular price ~~$276.16 AUD~~ Sale price $230.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-018-508FF-SB-N-0191U --- Inch Timing Pulleys - 18 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Sale P-H-018-508FF-SB-N-0191U --- Inch Timing Pulleys - 18 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $230.14 AUD Regular price ~~$276.16 AUD~~ Sale price $230.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1215
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 72.73 mm Flange Diameter (FD): 78.7 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-018-508FF-SB-T1215 Inch Timing Pulleys - 18 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $176.41 AUD Regular price ~~$211.69 AUD~~ Sale price $176.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1215
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 72.73 mm Flange Diameter (FD): 78.7 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-018-508FF-SB-T1215 Inch Timing Pulleys - 18 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $176.41 AUD Regular price ~~$211.69 AUD~~ Sale price $176.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-018-508FF-SB-T1215 --- Inch Timing Pulleys - 18 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Sale P-H-018-508FF-SB-T1215 --- Inch Timing Pulleys - 18 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $176.41 AUD Regular price ~~$211.69 AUD~~ Sale price $176.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 76.77 mm Flange Diameter (FD): 82.7 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-019-508FF-SB-N-0191U Inch Timing Pulleys - 19 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $248.77 AUD Regular price ~~$298.53 AUD~~ Sale price $248.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 76.77 mm Flange Diameter (FD): 82.7 mm Overall Length: 77.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-019-508FF-SB-N-0191U Inch Timing Pulleys - 19 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $248.77 AUD Regular price ~~$298.53 AUD~~ Sale price $248.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-019-508FF-SB-N-0191U --- Inch Timing Pulleys - 19 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Sale P-H-019-508FF-SB-N-0191U --- Inch Timing Pulleys - 19 tooth - 50.8x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley Regular price $248.77 AUD Regular price ~~$298.53 AUD~~ Sale price $248.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 80.81 mm Flange Diameter (FD): 86.9 mm Overall Length: 80.2 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-020-508FF-CB-N-0191U Inch Timing Pulleys - 20 tooth - 50.8x19.05 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $271.14 AUD Regular price ~~$325.36 AUD~~ Sale price $271.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 19.050 mm (Equiv. 0.75 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 80.81 mm Flange Diameter (FD): 86.9 mm Overall Length: 80.2 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-020-508FF-CB-N-0191U Inch Timing Pulleys - 20 tooth - 50.8x19.05 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $271.14 AUD Regular price ~~$325.36 AUD~~ Sale price $271.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-020-508FF-CB-N-0191U --- Inch Timing Pulleys - 20 tooth - 50.8x19.05 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-020-508FF-CB-N-0191U --- Inch Timing Pulleys - 20 tooth - 50.8x19.05 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $271.14 AUD Regular price ~~$325.36 AUD~~ Sale price $271.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1215
Material: Cast Iron Type: 2 Pitch Dia. (PD): 80.81 mm Flange Diameter (FD): 82.7 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-020-508FF-CB-T1215 Inch Timing Pulleys - 20 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $205.68 AUD Regular price ~~$246.82 AUD~~ Sale price $205.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1215
Material: Cast Iron Type: 2 Pitch Dia. (PD): 80.81 mm Flange Diameter (FD): 82.7 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-020-508FF-CB-T1215 Inch Timing Pulleys - 20 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $205.68 AUD Regular price ~~$246.82 AUD~~ Sale price $205.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-020-508FF-CB-T1215 --- Inch Timing Pulleys - 20 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-020-508FF-CB-T1215 --- Inch Timing Pulleys - 20 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $205.68 AUD Regular price ~~$246.82 AUD~~ Sale price $205.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 84.86 mm Flange Diameter (FD): 90.8 mm Overall Length: 80.2 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-021-508FF-CB-N-0254U Inch Timing Pulleys - 21 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $295.77 AUD Regular price ~~$354.93 AUD~~ Sale price $295.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 84.86 mm Flange Diameter (FD): 90.8 mm Overall Length: 80.2 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-021-508FF-CB-N-0254U Inch Timing Pulleys - 21 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $295.77 AUD Regular price ~~$354.93 AUD~~ Sale price $295.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-021-508FF-CB-N-0254U --- Inch Timing Pulleys - 21 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-021-508FF-CB-N-0254U --- Inch Timing Pulleys - 21 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $295.77 AUD Regular price ~~$354.93 AUD~~ Sale price $295.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 88.90 mm Flange Diameter (FD): 94.9 mm Overall Length: 83.3 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-022-508FF-CB-N-0254U Inch Timing Pulleys - 22 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 88.90 mm Flange Diameter (FD): 94.9 mm Overall Length: 83.3 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-022-508FF-CB-N-0254U Inch Timing Pulleys - 22 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-022-508FF-CB-N-0254U --- Inch Timing Pulleys - 22 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-022-508FF-CB-N-0254U --- Inch Timing Pulleys - 22 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $326.05 AUD Regular price ~~$391.25 AUD~~ Sale price $326.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1615
Material: Cast Iron Type: 2 Pitch Dia. (PD): 88.90 mm Flange Diameter (FD): 94.9 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-022-508FF-CB-T1615 Inch Timing Pulleys - 22 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $223.86 AUD Regular price ~~$268.64 AUD~~ Sale price $223.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 1615
Material: Cast Iron Type: 2 Pitch Dia. (PD): 88.90 mm Flange Diameter (FD): 94.9 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-022-508FF-CB-T1615 Inch Timing Pulleys - 22 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $223.86 AUD Regular price ~~$268.64 AUD~~ Sale price $223.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-022-508FF-CB-T1615 --- Inch Timing Pulleys - 22 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-022-508FF-CB-T1615 --- Inch Timing Pulleys - 22 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $223.86 AUD Regular price ~~$268.64 AUD~~ Sale price $223.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 96.98 mm Flange Diameter (FD): 102.9 mm Overall Length: 83.3 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-024-508FF-CB-N-0254U Inch Timing Pulleys - 24 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $368.50 AUD Regular price ~~$442.20 AUD~~ Sale price $368.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 96.98 mm Flange Diameter (FD): 102.9 mm Overall Length: 83.3 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-024-508FF-CB-N-0254U Inch Timing Pulleys - 24 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $368.50 AUD Regular price ~~$442.20 AUD~~ Sale price $368.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-024-508FF-CB-N-0254U --- Inch Timing Pulleys - 24 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-024-508FF-CB-N-0254U --- Inch Timing Pulleys - 24 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $368.50 AUD Regular price ~~$442.20 AUD~~ Sale price $368.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 96.98 mm Flange Diameter (FD): 102.9 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-024-508FF-CB-T2012 Inch Timing Pulleys - 24 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $228.95 AUD Regular price ~~$274.75 AUD~~ Sale price $228.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 96.98 mm Flange Diameter (FD): 102.9 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-024-508FF-CB-T2012 Inch Timing Pulleys - 24 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $228.95 AUD Regular price ~~$274.75 AUD~~ Sale price $228.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-024-508FF-CB-T2012 --- Inch Timing Pulleys - 24 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-024-508FF-CB-T2012 --- Inch Timing Pulleys - 24 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $228.95 AUD Regular price ~~$274.75 AUD~~ Sale price $228.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 26	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 105.06 mm Flange Diameter (FD): 111.0 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-026-508FF-CB-N-0254U Inch Timing Pulleys - 26 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $433.41 AUD Regular price ~~$520.09 AUD~~ Sale price $433.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 105.06 mm Flange Diameter (FD): 111.0 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-026-508FF-CB-N-0254U Inch Timing Pulleys - 26 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $433.41 AUD Regular price ~~$520.09 AUD~~ Sale price $433.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-026-508FF-CB-N-0254U --- Inch Timing Pulleys - 26 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-026-508FF-CB-N-0254U --- Inch Timing Pulleys - 26 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $433.41 AUD Regular price ~~$520.09 AUD~~ Sale price $433.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 26	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 105.06 mm Flange Diameter (FD): 111.0 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-026-508FF-CB-T2012 Inch Timing Pulleys - 26 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $269.86 AUD Regular price ~~$323.84 AUD~~ Sale price $269.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 105.06 mm Flange Diameter (FD): 111.0 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-026-508FF-CB-T2012 Inch Timing Pulleys - 26 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $269.86 AUD Regular price ~~$323.84 AUD~~ Sale price $269.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-026-508FF-CB-T2012 --- Inch Timing Pulleys - 26 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-026-508FF-CB-T2012 --- Inch Timing Pulleys - 26 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $269.86 AUD Regular price ~~$323.84 AUD~~ Sale price $269.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 28	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 113.14 mm Flange Diameter (FD): 119.1 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-028-508FF-CB-N-0254U Inch Timing Pulleys - 28 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $482.77 AUD Regular price ~~$579.33 AUD~~ Sale price $482.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 28	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 113.14 mm Flange Diameter (FD): 119.1 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-028-508FF-CB-N-0254U Inch Timing Pulleys - 28 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $482.77 AUD Regular price ~~$579.33 AUD~~ Sale price $482.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-028-508FF-CB-N-0254U --- Inch Timing Pulleys - 28 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-028-508FF-CB-N-0254U --- Inch Timing Pulleys - 28 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $482.77 AUD Regular price ~~$579.33 AUD~~ Sale price $482.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 28	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 113.14 mm Flange Diameter (FD): 119.1 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-028-508FF-CB-T2012 Inch Timing Pulleys - 28 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $312.05 AUD Regular price ~~$374.45 AUD~~ Sale price $312.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 28	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 113.14 mm Flange Diameter (FD): 119.1 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-028-508FF-CB-T2012 Inch Timing Pulleys - 28 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $312.05 AUD Regular price ~~$374.45 AUD~~ Sale price $312.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-028-508FF-CB-T2012 --- Inch Timing Pulleys - 28 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-028-508FF-CB-T2012 --- Inch Timing Pulleys - 28 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $312.05 AUD Regular price ~~$374.45 AUD~~ Sale price $312.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 30	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 121.22 mm Flange Diameter (FD): 127.1 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-030-508FF-CB-N-0254U Inch Timing Pulleys - 30 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $528.14 AUD Regular price ~~$633.76 AUD~~ Sale price $528.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 30	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) 25.400 mm (Equiv. 1 in.)	Bore Type Unfinished
Material: Cast Iron Type: 2 Pitch Dia. (PD): 121.22 mm Flange Diameter (FD): 127.1 mm Overall Length: 86.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Through Bore
Part Number: P-H-030-508FF-CB-N-0254U Inch Timing Pulleys - 30 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $528.14 AUD Regular price ~~$633.76 AUD~~ Sale price $528.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-030-508FF-CB-N-0254U --- Inch Timing Pulleys - 30 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Sale P-H-030-508FF-CB-N-0254U --- Inch Timing Pulleys - 30 tooth - 50.8x25.4 mm 12.700mm Pitch H - Cast Iron Pulley Regular price $528.14 AUD Regular price ~~$633.76 AUD~~ Sale price $528.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 30	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 121.22 mm Flange Diameter (FD): 127.0 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-030-508FF-CB-T2012 Inch Timing Pulleys - 30 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $391.14 AUD Regular price ~~$469.36 AUD~~ Sale price $391.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 30	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2012
Material: Cast Iron Type: 2 Pitch Dia. (PD): 121.22 mm Flange Diameter (FD): 127.0 mm Overall Length: 59.5 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-030-508FF-CB-T2012 Inch Timing Pulleys - 30 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $391.14 AUD Regular price ~~$469.36 AUD~~ Sale price $391.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-030-508FF-CB-T2012 --- Inch Timing Pulleys - 30 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-030-508FF-CB-T2012 --- Inch Timing Pulleys - 30 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $391.14 AUD Regular price ~~$469.36 AUD~~ Sale price $391.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 32	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 129.30 mm Flange Diameter (FD): 135.1 mm Overall Length: 46.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-032-508FF-CB-T2517 Inch Timing Pulleys - 32 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $420.32 AUD Regular price ~~$504.38 AUD~~ Sale price $420.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 32	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 129.30 mm Flange Diameter (FD): 135.1 mm Overall Length: 46.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-032-508FF-CB-T2517 Inch Timing Pulleys - 32 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $420.32 AUD Regular price ~~$504.38 AUD~~ Sale price $420.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-032-508FF-CB-T2517 --- Inch Timing Pulleys - 32 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-032-508FF-CB-T2517 --- Inch Timing Pulleys - 32 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $420.32 AUD Regular price ~~$504.38 AUD~~ Sale price $420.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 40	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 161.63 mm Flange Diameter (FD): 167.6 mm Overall Length: 46.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-040-508FF-CB-T2517 Inch Timing Pulleys - 40 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $710.32 AUD Regular price ~~$852.38 AUD~~ Sale price $710.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 40	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 161.63 mm Flange Diameter (FD): 167.6 mm Overall Length: 46.0 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-040-508FF-CB-T2517 Inch Timing Pulleys - 40 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $710.32 AUD Regular price ~~$852.38 AUD~~ Sale price $710.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-040-508FF-CB-T2517 --- Inch Timing Pulleys - 40 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-040-508FF-CB-T2517 --- Inch Timing Pulleys - 40 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $710.32 AUD Regular price ~~$852.38 AUD~~ Sale price $710.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 48	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 193.95 mm Flange Diameter (FD): 199.8 mm Overall Length: 85.7 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-048-508FF-CB-T2517 Inch Timing Pulleys - 48 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $915.68 AUD Regular price ~~$1,098.82 AUD~~ Sale price $915.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 48	Max Belt Width (W) 50.80 mm (Equiv. 2 in.)	Bore (d) Determined by Taperlock Series Series mm	Bore Type Suits Taperlock 2517
Material: Cast Iron Type: 2 Pitch Dia. (PD): 193.95 mm Flange Diameter (FD): 199.8 mm Overall Length: 85.7 mm Category: Pulleys - Inch Timing - 12.700mm Pitch H - 50.8mm Wide - Taperlock
Part Number: P-H-048-508FF-CB-T2517 Inch Timing Pulleys - 48 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $915.68 AUD Regular price ~~$1,098.82 AUD~~ Sale price $915.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-H-048-508FF-CB-T2517 --- Inch Timing Pulleys - 48 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Sale P-H-048-508FF-CB-T2517 --- Inch Timing Pulleys - 48 tooth - 50.8 - Determined by Taperlock Series Series 12.700mm Pitch H - Cast Iron Pulley Regular price $915.68 AUD Regular price ~~$1,098.82 AUD~~ Sale price $915.68 AUD Unit price per Out of stock! Backorder Now Sale
