Plungers - Indexing with Plate - Locking

Plungers -> Indexing with Plate -> Locking

There are 2 products in the sub-categories of Plungers - Indexing with Plate - Locking. Browse the Plungers - Indexing with Plate - Locking products table.

Category Details

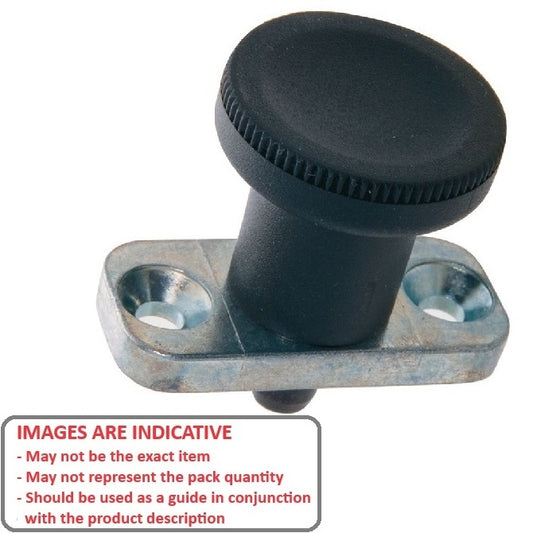

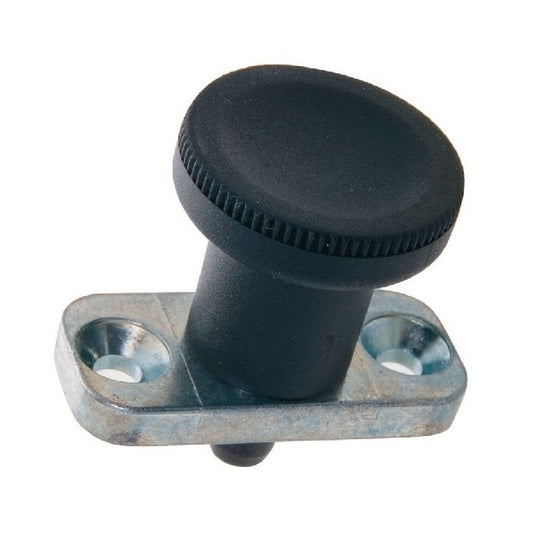

A selection of Locking Indexing with Plate Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
  • Spring loaded to work in a variety of applications on both tooling and equipment that require surface mounting.
  • Plunger is hardened and ground.
  • Knob is black matte plastic. Mounting plate is zinc plated steel.
  • Includes rest position for plunger to stay in retracted position.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing with Plate - Locking category on the Small Parts & Bearings online store.
Body Diameter (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (A) Tip Length (H) Indicative
Indexing with Plate Plungers - 10x37 mm - 0.9 N Locking - Steel Plunger
Body Diameter (B)
10.00
mm
Overall Length (A)
37.0
mm
Initial End Force
0.9
N
Final End Force
2.2
N
Tip Diameter (A)
6.0
mm
Tip Length (H)
6.0
mm
Indexing with Plate Plungers - 10x37 mm - 0.9 N Locking - Steel
Material: Steel    E / D / I: 8.3 / 4.3 / 2.5 mm    J / K / L: 18.0 / 30.0 / 40.0 mm
Part Number: PLI-M-060-100-25-LM-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$33.86 AUD
$40.64 AUD $33.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B) Overall Length (A) Initial End Force Final End Force Indicative
Indexing with Plate Plungers - 10x37 mm - 0.9 N Locking - Steel Plunger
Body Diameter (B)
10.00
mm
Overall Length (A)
37.0
mm
Initial End Force
0.9
N
Final End Force
2.2
N
Indexing with Plate Plungers - 10x37 mm - 0.9 N Locking - Steel
Material: Steel    Tip Diameter (A): 6.0 mm    Tip Length (H): 6.0 mm    E / D / I: 8.3 / 4.3 / 2.5 mm    J / K / L: 18.0 / 30.0 / 40.0 mm
Part Number: PLI-M-060-100-25-LM-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$33.86 AUD
$40.64 AUD $33.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing with Plate Plungers - 12x44 mm - 1.6 N Locking - Steel Plunger
Body Diameter (B)
12.00
mm
Overall Length (A)
44.0
mm
Initial End Force
1.6
N
Final End Force
2.9
N
Tip Diameter (A)
8.0
mm
Tip Length (H)
8.0
mm
Indexing with Plate Plungers - 12x44 mm - 1.6 N Locking - Steel
Material: Steel    E / D / I: 10.4 / 5.3 / 2.5 mm    J / K / L: 20.0 / 34.0 / 46.0 mm
Part Number: PLI-M-080-120-31-LM-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$38.05 AUD
$45.65 AUD $38.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing with Plate Plungers - 12x44 mm - 1.6 N Locking - Steel Plunger
Body Diameter (B)
12.00
mm
Overall Length (A)
44.0
mm
Initial End Force
1.6
N
Final End Force
2.9
N
Indexing with Plate Plungers - 12x44 mm - 1.6 N Locking - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Tip Length (H): 8.0 mm    E / D / I: 10.4 / 5.3 / 2.5 mm    J / K / L: 20.0 / 34.0 / 46.0 mm
Part Number: PLI-M-080-120-31-LM-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$38.05 AUD
$45.65 AUD $38.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
