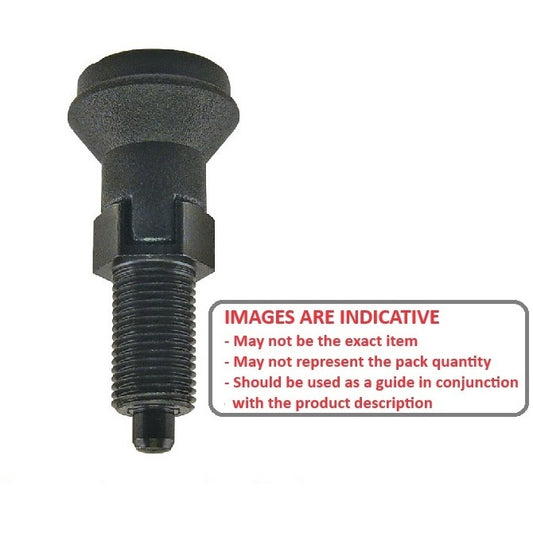

Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut

Plungers -> Indexing Pull Knob -> Steel -> With Locking Slot and Nut

There are 8 products in the sub-categories of Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut. Browse the Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

A selection of With Locking Slot and Nut Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut category on the Small Parts & Bearings online store.
    Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
    Thread (B)
    M6 Fine (6x0.75mm)

    Overall Length (A)
    31.5
    mm

    (Equiv. 1.24 in.)
    Initial End Force
    2.0
    N
    Final End Force
    5.0
    N
    Tip Diameter (C)
    3.0
    mm
    Tip Length (D)
    3.5
    mm
    		Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel
    Material: Steel    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
    Part Number: PLIT-030-060-075-32-LKPN-C
    Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $42.50 AUD
    $42.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
    Thread (B)
    M6 Fine (6x0.75mm)

    Overall Length (A)
    31.5
    mm

    (Equiv. 1.24 in.)
    Initial End Force
    2.0
    N
    Final End Force
    5.0
    N
    		Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel
    Material: Steel    Tip Diameter (C): 3.0 mm    Tip Length (D): 3.5 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
    Part Number: PLIT-030-060-075-32-LKPN-C
    Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $42.50 AUD
    $42.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M8 Fine (8x1mm)

    Overall Length (A)
    38.5
    mm

    (Equiv. 1.516 in.)
    Initial End Force
    2.7
    N
    Final End Force
    5.4
    N
    Tip Diameter (C)
    4.0
    mm
    Tip Length (D)
    4.0
    mm
    		Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel
    Material: Steel    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
    Part Number: PLIT-040-080-100-39-LKPN-C
    Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $33.68 AUD
    $40.42 AUD $33.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M8 Fine (8x1mm)

    Overall Length (A)
    38.5
    mm

    (Equiv. 1.516 in.)
    Initial End Force
    2.7
    N
    Final End Force
    5.4
    N
    		Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel
    Material: Steel    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
    Part Number: PLIT-040-080-100-39-LKPN-C
    Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $33.68 AUD
    $40.42 AUD $33.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    2.3
    N
    Final End Force
    5.4
    N
    Tip Diameter (C)
    5.0
    mm
    Tip Length (D)
    5.0
    mm
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel
    Material: Steel    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
    Part Number: PLIT-050-100-100-44-LKPN-C
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $36.14 AUD
    $43.36 AUD $36.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    2.3
    N
    Final End Force
    5.4
    N
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel
    Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
    Part Number: PLIT-050-100-100-44-LKPN-C
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $36.14 AUD
    $43.36 AUD $36.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    51.7
    mm

    (Equiv. 2.035 in.)
    Initial End Force
    2.7
    N
    Final End Force
    6.4
    N
    Tip Diameter (C)
    6.0
    mm
    Tip Length (D)
    6.0
    mm
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel
    Material: Steel    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0 mm    Nut Size (L): 19.0
    Part Number: PLIT-060-120-150-52-LKPN-C
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $40.68 AUD
    $48.82 AUD $40.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    51.7
    mm

    (Equiv. 2.035 in.)
    Initial End Force
    2.7
    N
    Final End Force
    6.4
    N
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel
    Material: Steel    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0 mm    Nut Size (L): 19.0
    Part Number: PLIT-060-120-150-52-LKPN-C
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $40.68 AUD
    $48.82 AUD $40.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    6.8
    N
    Final End Force
    15.9
    N
    Tip Diameter (C)
    8.0
    mm
    Tip Length (D)
    8.0
    mm
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel
    Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
    Part Number: PLIT-080-160-150-68-LKPN-C
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $51.32 AUD
    $61.58 AUD $51.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    6.8
    N
    Final End Force
    15.9
    N
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel
    Material: Steel    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
    Part Number: PLIT-080-160-150-68-LKPN-C
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $51.32 AUD
    $61.58 AUD $51.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    6.8
    N
    Final End Force
    15.4
    N
    Tip Diameter (C)
    10.0
    mm
    Tip Length (D)
    10.0
    mm
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel
    Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
    Part Number: PLIT-100-200-150-74-LKPN-C
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $61.05 AUD
    $73.25 AUD $61.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    6.8
    N
    Final End Force
    15.4
    N
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel
    Material: Steel    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
    Part Number: PLIT-100-200-150-74-LKPN-C
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $61.05 AUD
    $73.25 AUD $61.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    78.0
    mm

    (Equiv. 3.071 in.)
    Initial End Force
    6.8
    N
    Final End Force
    17.7
    N
    Tip Diameter (C)
    12.0
    mm
    Tip Length (D)
    12.0
    mm
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel
    Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
    Part Number: PLIT-120-200-150-78-LKPN-C
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $82.05 AUD
    $98.45 AUD $82.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    78.0
    mm

    (Equiv. 3.071 in.)
    Initial End Force
    6.8
    N
    Final End Force
    17.7
    N
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel
    Material: Steel    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
    Part Number: PLIT-120-200-150-78-LKPN-C
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $82.05 AUD
    $98.45 AUD $82.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M24 Fine (24x2mm)

    Overall Length (A)
    96.0
    mm

    (Equiv. 3.78 in.)
    Initial End Force
    9.1
    N
    Final End Force
    20.9
    N
    Tip Diameter (C)
    16.0
    mm
    Tip Length (D)
    16.0
    mm
    		Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel
    Material: Steel    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
    Part Number: PLIT-160-240-200-96-LKPN-C
    Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $116.77 AUD
    $140.13 AUD $116.77 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M24 Fine (24x2mm)

    Overall Length (A)
    96.0
    mm

    (Equiv. 3.78 in.)
    Initial End Force
    9.1
    N
    Final End Force
    20.9
    N
    		Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel
    Material: Steel    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
    Part Number: PLIT-160-240-200-96-LKPN-C
    Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 10, 2025
    $116.77 AUD
    $140.13 AUD $116.77 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
