Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot

Plungers -> Indexing Pull Knob -> Stainless and Plastic -> With Locking Slot

There are 16 products in the sub-categories of Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot. Browse the Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot products table.

Category Details

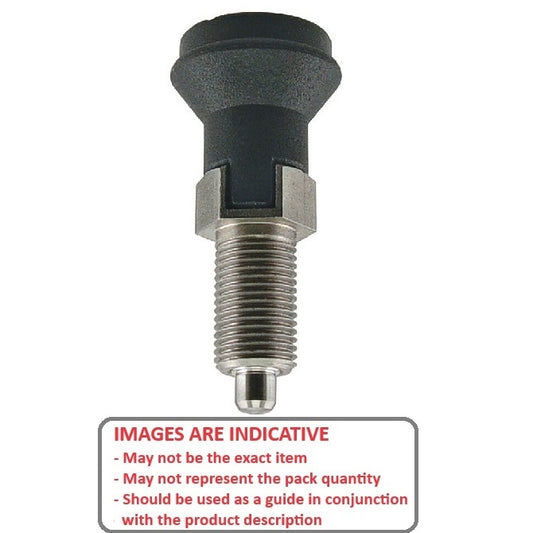

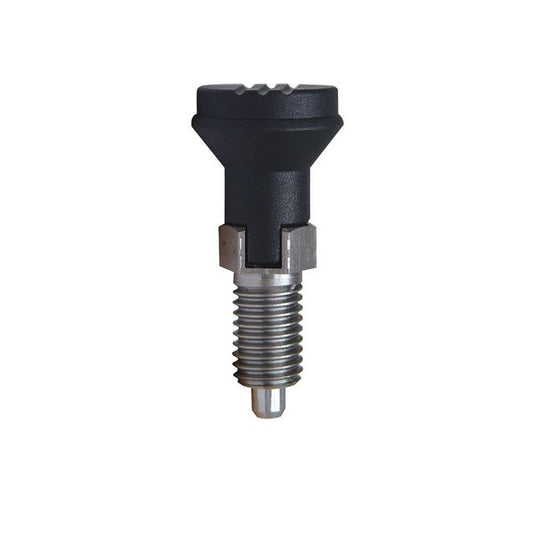

A selection of With Locking Slot Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot category on the Small Parts & Bearings online store.
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
Thread (B)
M6 Fine (6x0.75mm)

Overall Length (A)
31.5
mm

(Equiv. 1.24 in.)
Initial End Force
0.5
N
Final End Force
1.1
N
Tip Diameter (C)
3.0
mm
Tip Length (D)
3.5
mm
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 5.0 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0
Part Number: PLIT-030-060-075-32-LKP-S3 (Each)
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$60.59 AUD
$60.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
Thread (B)
M6 Fine (6x0.75mm)

Overall Length (A)
31.5
mm

(Equiv. 1.24 in.)
Initial End Force
0.5
N
Final End Force
1.1
N
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 3.0 mm    Tip Length (D): 3.5 mm    Hex Height (F): 5.0 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0
Part Number: PLIT-030-060-075-32-LKP-S3 (Each)
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$60.59 AUD
$60.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M8 Fine (8x1mm)

Overall Length (A)
38.5
mm

(Equiv. 1.516 in.)
Initial End Force
0.6
N
Final End Force
1.2
N
Tip Diameter (C)
4.0
mm
Tip Length (D)
4.0
mm
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 6.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0
Part Number: PLIT-040-080-100-39-LKP-S3 (Each)
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$47.23 AUD
$56.67 AUD $47.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M8 Fine (8x1mm)

Overall Length (A)
38.5
mm

(Equiv. 1.516 in.)
Initial End Force
0.6
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Hex Height (F): 6.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0
Part Number: PLIT-040-080-100-39-LKP-S3 (Each)
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$47.23 AUD
$56.67 AUD $47.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/8-24 UNF (9.53mm)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
2.3
N
Final End Force
5.4
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.0
mm
Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 2.3 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-095F-43-LKP-S3 (Each)
Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 2.3 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$55.50 AUD
$66.60 AUD $55.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/8-24 UNF (9.53mm)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
2.3
N
Final End Force
5.4
N
Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 2.3 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-095F-43-LKP-S3 (Each)
Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 2.3 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$55.50 AUD
$66.60 AUD $55.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.0
mm
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-100-100-44-LKP-S3 (Each)
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$50.50 AUD
$60.60 AUD $50.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-100-100-44-LKP-S3 (Each)
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$50.50 AUD
$60.60 AUD $50.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.0
mm
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-100-100-47-LKP-S3 (Each)
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$54.77 AUD
$65.73 AUD $54.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Hex Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
Part Number: PLIT-050-100-100-47-LKP-S3 (Each)
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$54.77 AUD
$65.73 AUD $54.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Tip Diameter (C)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-120-150-52-LKP-S3 (Each)
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$59.77 AUD
$71.73 AUD $59.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-120-150-52-LKP-S3 (Each)
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$59.77 AUD
$71.73 AUD $59.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
56.0
mm

(Equiv. 2.205 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Tip Diameter (C)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-120-150-56-LKP-S3 (Each)
Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$60.86 AUD
$73.04 AUD $60.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
56.0
mm

(Equiv. 2.205 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-120-150-56-LKP-S3 (Each)
Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$60.86 AUD
$73.04 AUD $60.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
2.7
N
Final End Force
6.3
N
Tip Diameter (C)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.7 mm - 2.7 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-127C-52-LKP-S3 (Each)
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.7 mm - 2.7 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$68.77 AUD
$82.53 AUD $68.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
2.7
N
Final End Force
6.3
N
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.7 mm - 2.7 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Hex Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
Part Number: PLIT-060-127C-52-LKP-S3 (Each)
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.7 mm - 2.7 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$68.77 AUD
$82.53 AUD $68.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
6.8
N
Final End Force
15.9
N
Tip Diameter (C)
8.0
mm
Tip Length (D)
8.0
mm
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-158C-68-LKP-S3 (Each)
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$94.68 AUD
$113.62 AUD $94.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
6.8
N
Final End Force
15.9
N
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-158C-68-LKP-S3 (Each)
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$94.68 AUD
$113.62 AUD $94.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Tip Diameter (C)
8.0
mm
Tip Length (D)
8.0
mm
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-160-150-68-LKP-S3 (Each)
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$82.68 AUD
$99.22 AUD $82.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-160-150-68-LKP-S3 (Each)
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$82.68 AUD
$99.22 AUD $82.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Tip Diameter (C)
8.0
mm
Tip Length (D)
8.0
mm
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-160-150-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$85.23 AUD
$102.27 AUD $85.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Hex Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
Part Number: PLIT-080-160-150-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$85.23 AUD
$102.27 AUD $85.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/4-10 UNC (19.05mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
6.8
N
Final End Force
18.1
N
Tip Diameter (C)
10.0
mm
Tip Length (D)
10.0
mm
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-191C-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$96.68 AUD
$116.02 AUD $96.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/4-10 UNC (19.05mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
6.8
N
Final End Force
18.1
N
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-191C-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 6.8 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$96.68 AUD
$116.02 AUD $96.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
1.5
N
Final End Force
3.5
N
Tip Diameter (C)
10.0
mm
Tip Length (D)
10.0
mm
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-200-150-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$97.68 AUD
$117.22 AUD $97.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
1.5
N
Final End Force
3.5
N
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-200-150-74-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$97.68 AUD
$117.22 AUD $97.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
78.0
mm

(Equiv. 3.071 in.)
Initial End Force
1.5
N
Final End Force
4.0
N
Tip Diameter (C)
12.0
mm
Tip Length (D)
12.0
mm
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 14.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-120-200-150-78-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$139.32 AUD
$167.18 AUD $139.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
78.0
mm

(Equiv. 3.071 in.)
Initial End Force
1.5
N
Final End Force
4.0
N
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Hex Height (F): 14.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-120-200-150-78-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$139.32 AUD
$167.18 AUD $139.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
80.0
mm

(Equiv. 3.15 in.)
Initial End Force
1.5
N
Final End Force
3.5
N
Tip Diameter (C)
10.0
mm
Tip Length (D)
10.0
mm
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-200-150-80-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$91.77 AUD
$110.13 AUD $91.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
80.0
mm

(Equiv. 3.15 in.)
Initial End Force
1.5
N
Final End Force
3.5
N
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Hex Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
Part Number: PLIT-100-200-150-80-LKP-S3 (Each)
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$91.77 AUD
$110.13 AUD $91.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M24 Fine (24x2mm)

Overall Length (A)
96.0
mm

(Equiv. 3.78 in.)
Initial End Force
2.0
N
Final End Force
4.7
N
Tip Diameter (C)
16.0
mm
Tip Length (D)
16.0
mm
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Hex Height (F): 18.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0
Part Number: PLIT-160-240-200-96-LKP-S3 (Each)
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$199.77 AUD
$239.73 AUD $199.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B)
M24 Fine (24x2mm)

Overall Length (A)
96.0
mm

(Equiv. 3.78 in.)
Initial End Force
2.0
N
Final End Force
4.7
N
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Hex Height (F): 18.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0
Part Number: PLIT-160-240-200-96-LKP-S3 (Each)
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025
$199.77 AUD
$239.73 AUD $199.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
