Plungers - Indexing Pull Knob - Non Locking - Stainless

Plungers -> Indexing Pull Knob -> Non Locking -> Stainless

There are 4 products in the sub-categories of Plungers - Indexing Pull Knob - Non Locking - Stainless. Browse the Plungers - Indexing Pull Knob - Non Locking - Stainless products table.

Category Details

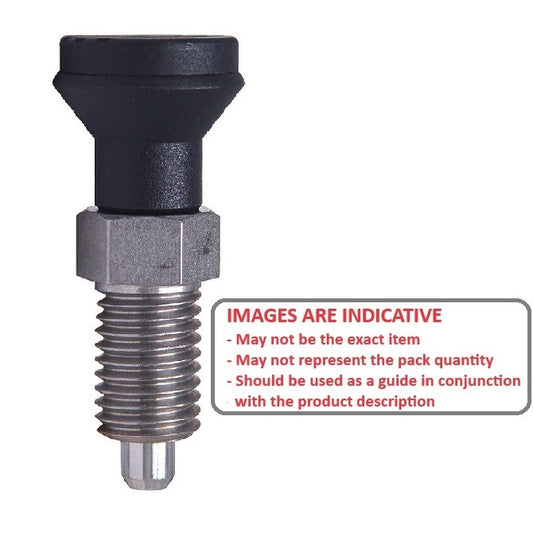

A selection of Stainless Non Locking Indexing Pull Knob Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • 303 Stainless Steel

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing Pull Knob - Non Locking - Stainless category on the Small Parts & Bearings online store.
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.1
mm
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Size (K): 13.0 mm    Nut Thickness (J): 7.1 mm
Part Number: PLIT-050-095C-47-K-S3
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$48.05 AUD
$57.65 AUD $48.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.1 mm    Nut Size (K): 13.0 mm    Nut Thickness (J): 7.1 mm
Part Number: PLIT-050-095C-47-K-S3
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$48.05 AUD
$57.65 AUD $48.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Overall Length (A)
55.9
mm

(Equiv. 2.201 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Tip Diameter (C)
6.0
mm
Tip Length (D)
6.1
mm
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 55.9 mm - 0.6 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Size (K): 14.0 mm    Nut Thickness (J): 7.9 mm
Part Number: PLIT-060-127C-56-K-S3
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 55.9 mm - 0.6 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$54.41 AUD
$65.29 AUD $54.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Overall Length (A)
55.9
mm

(Equiv. 2.201 in.)
Initial End Force
0.6
N
Final End Force
1.4
N
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 55.9 mm - 0.6 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.1 mm    Nut Size (K): 14.0 mm    Nut Thickness (J): 7.9 mm
Part Number: PLIT-060-127C-56-K-S3
Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 55.9 mm - 0.6 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$54.41 AUD
$65.29 AUD $54.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Overall Length (A)
73.9
mm

(Equiv. 2.909 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Tip Diameter (C)
8.0
mm
Tip Length (D)
7.9
mm
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 73.9 mm - 1.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Size (K): 19.1 mm    Nut Thickness (J): 9.9 mm
Part Number: PLIT-080-158C-74-K-S3
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 73.9 mm - 1.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$70.05 AUD
$84.05 AUD $70.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Overall Length (A)
73.9
mm

(Equiv. 2.909 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 73.9 mm - 1.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 7.9 mm    Nut Size (K): 19.1 mm    Nut Thickness (J): 9.9 mm
Part Number: PLIT-080-158C-74-K-S3
Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 73.9 mm - 1.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$70.05 AUD
$84.05 AUD $70.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/4-10 UNC (19.05mm)

Overall Length (A)
80.0
mm

(Equiv. 3.15 in.)
Initial End Force
2.0
N
Final End Force
4.1
N
Tip Diameter (C)
10.0
mm
Tip Length (D)
9.9
mm
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 80 mm - 2 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Size (K): 22.1 mm    Nut Thickness (J): 11.9 mm
Part Number: PLIT-100-191C-80-K-S3
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 80 mm - 2 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$77.41 AUD
$92.89 AUD $77.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
3/4-10 UNC (19.05mm)

Overall Length (A)
80.0
mm

(Equiv. 3.15 in.)
Initial End Force
2.0
N
Final End Force
4.1
N
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 80 mm - 2 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 9.9 mm    Nut Size (K): 22.1 mm    Nut Thickness (J): 11.9 mm
Part Number: PLIT-100-191C-80-K-S3
Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 80 mm - 2 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
$77.41 AUD
$92.89 AUD $77.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
