Plungers - Indexing - Locking - With Shoulder - Steel

Plungers -> Indexing -> Locking -> With Shoulder -> Steel

There are 8 products in the sub-categories of Plungers - Indexing - Locking - With Shoulder - Steel. Browse the Plungers - Indexing - Locking - With Shoulder - Steel products table.

Category Details

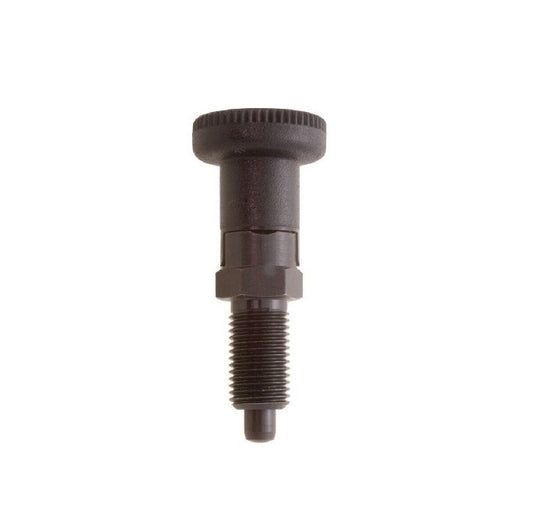

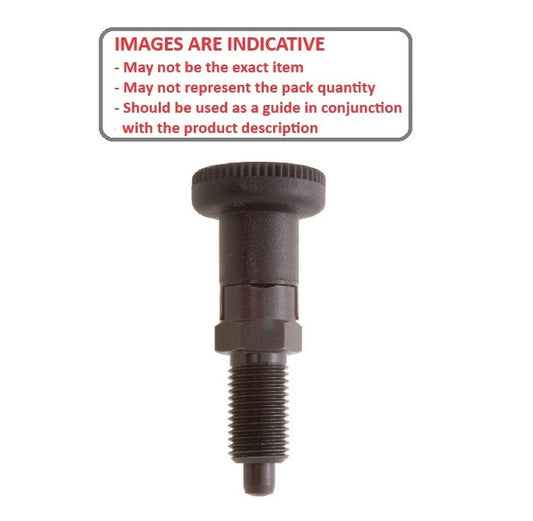

A selection of Steel With Shoulder Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Body and pin are steel with black oxide finish.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing - Locking - With Shoulder - Steel category on the Small Parts & Bearings online store.
Thread (B) Thread Length (E) Initial End Force Final End Force Tip Diameter (A) Tip Length (D) Indicative
Thread (B)
3/8-24 UNF (9.53mm)

Thread Length (E)
17.0
mm

(Equiv. 0.669 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Tip Diameter (A)
5.0
mm
Tip Length (D)
5.1
mm
Indexing Plungers - 3/8-24 UNF - 9.53mm - 17 mm - 0.7 N Locking - Steel
Material: Steel    Nut Size (E): 13.7 mm    Nut Thickness (J): 5.1 mm
Part Number: PLIT-050-095F-21-LSH-C
Indexing Plungers - 3/8-24 UNF - 9.53mm - 17 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.23 AUD
$47.07 AUD $39.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B) Thread Length (E) Initial End Force Final End Force Indicative
Thread (B)
3/8-24 UNF (9.53mm)

Thread Length (E)
17.0
mm

(Equiv. 0.669 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Indexing Plungers - 3/8-24 UNF - 9.53mm - 17 mm - 0.7 N Locking - Steel
Material: Steel    Tip Diameter (A): 5.0 mm    Tip Length (D): 5.1 mm    Nut Size (E): 13.7 mm    Nut Thickness (J): 5.1 mm
Part Number: PLIT-050-095F-21-LSH-C
Indexing Plungers - 3/8-24 UNF - 9.53mm - 17 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.23 AUD
$47.07 AUD $39.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Thread Length (E)
17.0
mm

(Equiv. 0.669 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Tip Diameter (A)
5.0
mm
Tip Length (D)
5.0
mm
Indexing Plungers - M10x1 - Extra Fine - 17 mm - 0.7 N Locking - Steel
Material: Steel    Nut Size (E): 13.8 mm    Nut Thickness (J): 5.0 mm
Part Number: PLIT-050-100-100-21-LSH-C
Indexing Plungers - M10x1 - Extra Fine - 17 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$35.32 AUD
$42.38 AUD $35.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M10x1 (Extra Fine)

Thread Length (E)
17.0
mm

(Equiv. 0.669 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Indexing Plungers - M10x1 - Extra Fine - 17 mm - 0.7 N Locking - Steel
Material: Steel    Tip Diameter (A): 5.0 mm    Tip Length (D): 5.0 mm    Nut Size (E): 13.8 mm    Nut Thickness (J): 5.0 mm
Part Number: PLIT-050-100-100-21-LSH-C
Indexing Plungers - M10x1 - Extra Fine - 17 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$35.32 AUD
$42.38 AUD $35.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Thread Length (E)
10.0
mm

(Equiv. 0.394 in.)
Initial End Force
0.7
N
Final End Force
1.9
N
Tip Diameter (A)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Plungers - M12x1.5 - Fine - 10 mm - 0.7 N Locking - Steel
Material: Steel    Nut Size (E): 19.6 mm    Nut Thickness (J): 5.0 mm
Part Number: PLIT-060-120-150-25L-LSH-C
Indexing Plungers - M12x1.5 - Fine - 10 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$45.86 AUD
$55.04 AUD $45.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Thread Length (E)
10.0
mm

(Equiv. 0.394 in.)
Initial End Force
0.7
N
Final End Force
1.9
N
Indexing Plungers - M12x1.5 - Fine - 10 mm - 0.7 N Locking - Steel
Material: Steel    Tip Diameter (A): 6.0 mm    Tip Length (D): 6.0 mm    Nut Size (E): 19.6 mm    Nut Thickness (J): 5.0 mm
Part Number: PLIT-060-120-150-25L-LSH-C
Indexing Plungers - M12x1.5 - Fine - 10 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$45.86 AUD
$55.04 AUD $45.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Thread Length (E)
20.0
mm

(Equiv. 0.787 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Tip Diameter (A)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Plungers - M12x1.5 - Fine - 20 mm - 0.7 N Locking - Steel
Material: Steel    Nut Size (E): 16.2 mm    Nut Thickness (J): 6.0 mm
Part Number: PLIT-060-120-150-25-LSH-C
Indexing Plungers - M12x1.5 - Fine - 20 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.14 AUD
$46.96 AUD $39.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M12x1.5 (Fine)

Thread Length (E)
20.0
mm

(Equiv. 0.787 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Indexing Plungers - M12x1.5 - Fine - 20 mm - 0.7 N Locking - Steel
Material: Steel    Tip Diameter (A): 6.0 mm    Tip Length (D): 6.0 mm    Nut Size (E): 16.2 mm    Nut Thickness (J): 6.0 mm
Part Number: PLIT-060-120-150-25-LSH-C
Indexing Plungers - M12x1.5 - Fine - 20 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.14 AUD
$46.96 AUD $39.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Thread Length (E)
20.1
mm

(Equiv. 0.791 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Tip Diameter (A)
6.0
mm
Tip Length (D)
6.1
mm
Indexing Plungers - 1/2-13 UNC - 12.7mm - 20.1 mm - 0.7 N Locking - Steel
Material: Steel    Nut Size (E): 16.3 mm    Nut Thickness (J): 6.1 mm
Part Number: PLIT-060-127C-25-LSH-C
Indexing Plungers - 1/2-13 UNC - 12.7mm - 20.1 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.14 AUD
$46.96 AUD $39.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
1/2-13 UNC (12.7mm)

Thread Length (E)
20.1
mm

(Equiv. 0.791 in.)
Initial End Force
0.7
N
Final End Force
1.6
N
Indexing Plungers - 1/2-13 UNC - 12.7mm - 20.1 mm - 0.7 N Locking - Steel
Material: Steel    Tip Diameter (A): 6.0 mm    Tip Length (D): 6.1 mm    Nut Size (E): 16.3 mm    Nut Thickness (J): 6.1 mm
Part Number: PLIT-060-127C-25-LSH-C
Indexing Plungers - 1/2-13 UNC - 12.7mm - 20.1 mm - 0.7 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$39.14 AUD
$46.96 AUD $39.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Thread Length (E)
25.9
mm

(Equiv. 1.02 in.)
Initial End Force
1.2
N
Final End Force
3.2
N
Tip Diameter (A)
8.0
mm
Tip Length (D)
7.1
mm
Indexing Plungers - 5/8-11 UNC - 15.88mm - 25.9 mm - 1.2 N Locking - Steel
Material: Steel    Nut Size (E): 21.8 mm    Nut Thickness (J): 7.9 mm
Part Number: PLIT-080-158C-31-LSH-C
Indexing Plungers - 5/8-11 UNC - 15.88mm - 25.9 mm - 1.2 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
5/8-11 UNC (15.88mm)

Thread Length (E)
25.9
mm

(Equiv. 1.02 in.)
Initial End Force
1.2
N
Final End Force
3.2
N
Indexing Plungers - 5/8-11 UNC - 15.88mm - 25.9 mm - 1.2 N Locking - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Tip Length (D): 7.1 mm    Nut Size (E): 21.8 mm    Nut Thickness (J): 7.9 mm
Part Number: PLIT-080-158C-31-LSH-C
Indexing Plungers - 5/8-11 UNC - 15.88mm - 25.9 mm - 1.2 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Thread Length (E)
12.0
mm

(Equiv. 0.472 in.)
Initial End Force
1.4
N
Final End Force
2.5
N
Tip Diameter (A)
8.0
mm
Tip Length (D)
8.0
mm
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 12 mm - 1.4 N Locking - Steel
Material: Steel    Nut Size (E): 21.9 mm    Nut Thickness (J): 6.0 mm
Part Number: PLIT-080-160-150-31-LSH-C
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 12 mm - 1.4 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Thread Length (E)
12.0
mm

(Equiv. 0.472 in.)
Initial End Force
1.4
N
Final End Force
2.5
N
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 12 mm - 1.4 N Locking - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Tip Length (D): 8.0 mm    Nut Size (E): 21.9 mm    Nut Thickness (J): 6.0 mm
Part Number: PLIT-080-160-150-31-LSH-C
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 12 mm - 1.4 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.23 AUD
$60.27 AUD $50.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Thread Length (E)
26.0
mm

(Equiv. 1.024 in.)
Initial End Force
1.2
N
Final End Force
3.2
N
Tip Diameter (A)
8.0
mm
Tip Length (D)
7.0
mm
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 26 mm - 1.2 N Locking - Steel
Material: Steel    Nut Size (E): 21.9 mm    Nut Thickness (J): 8.0 mm
Part Number: PLIT-080-160-150-31L-LSH-C
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 26 mm - 1.2 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.59 AUD
$60.71 AUD $50.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread (B)
M16 Extra Fine (16x1.5mm)

Thread Length (E)
26.0
mm

(Equiv. 1.024 in.)
Initial End Force
1.2
N
Final End Force
3.2
N
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 26 mm - 1.2 N Locking - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Tip Length (D): 7.0 mm    Nut Size (E): 21.9 mm    Nut Thickness (J): 8.0 mm
Part Number: PLIT-080-160-150-31L-LSH-C
Indexing Plungers - M16 Extra Fine - 16x1.5mm - 26 mm - 1.2 N Locking - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$50.59 AUD
$60.71 AUD $50.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
