Pins - Wire Lock Lynch - Single Wire - Square Carbon Steel

Pins -> Wire Lock Lynch -> Single Wire -> Square Carbon Steel

There are 6 products in the sub-categories of Pins - Wire Lock Lynch - Single Wire - Square Carbon Steel. Browse the Pins - Wire Lock Lynch - Single Wire - Square Carbon Steel products table.

Category Details

A selection of Square Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as snapper pins

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Pins - Wire Lock Lynch - Single Wire - Square Carbon Steel category on the Small Parts & Bearings online store.
    Pin Diameter (A) Grip Length (C) Wire Thickness (T) Clearance To Wire (E) Indicative
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    41.3
    mm
    		Wire Lock Lynch Pins - 6.35x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 69.9 mm    Weight Per Piece: 33 g    Finish: Zinc Plated
    Part Number: LYP-Q1-064-064-CZ (4 Pcs)
    Wire Lock Lynch Pins - 6.35x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    5 units (20 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025
    $11.32 AUD
    $11.32 AUD
    Per 4
    Quantity Required

    5 units (20 pcs) Available Now. Backorder if more than 5.
    Pin Diameter (A) Grip Length (C) Wire Thickness (T) Indicative
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 6.35x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 41.3 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 33 g    Finish: Zinc Plated
    Part Number: LYP-Q1-064-064-CZ (4 Pcs)
    Wire Lock Lynch Pins - 6.35x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    5 units (20 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025
    $11.32 AUD
    $11.32 AUD
    Per 4
    Quantity Required

    5 units (20 pcs) Available Now. Backorder if more than 5.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    44.5
    mm

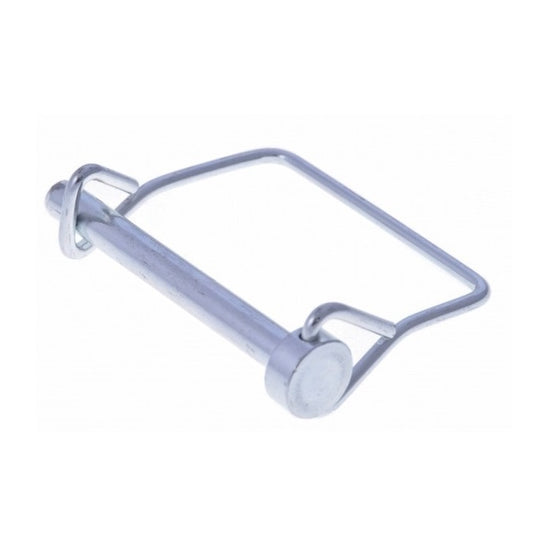

    		Wire Lock Lynch Pins - 7.94x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 69.9 mm    Weight Per Piece: 49 g    Finish: Zinc Plated
    Part Number: LYP-Q1-079-064-CZ (4 Pcs)
    Wire Lock Lynch Pins - 7.94x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $7.23 AUD
    $8.67 AUD $7.23 AUD
    Per 4
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 7.94x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 44.5 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 49 g    Finish: Zinc Plated
    Part Number: LYP-Q1-079-064-CZ (4 Pcs)
    Wire Lock Lynch Pins - 7.94x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $7.23 AUD
    $8.67 AUD $7.23 AUD
    Per 4
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    88.90
    mm
    + 0.00 / - 6.35
    (Equiv. 3.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    44.5
    mm
    		Wire Lock Lynch Pins - 7.94x88.9x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 95.3 mm    Weight Per Piece: 57 g    Finish: Zinc Plated
    Part Number: LYP-Q1-079-089-CZ
    Wire Lock Lynch Pins - 7.94x88.9x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    26 Available Now | Further orders can be expected around Tue, Sep 23, 2025
    $5.95 AUD
    $5.95 AUD
    Each
    Quantity Required

    26 Available Now. Backorder if more than 26.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    88.90
    mm
    + 0.00 / - 6.35
    (Equiv. 3.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 7.94x88.9x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 44.5 mm    Pin Length (B): 95.3 mm    Weight Per Piece: 57 g    Finish: Zinc Plated
    Part Number: LYP-Q1-079-089-CZ
    Wire Lock Lynch Pins - 7.94x88.9x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    26 Available Now | Further orders can be expected around Tue, Sep 23, 2025
    $5.95 AUD
    $5.95 AUD
    Each
    Quantity Required

    26 Available Now. Backorder if more than 26.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    38.1
    mm
    		Wire Lock Lynch Pins - 9.53x57.15x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 63.5 mm    Weight Per Piece: 62 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-057-CZ (4 Pcs)
    Wire Lock Lynch Pins - 9.53x57.15x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $8.59 AUD
    $10.31 AUD $8.59 AUD
    Per 4
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 9.53x57.15x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 38.1 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 62 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-057-CZ (4 Pcs)
    Wire Lock Lynch Pins - 9.53x57.15x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $8.59 AUD
    $10.31 AUD $8.59 AUD
    Per 4
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    38.1
    mm
    		Wire Lock Lynch Pins - 9.53x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 69.9 mm    Weight Per Piece: 63 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-064-CZ (3 Pcs)
    Wire Lock Lynch Pins - 9.53x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $6.95 AUD
    $8.35 AUD $6.95 AUD
    Per 3
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 9.53x63.5x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 38.1 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 63 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-064-CZ (3 Pcs)
    Wire Lock Lynch Pins - 9.53x63.5x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $6.95 AUD
    $8.35 AUD $6.95 AUD
    Per 3
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    76.20
    mm
    + 0.00 / - 6.35
    (Equiv. 3 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    Clearance To Wire (E)
    38.1
    mm
    		Wire Lock Lynch Pins - 9.53x76.2x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 82.6 mm    Weight Per Piece: 76 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-076-CZ (3 Pcs)
    Wire Lock Lynch Pins - 9.53x76.2x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $8.32 AUD
    $9.98 AUD $8.32 AUD
    Per 3
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    76.20
    mm
    + 0.00 / - 6.35
    (Equiv. 3 in.)
    Wire Thickness (T)
    3.0
    mm

    (Equiv. 0.118 in.)
    		Wire Lock Lynch Pins - 9.53x76.2x3 mm - Carbon Steel Spring Wire Zinc Plated
    Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 38.1 mm    Pin Length (B): 82.6 mm    Weight Per Piece: 76 g    Finish: Zinc Plated
    Part Number: LYP-Q1-095-076-CZ (3 Pcs)
    Wire Lock Lynch Pins - 9.53x76.2x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated Pin
    Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025
    $8.32 AUD
    $9.98 AUD $8.32 AUD
    Per 3
    Quantity Required

    Backorder: Out of Stock.
