Pins - Side Thrust - Single Sided - Steel Ball

Pins -> Side Thrust -> Single Sided -> Steel Ball

There is only 1 product in the sub-categories of Pins - Side Thrust - Single Sided - Steel Ball. Browse the Pins - Side Thrust - Single Sided - Steel Ball products table.

Category Details

A selection of Steel Ball Single Sided Side Thrust Pins. For holding, clamping and positioning work pieces. Body is black oxide steel.

  • Spring-loaded component used for clamping, positioning, and holding workpieces in machinery and fixtures.
  • Space-saving, simple alternative to more complex clamping methods and are designed to press against a part to secure it.
  • Often used for tasks like locating components during machining, in jigs and fixtures, or for holding flat items like circuit boards.
  • Steel ball and elasticised spring with black oxide coated steel body

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Side Thrust - Single Sided - Steel Ball category on the Small Parts & Bearings online store.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D E F Indicative

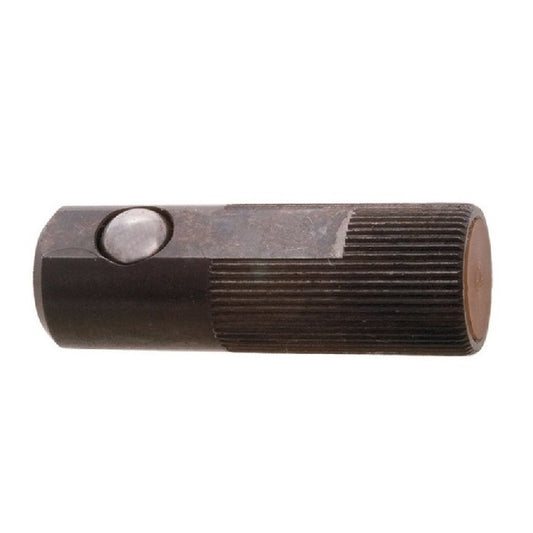

Side Thrust Pins - 9.906x5.588x9.144 mm Single Sided - Steel Ball Pin
Knurled Diameter (A)
9.906
mm
Ball Diameter (B)
5.588
mm
End Diameter (C)
9.144
mm
D
29.972
mm
E
7.112
mm
F
7.874
mm
Side Thrust Pins - 9.906x5.588x9.144 mm - Steel Ball
Material: Steel Ball    G: 1.016 mm    Initial Load Rating: 5.10 Kg    Final Load Rating: 16.32 Kg
Part Number: WST-45RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 09, 2026
$98.68 AUD
$98.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D Indicative

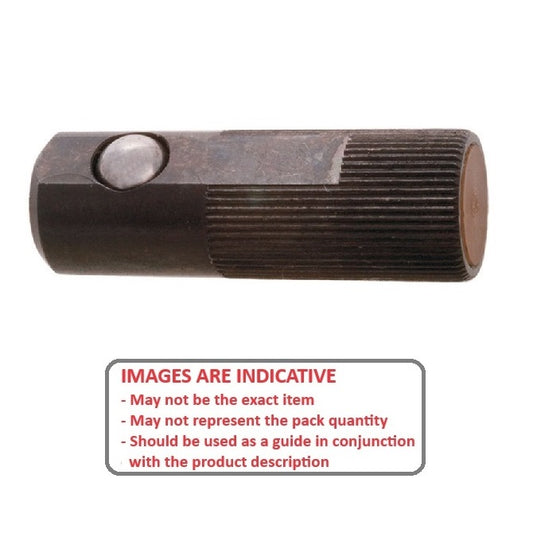

Side Thrust Pins - 9.906x5.588x9.144 mm Single Sided - Steel Ball Pin
Knurled Diameter (A)
9.906
mm
Ball Diameter (B)
5.588
mm
End Diameter (C)
9.144
mm
D
29.972
mm
Side Thrust Pins - 9.906x5.588x9.144 mm - Steel Ball
Material: Steel Ball    E: 7.112 mm    F: 7.874 mm    G: 1.016 mm    Initial Load Rating: 5.10 Kg    Final Load Rating: 16.32 Kg
Part Number: WST-45RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 09, 2026
$98.68 AUD
$98.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
