Pins - Side Thrust - Single Sided - Plastic Ball

Pins -> Side Thrust -> Single Sided -> Plastic Ball

There are 4 products in the sub-categories of Pins - Side Thrust - Single Sided - Plastic Ball. Browse the Pins - Side Thrust - Single Sided - Plastic Ball products table.

Category Details

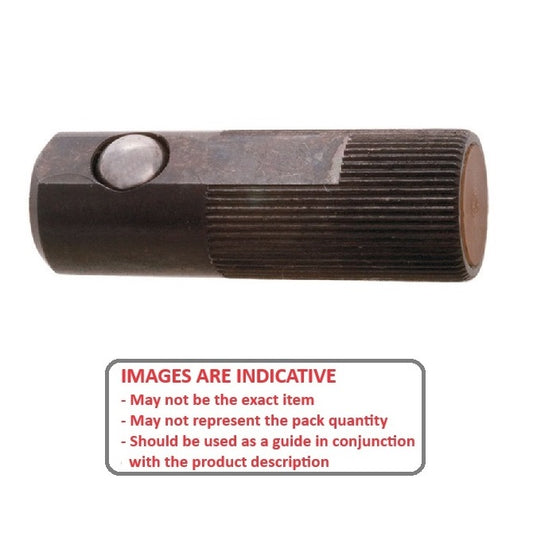

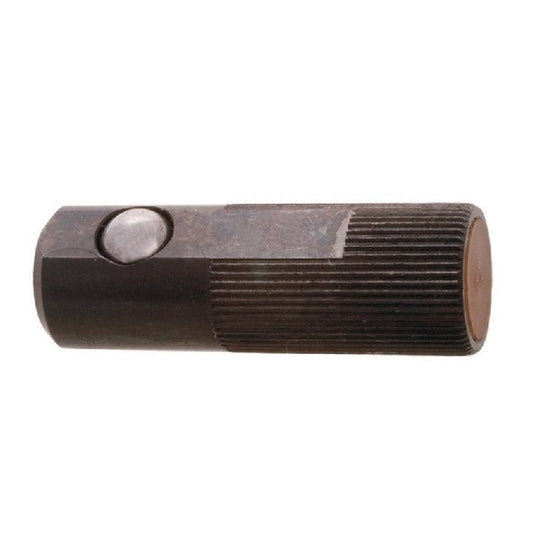

A selection of Plastic Ball Single Sided Side Thrust Pins. For holding, clamping and positioning work pieces. Body is black oxide steel.

  • Spring-loaded component used for clamping, positioning, and holding workpieces in machinery and fixtures.
  • Space-saving, simple alternative to more complex clamping methods and are designed to press against a part to secure it.
  • Often used for tasks like locating components during machining, in jigs and fixtures, or for holding flat items like circuit boards.
  • Plastic ball and stainless spring with black oxide coated steel body

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Side Thrust - Single Sided - Plastic Ball category on the Small Parts & Bearings online store.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D E F Indicative
Side Thrust Pins - 7.874x3.048x6.604 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
7.874
mm
Ball Diameter (B)
3.048
mm
End Diameter (C)
6.604
mm
D
24.892
mm
E
3.556
mm
F
6.096
mm
Side Thrust Pins - 7.874x3.048x6.604 mm - Plastic Ball
Material: Plastic Ball    G: 1.016 mm    Initial Load Rating: 0.25 Kg    Final Load Rating: 0.66 Kg
Part Number: WST-25RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$57.41 AUD
$57.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D Indicative
Side Thrust Pins - 7.874x3.048x6.604 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
7.874
mm
Ball Diameter (B)
3.048
mm
End Diameter (C)
6.604
mm
D
24.892
mm
Side Thrust Pins - 7.874x3.048x6.604 mm - Plastic Ball
Material: Plastic Ball    E: 3.556 mm    F: 6.096 mm    G: 1.016 mm    Initial Load Rating: 0.25 Kg    Final Load Rating: 0.66 Kg
Part Number: WST-25RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$57.41 AUD
$57.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x4.064x8.128 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
9.906
mm
Ball Diameter (B)
4.064
mm
End Diameter (C)
8.128
mm
D
29.972
mm
E
4.318
mm
F
7.112
mm
Side Thrust Pins - 9.906x4.064x8.128 mm - Plastic Ball
Material: Plastic Ball    G: 1.016 mm    Initial Load Rating: 0.46 Kg    Final Load Rating: 0.92 Kg
Part Number: WST-30RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$50.14 AUD
$60.16 AUD $50.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x4.064x8.128 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
9.906
mm
Ball Diameter (B)
4.064
mm
End Diameter (C)
8.128
mm
D
29.972
mm
Side Thrust Pins - 9.906x4.064x8.128 mm - Plastic Ball
Material: Plastic Ball    E: 4.318 mm    F: 7.112 mm    G: 1.016 mm    Initial Load Rating: 0.46 Kg    Final Load Rating: 0.92 Kg
Part Number: WST-30RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$50.14 AUD
$60.16 AUD $50.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 11.938x5.08x10.16 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
11.938
mm
Ball Diameter (B)
5.080
mm
End Diameter (C)
10.160
mm
D
35.052
mm
E
4.826
mm
F
8.890
mm
Side Thrust Pins - 11.938x5.08x10.16 mm - Plastic Ball
Material: Plastic Ball    G: 1.524 mm    Initial Load Rating: 0.66 Kg    Final Load Rating: 1.32 Kg
Part Number: WST-35RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$52.77 AUD
$63.33 AUD $52.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 11.938x5.08x10.16 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
11.938
mm
Ball Diameter (B)
5.080
mm
End Diameter (C)
10.160
mm
D
35.052
mm
Side Thrust Pins - 11.938x5.08x10.16 mm - Plastic Ball
Material: Plastic Ball    E: 4.826 mm    F: 8.890 mm    G: 1.524 mm    Initial Load Rating: 0.66 Kg    Final Load Rating: 1.32 Kg
Part Number: WST-35RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$52.77 AUD
$63.33 AUD $52.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 13.97x6.604x10.668 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
13.970
mm
Ball Diameter (B)
6.604
mm
End Diameter (C)
10.668
mm
D
39.878
mm
E
5.842
mm
F
9.906
mm
Side Thrust Pins - 13.97x6.604x10.668 mm - Plastic Ball
Material: Plastic Ball    G: 1.778 mm    Initial Load Rating: 0.82 Kg    Final Load Rating: 1.84 Kg
Part Number: WST-40RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$55.59 AUD
$66.71 AUD $55.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 13.97x6.604x10.668 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
13.970
mm
Ball Diameter (B)
6.604
mm
End Diameter (C)
10.668
mm
D
39.878
mm
Side Thrust Pins - 13.97x6.604x10.668 mm - Plastic Ball
Material: Plastic Ball    E: 5.842 mm    F: 9.906 mm    G: 1.778 mm    Initial Load Rating: 0.82 Kg    Final Load Rating: 1.84 Kg
Part Number: WST-40RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$55.59 AUD
$66.71 AUD $55.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
