Pins - Pull - Threaded End - Stainless Steel

Pins -> Pull -> Threaded End -> Stainless Steel

There are 3 products in the sub-categories of Pins - Pull - Threaded End - Stainless Steel. Browse the Pins - Pull - Threaded End - Stainless Steel products table.

Category Details

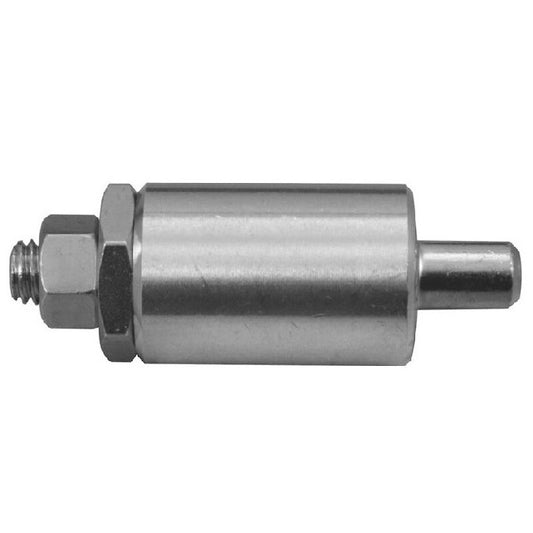

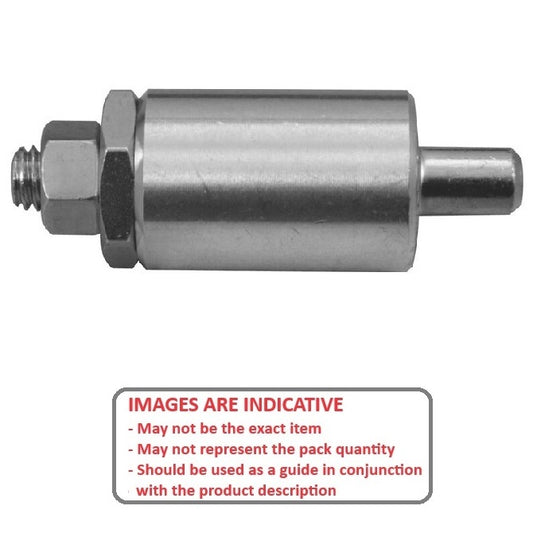

A selection of Stainless Steel Threaded End Pull Pins. Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.

  • Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
  • Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
  • 3/8-16 Threaded end so you can add your own handle or knob.
  • 303 stainless steel plunger assembly and housing.
  • Pull up force approx 2.2kg.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Pull - Threaded End - Stainless Steel category on the Small Parts & Bearings online store.
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Nut Height (E) Knob Height (F) Indicative
Nominal Pin Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Nut Height (E)
4.763
mm
Pull Pins - 9.525x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel
Part Number: BSD-80SSRS
Pull Pins - 9.525x14.288x38.1 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$70.95 AUD
$70.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Indicative
Nominal Pin Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Pull Pins - 9.525x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-80SSRS
Pull Pins - 9.525x14.288x38.1 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$70.95 AUD
$70.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Pin Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Nut Height (E)
4.763
mm
Pull Pins - 12.7x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel
Part Number: BSD-85SSRS
Pull Pins - 12.7x14.288x38.1 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$61.41 AUD
$73.69 AUD $61.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Pin Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Pull Pins - 12.7x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-85SSRS
Pull Pins - 12.7x14.288x38.1 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$61.41 AUD
$73.69 AUD $61.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Pin Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
57.150
mm

(Equiv. 2.25 in.)
Body Diameter (D)
25.400
mm
Nut Height (E)
4.763
mm
Pull Pins - 12.7x14.288x57.15 mm - Stainless Steel
Material: Stainless Steel
Part Number: BSD-90SSRS
Pull Pins - 12.7x14.288x57.15 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$84.95 AUD
$101.95 AUD $84.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Pin Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
57.150
mm

(Equiv. 2.25 in.)
Body Diameter (D)
25.400
mm
Pull Pins - 12.7x14.288x57.15 mm - Stainless Steel
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-90SSRS
Pull Pins - 12.7x14.288x57.15 mm Threaded End - Stainless Steel Pin
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$84.95 AUD
$101.95 AUD $84.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
