Pins - Groove

Pins -> Groove

There are 330 products in the sub-categories of Pins - Groove. Scroll down or follow the link to Pins - Groove in the products table to see all these items combined into a handy table with filters.

Category Details

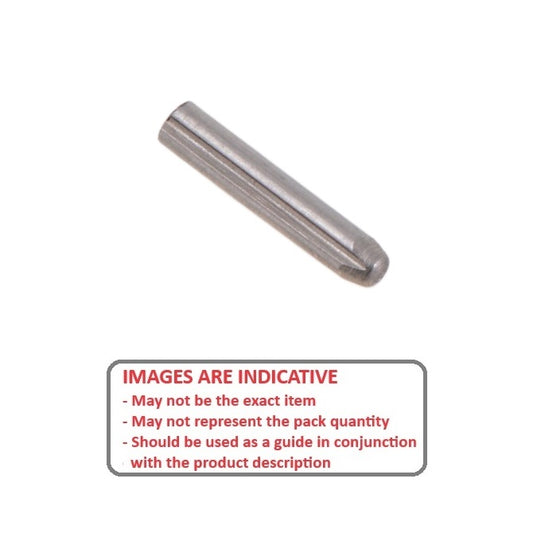

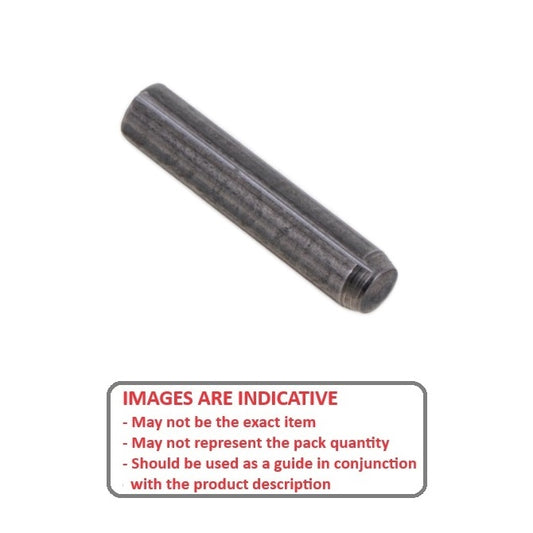

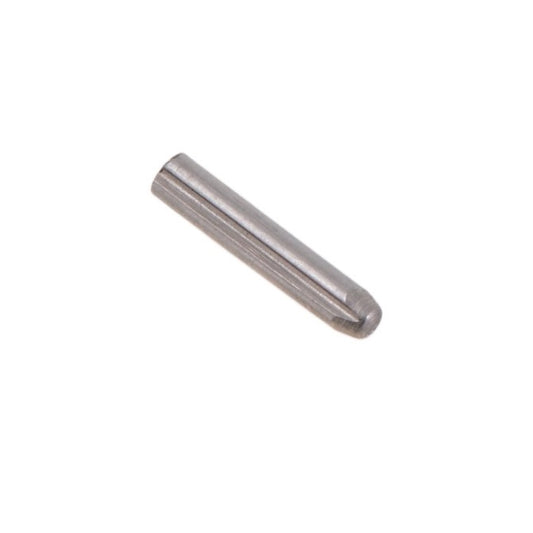

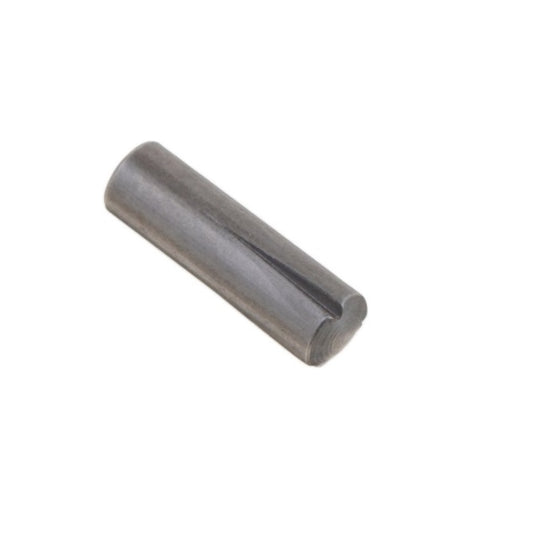

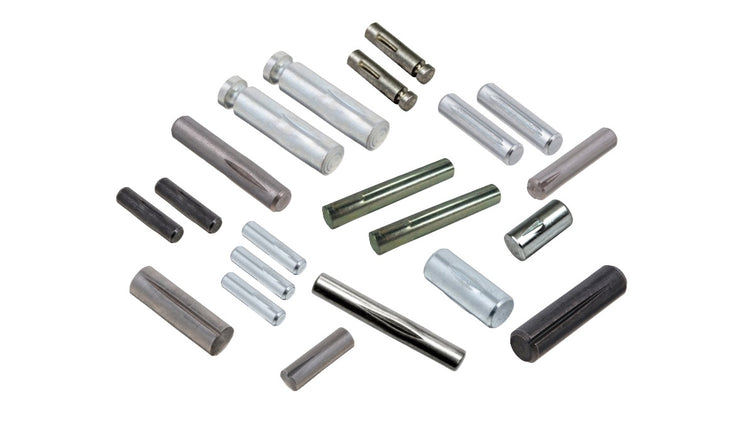

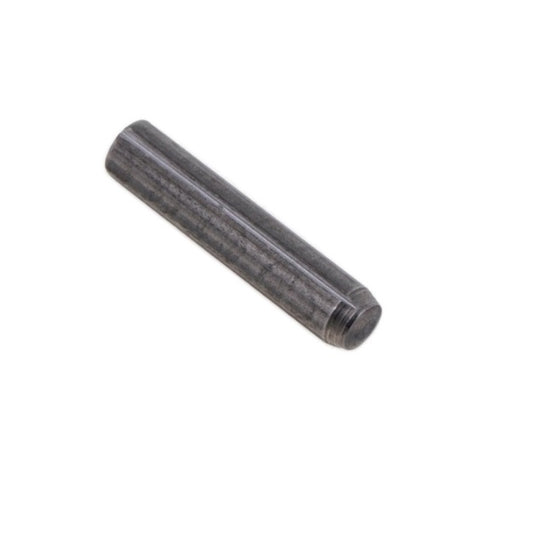

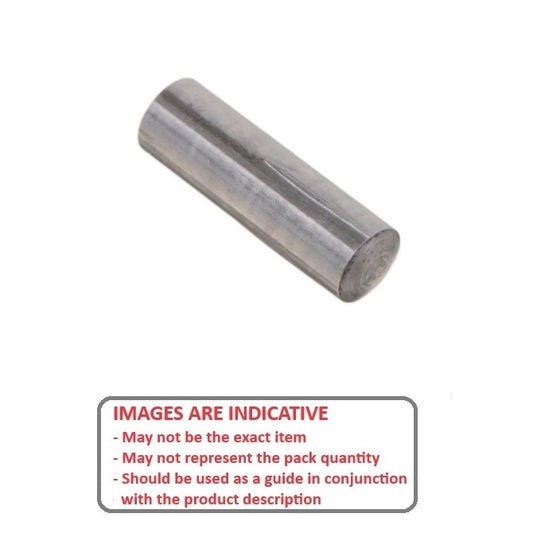

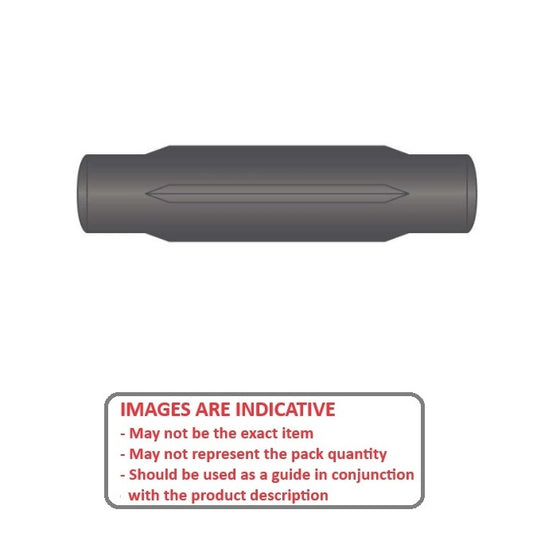

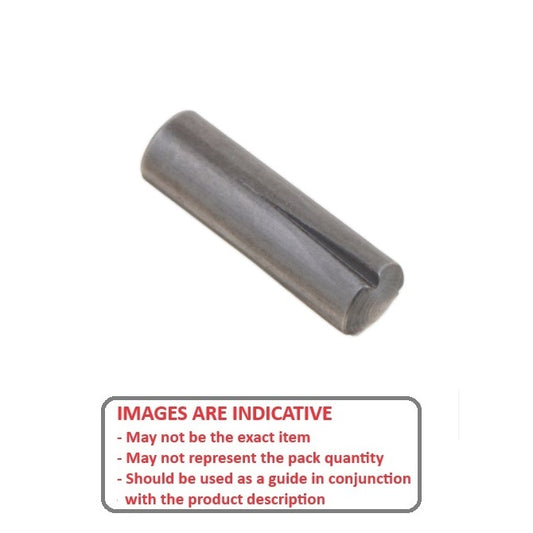

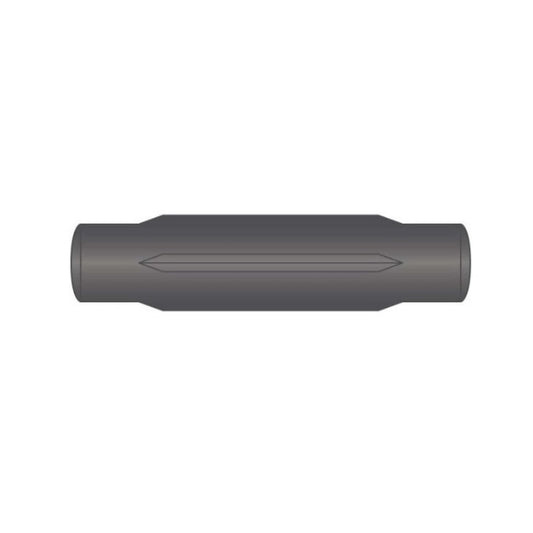

A selection of Groove Pins. Non threaded press fit fastener that doesn't require a reamed hole as do dowel pins.Commonly used in place of taper pins.

  • An expanded range may be available on special order. Please enquire.
  • An economic method of fastening without the need for precision drilled and reamed holes.
  • Recommended hole tolerance is H11.
  • Total length may be slightly longer than the nominal length.
  • Expanded portion of the pin is compressed into the hole a few thousands of an inch wider than the nominal pin diameter. Radial forces lock the pin securely into the drilled hole.
Pins - Groove

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Groove category on the Small Parts & Bearings online store.
