Collection: Mounts - Levelling Studded - Swivel - Standard

Mounts -> Levelling Studded -> Swivel -> Standard

There are 23 products in the sub-categories of Mounts - Levelling Studded - Swivel - Standard. Scroll down or follow the link to Mounts - Levelling Studded - Swivel - Standard in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

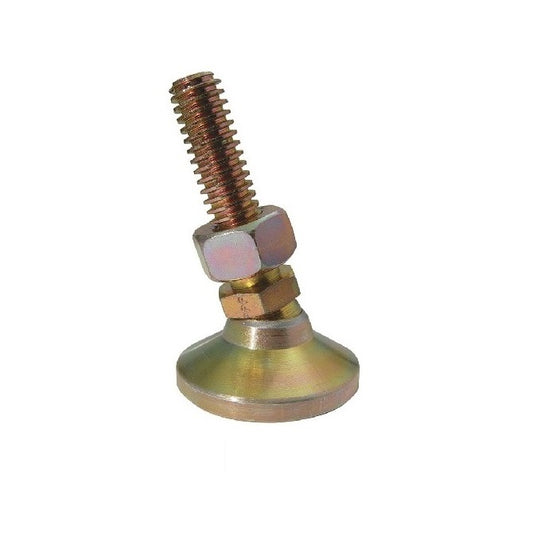

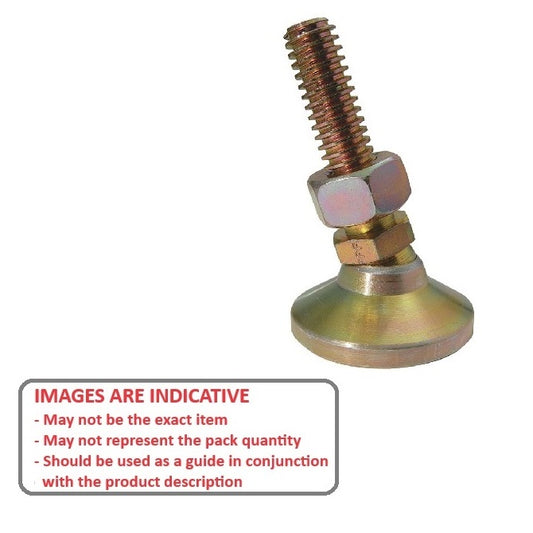

This category includes various types of levelling studded mounts.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Mounts - Levelling Studded - Swivel - Standard category on the Small Parts & Bearings online store.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.78 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-048F-025-CGC Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-048F-025-CGC Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-048F-025-CGC --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount MSM-048F-025-CGC --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm	Base Height (E) 2.78 mm	Overall Height 64.3 mm
Material: Steel Load Rating: 315 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-048F-051-CGC (15 Pcs) Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 64.3 mm Load Rating: 315 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-048F-051-CGC (15 Pcs) Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-048F-051-CGC (15 Pcs) --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Sale MSM-048F-051-CGC (15 Pcs) --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount Regular price $196.05 AUD Regular price ~~$235.25 AUD~~ Sale price $196.05 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.97 mm	Overall Height 49.7 mm
Material: Steel Load Rating: 500 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-064C-032-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 49.7 mm Load Rating: 500 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-064C-032-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-064C-032-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Sale MSM-064C-032-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 63.5 mm	Base Height (E) 3.97 mm	Overall Height 81.4 mm
Material: Steel Load Rating: 500 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-064C-064-CGC (15 Pcs) Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $417.59 AUD Regular price Sale price $417.59 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 63.5 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 81.4 mm Load Rating: 500 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-064C-064-CGC (15 Pcs) Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $417.59 AUD Regular price Sale price $417.59 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-064C-064-CGC (15 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount MSM-064C-064-CGC (15 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Steel Mount Regular price $417.59 AUD Regular price Sale price $417.59 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm	Base Height (E) 4.76 mm	Overall Height 123.8 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095C-102-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 123.8 mm Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095C-102-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-095C-102-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Sale MSM-095C-102-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Regular price $24.14 AUD Regular price ~~$28.96 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095C-051-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.32 AUD Regular price ~~$21.98 AUD~~ Sale price $18.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095C-051-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.32 AUD Regular price ~~$21.98 AUD~~ Sale price $18.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-095C-051-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Sale MSM-095C-051-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Regular price $18.32 AUD Regular price ~~$21.98 AUD~~ Sale price $18.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-24 UNF (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095F-051-CGC (15 Pcs) Levelling Studded Mounts - 3/8-24 UNF - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $516.41 AUD Regular price Sale price $516.41 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-24 UNF (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-095F-051-CGC (15 Pcs) Levelling Studded Mounts - 3/8-24 UNF - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $516.41 AUD Regular price Sale price $516.41 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-095F-051-CGC (15 Pcs) --- Levelling Studded Mounts - 3/8-24 UNF - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount MSM-095F-051-CGC (15 Pcs) --- Levelling Studded Mounts - 3/8-24 UNF - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount Regular price $516.41 AUD Regular price Sale price $516.41 AUD Unit price per 15 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm	Base Height (E) 5.00 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-100M-051-CGC Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 5.00 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-100M-051-CGC Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-100M-051-CGC --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount Sale MSM-100M-051-CGC --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm	Base Height (E) 6.00 mm	Overall Height 80.0 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-120M-051-CGC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $38.50 AUD Regular price ~~$46.20 AUD~~ Sale price $38.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 6.00 mm Overall Height: 80.0 mm Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-120M-051-CGC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $38.50 AUD Regular price ~~$46.20 AUD~~ Sale price $38.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-120M-051-CGC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Sale MSM-120M-051-CGC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Regular price $38.50 AUD Regular price ~~$46.20 AUD~~ Sale price $38.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm	Base Height (E) 6.35 mm	Overall Height 130.2 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127C-102-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.23 AUD Regular price ~~$49.47 AUD~~ Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 130.2 mm Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127C-102-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.23 AUD Regular price ~~$49.47 AUD~~ Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-127C-102-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Sale MSM-127C-102-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Regular price $41.23 AUD Regular price ~~$49.47 AUD~~ Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127C-051-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127C-051-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-127C-051-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Sale MSM-127C-051-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-20 UNF (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127F-051-CGC Levelling Studded Mounts - 1/2-20 UNF - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.68 AUD Regular price ~~$41.62 AUD~~ Sale price $34.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-20 UNF (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-127F-051-CGC Levelling Studded Mounts - 1/2-20 UNF - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.68 AUD Regular price ~~$41.62 AUD~~ Sale price $34.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-127F-051-CGC --- Levelling Studded Mounts - 1/2-20 UNF - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Sale MSM-127F-051-CGC --- Levelling Studded Mounts - 1/2-20 UNF - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount Regular price $34.68 AUD Regular price ~~$41.62 AUD~~ Sale price $34.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159C-102-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $69.86 AUD Regular price ~~$83.84 AUD~~ Sale price $69.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 133.4 mm Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159C-102-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $69.86 AUD Regular price ~~$83.84 AUD~~ Sale price $69.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-159C-102-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Sale MSM-159C-102-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Regular price $69.86 AUD Regular price ~~$83.84 AUD~~ Sale price $69.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159C-051-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159C-051-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-159C-051-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Sale MSM-159C-051-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Regular price $57.68 AUD Regular price ~~$69.22 AUD~~ Sale price $57.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-18 UNF (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159F-051-CGC Levelling Studded Mounts - 5/8-18 UNF - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.86 AUD Regular price ~~$69.44 AUD~~ Sale price $57.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-18 UNF (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-159F-051-CGC Levelling Studded Mounts - 5/8-18 UNF - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.86 AUD Regular price ~~$69.44 AUD~~ Sale price $57.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-159F-051-CGC --- Levelling Studded Mounts - 5/8-18 UNF - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Sale MSM-159F-051-CGC --- Levelling Studded Mounts - 5/8-18 UNF - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Regular price $57.86 AUD Regular price ~~$69.44 AUD~~ Sale price $57.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm	Base Height (E) 8.00 mm	Overall Height 83.0 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-160M-051-CGC Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $63.23 AUD Regular price ~~$75.87 AUD~~ Sale price $63.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 8.00 mm Overall Height: 83.0 mm Load Rating: 2720 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-160M-051-CGC Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $63.23 AUD Regular price ~~$75.87 AUD~~ Sale price $63.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-160M-051-CGC --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Sale MSM-160M-051-CGC --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Regular price $63.23 AUD Regular price ~~$75.87 AUD~~ Sale price $63.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm	Base Height (E) 12.70 mm	Overall Height 139.7 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191C-102-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $104.50 AUD Regular price ~~$125.40 AUD~~ Sale price $104.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 139.7 mm Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191C-102-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $104.50 AUD Regular price ~~$125.40 AUD~~ Sale price $104.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-191C-102-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Sale MSM-191C-102-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Regular price $104.50 AUD Regular price ~~$125.40 AUD~~ Sale price $104.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm	Base Height (E) 12.70 mm	Overall Height 88.9 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191C-051-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $93.86 AUD Regular price ~~$112.64 AUD~~ Sale price $93.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 88.9 mm Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191C-051-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $93.86 AUD Regular price ~~$112.64 AUD~~ Sale price $93.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-191C-051-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Sale MSM-191C-051-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Regular price $93.86 AUD Regular price ~~$112.64 AUD~~ Sale price $93.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-16 UNF (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm	Base Height (E) 12.70 mm	Overall Height 88.9 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191F-051-CGC Levelling Studded Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $93.41 AUD Regular price ~~$112.09 AUD~~ Sale price $93.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-16 UNF (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 88.9 mm Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-191F-051-CGC Levelling Studded Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $93.41 AUD Regular price ~~$112.09 AUD~~ Sale price $93.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-191F-051-CGC --- Levelling Studded Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Sale MSM-191F-051-CGC --- Levelling Studded Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Regular price $93.41 AUD Regular price ~~$112.09 AUD~~ Sale price $93.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm	Base Height (E) 13.00 mm	Overall Height 89.0 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-200M-051-CGC Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 13.00 mm Overall Height: 89.0 mm Load Rating: 3270 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-200M-051-CGC Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-200M-051-CGC --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Sale MSM-200M-051-CGC --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-12 UNF (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.32 mm	Overall Height 155.6 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254F-108-CGC Levelling Studded Mounts - 1-12 UNF - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $184.95 AUD Regular price ~~$221.95 AUD~~ Sale price $184.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-12 UNF (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 155.6 mm Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254F-108-CGC Levelling Studded Mounts - 1-12 UNF - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $184.95 AUD Regular price ~~$221.95 AUD~~ Sale price $184.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-254F-108-CGC --- Levelling Studded Mounts - 1-12 UNF - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Sale MSM-254F-108-CGC --- Levelling Studded Mounts - 1-12 UNF - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Regular price $184.95 AUD Regular price ~~$221.95 AUD~~ Sale price $184.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.32 mm	Overall Height 155.6 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254C-108-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $181.41 AUD Regular price ~~$217.69 AUD~~ Sale price $181.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 155.6 mm Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254C-108-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $181.41 AUD Regular price ~~$217.69 AUD~~ Sale price $181.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-254C-108-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Sale MSM-254C-108-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Regular price $181.41 AUD Regular price ~~$217.69 AUD~~ Sale price $181.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 203.2 mm	Base Height (E) 10.32 mm	Overall Height 250.8 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254C-203-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $217.05 AUD Regular price ~~$260.45 AUD~~ Sale price $217.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 203.2 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 250.8 mm Load Rating: 9980 Kg Finish: Gold Chromate Category: Mounts - Levelling Studded - Swivel - Standard - Gold Chromate
Part Number: MSM-254C-203-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $217.05 AUD Regular price ~~$260.45 AUD~~ Sale price $217.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MSM-254C-203-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Sale MSM-254C-203-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Regular price $217.05 AUD Regular price ~~$260.45 AUD~~ Sale price $217.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Mounts - Levelling Studded - Swivel - Standard

Category Details

Filter

Filter

Subscribe to our emails
