Mounts - Levelling Studded - Swivel - 316 Stainless - Rubber Padded

Mounts -> Levelling Studded -> Swivel -> 316 Stainless -> Rubber Padded

There are 2 products in the sub-categories of Mounts - Levelling Studded - Swivel - 316 Stainless - Rubber Padded. Browse the Mounts - Levelling Studded - Swivel - 316 Stainless - Rubber Padded products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

A selection of Rubber Padded 316 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Swivel - 316 Stainless - Rubber Padded category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
25.4
mm

(Equiv. 1 in.)
Thread Length (F)
50.8
mm
Base Height (E)
7.94
mm
Overall Height
76.2
mm

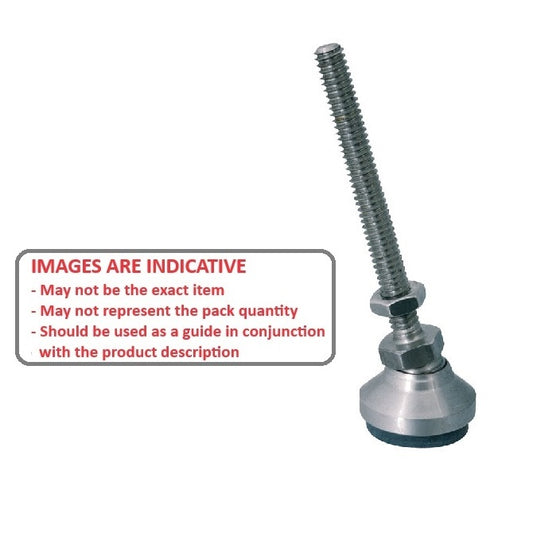

Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Load Rating: 1270 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S6RP
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$88.41 AUD
$88.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
25.4
mm

(Equiv. 1 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Base Height (E): 7.94 mm    Overall Height: 76.2 mm    Load Rating: 1270 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S6RP
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$88.41 AUD
$88.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
101.6
mm
Base Height (E)
9.53
mm
Overall Height
133.4
mm

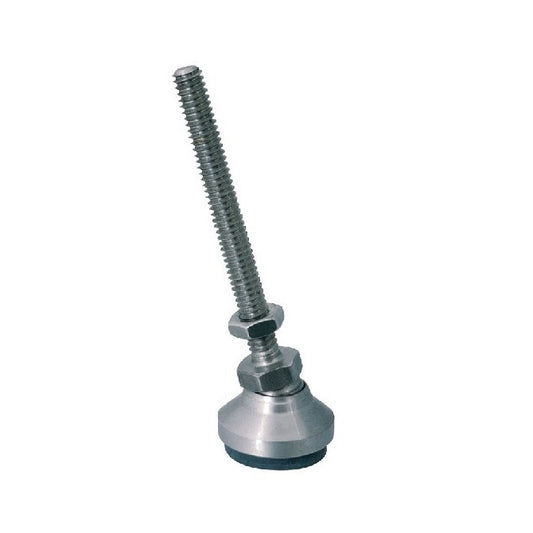

Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Load Rating: 1700 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S6RP
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Base Height (E): 9.53 mm    Overall Height: 133.4 mm    Load Rating: 1700 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S6RP
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
