Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal Base

Mounts -> Levelling Studded -> Swivel -> 303 Stainless -> Acetal Base

There are 4 products in the sub-categories of Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal Base. Browse the Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal Base products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

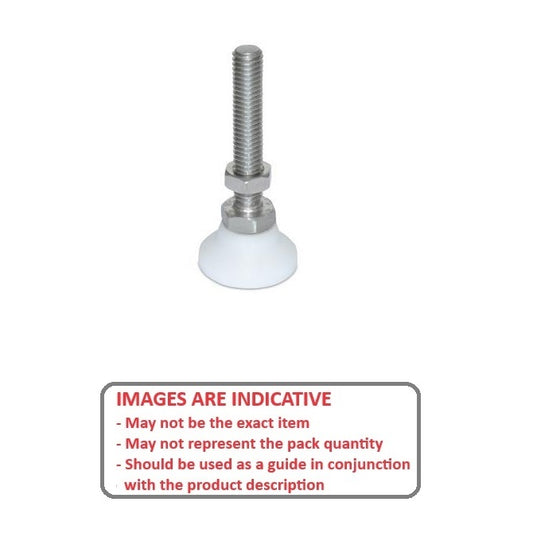

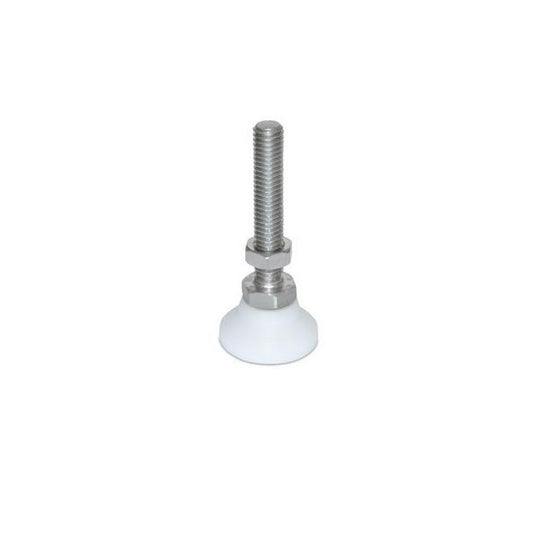

A selection of Acetal Base 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal Base category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Thread Length (F)
25.4
mm
Base Height (E)
2.77
mm
Overall Height
38.9
mm
Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 240 Kg    Pad Material: Delrin    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3AB
Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$28.50 AUD
$28.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Thread Length (F)
25.4
mm
Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.77 mm    Overall Height: 38.9 mm    Load Rating: 240 Kg    Pad Material: Delrin    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3AB
Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$28.50 AUD
$28.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Thread Length (F)
50.8
mm
Base Height (E)
2.77
mm
Overall Height
64.3
mm
Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-051-S3AB
Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$36.05 AUD
$43.25 AUD $36.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.77 mm    Overall Height: 64.3 mm    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-051-S3AB
Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$36.05 AUD
$43.25 AUD $36.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.9
mm

(Equiv. 0.705 in.)
Thread Length (F)
31.8
mm
Base Height (E)
3.96
mm
Overall Height
49.7
mm
Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 360 Kg    Pad Material: Delrin    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3AB
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$15.32 AUD
$18.38 AUD $15.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.9
mm

(Equiv. 0.705 in.)
Thread Length (F)
31.8
mm
Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.96 mm    Overall Height: 49.7 mm    Load Rating: 360 Kg    Pad Material: Delrin    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3AB
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$15.32 AUD
$18.38 AUD $15.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Thread Length (F)
50.8
mm
Base Height (E)
4.75
mm
Overall Height
73.0
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1270 Kg    Pad Material: Delrin    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3AB
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$35.05 AUD
$42.05 AUD $35.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 4.75 mm    Overall Height: 73.0 mm    Load Rating: 1270 Kg    Pad Material: Delrin    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3AB
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$35.05 AUD
$42.05 AUD $35.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
