Collection: Mounts - Levelling Studded - Standard - Thermoplastic

Mounts -> Levelling Studded -> Standard -> Thermoplastic

There are 34 products in the sub-categories of Mounts - Levelling Studded - Standard - Thermoplastic. Scroll down or follow the link to Mounts - Levelling Studded - Standard - Thermoplastic in the products table to see all these items combined into a handy table with filters.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

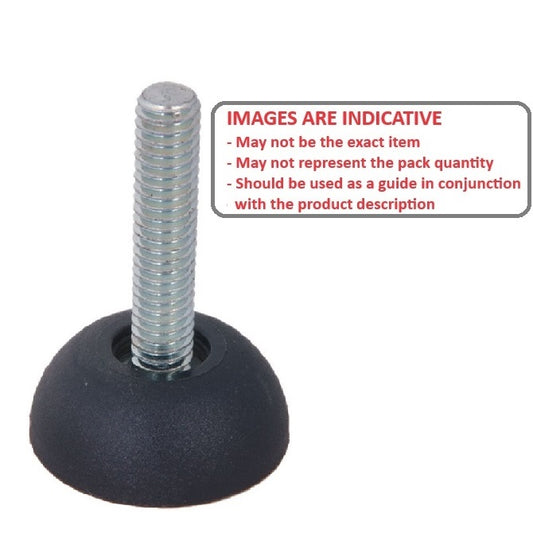

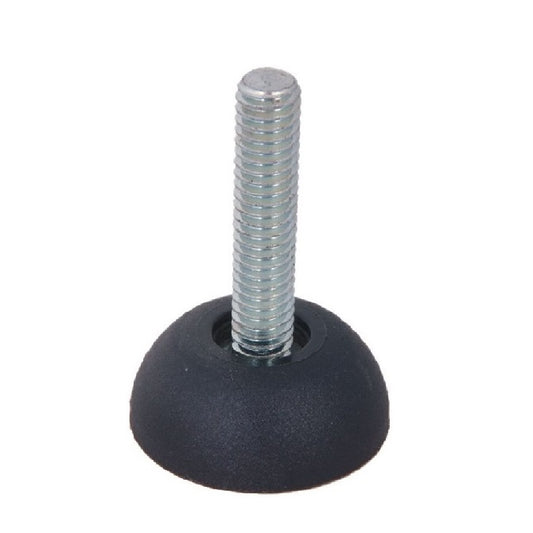

A selection of Thermoplastic Standard Levelling Studded Mounts. Levelling adjusters. Economical choice for a wide range of applications.

An expanded range may be available on special order. Please enquire.
Base is made from reinforced thermoplastic.
Threaded stem is steel.
Optional non skid rubber pads available separately

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Mounts - Levelling Studded - Standard - Thermoplastic category on the Small Parts & Bearings online store.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 5/16-18 UNC (7.94mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 38.1 mm	Base Height (E) 13.0 mm	Overall Height 51.1 mm
Material: Steel Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-079C-038-TP-032 Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 32x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 5/16-18 UNC (7.94mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 38.1 mm
Material: Steel Base Height (E): 13.0 mm Overall Height: 51.1 mm Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-079C-038-TP-032 Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 32x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-079C-038-TP-032 --- Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 32x13 mm Standard - Steel Mount MLM-079C-038-TP-032 --- Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 32x13 mm Standard - Steel Mount Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 5/16-18 UNC (7.94mm)	Base Diameter (D) 39.9 mm (Equiv. 1.571 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 38.1 mm	Base Height (E) 13.0 mm	Overall Height 51.1 mm
Material: Steel Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-079C-038-TP-040 Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 39.9x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/16-18 UNC (7.94mm)	Base Diameter (D) 39.9 mm (Equiv. 1.571 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 38.1 mm
Material: Steel Base Height (E): 13.0 mm Overall Height: 51.1 mm Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-079C-038-TP-040 Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 39.9x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-079C-038-TP-040 --- Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 39.9x13 mm Standard - Steel Mount Sale MLM-079C-038-TP-040 --- Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 39.9x13 mm Standard - Steel Mount Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm	Base Height (E) 22.0 mm	Overall Height 67.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-045-TP-032 Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 67.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-045-TP-032 Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-045-TP-032 --- Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Sale MLM-080M-045-TP-032 --- Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm	Base Height (E) 22.0 mm	Overall Height 92.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-070-TP-032 Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $50.50 AUD Regular price ~~$60.60 AUD~~ Sale price $50.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 92.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-070-TP-032 Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $50.50 AUD Regular price ~~$60.60 AUD~~ Sale price $50.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-070-TP-032 --- Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Sale MLM-080M-070-TP-032 --- Levelling Studded Mounts - M8 - 8x1.25mm - 32x22 mm Standard - Steel Mount Regular price $50.50 AUD Regular price ~~$60.60 AUD~~ Sale price $50.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm	Base Height (E) 22.0 mm	Overall Height 67.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-045-TP-040 Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.95 AUD Regular price ~~$50.35 AUD~~ Sale price $41.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 67.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-045-TP-040 Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.95 AUD Regular price ~~$50.35 AUD~~ Sale price $41.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-045-TP-040 --- Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Sale MLM-080M-045-TP-040 --- Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Regular price $41.95 AUD Regular price ~~$50.35 AUD~~ Sale price $41.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm	Base Height (E) 22.0 mm	Overall Height 92.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-070-TP Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $51.14 AUD Regular price ~~$61.36 AUD~~ Sale price $51.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 92.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-080M-070-TP Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $51.14 AUD Regular price ~~$61.36 AUD~~ Sale price $51.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-070-TP --- Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Sale MLM-080M-070-TP --- Levelling Studded Mounts - M8 - 8x1.25mm - 40x22 mm Standard - Steel Mount Regular price $51.14 AUD Regular price ~~$61.36 AUD~~ Sale price $51.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-045-TP-050 Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $46.50 AUD Regular price ~~$55.80 AUD~~ Sale price $46.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-045-TP-050 Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $46.50 AUD Regular price ~~$55.80 AUD~~ Sale price $46.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-045-TP-050 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Sale MLM-080M-045-TP-050 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Regular price $46.50 AUD Regular price ~~$55.80 AUD~~ Sale price $46.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-070-TP-050 Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.50 AUD Regular price ~~$69.00 AUD~~ Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-070-TP-050 Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $57.50 AUD Regular price ~~$69.00 AUD~~ Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-070-TP-050 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Sale MLM-080M-070-TP-050 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x27 mm Standard - Steel Mount Regular price $57.50 AUD Regular price ~~$69.00 AUD~~ Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-080M-045-TP-2LH Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-080M-045-TP-2LH Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-045-TP-2LH --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Sale MLM-080M-045-TP-2LH --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-045-TP-080 Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-080M-045-TP-080 Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-045-TP-080 --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Sale MLM-080M-045-TP-080 --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-080M-070-TP-2LH Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-080M-070-TP-2LH Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-070-TP-2LH --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Sale MLM-080M-070-TP-2LH --- Levelling Studded Mounts - M8 - 8x1.25mm - 80x27 mm Standard - Steel Mount Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 44.5 mm	Base Height (E) 13.0 mm	Overall Height 57.5 mm
Material: Steel Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-095C-045-TP-032 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 32x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 44.5 mm
Material: Steel Base Height (E): 13.0 mm Overall Height: 57.5 mm Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-095C-045-TP-032 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 32x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-045-TP-032 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 32x13 mm Standard - Steel Mount Sale MLM-095C-045-TP-032 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 32x13 mm Standard - Steel Mount Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 39.9 mm (Equiv. 1.571 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 44.5 mm	Base Height (E) 13.0 mm	Overall Height 57.5 mm
Material: Steel Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-095C-045-TP-040 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 39.9x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 39.9 mm (Equiv. 1.571 in.)	Foot Height (C) 13.0 mm (Equiv. 0.512 in.)	Thread Length (F) 44.5 mm
Material: Steel Base Height (E): 13.0 mm Overall Height: 57.5 mm Load Rating: 78 Kg Finish: Zinc Plated
Part Number: MLM-095C-045-TP-040 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 39.9x13 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-045-TP-040 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 39.9x13 mm Standard - Steel Mount Sale MLM-095C-045-TP-040 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 39.9x13 mm Standard - Steel Mount Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm	Base Height (E) 22.0 mm	Overall Height 67.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-100M-045-TP-032 Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 67.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-100M-045-TP-032 Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-045-TP-032 --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Sale MLM-100M-045-TP-032 --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm	Base Height (E) 22.0 mm	Overall Height 92.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-100M-070-TP Levelling Studded Mounts - M10 - 10x1.5mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $62.23 AUD Regular price ~~$74.67 AUD~~ Sale price $62.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.0 mm (Equiv. 1.575 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 22.0 mm Overall Height: 92.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 3.00 mm
Part Number: MLM-100M-070-TP Levelling Studded Mounts - M10 - 10x1.5mm - 40x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $62.23 AUD Regular price ~~$74.67 AUD~~ Sale price $62.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-070-TP --- Levelling Studded Mounts - M10 - 10x1.5mm - 40x22 mm Standard - Steel Mount Sale MLM-100M-070-TP --- Levelling Studded Mounts - M10 - 10x1.5mm - 40x22 mm Standard - Steel Mount Regular price $62.23 AUD Regular price ~~$74.67 AUD~~ Sale price $62.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-045-TP-050 Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-045-TP-050 Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-045-TP-050 --- Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Sale MLM-100M-045-TP-050 --- Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-070-TP-050 Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-070-TP-050 Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-070-TP-050 --- Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Sale MLM-100M-070-TP-050 --- Levelling Studded Mounts - M10 - 10x1.5mm - 50x27 mm Standard - Steel Mount Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-100M-045-TP-2LH Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-100M-045-TP-2LH Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-045-TP-2LH --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Sale MLM-100M-045-TP-2LH --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-045-TP-080 Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-100M-045-TP-080 Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-045-TP-080 --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Sale MLM-100M-045-TP-080 --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-100M-070-TP-2LH Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-100M-070-TP-2LH Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-070-TP-2LH --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Sale MLM-100M-070-TP-2LH --- Levelling Studded Mounts - M10 - 10x1.5mm - 80x27 mm Standard - Steel Mount Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-120M-045-TP Levelling Studded Mounts - M12 - 12x1.75mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.0 mm (Equiv. 1.969 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-120M-045-TP Levelling Studded Mounts - M12 - 12x1.75mm - 50x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-045-TP --- Levelling Studded Mounts - M12 - 12x1.75mm - 50x27 mm Standard - Steel Mount Sale MLM-120M-045-TP --- Levelling Studded Mounts - M12 - 12x1.75mm - 50x27 mm Standard - Steel Mount Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm	Base Height (E) 27.0 mm	Overall Height 72.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-120M-045-TP-2LH Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 45.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 72.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-120M-045-TP-2LH Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-045-TP-2LH --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Sale MLM-120M-045-TP-2LH --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Steel Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-120M-070-TP-080 Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $30.86 AUD Regular price ~~$37.04 AUD~~ Sale price $30.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Steel Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Finish: Zinc Plated Pad Thickness (G): 2.00 mm
Part Number: MLM-120M-070-TP-080 Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $30.86 AUD Regular price ~~$37.04 AUD~~ Sale price $30.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-070-TP-080 --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Sale MLM-120M-070-TP-080 --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Steel Mount Regular price $30.86 AUD Regular price ~~$37.04 AUD~~ Sale price $30.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm	Base Height (E) 27.0 mm	Overall Height 97.0 mm
Material: Thermoplastic Load Rating: 100 Kg Pad Thickness (G): 9.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-120M-070-TP-2LH Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Thermoplastic Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 80.0 mm (Equiv. 3.15 in.)	Foot Height (C) 27.0 mm (Equiv. 1.063 in.)	Thread Length (F) 70.0 mm
Material: Thermoplastic Base Height (E): 27.0 mm Overall Height: 97.0 mm Load Rating: 100 Kg Pad Thickness (G): 9.00 mm Information: With 2 Lag Holes in base
Part Number: MLM-120M-070-TP-2LH Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Thermoplastic Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-070-TP-2LH --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Thermoplastic Mount Sale MLM-120M-070-TP-2LH --- Levelling Studded Mounts - M12 - 12x1.75mm - 80x27 mm Standard - Thermoplastic Mount Regular price $28.86 AUD Regular price ~~$34.64 AUD~~ Sale price $28.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Mounts - Levelling Studded - Standard - Thermoplastic

Category Details

Filter

Filter

Subscribe to our emails
