Collection: Mounts - Levelling Studded - Standard - Plated

Mounts -> Levelling Studded -> Standard -> Plated

There are 25 products in the sub-categories of Mounts - Levelling Studded - Standard - Plated. Scroll down or follow the link to Mounts - Levelling Studded - Standard - Plated in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Plated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.

An expanded range may be available on special order. Please enquire.
Large diameter base for added support.
15^o off centre swivel for quick leveling on sloped surfaces.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Mounts - Levelling Studded - Standard - Plated category on the Small Parts & Bearings online store.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.78 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 9.525 mm

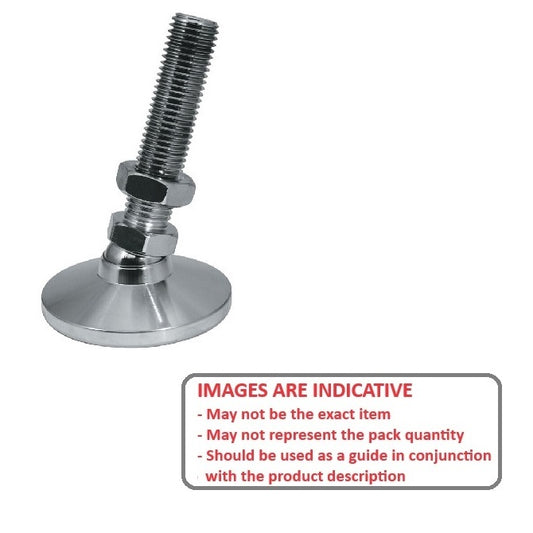

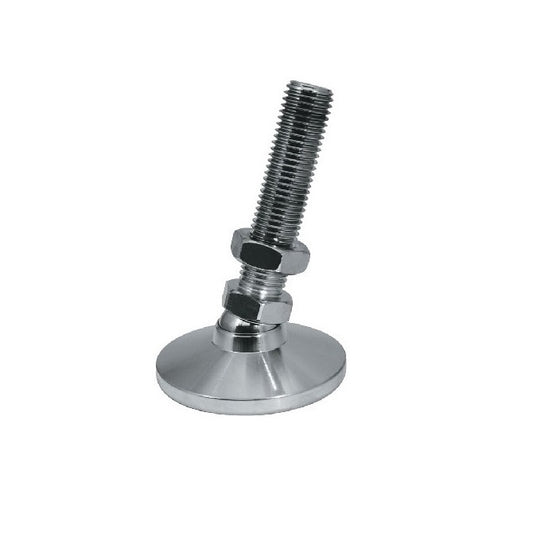

Part Number: MLM-048F-025-CNP Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 9.525 mm
Part Number: MLM-048F-025-CNP Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-025-CNP --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount MLM-048F-025-CNP --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm	Base Height (E) 2.78 mm	Overall Height 64.3 mm
Material: Steel Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-CNP Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 64.3 mm Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-CNP Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-051-CNP --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Sale MLM-048F-051-CNP --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.80 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-CNP Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.80 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Nickel Plated Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-CNP Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-060M-025-CNP --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Sale MLM-060M-025-CNP --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.97 mm	Overall Height 49.7 mm
Material: Steel Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-CNP Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 49.7 mm Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-CNP Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-032-CNP --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Sale MLM-064C-032-CNP --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm	Base Height (E) 3.97 mm	Overall Height 56.0 mm
Material: Steel Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-CNP Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 56.0 mm Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-CNP Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-038-CNP --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Sale MLM-064C-038-CNP --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.80 mm	Overall Height 49.6 mm
Material: Steel Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-CNP Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.80 mm Overall Height: 49.6 mm Load Rating: 500 Kg Finish: Nickel Plated Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-CNP Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-032-CNP --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Sale MLM-080M-032-CNP --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 50.00 mm	Base Height (E) 17.50 mm	Overall Height 76.5 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Hex Flats (B): 13.00 mm

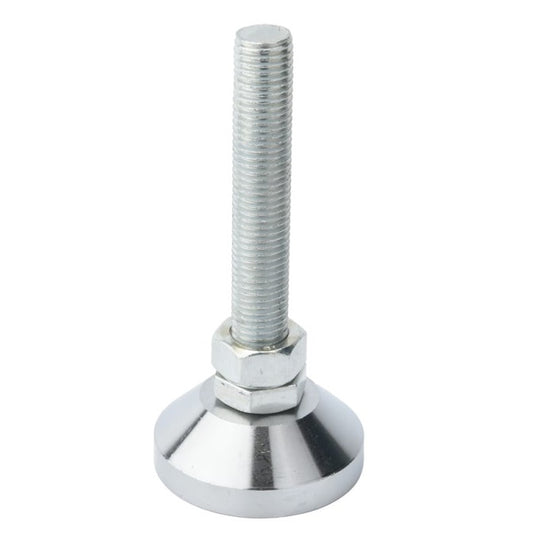

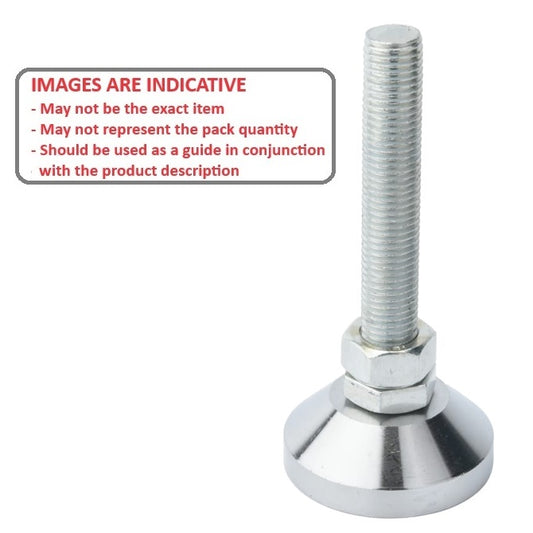

Part Number: MLM-080M-050-CZRP (4 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 50.00 mm
Material: Steel Base Height (E): 17.50 mm Overall Height: 76.5 mm Load Rating: 400 Kg Finish: Zinc Plated Hex Flats (B): 13.00 mm
Part Number: MLM-080M-050-CZRP (4 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-050-CZRP (4 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Sale MLM-080M-050-CZRP (4 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Regular price $26.05 AUD Regular price ~~$31.25 AUD~~ Sale price $26.05 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 80.00 mm	Base Height (E) 17.50 mm	Overall Height 106.5 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Hex Flats (B): 13.00 mm
Part Number: MLM-080M-080-CZRP Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.50 mm Overall Height: 106.5 mm Load Rating: 400 Kg Finish: Zinc Plated Hex Flats (B): 13.00 mm
Part Number: MLM-080M-080-CZRP Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-080-CZRP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Sale MLM-080M-080-CZRP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Steel Mount Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm	Base Height (E) 4.76 mm	Overall Height 123.8 mm
Material: Steel Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-CNP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $30.32 AUD Regular price ~~$36.38 AUD~~ Sale price $30.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 123.8 mm Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-CNP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $30.32 AUD Regular price ~~$36.38 AUD~~ Sale price $30.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-102-CNP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Sale MLM-095C-102-CNP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Regular price $30.32 AUD Regular price ~~$36.38 AUD~~ Sale price $30.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CNP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CNP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-051-CNP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Sale MLM-095C-051-CNP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Regular price $28.95 AUD Regular price ~~$34.75 AUD~~ Sale price $28.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm	Base Height (E) 5.00 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-CNP Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $44.68 AUD Regular price ~~$53.62 AUD~~ Sale price $44.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 5.00 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Nickel Plated Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-CNP Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $44.68 AUD Regular price ~~$53.62 AUD~~ Sale price $44.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-051-CNP --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Sale MLM-100M-051-CNP --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Regular price $44.68 AUD Regular price ~~$53.62 AUD~~ Sale price $44.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 100.00 mm	Base Height (E) 19.00 mm	Overall Height 128.0 mm
Material: Steel Load Rating: 500 Kg Finish: Zinc Plated Hex Flats (B): 17.00 mm
Part Number: MLM-100M-100-CZRP Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $7.50 AUD Regular price ~~$9.00 AUD~~ Sale price $7.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 19.00 mm Overall Height: 128.0 mm Load Rating: 500 Kg Finish: Zinc Plated Hex Flats (B): 17.00 mm
Part Number: MLM-100M-100-CZRP Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $7.50 AUD Regular price ~~$9.00 AUD~~ Sale price $7.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-100-CZRP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Steel Mount Sale MLM-100M-100-CZRP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Steel Mount Regular price $7.50 AUD Regular price ~~$9.00 AUD~~ Sale price $7.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm	Base Height (E) 6.00 mm	Overall Height 80.0 mm
Material: Steel Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-CNP Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 6.00 mm Overall Height: 80.0 mm Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-CNP Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-051-CNP --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Sale MLM-120M-051-CNP --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 150.00 mm	Base Height (E) 20.00 mm	Overall Height 179.0 mm
Material: Steel Load Rating: 600 Kg Finish: Zinc Plated Hex Flats (B): 19.00 mm
Part Number: MLM-120M-150-CZRP Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 150.00 mm
Material: Steel Base Height (E): 20.00 mm Overall Height: 179.0 mm Load Rating: 600 Kg Finish: Zinc Plated Hex Flats (B): 19.00 mm
Part Number: MLM-120M-150-CZRP Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 11, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-150-CZRP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Steel Mount Sale MLM-120M-150-CZRP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Steel Mount Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm	Base Height (E) 6.35 mm	Overall Height 130.2 mm
Material: Steel Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-CNP Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $51.59 AUD Regular price ~~$61.91 AUD~~ Sale price $51.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 130.2 mm Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-CNP Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $51.59 AUD Regular price ~~$61.91 AUD~~ Sale price $51.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-102-CNP --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Sale MLM-127C-102-CNP --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Regular price $51.59 AUD Regular price ~~$61.91 AUD~~ Sale price $51.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Steel Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.05 mm
Part Number: MLM-127C-051-CNP Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $45.41 AUD Regular price ~~$54.49 AUD~~ Sale price $45.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Finish: Nickel Plated Hex Flats (B): 19.05 mm
Part Number: MLM-127C-051-CNP Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $45.41 AUD Regular price ~~$54.49 AUD~~ Sale price $45.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-051-CNP --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Sale MLM-127C-051-CNP --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Regular price $45.41 AUD Regular price ~~$54.49 AUD~~ Sale price $45.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-CNP Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $85.32 AUD Regular price ~~$102.38 AUD~~ Sale price $85.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 133.4 mm Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-CNP Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $85.32 AUD Regular price ~~$102.38 AUD~~ Sale price $85.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-102-CNP --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Sale MLM-159C-102-CNP --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Regular price $85.32 AUD Regular price ~~$102.38 AUD~~ Sale price $85.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CNP Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $60.77 AUD Regular price ~~$72.93 AUD~~ Sale price $60.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CNP Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $60.77 AUD Regular price ~~$72.93 AUD~~ Sale price $60.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-051-CNP --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Sale MLM-159C-051-CNP --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Regular price $60.77 AUD Regular price ~~$72.93 AUD~~ Sale price $60.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm	Base Height (E) 8.00 mm	Overall Height 83.0 mm
Material: Steel Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 24.00 mm
Part Number: MLM-160M-051-CNP Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $72.41 AUD Regular price ~~$86.89 AUD~~ Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 8.00 mm Overall Height: 83.0 mm Load Rating: 2720 Kg Finish: Nickel Plated Hex Flats (B): 24.00 mm
Part Number: MLM-160M-051-CNP Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $72.41 AUD Regular price ~~$86.89 AUD~~ Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-160M-051-CNP --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Sale MLM-160M-051-CNP --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Regular price $72.41 AUD Regular price ~~$86.89 AUD~~ Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm	Base Height (E) 12.70 mm	Overall Height 139.7 mm
Material: Steel Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 26.988 mm
Part Number: MLM-191C-102-CNP Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $128.05 AUD Regular price ~~$153.65 AUD~~ Sale price $128.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 139.7 mm Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 26.988 mm
Part Number: MLM-191C-102-CNP Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $128.05 AUD Regular price ~~$153.65 AUD~~ Sale price $128.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-191C-102-CNP --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Sale MLM-191C-102-CNP --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Regular price $128.05 AUD Regular price ~~$153.65 AUD~~ Sale price $128.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm	Base Height (E) 12.70 mm	Overall Height 88.9 mm
Material: Steel Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 26.988 mm
Part Number: MLM-191C-051-CNP Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $120.23 AUD Regular price ~~$144.27 AUD~~ Sale price $120.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 88.9 mm Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 26.988 mm
Part Number: MLM-191C-051-CNP Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $120.23 AUD Regular price ~~$144.27 AUD~~ Sale price $120.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-191C-051-CNP --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Sale MLM-191C-051-CNP --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Regular price $120.23 AUD Regular price ~~$144.27 AUD~~ Sale price $120.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm	Base Height (E) 13.00 mm	Overall Height 89.0 mm
Material: Steel Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 30.00 mm
Part Number: MLM-200M-051-CNP Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $122.32 AUD Regular price ~~$146.78 AUD~~ Sale price $122.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 13.00 mm Overall Height: 89.0 mm Load Rating: 3270 Kg Finish: Nickel Plated Hex Flats (B): 30.00 mm
Part Number: MLM-200M-051-CNP Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $122.32 AUD Regular price ~~$146.78 AUD~~ Sale price $122.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-200M-051-CNP --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Sale MLM-200M-051-CNP --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Regular price $122.32 AUD Regular price ~~$146.78 AUD~~ Sale price $122.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm (Equiv. 4.016 in.)	Foot Height (C) 48.0 mm (Equiv. 1.89 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.00 mm	Overall Height 156.0 mm
Material: Steel Load Rating: 9980 Kg Finish: Nickel Plated Hex Flats (B): 36.00 mm
Part Number: MLM-240M-108-CNP Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $251.05 AUD Regular price ~~$301.25 AUD~~ Sale price $251.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm (Equiv. 4.016 in.)	Foot Height (C) 48.0 mm (Equiv. 1.89 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.00 mm Overall Height: 156.0 mm Load Rating: 9980 Kg Finish: Nickel Plated Hex Flats (B): 36.00 mm
Part Number: MLM-240M-108-CNP Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $251.05 AUD Regular price ~~$301.25 AUD~~ Sale price $251.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-240M-108-CNP --- Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Sale MLM-240M-108-CNP --- Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Regular price $251.05 AUD Regular price ~~$301.25 AUD~~ Sale price $251.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.32 mm	Overall Height 155.6 mm
Material: Steel Load Rating: 9980 Kg Finish: Nickel Plated Hex Flats (B): 34.925 mm
Part Number: MLM-254C-108-CNP Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $248.86 AUD Regular price ~~$298.64 AUD~~ Sale price $248.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 155.6 mm Load Rating: 9980 Kg Finish: Nickel Plated Hex Flats (B): 34.925 mm
Part Number: MLM-254C-108-CNP Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $248.86 AUD Regular price ~~$298.64 AUD~~ Sale price $248.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-254C-108-CNP --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Sale MLM-254C-108-CNP --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Regular price $248.86 AUD Regular price ~~$298.64 AUD~~ Sale price $248.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Mounts - Levelling Studded - Standard - Plated

Category Details

Filter

Filter

Subscribe to our emails
